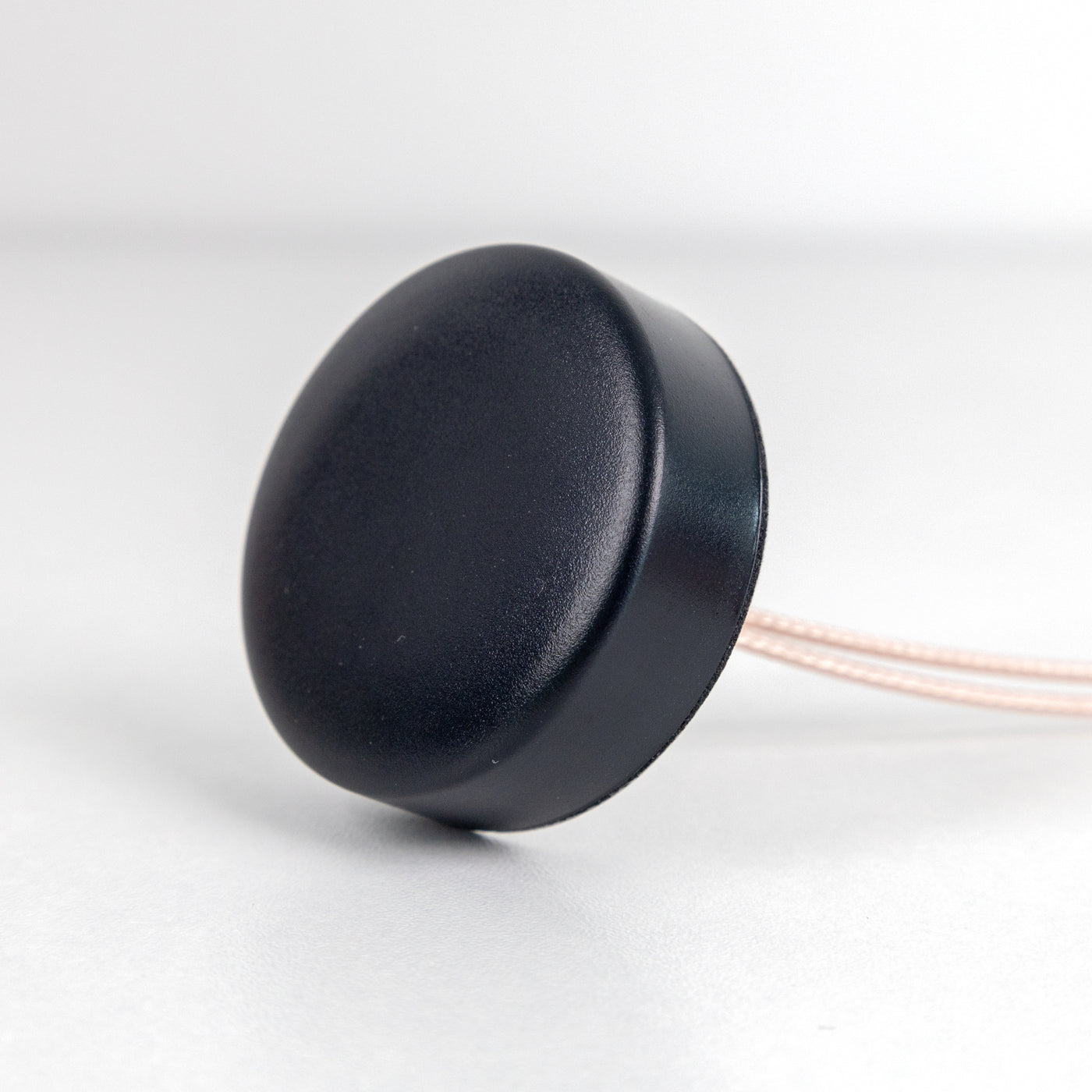

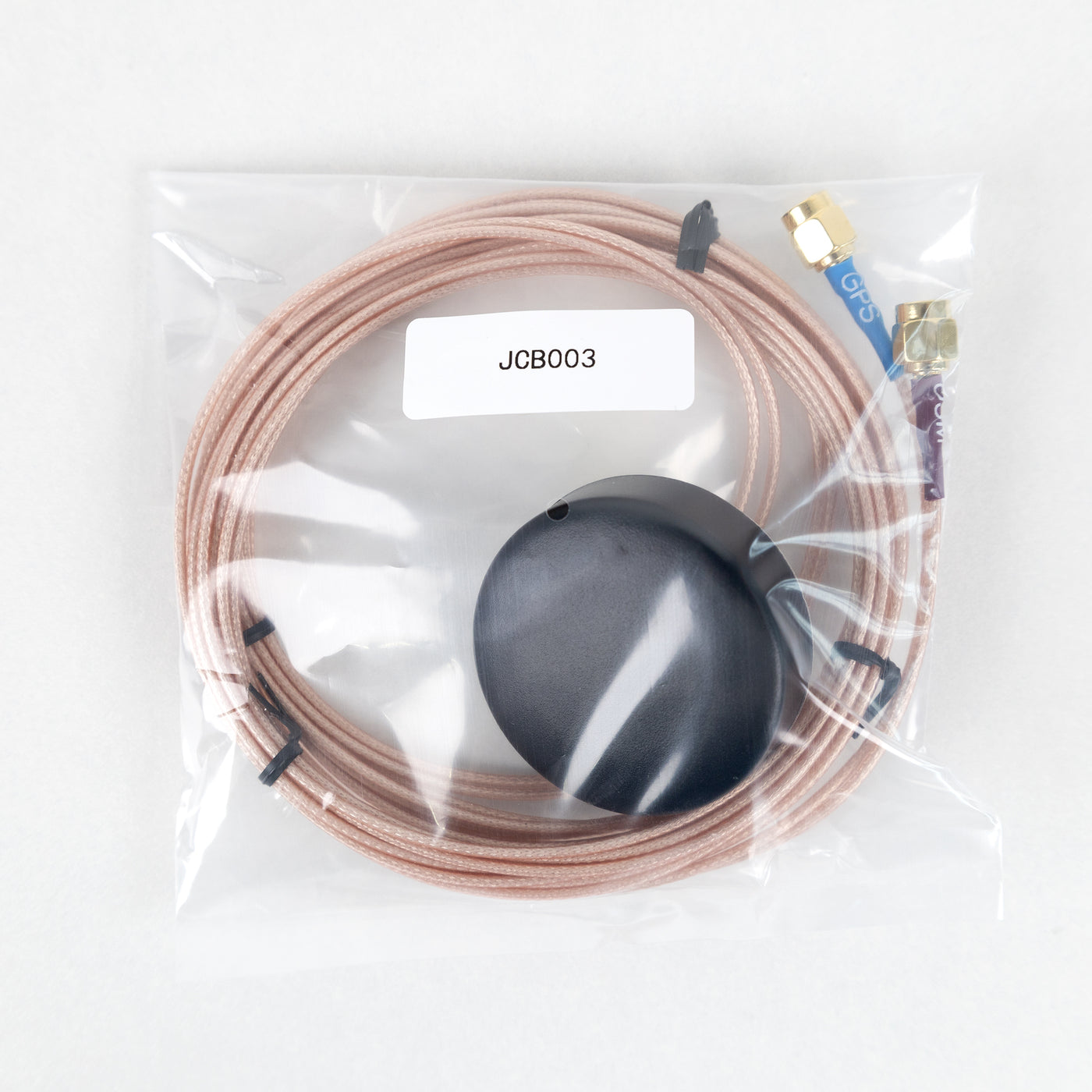

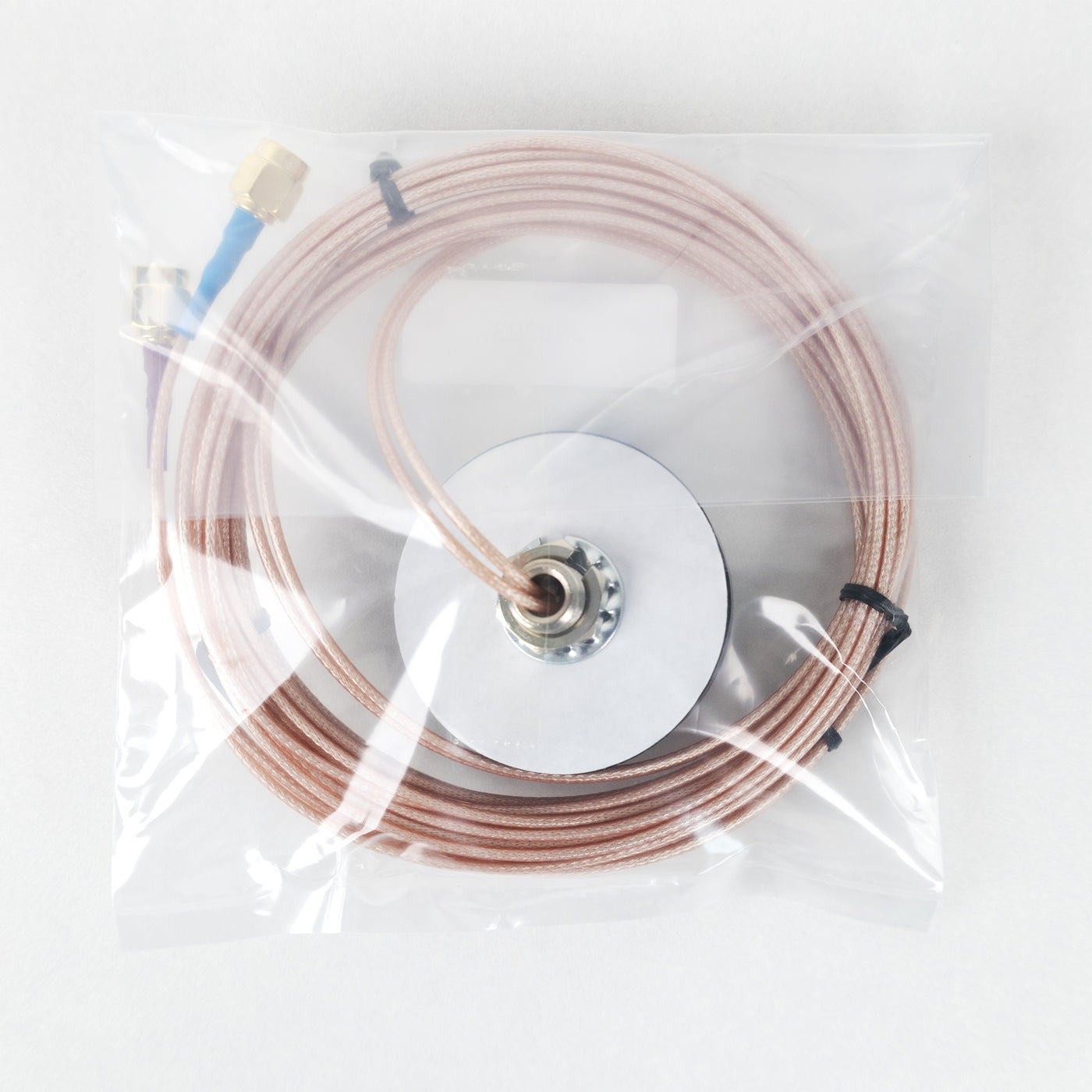

JCB003 GPS+GSM Combination Antenna

SKU: ELC8921

₹ 1,049.99 ~~₹ 1,249.99~~

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

JCB003 GPS+GSM Combination Antenna₹ 1,049.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

Features

GPS Antenna

Center Frequency: 1575.42±1MHz
Band Width: CF±3MHz
Polarization: RHCP
Gain: 0dBic（Zenith）
V.S.W.R: ＜1.5
Impendance: 50Ω
Axial Ratio: 3dB

GSM Antenna

Frequency Range: 824~960MHz/1710~2170MHz
V.S.W.R（min）: ＜2.5
Polarization: Linear
Gain: 2dBi（Zenith）
Impendance: 50Ω

Specifications:

Item			Specifications
GPS Antenna	Dielectric Antenna	Center Frequency	1575.42±3MHz
		Band Width	CF±4MHz
		Polarization	RHCP
		Gain	0dBic（Zenith）
		V.S.W.R	＜1.5
		Impedance	50Ω
	LNA	Gain	20±2dB
		Noise Figure	＜1.5dB
		V.S.W.R	＜2.0
		Supply Voltage	3V DC
		Current Consumption	＜10mA
GSM Antenna		Frequency Range	824~960MHz/1710~2170MHz
		V.S.W.R（min）	＜2.5
		Polarization	Linear
		Gain	2dBi（Zenith）
		Impedance	50Ω

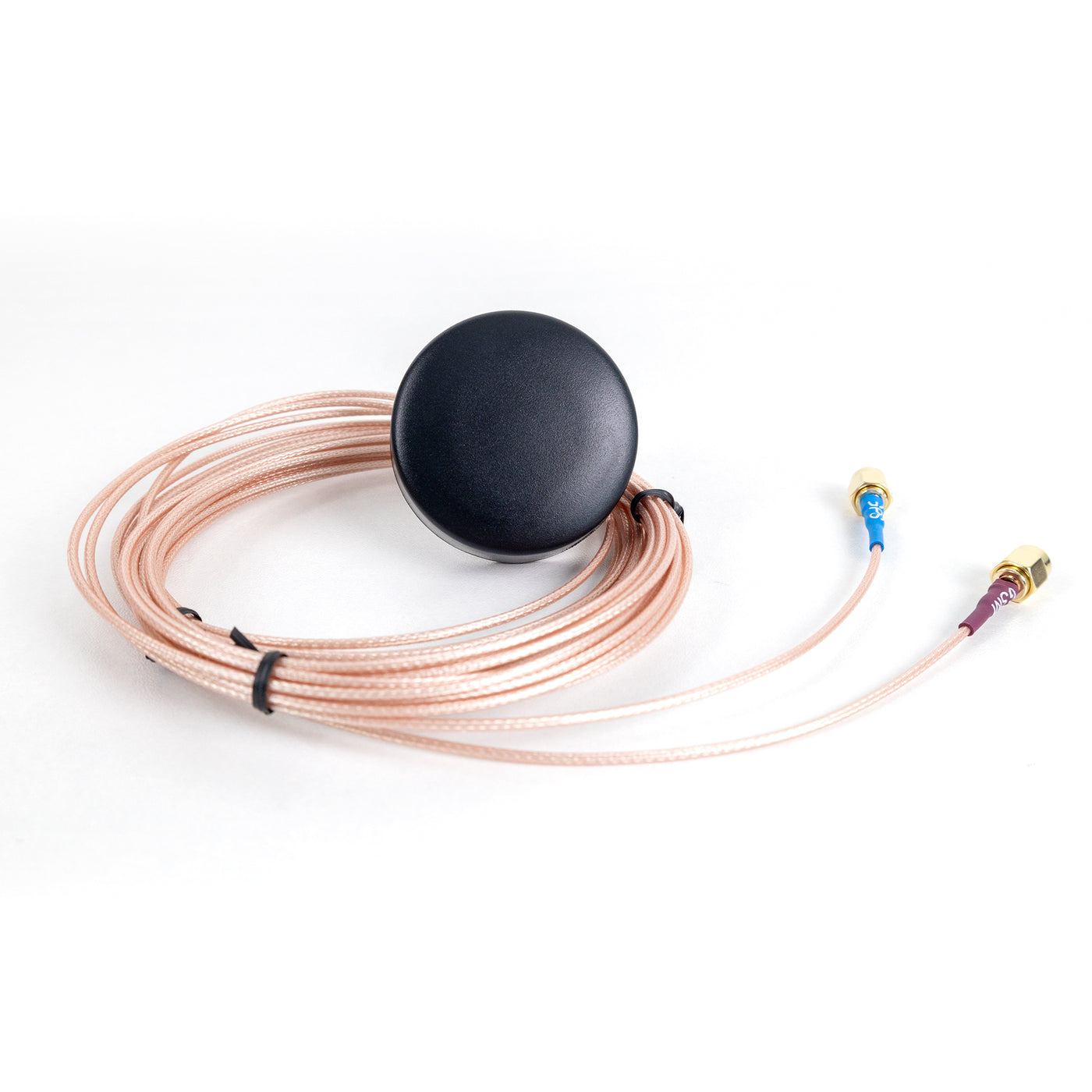

Mechanical		Cable	RG178

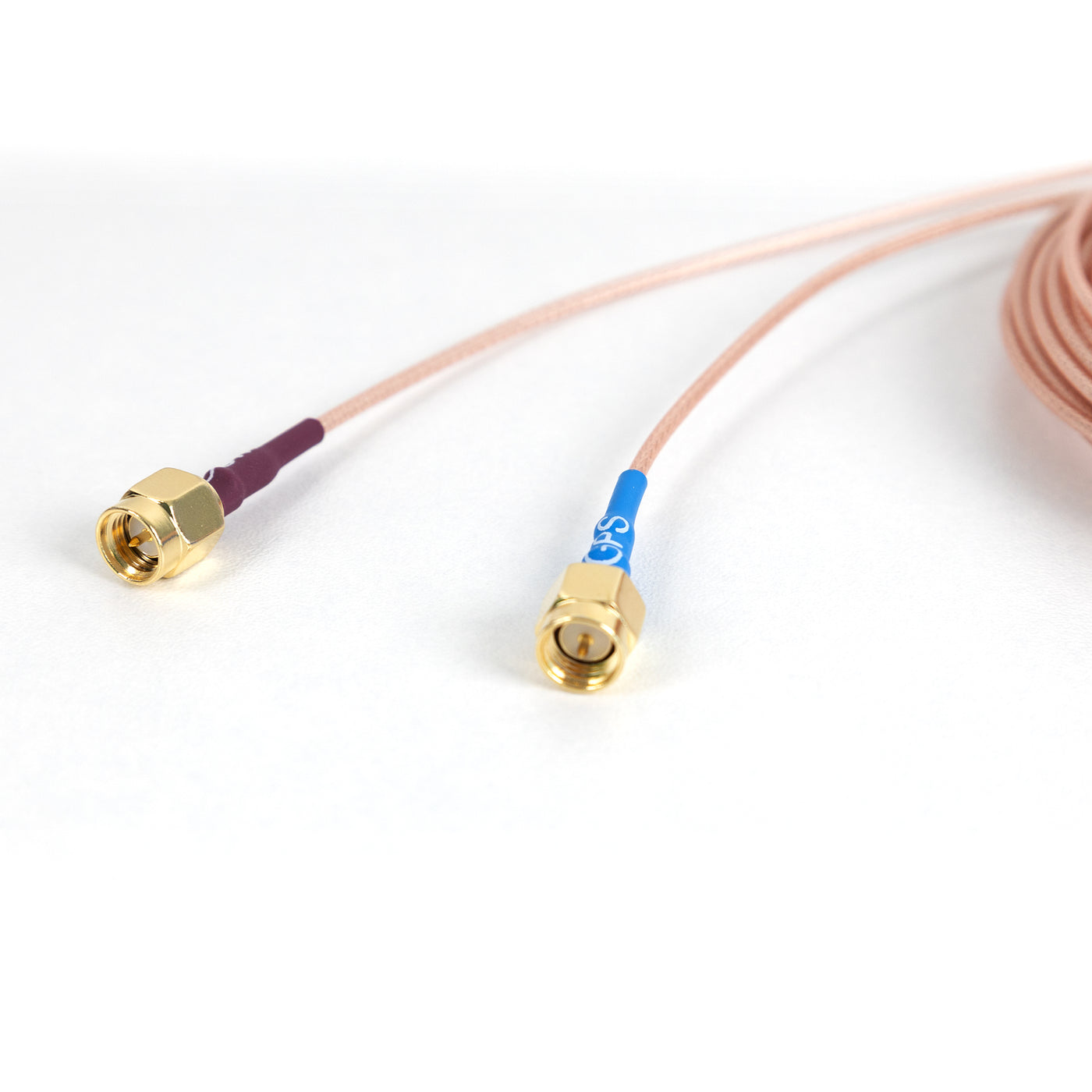

		Connector	IPEX or others
		Radome Material	ABS

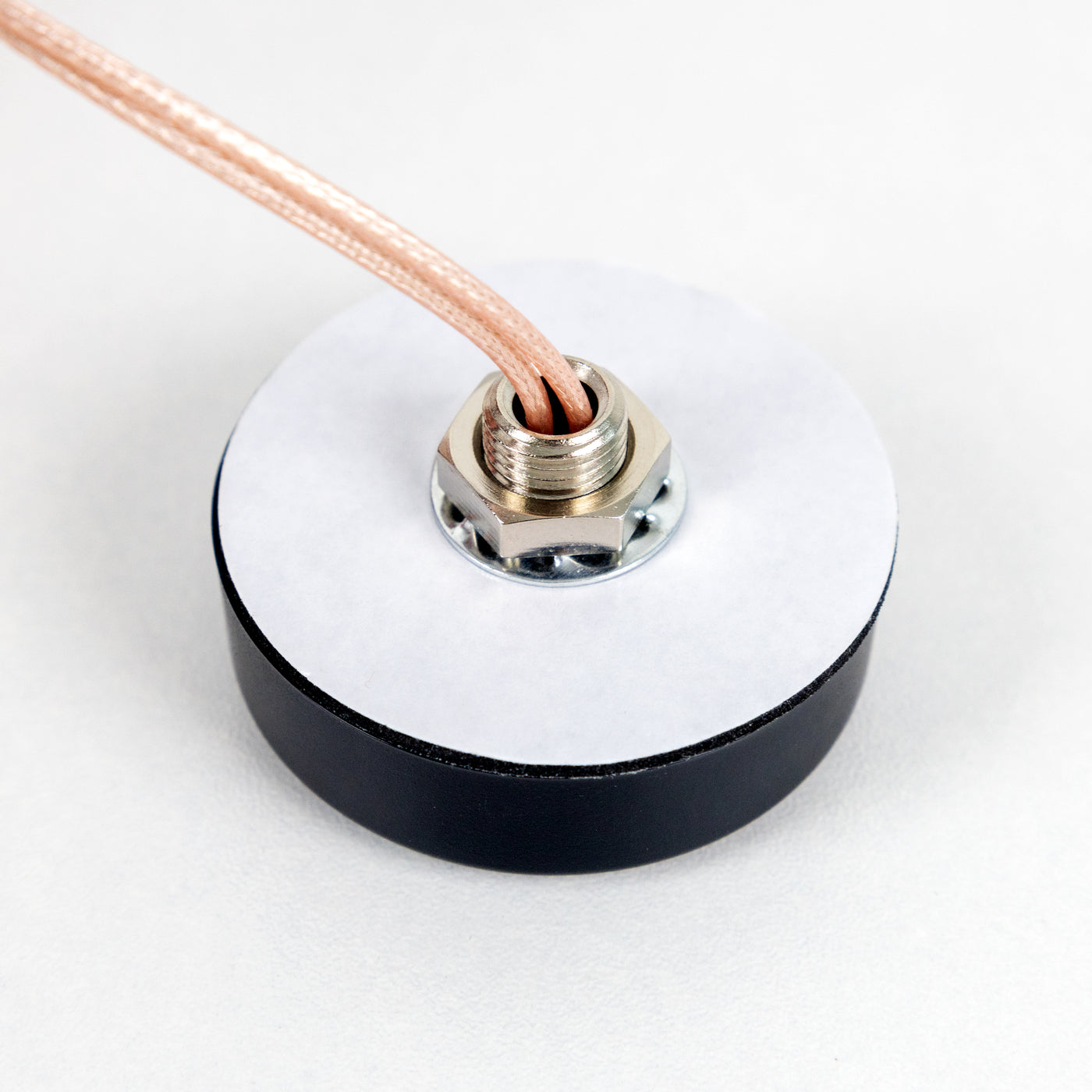

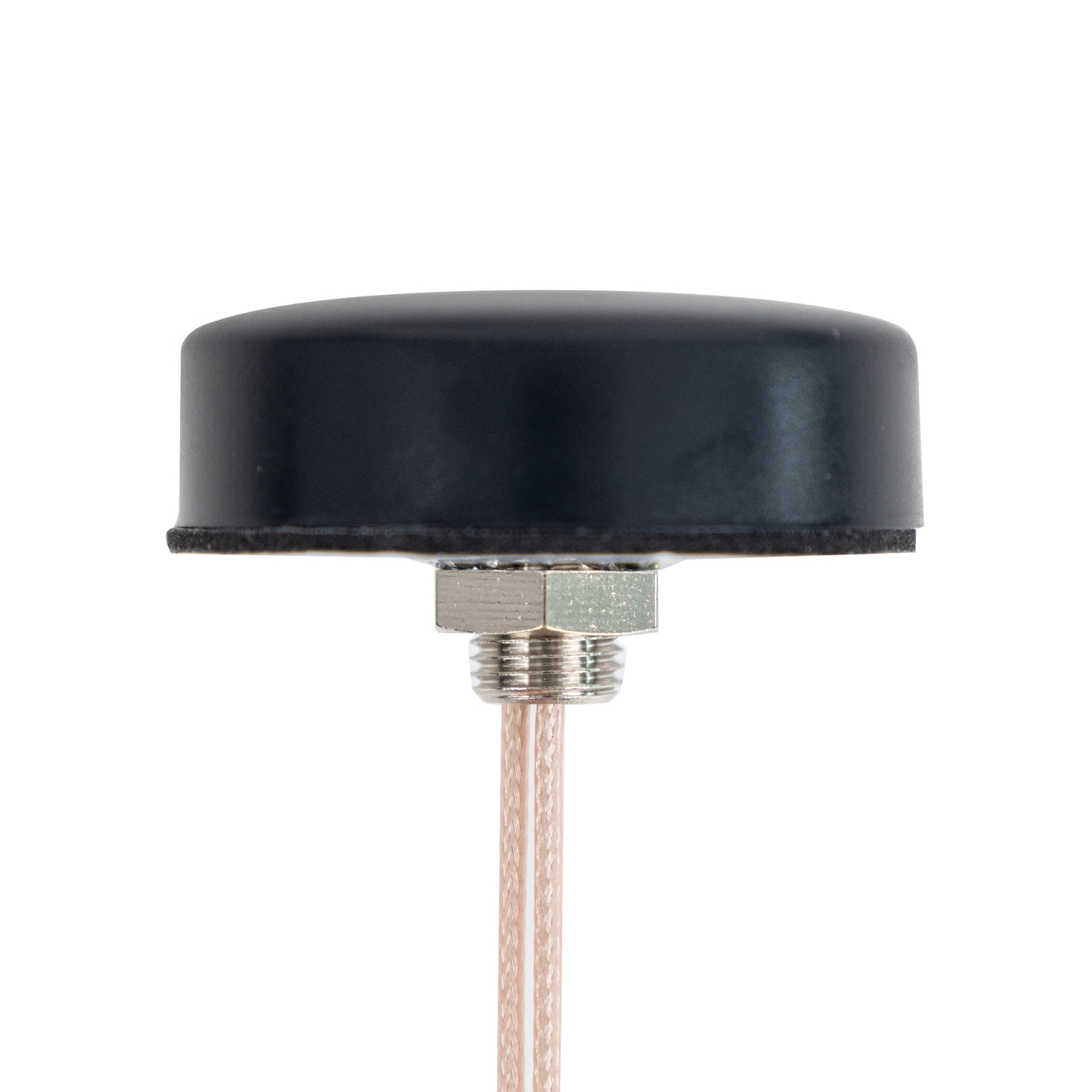

		Mounting Method	Screw
Environmental		Operating Temperature	-40℃~+85℃
		Relative Humidity	Up to 95%
		Ingress Protection	IP65~IP67 (exclude cable outlet)
		Vibration	10 to 55Hz with 1.5mm amplitude 2hours
		Environmentally Friendly	ROHS Compliant

What are the frequency bands and polarizations for the GPS and GSM parts?

GPS part centers at 1575.42 MHz with RHCP, impedance 50 Ohm, V.S.W.R < 1.5, and gain 0 dBi (zenith). GSM part covers 824-960 MHz and 1710-2170 MHz with linear polarization, impedance 50 Ohm, and gain 2 dBi (zenith).

How is the antenna mounted and what cable and connector options are available?

Mounting is by screw, with RG178 cable and connector options including IPEX or other types.

What are the environmental conditions for operation and durability?

Operating temperature range is -40 C to 85 C, relative humidity up to 95 percent, and the housing is IP65 to IP67 rated excluding the cable outlet, with vibration tests from 10 to 55 Hz.

What are the GPS LNA specifications and power requirements?

GPS LNA provides 20 plus or minus 2 dB gain, noise figure less than 1.5 dB, supply voltage 3 V DC, and current consumption under 10 mA. V.S.W.R for GPS path is less than 2.0.

Is the antenna compatible with standard 50 ohm systems and what is the impedance?

Yes, both GPS and GSM sections use 50 Ohm impedance, making it compatible with 50 ohm systems.
