JCB305L ACTIVE GPS+LTE COMBINATION ANTENNA

SKU: ELC8925

₹ 899.99 ~~₹ 1,249.99~~

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

JCB305L ACTIVE GPS+LTE COMBINATION ANTENNA₹ 899.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

JCB305L Active GPS and LTE combined antenna simplifies your AVL application with a work voltage from 2.2 to 5.0 V, max current 15mA, cable length up to 5m. Different connector types and cable length are available according to users' specifications.

Specifications:

Item			Specifications
GPS Antenna	Dielectric Antenna	Frequency Range	1575.42±3MHz
		Polarization	RHCP
		Gain	2dBic（Zenith）
		V.S.W.R	＜1.5
		Impedance	50Ω
	LNA	Gain	28±2dB
		Noise Figure	＜1.5dB
		V.S.W.R	＜2.0
		Supply Voltage	3~5V DC
		Current Consumption	＜15mA
LTE Antenna MAIN		Frequency Range	698~960MHz/1710~2690MHz
		V.S.W.R	＜3.0
		Polarization	Linear
		Gain	2.5dBi（Zenith）
		Impedance	50Ω
LTE Antenna AUX		Frequency Range	698~960MHz/1710~2690MHz
		V.S.W.R	＜3.0
		Polarization	Linear
		Gain	2.0dBi（Zenith）
		Impedance	50Ω
Mechanical		Cable	RG174
		Connector	SMA/FAKRA or others
		Material	ABS

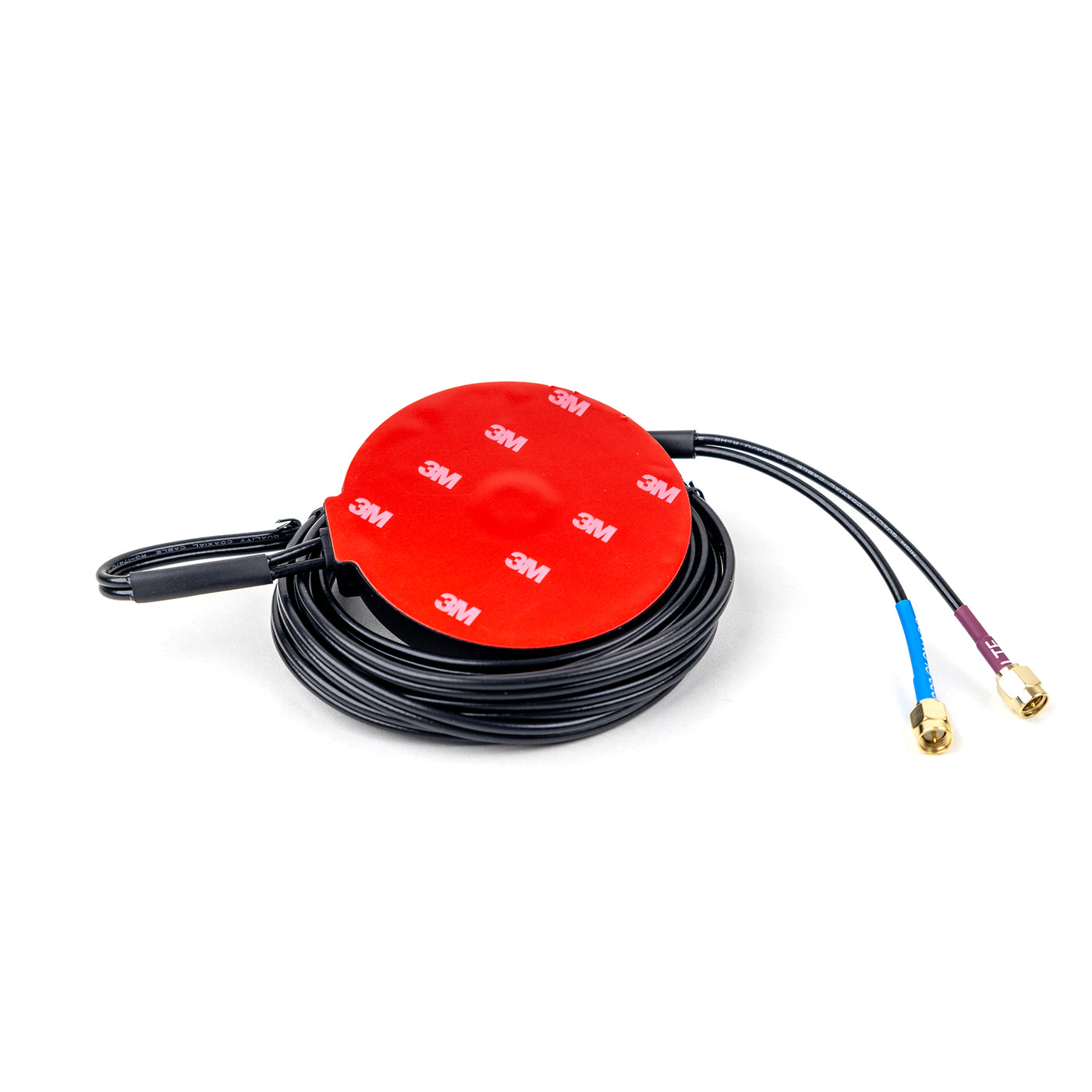

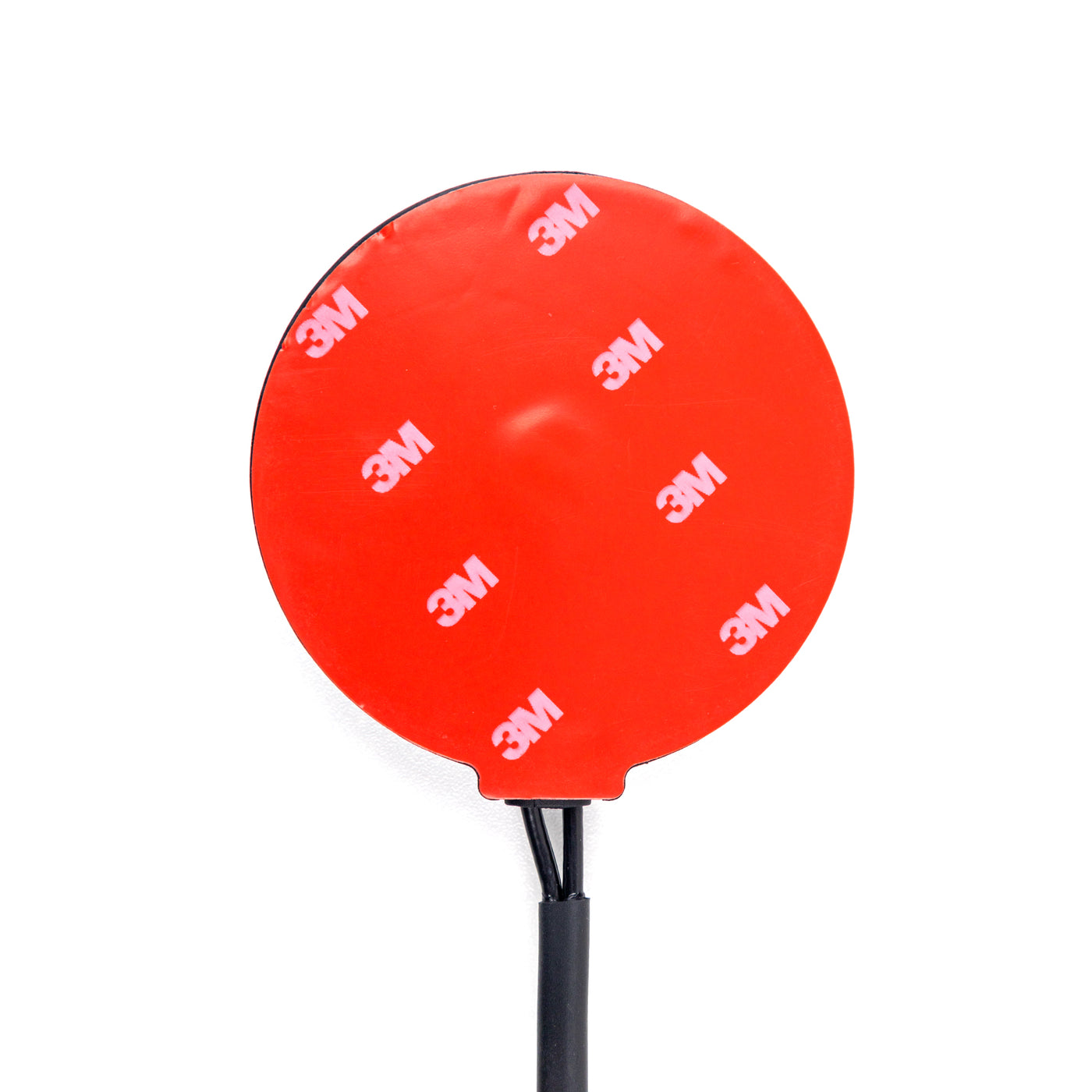

		Mounting Method	Adhesive/Magnet
Environmental		Operating Temperature	-40℃~+85℃
		Relative Humidity	Up to 95%
		Ingress Protection	IP67
		Vibration	10 to 55Hz with 1.5mm amplitude 2hours
		Environmentally Friendly	ROHS Compliant

What is the JCB305L antenna designed for?

It is a combined GPS and LTE antenna for AVL applications, providing GPS reception and LTE connectivity in one unit.

What are the electrical requirements for operation?

It operates with a supply voltage from 2.2 to 5.0 V and draws up to 15 mA of current.

What frequency ranges and impedance does it support?

GPS operates at 1575.42 plus minus 3 MHz with 50 ohm impedance, and LTE bands cover 698 to 960 MHz and 1710 to 2690 MHz with 50 ohm impedance.

What mounting and environmental features does it have?

It supports adhesive or magnet mounting, is IP67 rated, operates from minus 40 C to plus 85 C, and tolerates humidity up to ninety five percent.

What customization options and connectors are available?

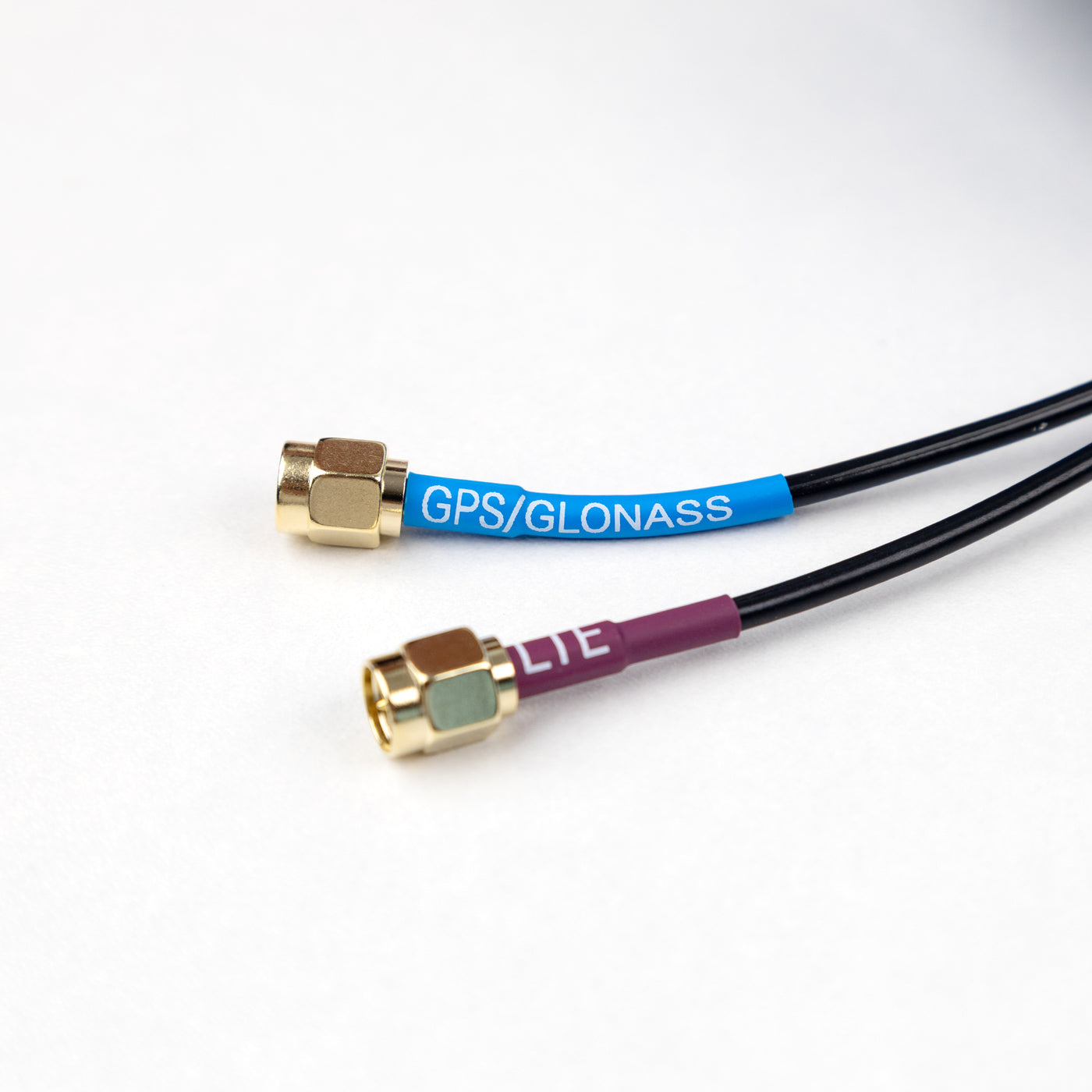

The unit uses RG174 cable with SMA or FAKRA connectors or other types, and provides options for different cable lengths and connectors according to user specifications.
