JC Antenna

JCG913L LTE Antenna

SKU: ELC8913

₹ 1,299.99

In stock | Ready to ship

Chat with us on WhatsApp We reply quickly! Contact Us

JCG913L LTE Antenna₹ 1,299.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

JCG913L supports communication system frequency bands: 2G/3G/4G, with good electrical performance and radiation performance; Made of ABS/PC material and stable structural design, it has good reliability.

Specifications

Item		Specifications
Antenna	Frequency Range	698~960MHz/1.71~2.7GHz
	Polarization	Linear
	Gain	5dBi
	V.S.W.R	＜2.0
	Impendance	50Ω
	Connector	SMA Male
Environmental	Operating Temperature	-10℃~+60℃
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant

What frequency bands does the JCG913L LTE Antenna support?

It covers 698-960 MHz and 1710-2700 MHz, suitable for 2G/3G/4G communications.

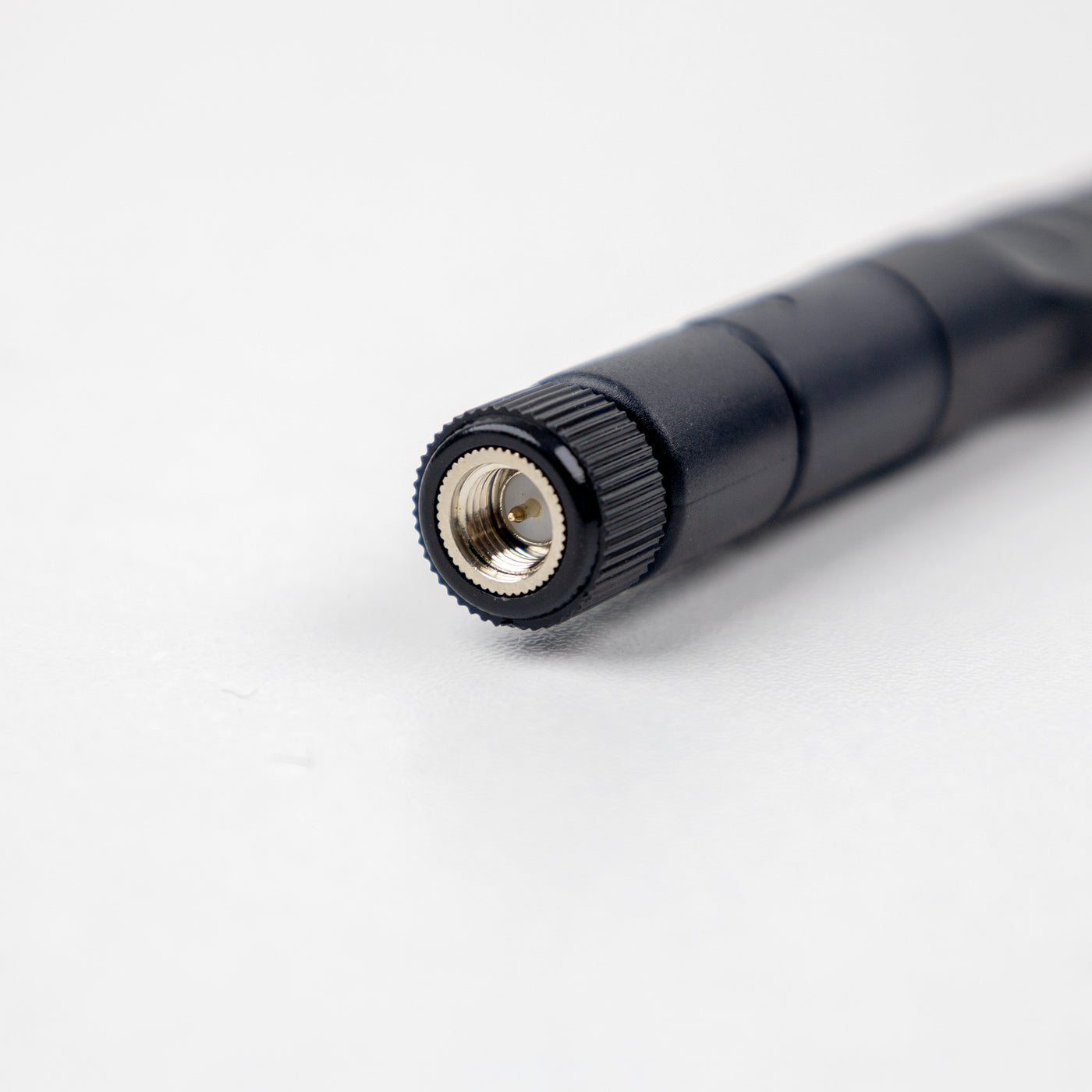

What is the connector type and impedance?

The antenna uses a SMA Male connector and has a 50 ohm impedance.

What are the gain and impedance matching specifications?

The antenna provides a gain of 5 dBi and a VSWR of less than 2.0.

What are the material and environmental specifications?

It is built from ABS and PC with a stable structure, operates from -10 C to +60 C, and is RoHS compliant.

Is warranty information available for this antenna?

Warranty details are not provided in the product information; please contact the seller or JC Antenna for warranty and support options.

A

Admin

Welcome to the discussion thread for JCG913L LTE Antenna
Feel free to ask questions, share tips or report issues.
