JC Antenna

JCW069 Wifi Antenna

SKU: ELC8919

₹ 199.99 ~~₹ 249.99~~

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

JCW069 Wifi Antenna₹ 199.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

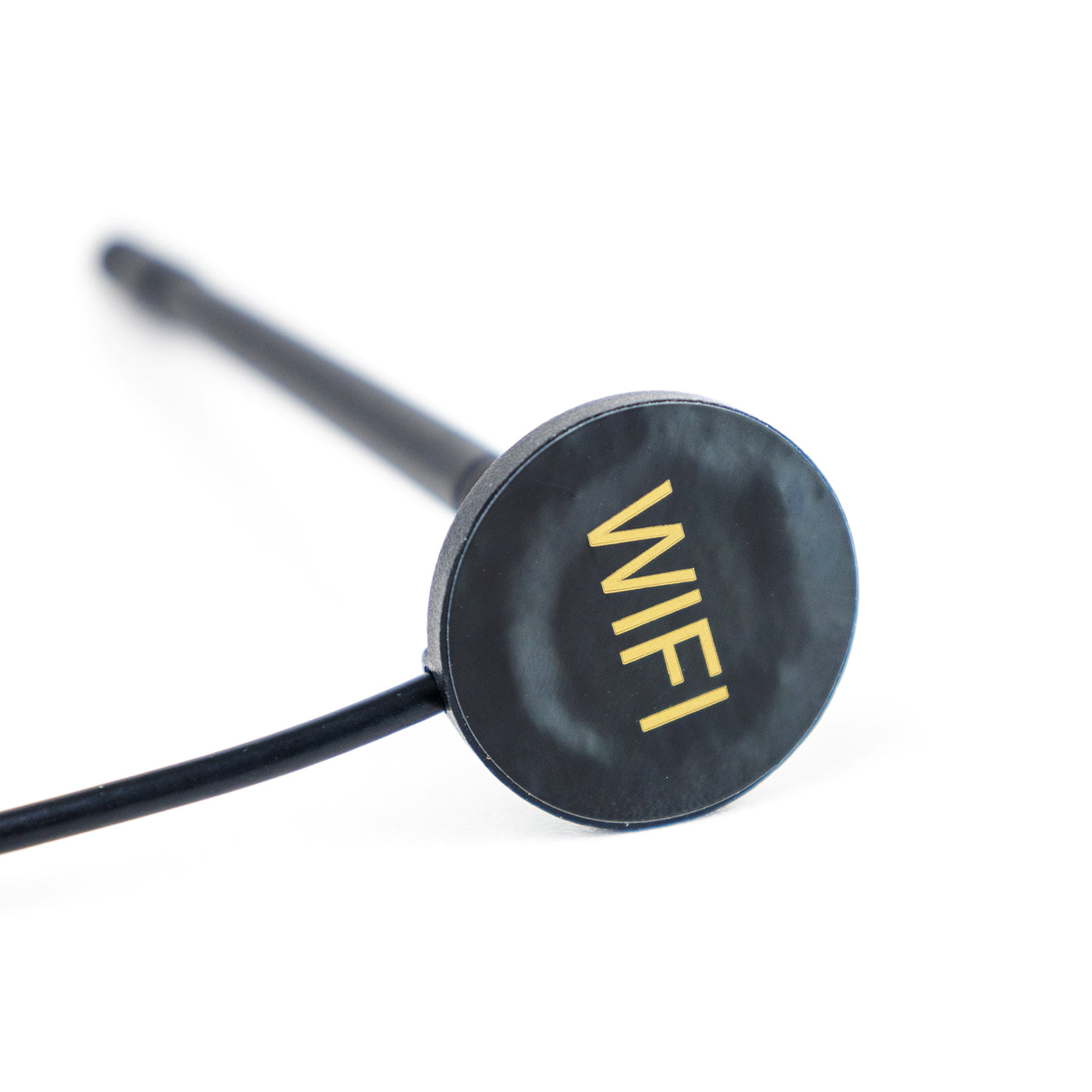

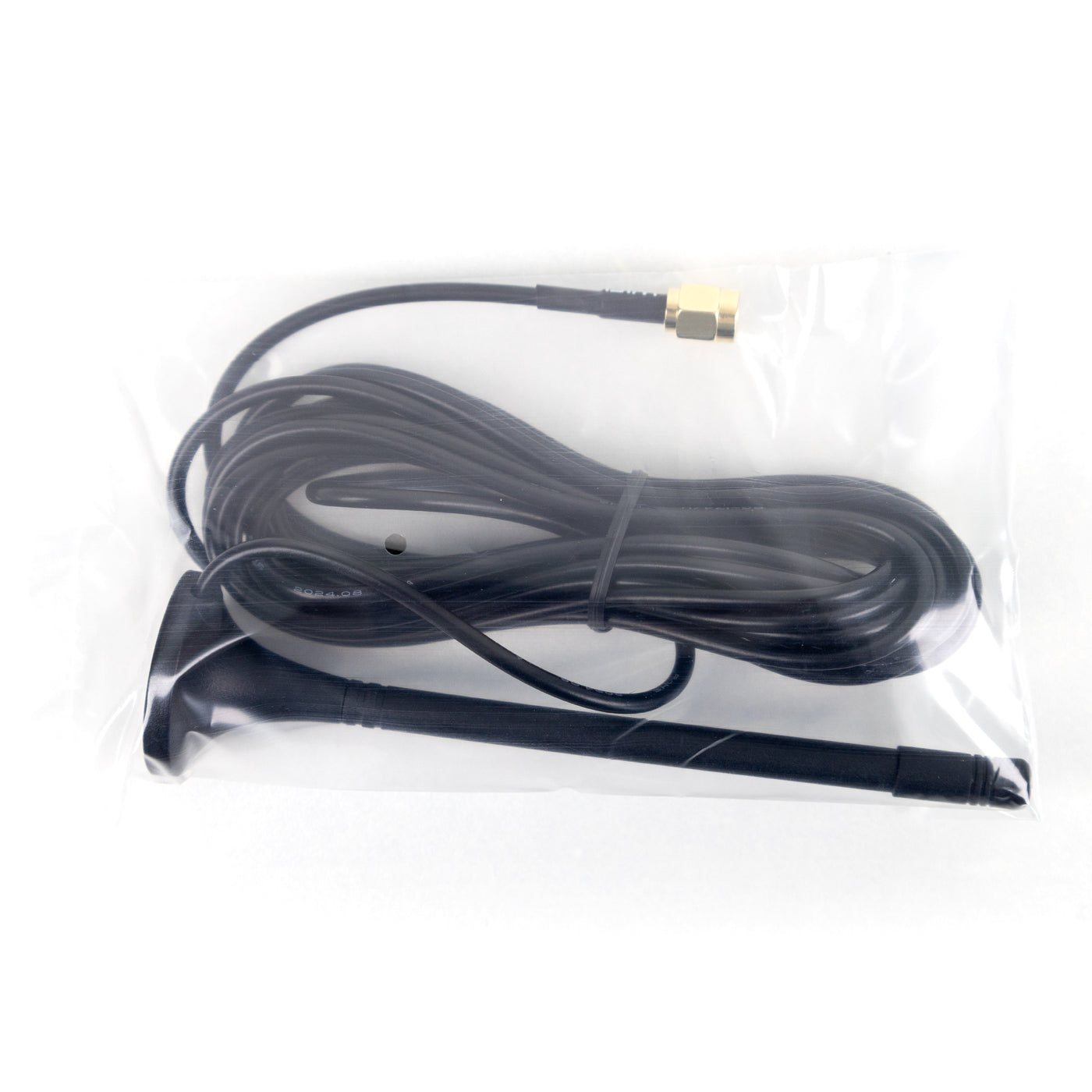

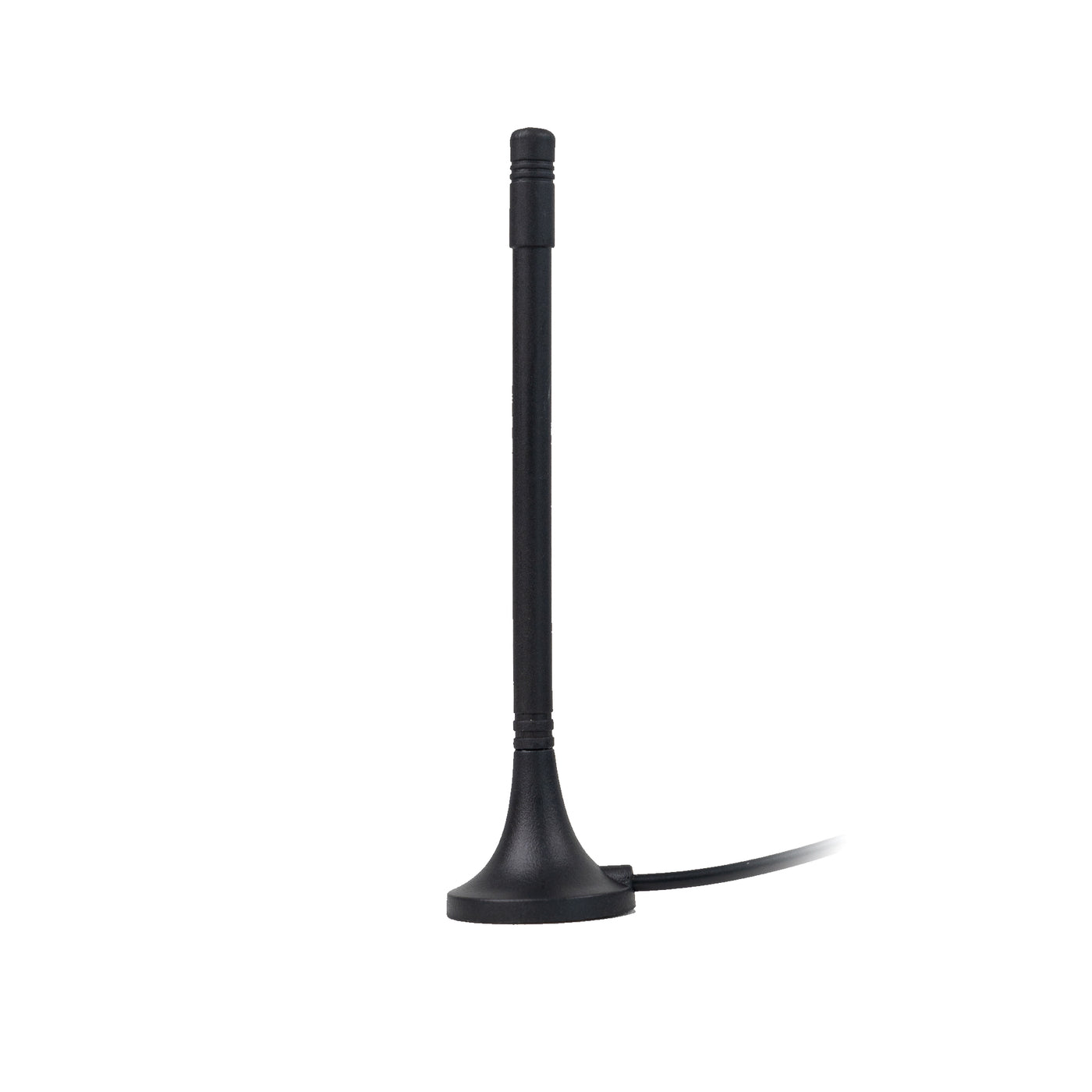

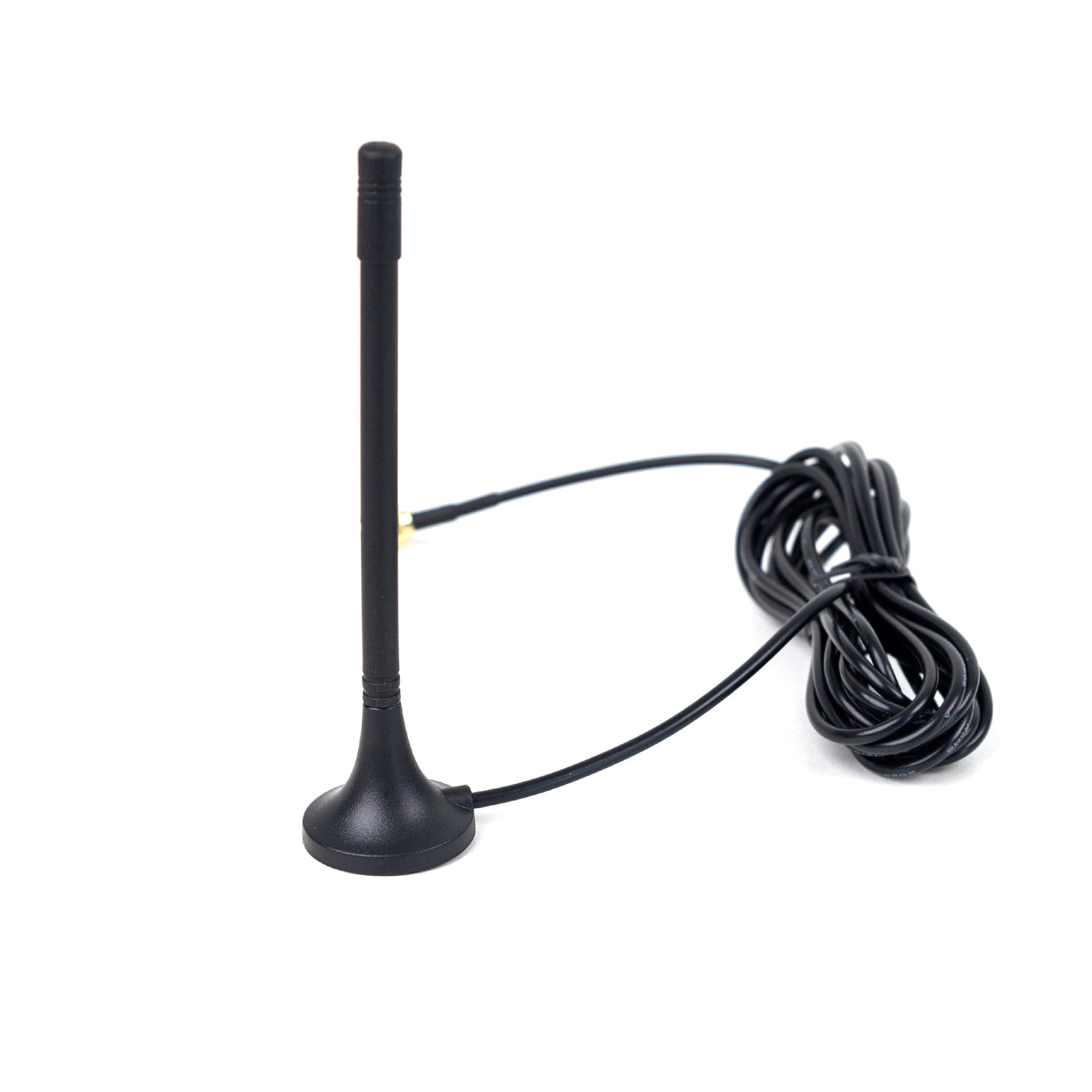

Antenna; stick straight; Wi-Fi/Bluetooth/ISM; 2400-2483MHz; 2.0dBi; VSWR<2.0; linear; omni-directional; RG174; 1.2m; SMA; magnetic; fi29.4x121mm; black

Specifications:

Item		Specifications
Antenna	Frequency Range	2400~2483.5MHz
	Polarization	Linear
	Gain（Zenith）	2.0dBi
	V.S.W.R(min)	＜2.0
	Impedance	50Ω
Mechanical	Cable	RG174
	Connector	SMA or others
	Mounting Method	Magnet
Environmental	Operating Temperature	-40℃~+85℃
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant

What is the frequency range and gain of this antenna?

It operates from 2400 to 2483.5 MHz with a linear polarization and a gain of 2.0 dBi. The impedance is 50 ohms and the VSWR is less than 2.0.

How is the antenna mounted and what are the cable and connector options?

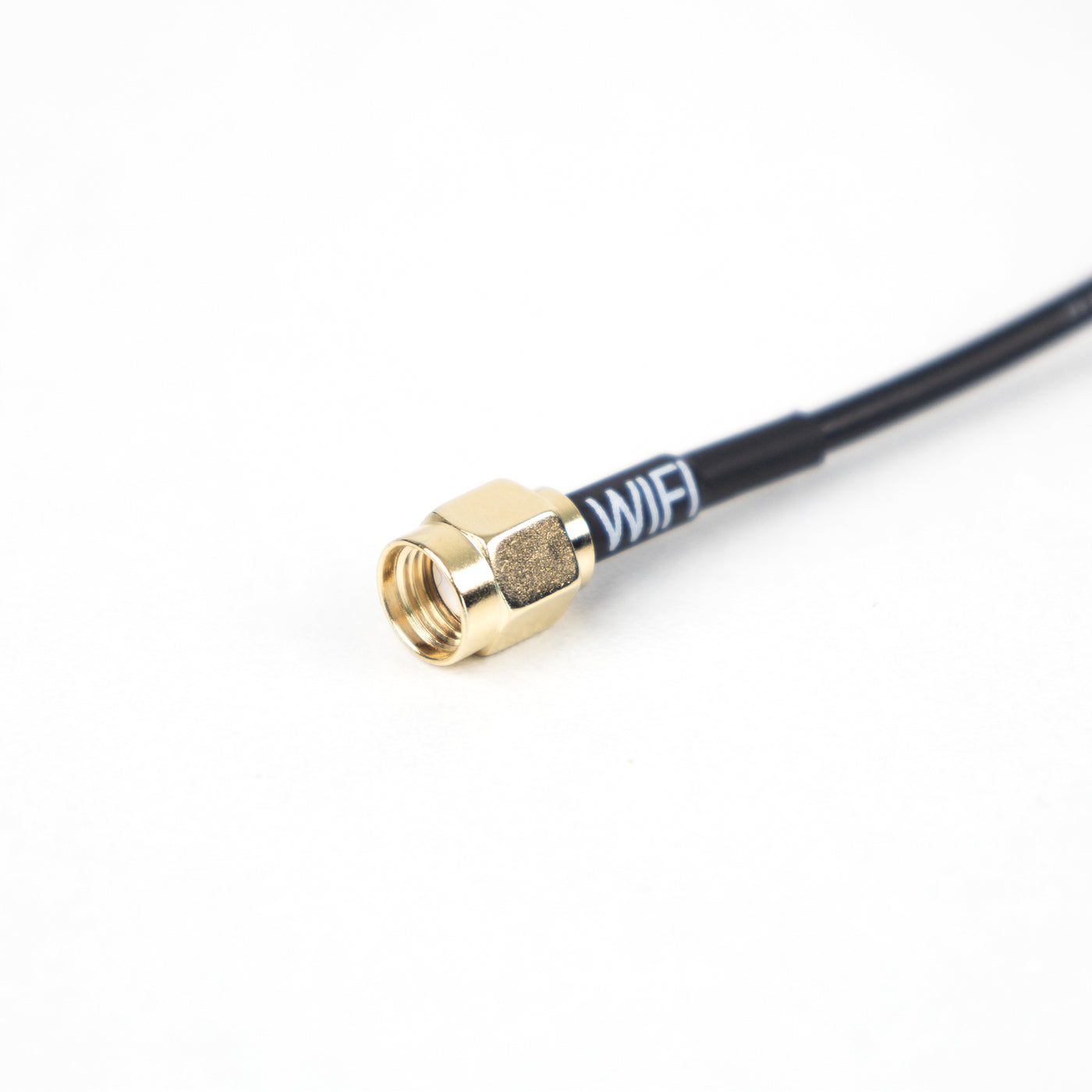

It uses magnetic mounting. The cable is RG174 with a length of 1.2 m and the connector can be SMA or other compatible types.

What are the physical dimensions and cable length?

The housing size is fi29.4x121 mm and the cable length is 1.2 m.

What are the operating conditions and compliance features?

Operating temperature range is -40 C to +85 C and the product is ROHS compliant.

Is this antenna suitable for wifi, bluetooth and ISM and what is its polarization and radiation pattern?

Yes, it is designed for wifi, bluetooth and ISM in the 2.4 GHz band. It is linearly polarized and omni-directional.
