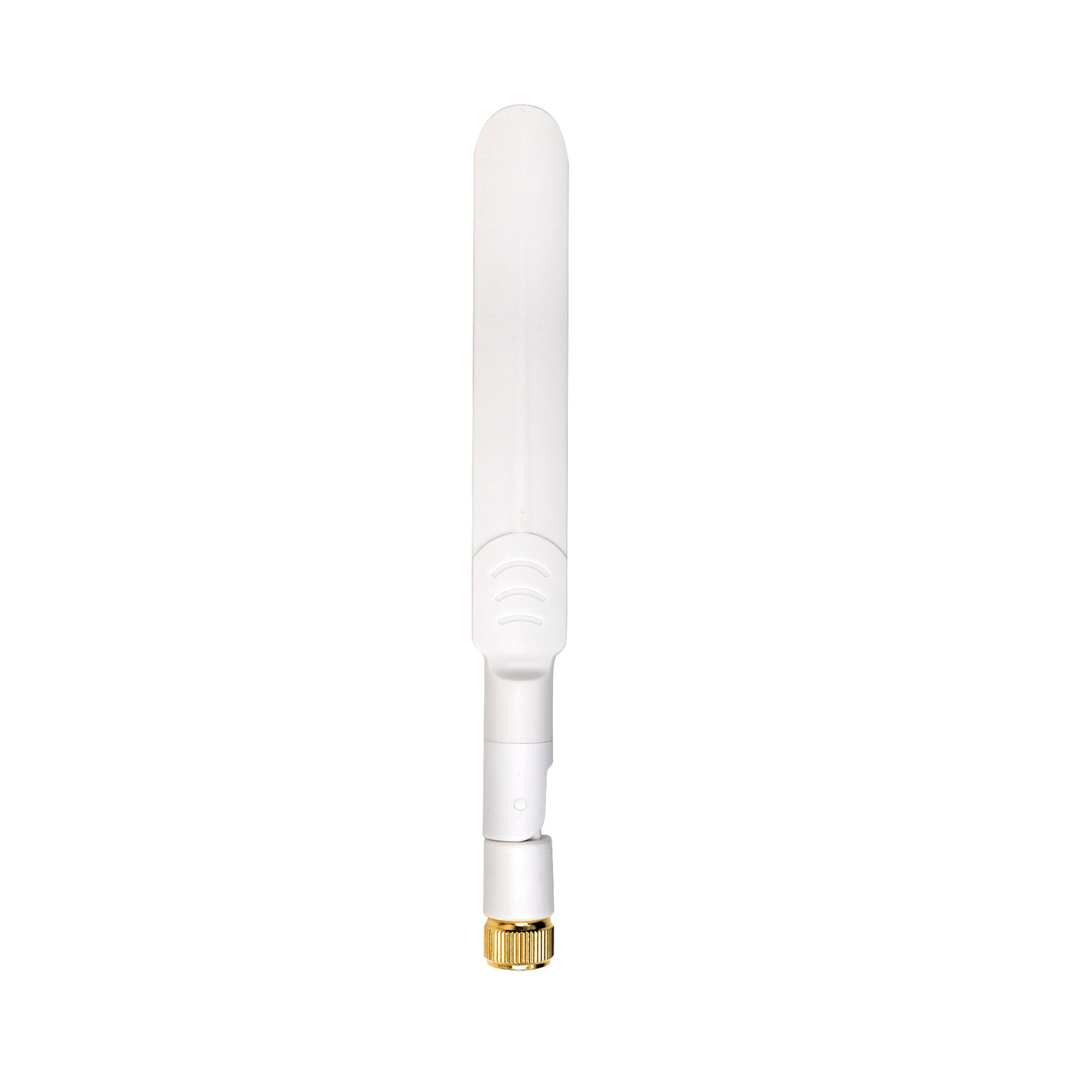

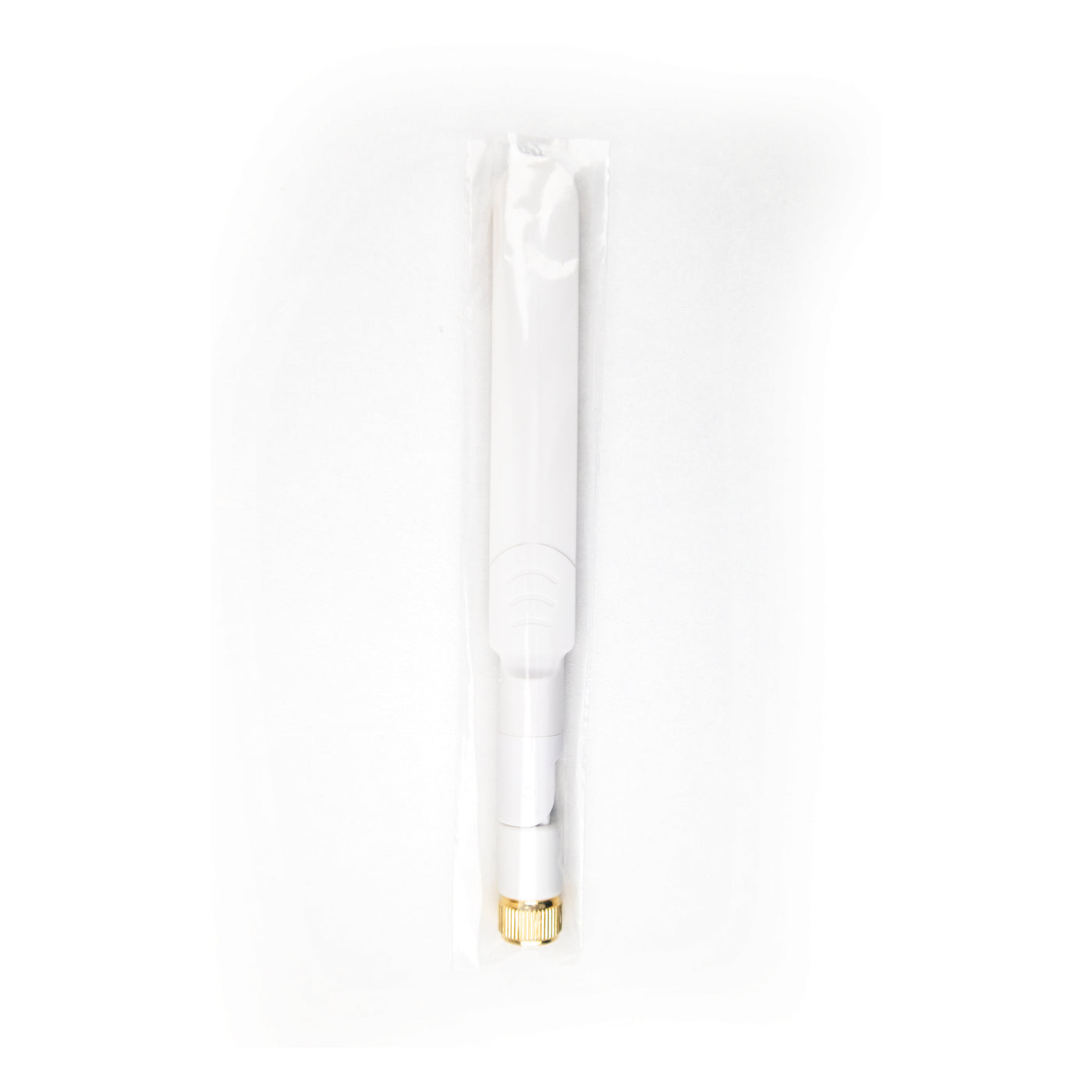

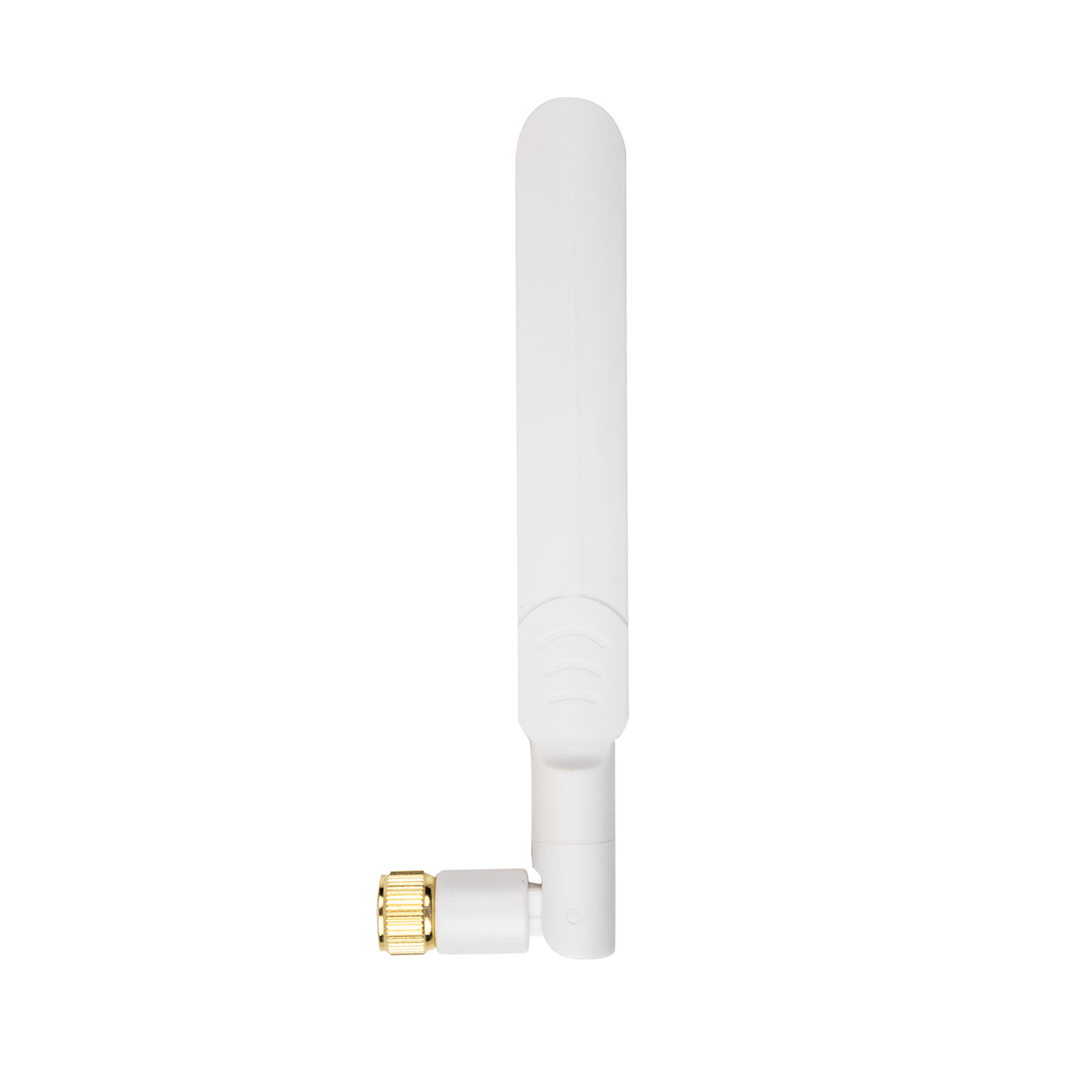

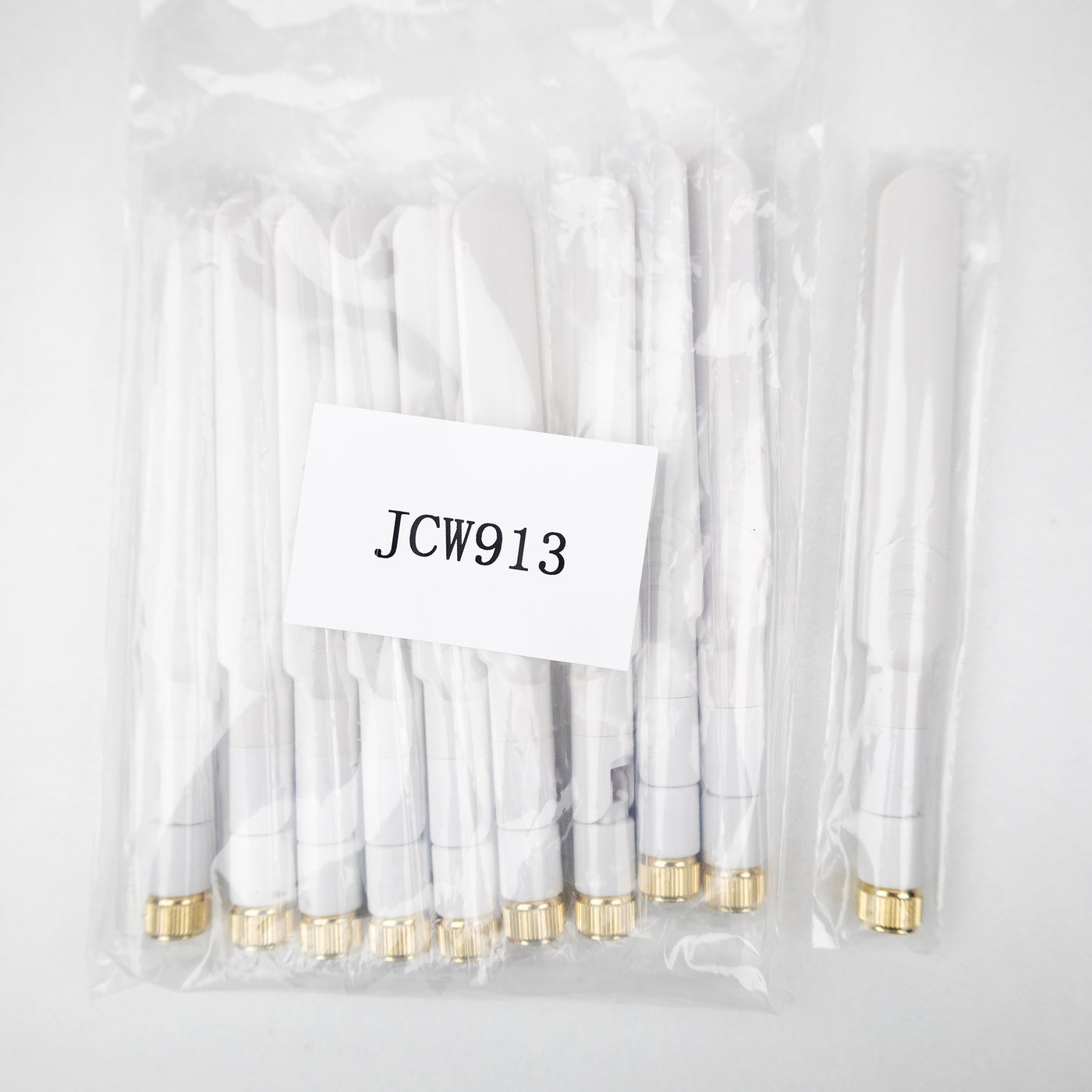

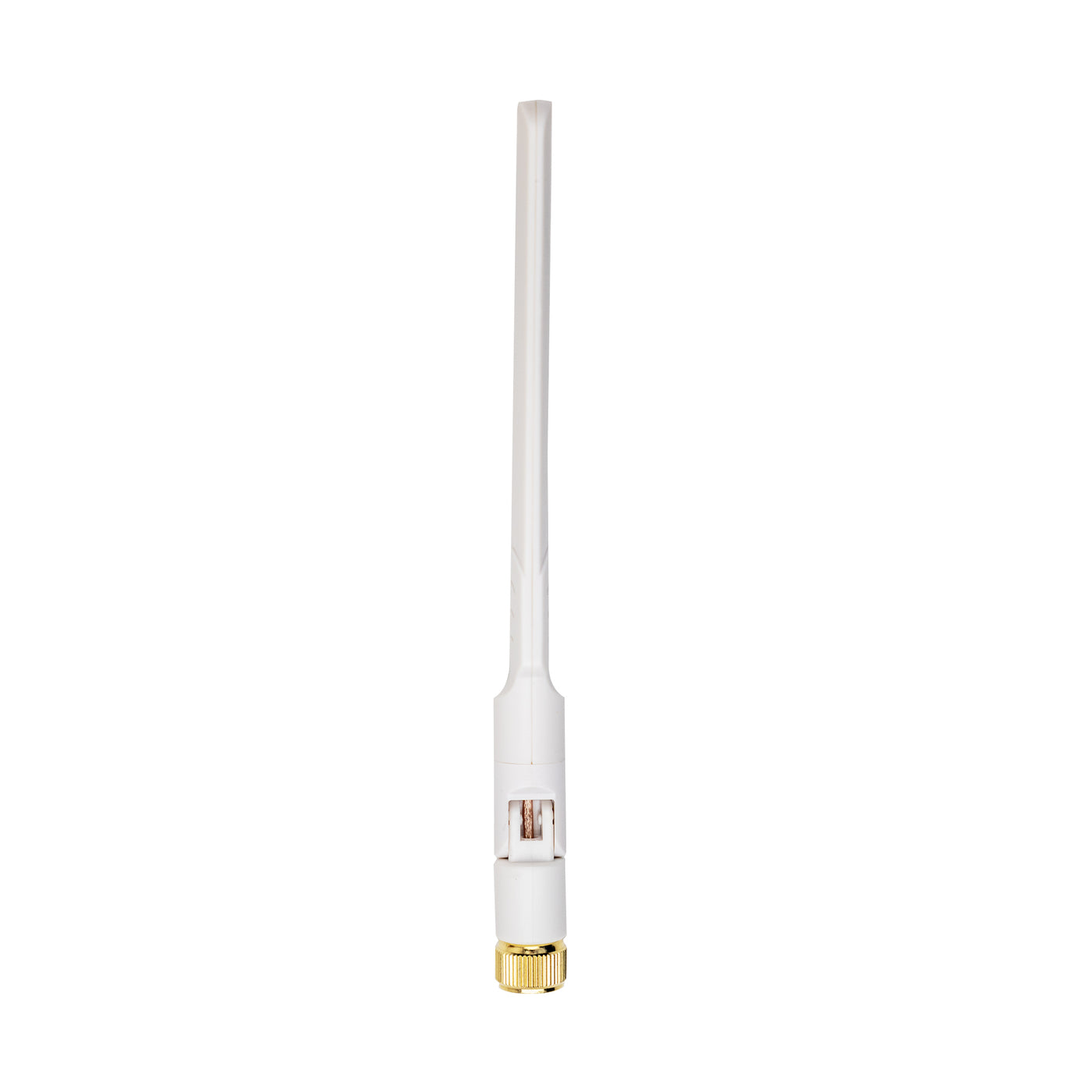

JCW913 Wifi Antenna

SKU: ELC8920

₹ 349.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
JCW913 Wifi Antenna₹ 349.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Waterproof wireless portable 5db 2.4g/5g wifi Terminal Antenna.




Specifications:

Item
Specifications
Antenna
Frequency Range
2400~2483.5MHz/5.15~5.85GHz
Polarization
Linear
Gain
5dBi
V.S.W.R
<2.0
Impendance
50Ω

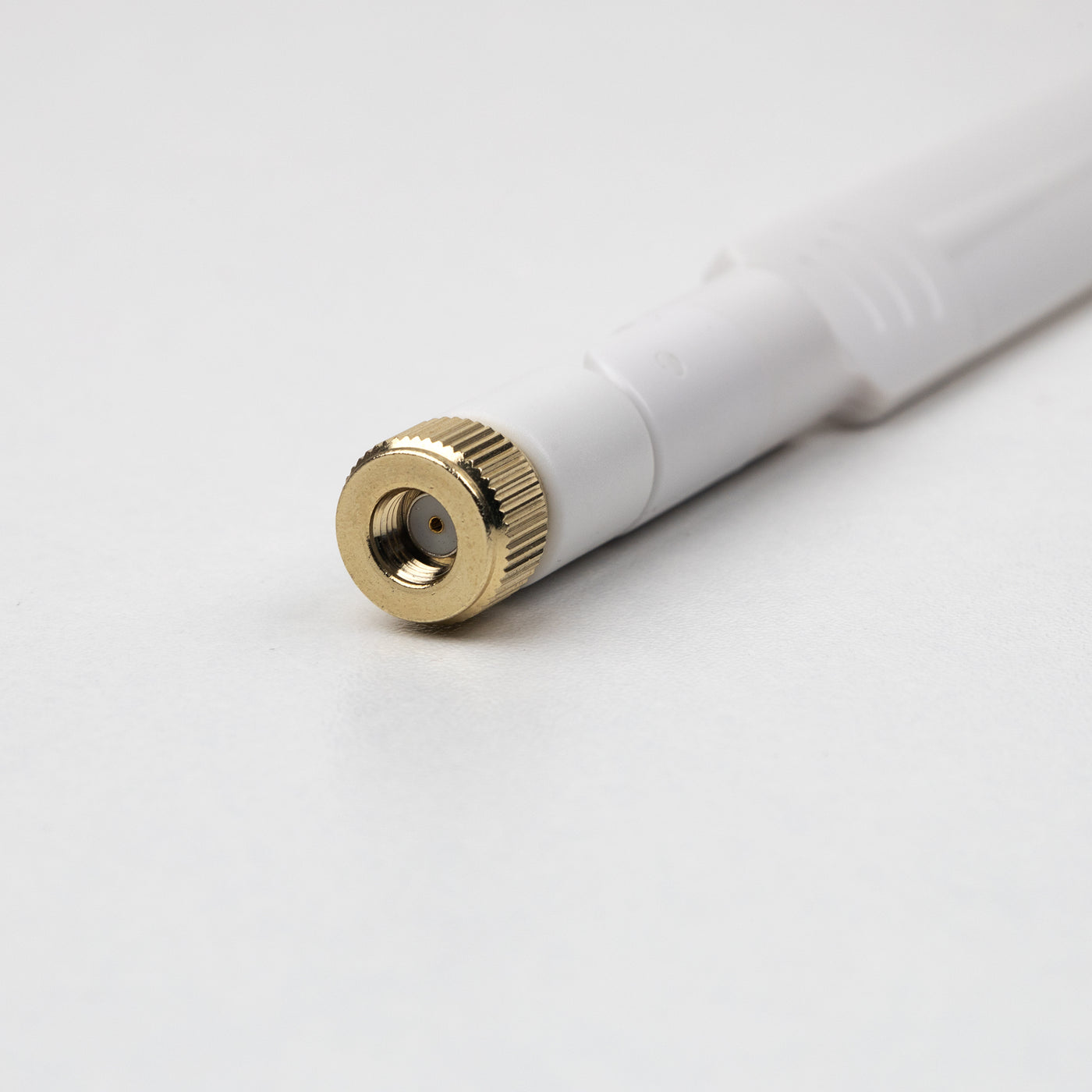

Connector
SMA Male
Environmental
Operating Temperature
-10ºC~+60ºC
Vibration
10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly
ROHS Compliant
What wireless frequency bands does this antenna support and what is its gain?
It covers 2400 to 2483.5 MHz and 5.15 to 5.85 GHz with a 5 dBi gain.
What connector and impedance are used on this antenna?
The antenna uses an SMA Male connector and has 50 ohm impedance.
Is the antenna waterproof and portable for use in various environments?
Yes, it is described as waterproof and is designed for portable wireless use.
What are the operating temperature limits and is it RoHS compliant?
Operating temperature is -10 degrees Celsius to +60 degrees Celsius and it is RoHS compliant.
What is the VSWR specification and is warranty information available?
VSWR is listed as less than 2.0 and impedance is 50 ohm; warranty information is not provided in the product data.
A
Admin
Welcome to the discussion thread for JCW913 Wifi Antenna
Feel free to ask questions, share tips or report issues.

Discover More In:

Wifi, Bluetooth & Network Modules → Wireless & IOT →

Category: View similar items (JCW913)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Waterproof wireless portable 5db 2.4g/5g wifi Terminal Antenna.




Specifications:

Item
Specifications
Antenna
Frequency Range
2400~2483.5MHz/5.15~5.85GHz
Polarization
Linear
Gain
5dBi
V.S.W.R
<2.0
Impendance
50Ω
Connector
SMA Male
Environmental
Operating Temperature
-10ºC~+60ºC
Vibration
10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly
ROHS Compliant
FAQ
What wireless frequency bands does this antenna support and what is its gain?
It covers 2400 to 2483.5 MHz and 5.15 to 5.85 GHz with a 5 dBi gain.
What connector and impedance are used on this antenna?
The antenna uses an SMA Male connector and has 50 ohm impedance.
Is the antenna waterproof and portable for use in various environments?
Yes, it is described as waterproof and is designed for portable wireless use.
What are the operating temperature limits and is it RoHS compliant?
Operating temperature is -10 degrees Celsius to +60 degrees Celsius and it is RoHS compliant.
What is the VSWR specification and is warranty information available?
VSWR is listed as less than 2.0 and impedance is 50 ohm; warranty information is not provided in the product data.
