Jetson Nano Mini Computer

SKU: SBC2174+SBC1101-MOD+SBC2046

Regular price ₹ 23,499.99
Sale price ₹ 23,499.99 Regular price ₹ 29,999.99
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
Add-Ons:
This is a pre order item. We will ship it when it comes in stock.

Jetson Nano Mini-Computer



Based on Jetson Nano Module (fully built), provides a variety of peripheral interfaces such as USB connectors, Ethernet port, HDMI port, CSI, GPIO, I2C, and RS485 interfaces. Onboard M.2 B KEY slot with adapter board for installing WiFi or 4G module (choose one of two), with metal case, suitable for various AI applications.



Base Board Comparison


MODEL JETSON-IO-BASE-A JETSON-IO-BASE-LITE JETSON NANO MINI
USB CONNECTORS 4 × USB 3.2 Gen 1 Type-A
1 × USB 2.0 Micro-B
1 × USB 3.2 Gen 1 Type-A
2 × USB 2.0 Type-A
1 × USB 2.0 Micro-B
1 × USB 3.2 Gen 1 Type-A
1 × USB 2.0 Type-A
ETHERNET PORT
HDMI PORT
DP PORT - -
CSI INTERFACE × 2 × 1 × 2
POWER PORT DC USB Type-C DC/USB Type-C
BUTTON - Power: PWR BTN
Reset: SYS RST
Power button, user button



Based on Jetson Nano Module



Connecting To Cameras

Supports CSI Cameras For AI Applications Such As Facial Recognition, Road Sign Detection And License Plate Recognition

* for reference only, the binocular camera is NOT included



4K HD Output

Supports HDMI High Definition Port



Onboard Multiple Interfaces





Onboard M.2 B KEY Slot

Comes With Adapter Board, Supports Installing WiFi Or 4G Module (Choose One Of Two)

Connect to WiFi module

Connect to 4G module

* for reference only, please refer to the Package Content for detailed part list

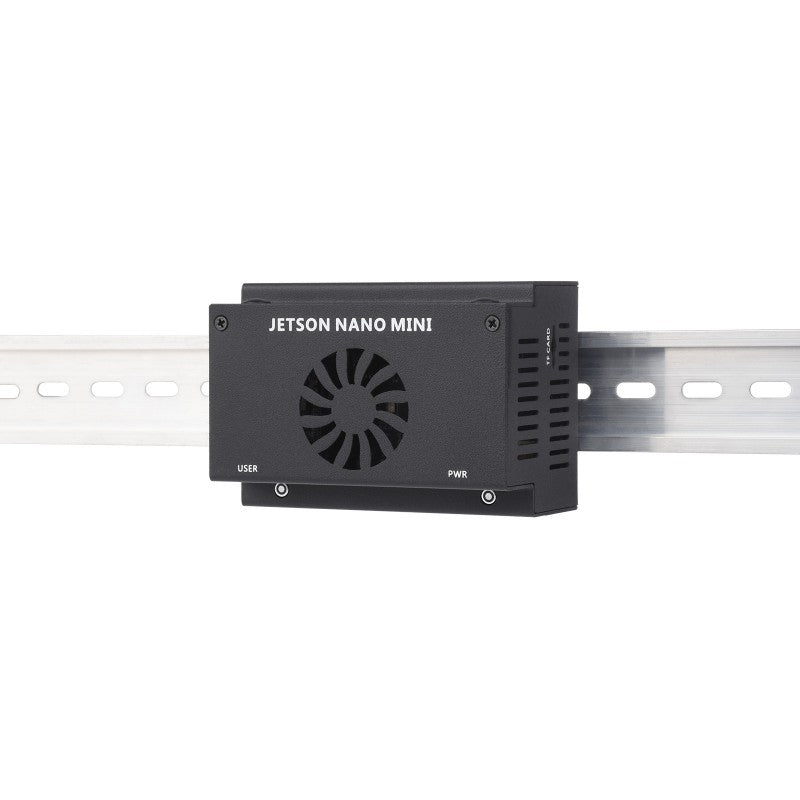

Rail-Mount Support

With Mounting Holes On The Bottom For Installing Rail Buckle,
Easy To Install The Mini-Computer On The Rail

* for reference only, the rail buckle is NOT included

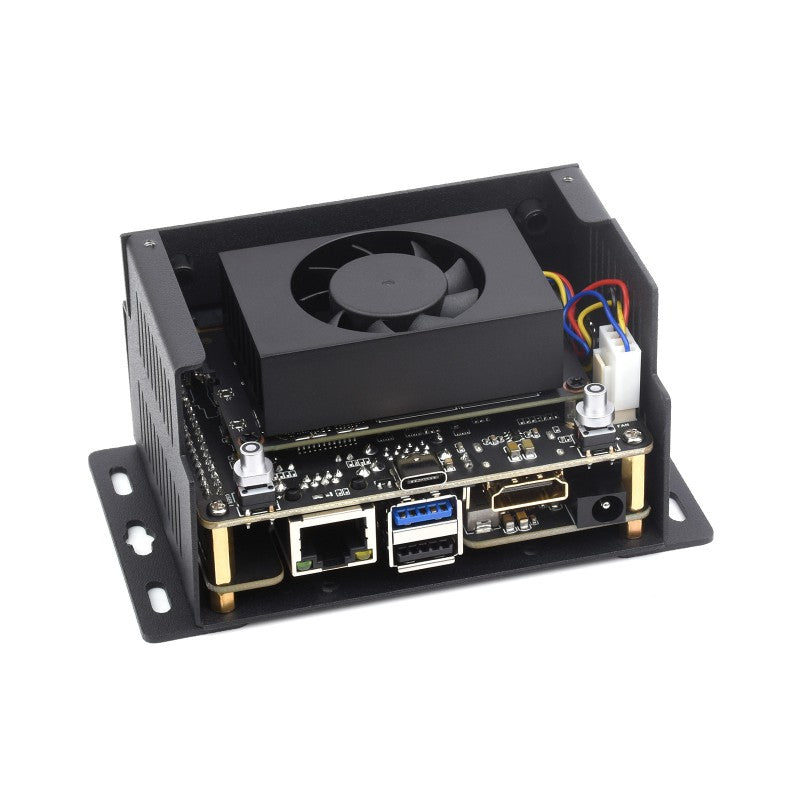

What's On Board

  1. Module socket
    for connecting with Jetson Nano module
  2. Power button and Power LED
    for power ON/OFF control and indicating module status
  3. User button and user LED
    user-defined button and LED
  1. Type-C interface
    for power supply, programming, and debugging
  2. 2.54mm fan header
  3. Multi-function pins header

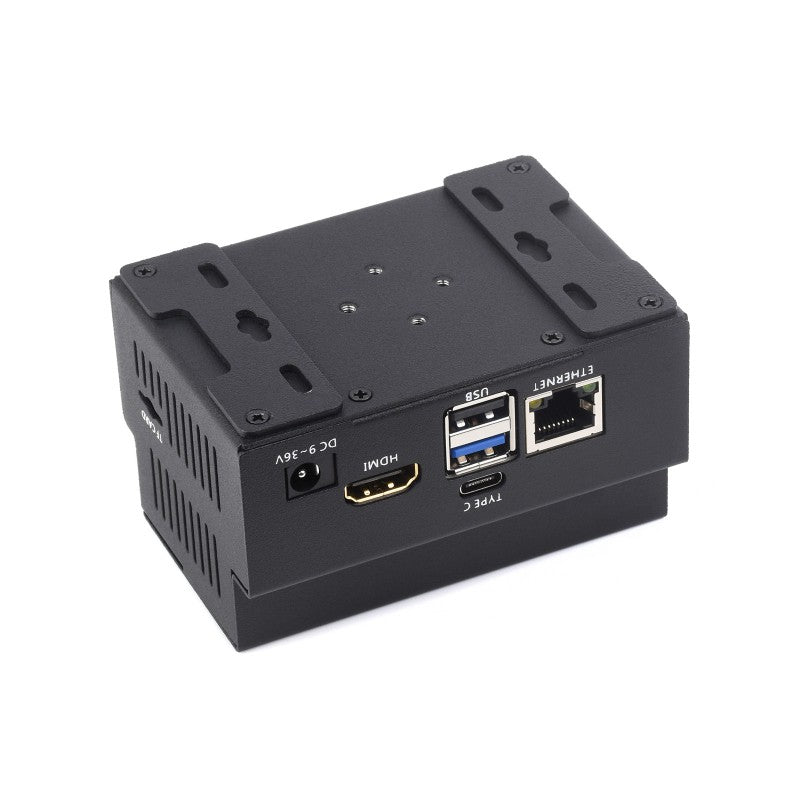

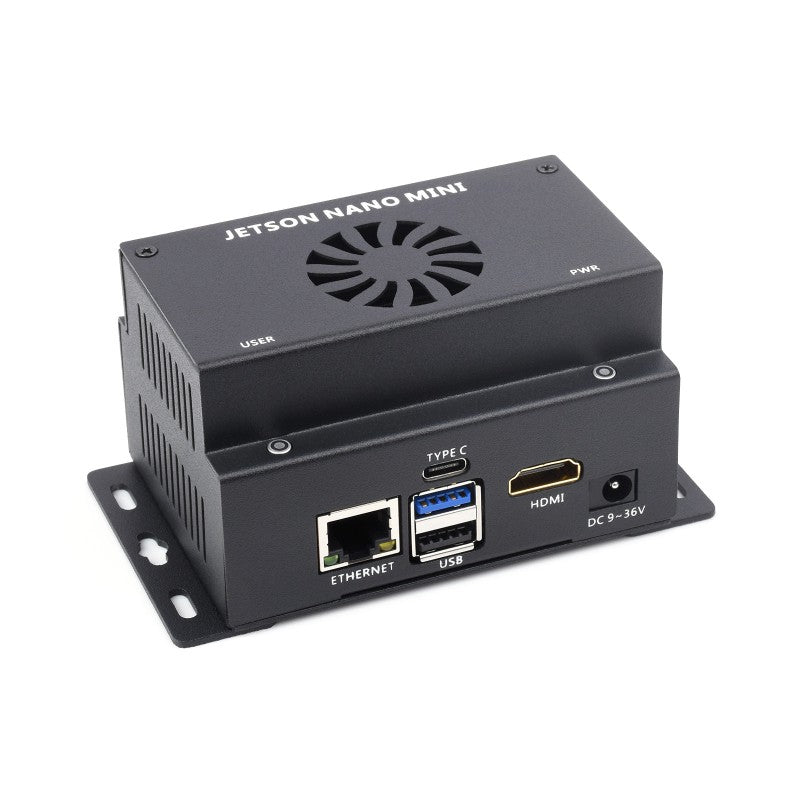

  1. Gigabit Ethernet Port
    10/100/1000Base-T auto-negotiation, does not support PoE
  2. USB Type-A connectors
    1 × USB 3.2 Gen 1, 1 × USB 2.0
  3. Type-C power supply enable
    enable via jumper
  4. HDMI interface
    supports 4K output
  5. TF card slot
  6. MIPI CSI interface 1
  7. SIM card slot
    only available when installing a 4G module
  8. MIPI CSI interface 0
  9. mini PCIe socket
    for connecting 4G module or adapter board, supports USB2.0 and PCIex1

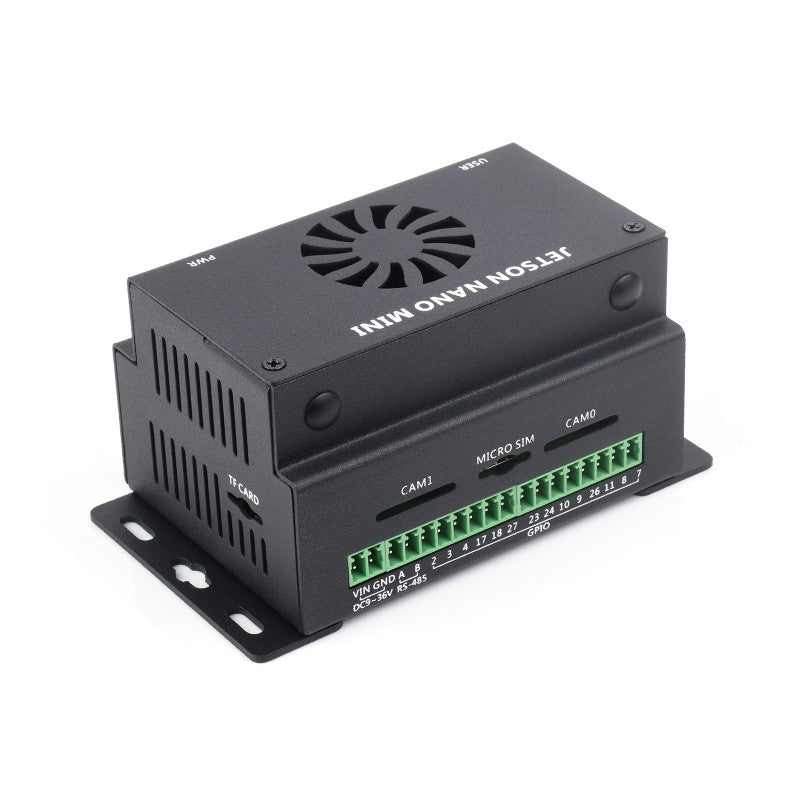

  1. DC power terminal
    Supports 9~36v power supply
  2. RS485 terminal
  3. GPIO header
  4. RTC battery holder
    Supports CR1220 button cell
  5. DC power jack
    Supports 9~36V power supply, comes with 12V power adapter



Outline Dimensions



Resources



Package Contents:

Weight: 0.448 kg

  1. JETSON NANO MINI x1
  2. 12V power supply x1
  3. Screwdriver x1
