4inch IPS Capacitive Touch Display

720Ɨ720 Pixels, RGB Communication Interface, Compatible With Luckfox Pico Ultra Development Board

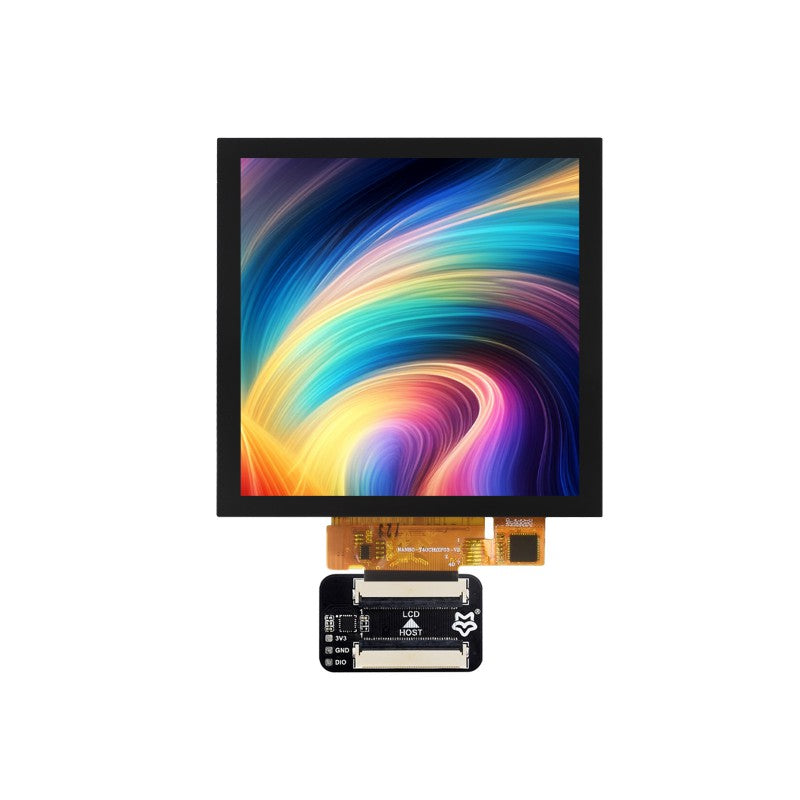

LF40 720720 ARK, front viewĀ LF40 720720 ARK, features

Ā

Product Specifications

Size 4" Resolution 720Ɨ720
Display Panel IPS Viewing Angle 170Ā°
Touch Type Capacitive Touch Chip GT911
Brightness 400cd/mĀ² Contrast ratio 1000:1
Outline Dimension 84.0Ɨ84.0mm (HƗV) Display area 71.93Ɨ71.93mm (HƗV)
Pixel pitch 0.0999Ɨ0.0999mm (HƗV) Operation temperature -20~70Ā°C
Communication Interface RGB666 Display colour gamut 68% NTSC

Ā

Capacitive Touch

Supports flexible and responsive touch operation to make development more convenient

LF40 720720 ARK, capacitive touch

Ā

Usage example

* for reference only, theĀ Luckfox Pico Ultra WĀ is NOT included

LF40 720720 ARK, usage example

Ā

Outline dimensions

LF40 720720 ARK, dimensions

Ā

Selection Guide

PRODUCT SIZE RESOLUTION DISPLAY PANEL DISPLAY COLOR GAMUT BRIGHTNESS CONTRAST RATIO OUTLINE DIMENSION (mm) DISPLAY AREA (mm) COMMUNICATION INTERFACE
LF40-480480-ARK
LF40-480480-ARK		 4" 480Ɨ480 IPS - 400cd/mĀ² 380:1 84.2Ɨ84.2 71.86Ɨ70.18 RGB666
LF40-720720-ARK
LF40-720720-ARK		 4" 720Ɨ720 IPS 68% NTSC 400cd/mĀ² 1000:1 84.0Ɨ84.0 71.93Ɨ71.93 RGB666

Ā Ā

Resources

Wiki:Ā https://wiki.luckfox.com/Luckfox-Pico/Luckfox-Pico-Ultra-RGB-Screen/

Ā

Package Contains:

Weight:Ā 0.045 kg

LF40-720720-ARK Ɨ1

LF40 720720 ARK
Is this display compatible with the Luckfox Pico Ultra development board?
Yes, it is designed to work with Luckfox Pico Ultra and uses the RGB666 interface as specified.
What are the size and resolution of the screen?
The panel is 4 inches diagonally with a 720 by 720 pixel resolution.
What touch technology does it use and which chip is under the panel?
The display uses capacitive touch and is driven by the GT911 touch chip for responsive operation.
What are the brightness, contrast and operating temperature ranges?
Brightness is 400 cd per square meter, and the contrast ratio is 1000 to 1. The operating temperature range is minus 20 to 70 degrees Celsius.
What is included in the package and are there any notes about the board being included?
The package includes LF40-720720-ARK x1. The Luckfox Pico Ultra board is not included with the display.
