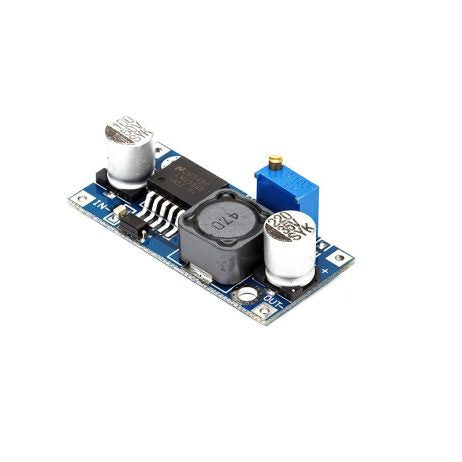

The LM2596 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.
Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation, and a fixed frequency oscillator.
The LM2596 series operates at a switching frequency of 150 kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators. Available in a standard 5-pin TO-220 package with several different lead bend options, and a 5-pin TO-263 surface mount package.
Features
3.3-V, 5-V, 12-V, and adjustable output versions
Adjustable version output voltage range: 1.2-V to 37-V ±4% maximum over line and load conditions
Available in TO-220 and TO-263 packages
3-A output load current • Input voltage range up to 40 V
Requires only four external components
Excellent line and load regulation specifications
150-kHz Fixed-frequency internal oscillator
TTL shutdown capability
Low power standby mode, IQ, typically 80 μA
High efficiency
Uses readily available standard inductors
Thermal shutdown and current-limit protection
Create a custom design using the LM2596 with the WEBENCH Power Designer
