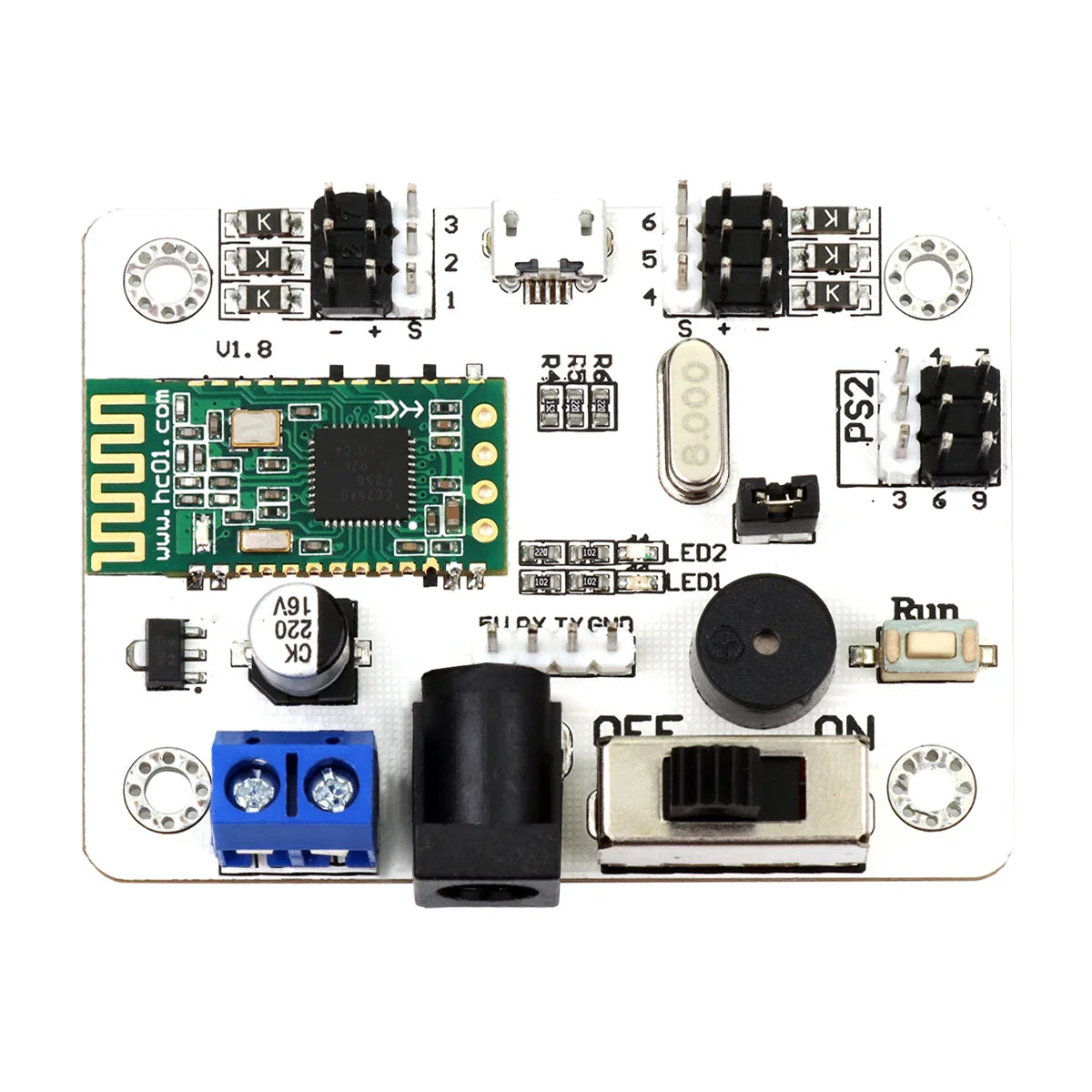

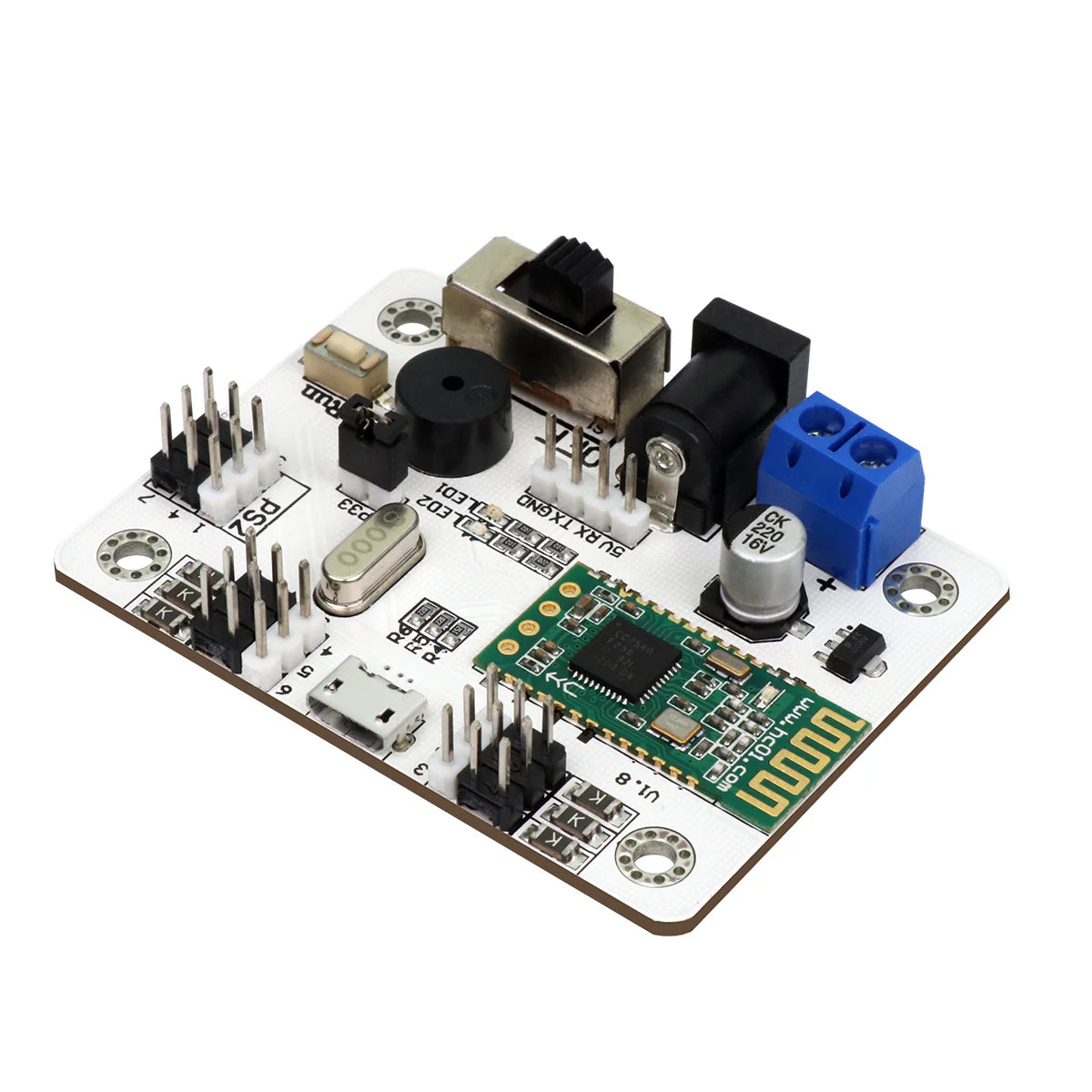

LSC-6: Hiwonder 6 CH Bluetooth 4.0 Servo Controller Module RC Robot Toy for Children
Hiwonder 6 Channel servo controller has built in Bluetooth 4.0 module, which can be used in robotic arm or biped robot. It has over-current protection, as well as support Android phone and PS2 handle control.
Feature
> Built-in power switch, easy to use.
> Built in Bluetooth 4.0 module. Support Android App control.
> Equipped with 6 channel over-current protection, prevent servo from burning out.

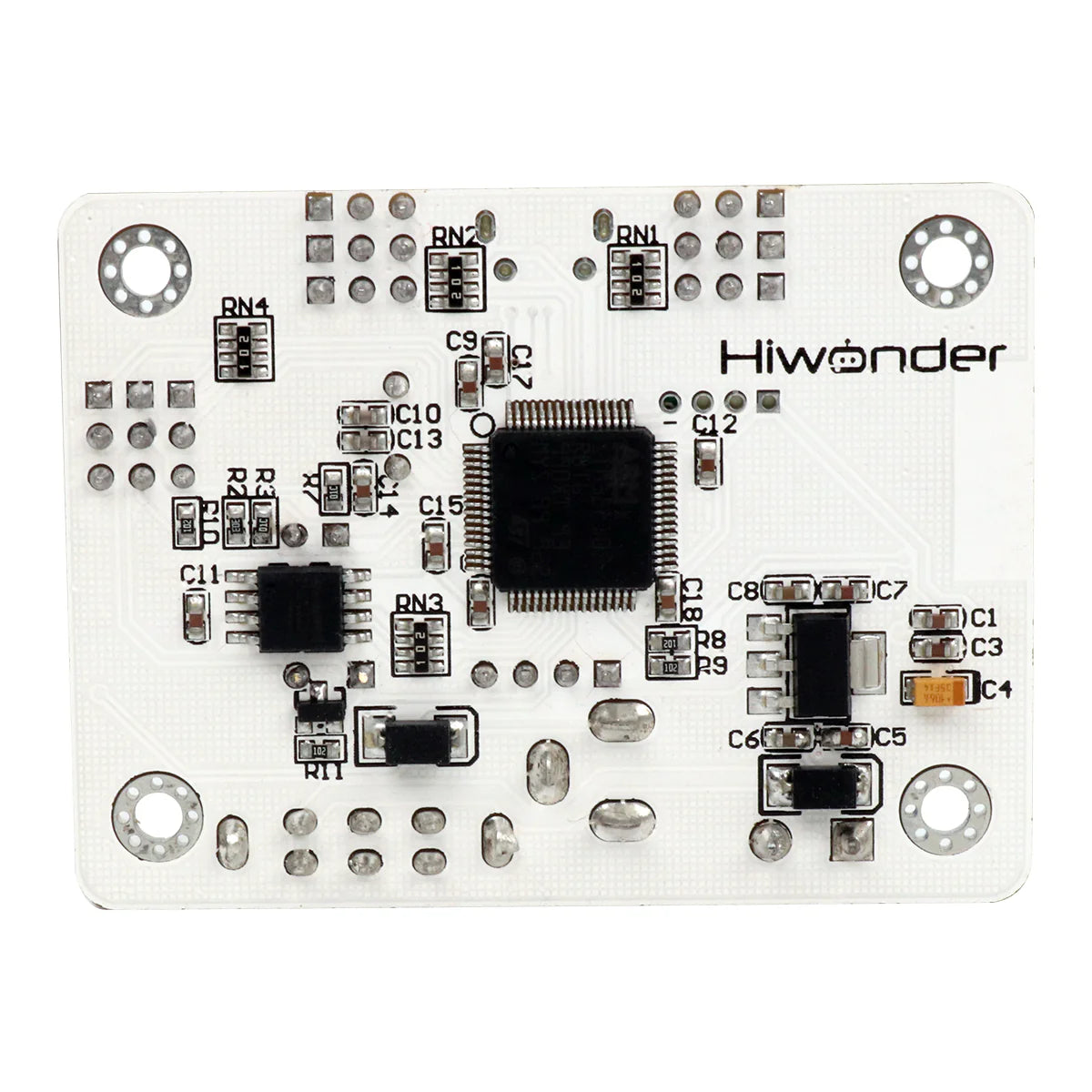

> CPU uses high-performance STM32 single chip microcomputer with ARM Cortex-M3 corer.
> 16M high-capacity memory, which is able to hold 230 action groups! Each action group can hold up to 1020 actions!
> Support TTL serial communication, the servo controller can be connected with other single chips which support TTL, other single chips can send instructions to the controller.
12 Product Features
Android Phone APP Operation Interface
|

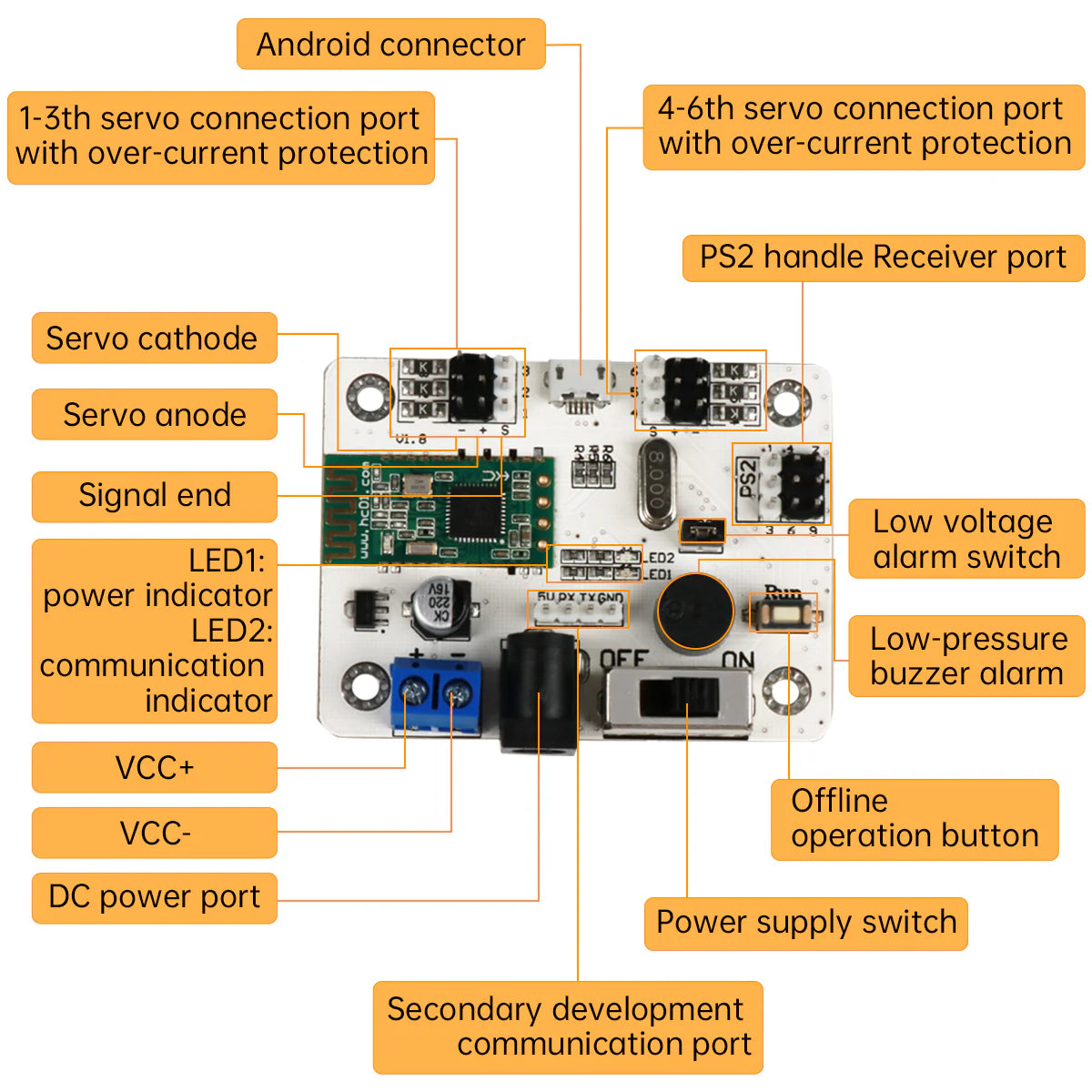

About Wiring
|
Secondary Development

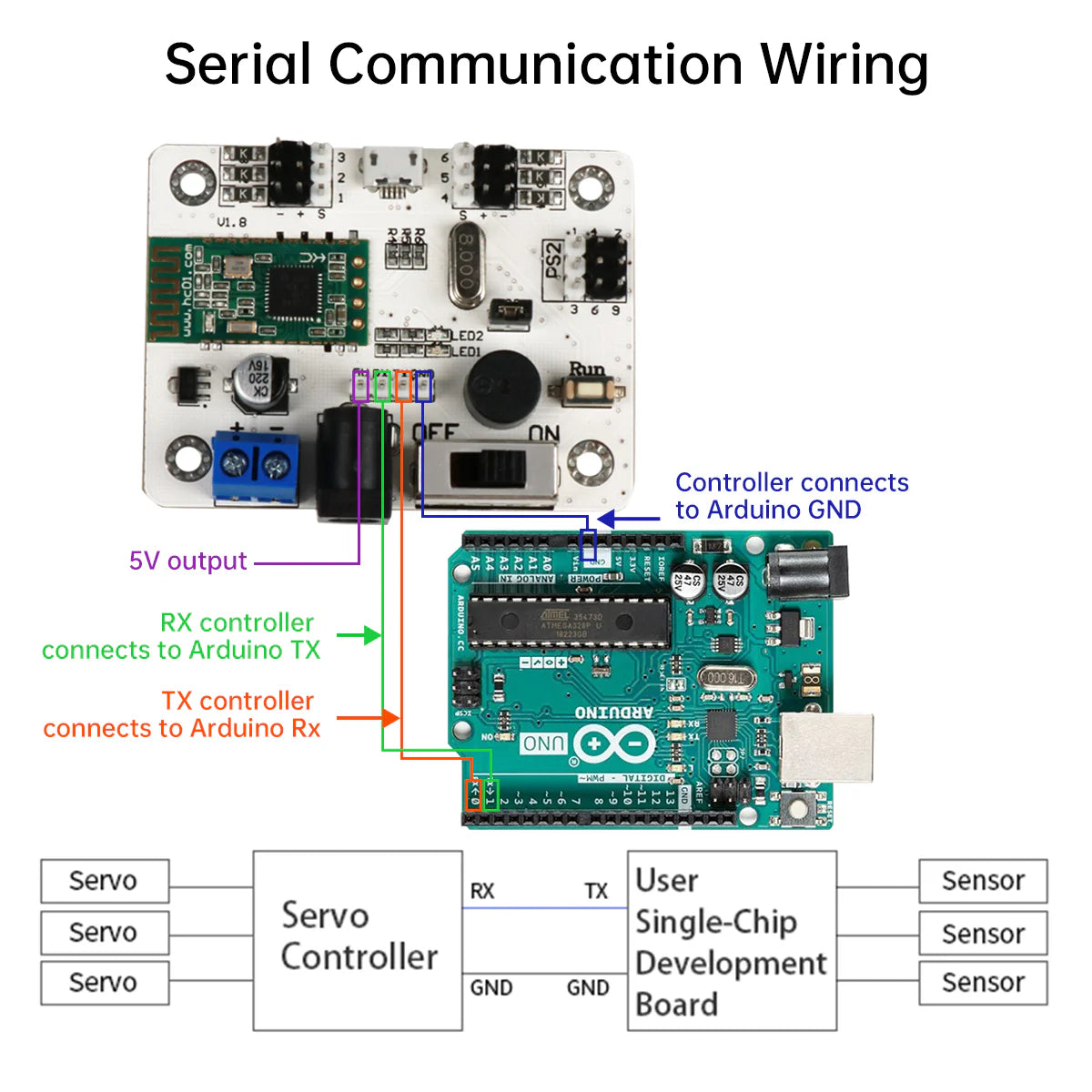

About Serial Communication Wiring
About PS2 Handle Connection
Product Parameter
Specifications
| Item |
Specification |

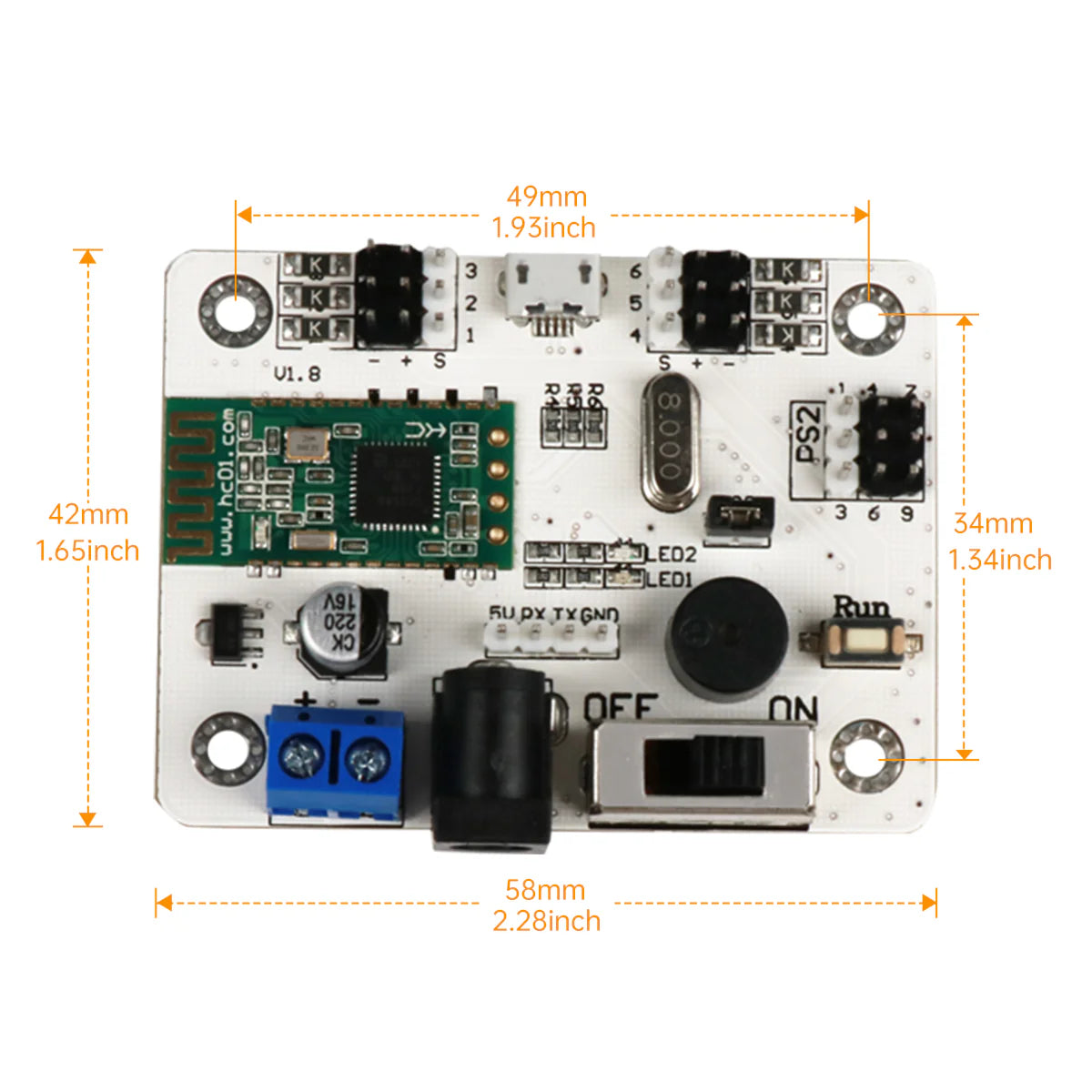

| Outline Area Size |
2.28inch*1.65inch |
| Mounting Hole Size |
1.93inch*1.34inch |
| Bluetooth Module |
4.0 version |
| Graphical Programming |
support |
| Wireless Handle Control |
support |
| The Maximum Number of Controlling Servo |
6 |
| Memory |
16M |
| Current-limiting Protection |
support |
| External Single-chip (Secondary Development) |
support |
| Low Voltage Alarm |
support |
| Over-current Protection |
support |
| Net Weight |
20 grams |
| Package List |
1* servo controller
1* user manual
1* mini-USB cable
4* M3*8 nylon columns
4* M3*6 machine screws |
Packing List
1* servo controller
1* user manual
1* mini-USB cable
4* M3*8 nylon columns
4* M3*6 machine screws
