Luckfox Pico Ultra RV1106 Linux
Micro Development Board

Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, Optional for Wireless / PoE Module / IPS LCD

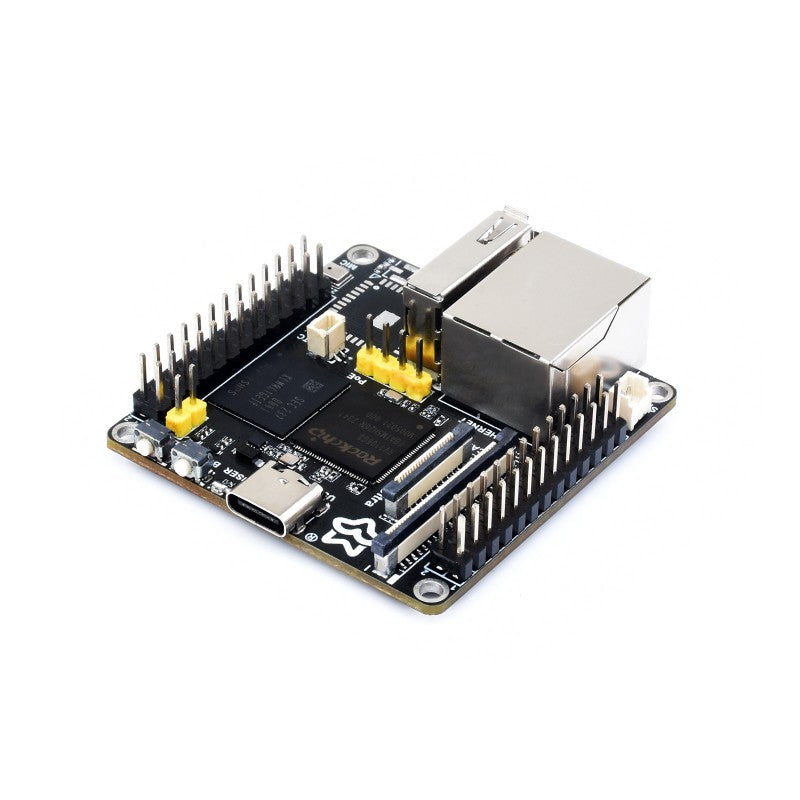

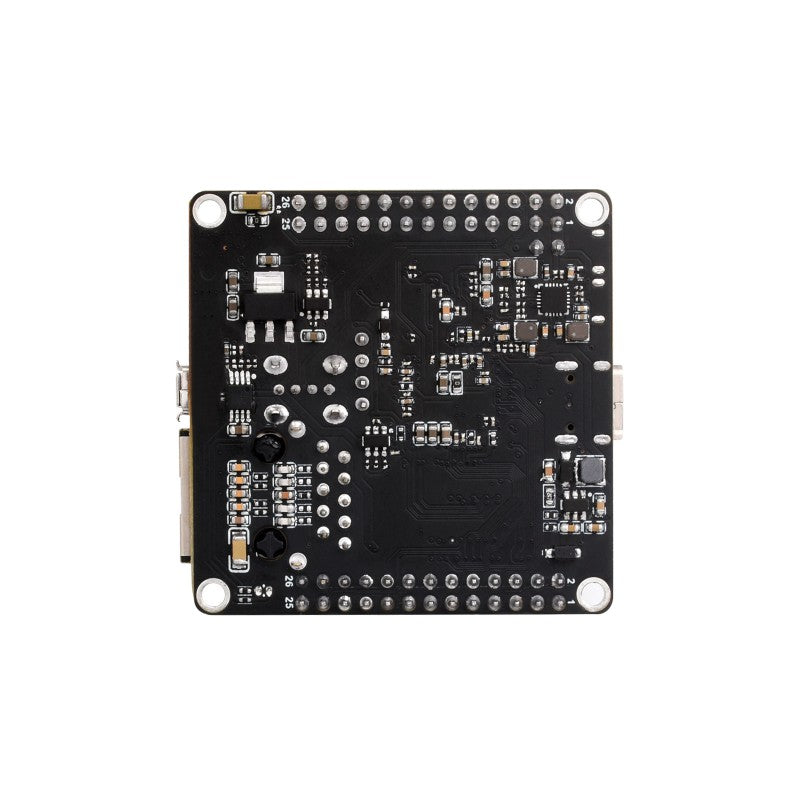

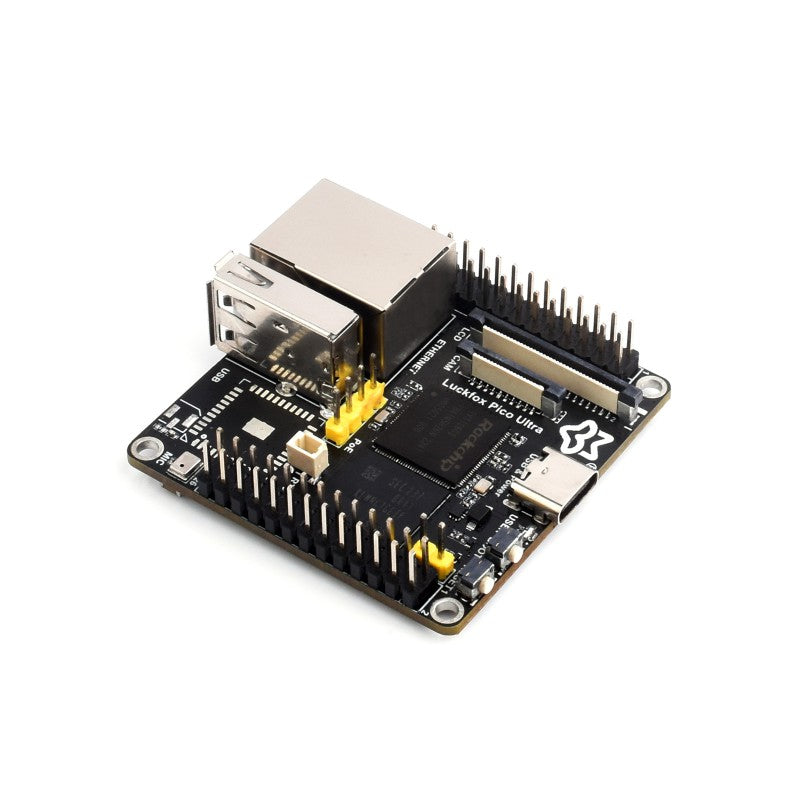

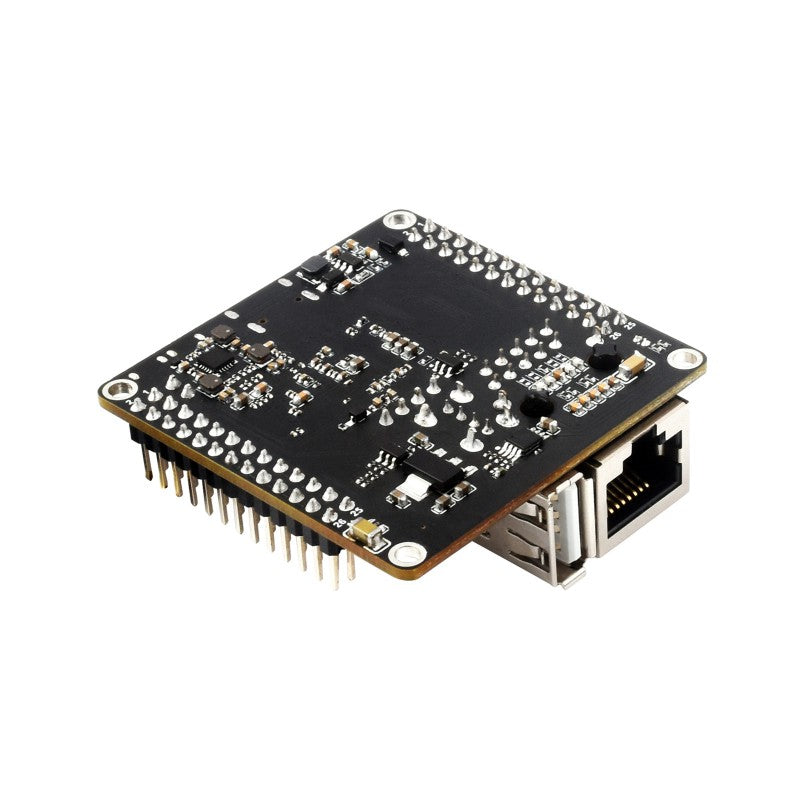

Luckfox Pico Ultra series, front viewĀ Luckfox Pico Ultra series, features

Ā

Development Board Versions

Luckfox Pico Ultra series, version options

Ā

Optional for IPS LCD

Luckfox Pico Ultra series, optional for IPS LCD

Ā

LCD Kit connection example

Luckfox Pico Ultra series, LCD Kit connection example

Ā

4ā€³ IPS Touch Display Introduction

Capacitive Touch

Supports flexible and responsive touch operation to make development more convenient

LF40 480480 ARK, capacitive touch

Ā

LCD Specifications

Model 4inch IPS Touch Display
480x480Ā 		 4inch IPS Touch Display
720x720
Resolution 480Ɨ480Ā  720Ɨ720
Communication Interface RGB666
SIZE 4"
Display Panel IPS
Touch Type Capacitive
Touch Chip GT911
Brightness 400cd/mĀ²
Operation temperature -20~70Ā°C
Contrast ratio 380:1 1000:1
Viewing Angle 160Ā° 170Ā°
Outline Dimension 84.2Ɨ84.2mm (HƗV) 84.0Ɨ84.0mm (HƗV)
Display area 71.86Ɨ70.18mm (HƗV) 71.93Ɨ71.93mm (HƗV)
Pixel pitch 0.1497Ɨ0.1462mm (HƗV) 0.0999Ɨ0.0999mm (HƗV)
DISPLAY COLOUR GAMUT - 68% NTSC

Ā

Development Board Introduction


Highly integrated and powerful performance

Integrates CPU, NPU, ISP and other processors

Luckfox Pico Ultra series, integrates RV1106
  • Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
  • Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G3 is 1TOPSĀ
  • Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
  • Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size
  • Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths

Ā Ā

WiFi 6 and Bluetooth module

Onboard 2.4GHz WiFi 6 and Bluetooth 5.2/BLE Bluetooth Module, Providing Stable Connection and Efficient Transmission

Luckfox Pico Ultra series, onboard WiFi 6 and Bluetooth module

* the WiFi 6 / Bluetooth module is only available in Luckfox Pico Ultra W series

Ā

Reserved PoE Module Header

More Flexible for Power Supply

Luckfox Pico Ultra series, onboard reserved PoE module header

Ā

Optional for PoE Module, Supports PoE Power Supply

Provides Both Network Connection And Power Supply for Luckfox Pico Ultra board In Only One Ethernet Cable

Luckfox Pico Ultra series, optional for PoE ModuleĀ Luckfox Pico Ultra series, supports PoE power supply

* the PoE module is optional, and the switch in the picture above is NOT included.

Ā

What's On Board

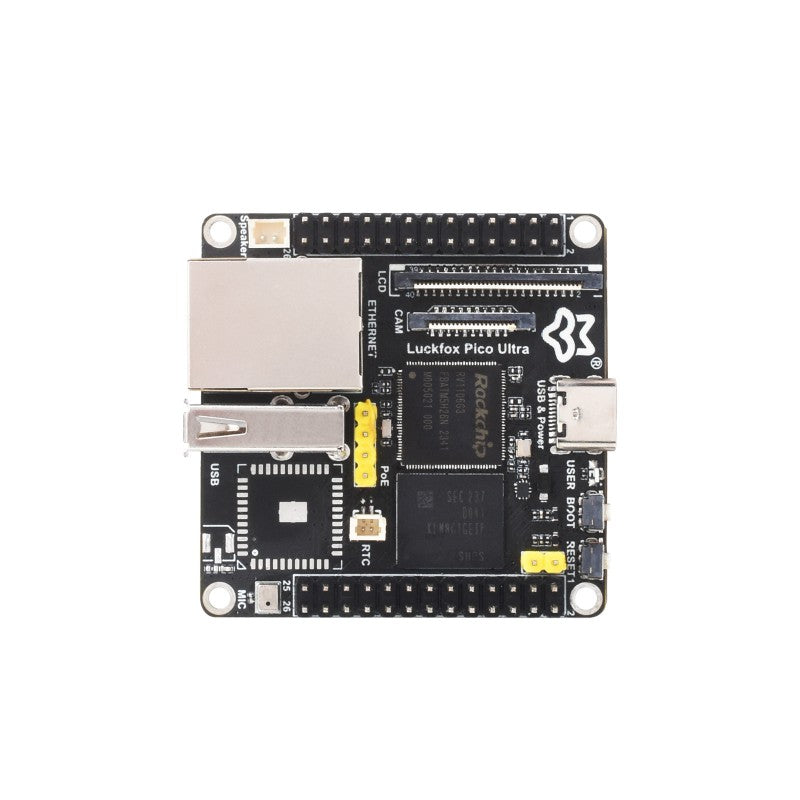

Luckfox Pico Ultra series, onboard components
  1. USB Type-C connector
    for power supply and program burning
  2. USER-LED
    for indicating system operation status in the default image, programmable indicator
  3. BOOT button
    Press it when powering on or resetting to enter download mode
  4. RESET button
  5. GPIO header
  6. Onboard microphone
  7. Antenna connector
  8. WIFI/Bluetooth module
    2.4G WiFi 6; BT5.2/BLE Bluetooth module
  9. USB-A Interface
    Switching with USB Type-C by chip, enabled automatically for USB communication when USB-C is not connected
  1. RJ45 100M Ethernet port
  2. Speaker header
    MX1.25 2P connector, supports 8Ī© 1W speaker
  3. RGB LCD Interface
  4. CSI camera interface
    MIPI CSI 2-lane
  5. RV1106G3
    Vision processor SoC with built-in ARM Cortex-A7 core
  6. KLM8G1GETF-B041
    8GB EMMC
  7. RTC battery connector
  8. PoE module header
  9. PoE module / external power supply header
    for connecting external 5V power supply or PoE module power supply

Ā

Pin definition

Luckfox Pico Ultra series, pin definition

Ā

Outline Dimensions

Luckfox Pico Ultra series, outline dimensions

Ā

Ā

Resources

Wiki:Ā https://wiki.luckfox.com/Luckfox-Pico/Luckfox-Pico-RV1106/Luckfox-Pico-Ultra-W/Luckfox-Pico-quick-start

Ā

Package Contains:

Weight: 0.082 kg

Luckfox Pico Ultra

Luckfox Pico Ultra x1

Luckfox Pico Ultra

Luckfox Pico Ultra PoE Kit

  1. Luckfox Pico Ultra x1
  2. Luckfox PoE module x1
  3. Screws pack x1
1Luckfox Pico Ultra PoE Kit23

Luckfox Pico Ultra W

  1. Luckfox Pico Ultra W x1
  2. IPX 2.4G 2DB antenna x1
1Luckfox Pico Ultra W2

Luckfox Pico Ultra W PoE Kit

  1. Luckfox Pico Ultra W x1
  2. Luckfox PoE module x1
  3. IPX 2.4G 2DB antenna x1
  4. Screws pack x1
1Luckfox Pico Ultra W PoE Kit234

Luckfox Pico Ultra LCD Kit A

  1. Luckfox Pico Ultra x1
  2. 4inch IPS Touch Display 480x480 pixels x1
  3. FFC cable x1
1Luckfox Pico Ultra PoE Kit23

Luckfox Pico Ultra LCD Kit B

  1. Luckfox Pico Ultra x1
  2. 4inch IPS Touch Display 720x720 pixels x1
  3. FFC cable x1
1Luckfox Pico Ultra PoE Kit23

Luckfox Pico Ultra LCD Kit C

  1. Luckfox Pico Ultra x1
  2. Luckfox PoE module x1
  3. Screws pack x1
  4. 4inch IPS Touch Display 480x480 pixels x1
  5. FFC cable x1
1Luckfox Pico Ultra PoE Kit234
5

Luckfox Pico Ultra LCD Kit D

  1. Luckfox Pico Ultra x1
  2. Luckfox PoE module x1
  3. Screws pack x1
  4. 4inch IPS Touch Display 720x720 pixels x1
  5. FFC cable x1
1Luckfox Pico Ultra PoE Kit234
5

Luckfox Pico Ultra W LCD Kit A

  1. Luckfox Pico Ultra W x1
  2. IPX 2.4G 2DB antenna x1
  3. 4inch IPS Touch Display 480x480 pixels x1
  4. FFC cable x1
1Luckfox Pico Ultra W234

Luckfox Pico Ultra W LCD Kit B

  1. Luckfox Pico Ultra W x1
  2. IPX 2.4G 2DB antenna x1
  3. 4inch IPS Touch Display 720x720 pixels x1
  4. FFC cable x1
1Luckfox Pico Ultra W234

Luckfox Pico Ultra W LCD Kit C

  1. Luckfox Pico Ultra W x1
  2. Luckfox PoE module x1
  3. IPX 2.4G 2DB antenna x1
  4. Screws pack x1
  5. 4inch IPS Touch Display 480x480 pixels x1
  6. FFC cable x1
1Luckfox Pico Ultra W PoE Kit234
56

Luckfox Pico Ultra W LCD Kit D

  1. Luckfox Pico Ultra W x1
  2. Luckfox PoE module x1
  3. IPX 2.4G 2DB antenna x1
  4. Screws pack x1
  5. 4inch IPS Touch Display 720x720 pixels x1
  6. FFC cable x1
1Luckfox Pico Ultra W PoE Kit234
56
What is included in the package for the Luckfox Pico Ultra board?
Package contents vary by kit and may include the Pico Ultra board, PoE kit, PoE module, LCD kit options (A to D), antennas, screws, and FFC cables as listed for each kit.
Is PoE power supply included or optional?
The PoE module is optional and the PoE switch shown is not included; a PoE module header provides power and data over a single Ethernet cable.
What LCD display options are available and how are they connected?
The LCD options include a 4 inch IPS touch display with resolutions 480x480 or 720x720. Each kit includes an FFC cable for connection.
What connectivity options are available on the board?
The board offers USB Type C for power and program burning, USB A interface, RJ45 100M Ethernet, 2.4 GHz wifi 6 and Bluetooth 5.2 BLE on the W series, and antenna connectors.
What are the CPU and AI features on this board?
It has a single core ARM Cortex A7 32 bit core with NEON and FPU, a built in Rockchip 4th generation NPU supporting int4, int8 and int16, up to 1 TOPS for int8, and an ISP 3.2 for 5 megapixel image processing.
A
Admin
Welcome to the discussion thread for Luckfox Pico Ultra RV1106 Linux Micro Development Board
Feel free to ask questions, share tips or report issues.
Add Post

For more discussion Click Here

Discover More In:

LuckFox | Official Page ā†’ Programmers & Eval Kits ā†’ Waveshare | Official Page ā†’

Category: View all Single Board Computers

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Luckfox Pico Ultra RV1106 Linux
Micro Development Board

Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, Optional for Wireless / PoE Module / IPS LCD

Luckfox Pico Ultra series, front viewĀ Luckfox Pico Ultra series, features

Ā

Development Board Versions

Luckfox Pico Ultra series, version options

Ā

Optional for IPS LCD

Luckfox Pico Ultra series, optional for IPS LCD

Ā

LCD Kit connection example

Luckfox Pico Ultra series, LCD Kit connection example

Ā

4ā€³ IPS Touch Display Introduction

Capacitive Touch

Supports flexible and responsive touch operation to make development more convenient

LF40 480480 ARK, capacitive touch

Ā

LCD Specifications

Model 4inch IPS Touch Display
480x480Ā 		 4inch IPS Touch Display
720x720
Resolution 480Ɨ480Ā  720Ɨ720
Communication Interface RGB666
SIZE 4"
Display Panel IPS
Touch Type Capacitive
Touch Chip GT911
Brightness 400cd/mĀ²
Operation temperature -20~70Ā°C
Contrast ratio 380:1 1000:1
Viewing Angle 160Ā° 170Ā°
Outline Dimension 84.2Ɨ84.2mm (HƗV) 84.0Ɨ84.0mm (HƗV)
Display area 71.86Ɨ70.18mm (HƗV) 71.93Ɨ71.93mm (HƗV)
Pixel pitch 0.1497Ɨ0.1462mm (HƗV) 0.0999Ɨ0.0999mm (HƗV)
DISPLAY COLOUR GAMUT - 68% NTSC

Ā

Development Board Introduction


Highly integrated and powerful performance

Integrates CPU, NPU, ISP and other processors

Luckfox Pico Ultra series, integrates RV1106
  • Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
  • Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G3 is 1TOPSĀ
  • Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
  • Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size
  • Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths

Ā Ā

WiFi 6 and Bluetooth module

Onboard 2.4GHz WiFi 6 and Bluetooth 5.2/BLE Bluetooth Module, Providing Stable Connection and Efficient Transmission

Luckfox Pico Ultra series, onboard WiFi 6 and Bluetooth module

* the WiFi 6 / Bluetooth module is only available in Luckfox Pico Ultra W series

Ā

Reserved PoE Module Header

More Flexible for Power Supply

Luckfox Pico Ultra series, onboard reserved PoE module header

Ā

Optional for PoE Module, Supports PoE Power Supply

Provides Both Network Connection And Power Supply for Luckfox Pico Ultra board In Only One Ethernet Cable

Luckfox Pico Ultra series, optional for PoE ModuleĀ Luckfox Pico Ultra series, supports PoE power supply

* the PoE module is optional, and the switch in the picture above is NOT included.

Ā

What's On Board

Luckfox Pico Ultra series, onboard components
  1. USB Type-C connector
    for power supply and program burning
  2. USER-LED
    for indicating system operation status in the default image, programmable indicator
  3. BOOT button
    Press it when powering on or resetting to enter download mode
  4. RESET button
  5. GPIO header
  6. Onboard microphone
  7. Antenna connector
  8. WIFI/Bluetooth module
    2.4G WiFi 6; BT5.2/BLE Bluetooth module
  9. USB-A Interface
    Switching with USB Type-C by chip, enabled automatically for USB communication when USB-C is not connected
  1. RJ45 100M Ethernet port
  2. Speaker header
    MX1.25 2P connector, supports 8Ī© 1W speaker
  3. RGB LCD Interface
  4. CSI camera interface
    MIPI CSI 2-lane
  5. RV1106G3
    Vision processor SoC with built-in ARM Cortex-A7 core
  6. KLM8G1GETF-B041
    8GB EMMC
  7. RTC battery connector
  8. PoE module header
  9. PoE module / external power supply header
    for connecting external 5V power supply or PoE module power supply

Ā

Pin definition

Luckfox Pico Ultra series, pin definition

Ā

Outline Dimensions

Luckfox Pico Ultra series, outline dimensions

Ā

Ā

Resources

Wiki:Ā https://wiki.luckfox.com/Luckfox-Pico/Luckfox-Pico-RV1106/Luckfox-Pico-Ultra-W/Luckfox-Pico-quick-start

Ā

Package Contains:

Weight: 0.082 kg

Luckfox Pico Ultra

Luckfox Pico Ultra x1

Luckfox Pico Ultra

Luckfox Pico Ultra PoE Kit

  1. Luckfox Pico Ultra x1
  2. Luckfox PoE module x1
  3. Screws pack x1
1Luckfox Pico Ultra PoE Kit23

Luckfox Pico Ultra W

  1. Luckfox Pico Ultra W x1
  2. IPX 2.4G 2DB antenna x1
1Luckfox Pico Ultra W2

Luckfox Pico Ultra W PoE Kit

  1. Luckfox Pico Ultra W x1
  2. Luckfox PoE module x1
  3. IPX 2.4G 2DB antenna x1
  4. Screws pack x1
1Luckfox Pico Ultra W PoE Kit234

Luckfox Pico Ultra LCD Kit A

  1. Luckfox Pico Ultra x1
  2. 4inch IPS Touch Display 480x480 pixels x1
  3. FFC cable x1
1Luckfox Pico Ultra PoE Kit23

Luckfox Pico Ultra LCD Kit B

  1. Luckfox Pico Ultra x1
  2. 4inch IPS Touch Display 720x720 pixels x1
  3. FFC cable x1
1Luckfox Pico Ultra PoE Kit23

Luckfox Pico Ultra LCD Kit C

  1. Luckfox Pico Ultra x1
  2. Luckfox PoE module x1
  3. Screws pack x1
  4. 4inch IPS Touch Display 480x480 pixels x1
  5. FFC cable x1
1Luckfox Pico Ultra PoE Kit234
5

Luckfox Pico Ultra LCD Kit D

  1. Luckfox Pico Ultra x1
  2. Luckfox PoE module x1
  3. Screws pack x1
  4. 4inch IPS Touch Display 720x720 pixels x1
  5. FFC cable x1
1Luckfox Pico Ultra PoE Kit234
5

Luckfox Pico Ultra W LCD Kit A

  1. Luckfox Pico Ultra W x1
  2. IPX 2.4G 2DB antenna x1
  3. 4inch IPS Touch Display 480x480 pixels x1
  4. FFC cable x1
1Luckfox Pico Ultra W234

Luckfox Pico Ultra W LCD Kit B

  1. Luckfox Pico Ultra W x1
  2. IPX 2.4G 2DB antenna x1
  3. 4inch IPS Touch Display 720x720 pixels x1
  4. FFC cable x1
1Luckfox Pico Ultra W234

Luckfox Pico Ultra W LCD Kit C

  1. Luckfox Pico Ultra W x1
  2. Luckfox PoE module x1
  3. IPX 2.4G 2DB antenna x1
  4. Screws pack x1
  5. 4inch IPS Touch Display 480x480 pixels x1
  6. FFC cable x1
1Luckfox Pico Ultra W PoE Kit234
56

Luckfox Pico Ultra W LCD Kit D

  1. Luckfox Pico Ultra W x1
  2. Luckfox PoE module x1
  3. IPX 2.4G 2DB antenna x1
  4. Screws pack x1
  5. 4inch IPS Touch Display 720x720 pixels x1
  6. FFC cable x1
1Luckfox Pico Ultra W PoE Kit234
56
FAQ
What is included in the package for the Luckfox Pico Ultra board?
Package contents vary by kit and may include the Pico Ultra board, PoE kit, PoE module, LCD kit options (A to D), antennas, screws, and FFC cables as listed for each kit.
Is PoE power supply included or optional?
The PoE module is optional and the PoE switch shown is not included; a PoE module header provides power and data over a single Ethernet cable.
What LCD display options are available and how are they connected?
The LCD options include a 4 inch IPS touch display with resolutions 480x480 or 720x720. Each kit includes an FFC cable for connection.
What connectivity options are available on the board?
The board offers USB Type C for power and program burning, USB A interface, RJ45 100M Ethernet, 2.4 GHz wifi 6 and Bluetooth 5.2 BLE on the W series, and antenna connectors.
What are the CPU and AI features on this board?
It has a single core ARM Cortex A7 32 bit core with NEON and FPU, a built in Rockchip 4th generation NPU supporting int4, int8 and int16, up to 1 TOPS for int8, and an ISP 3.2 for 5 megapixel image processing.
