Metal Case for ROCK 5B+

Radxa Metal Case for ROCK 5B+

Specialized for Radxa ROCK 5B+

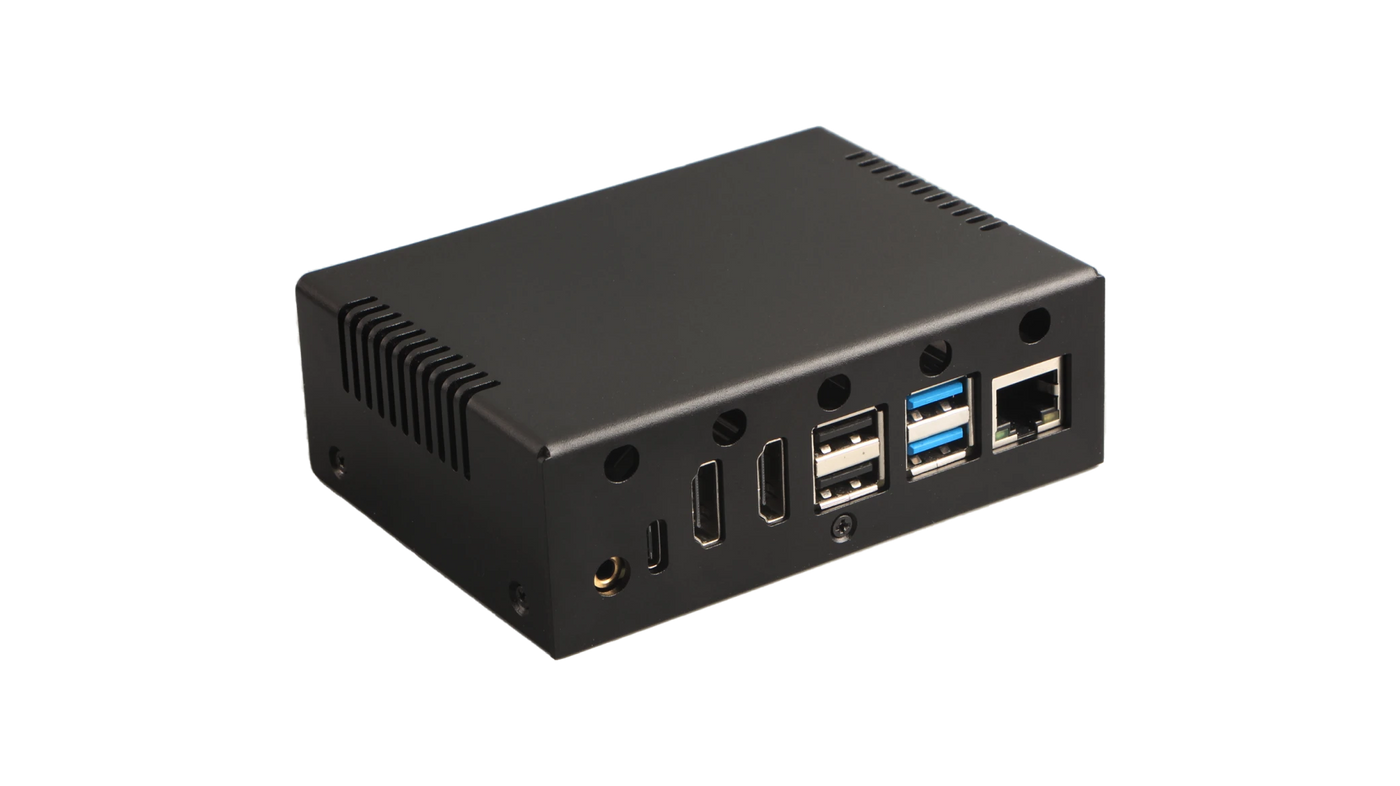

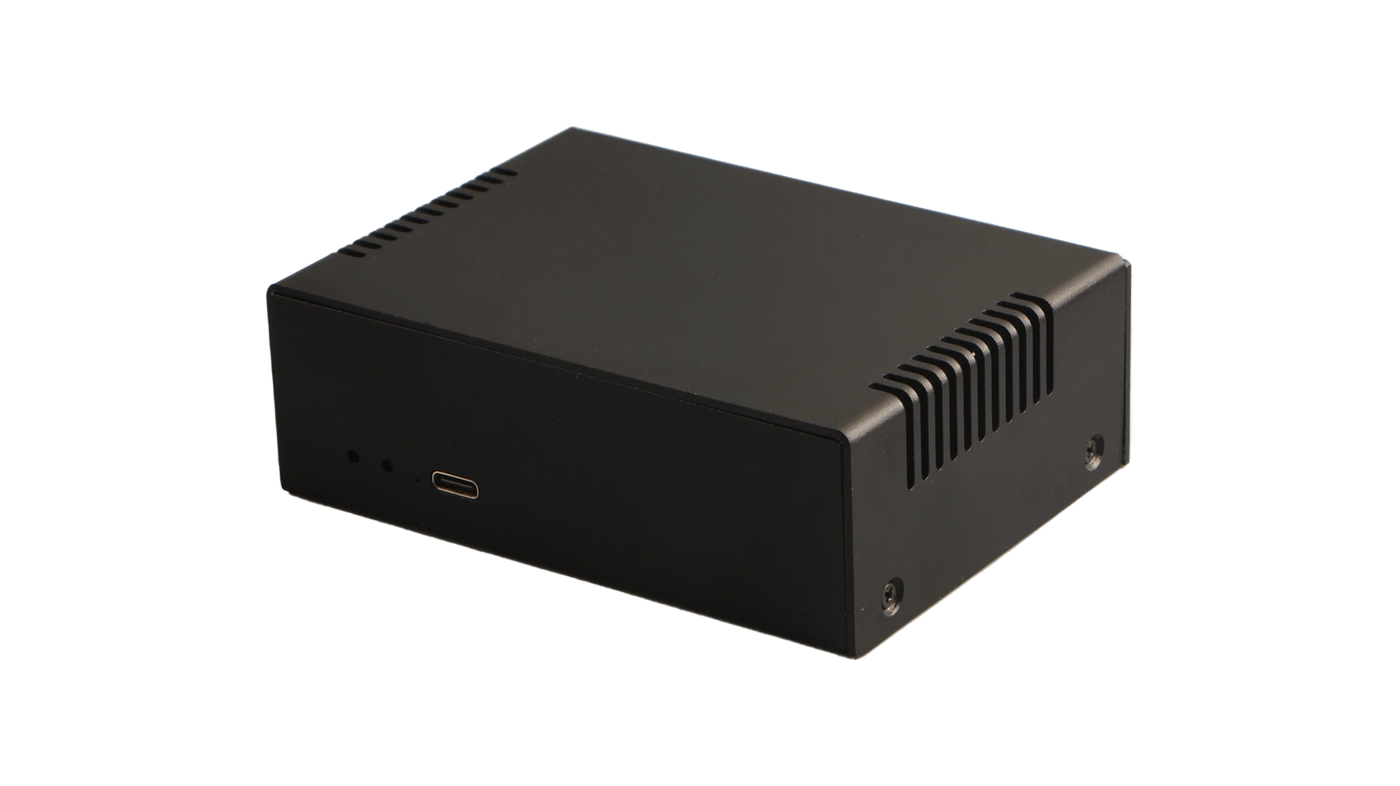

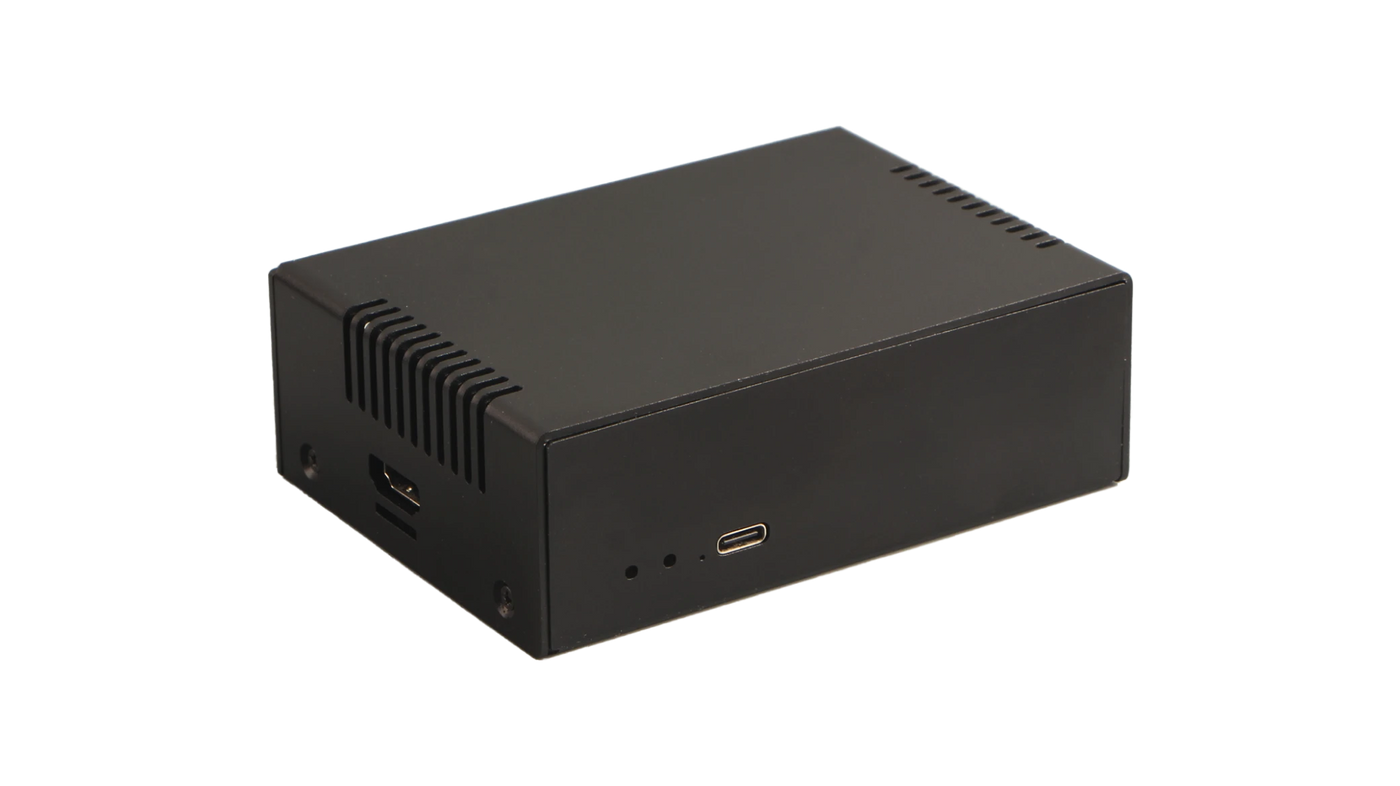

Protect and enhance your Radxa ROCK 5B+ with this specially designed metal case. Engineered for optimal compatibility, this enclosure provides sturdy protection and efficient heat dissipation for the upgraded ROCK 5B+ single-board computer.

First, take four M2.5x6 copper pillars and align them with the fixing hole positions on the back of the ROCK 5B+. Then, use four CM2.5x4 screws to fix the M2.5x6 copper pillars from the front of the ROCK 5B+.

Second, place the ROCK 5B+ with the installed copper pillars into the bottom cover, ensuring that the copper pillars are aligned with the fixing hole positions of the bottom cover. Next, use four KM2.5x4 screws to fix the M2.5x6 copper pillars from the back of the bottom cover.

Then, align the top cover with the bottom cover and install it steadily.

Finally, take the remaining five KM2.5x4 screws, align them with the designated positions on the top cover, and fix them in place.

Package List

・ Top Cover
・ Bottom Cover
・ 4x M2.5x6 Copper Pillars
・ 4 x CM2.5x4mm Screws
・ 9 x KM2.5x4mm CD Pattern Screws

Tech Specs

Metal Case for ROCK 5B+ Works with

> Radxa ROCK 5B+
New Upgrade Version of ROCK 5B
