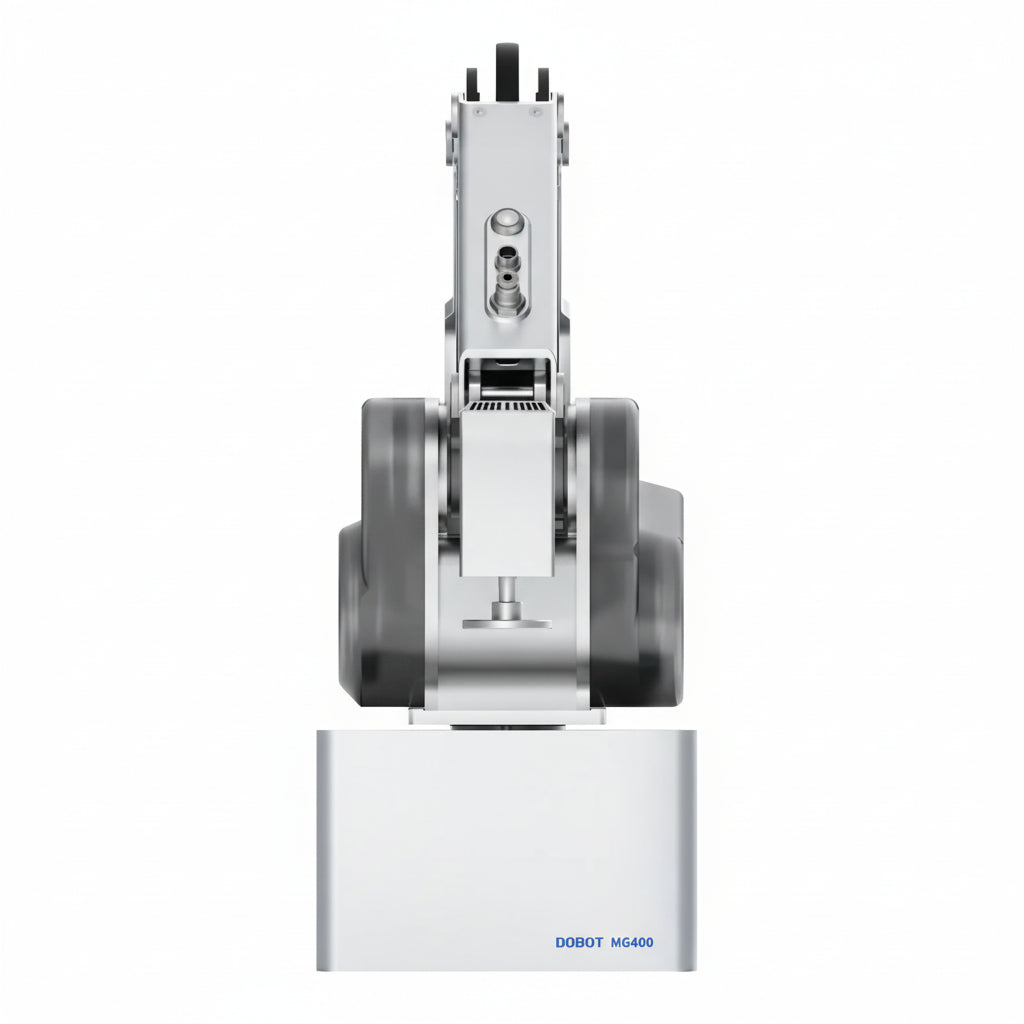

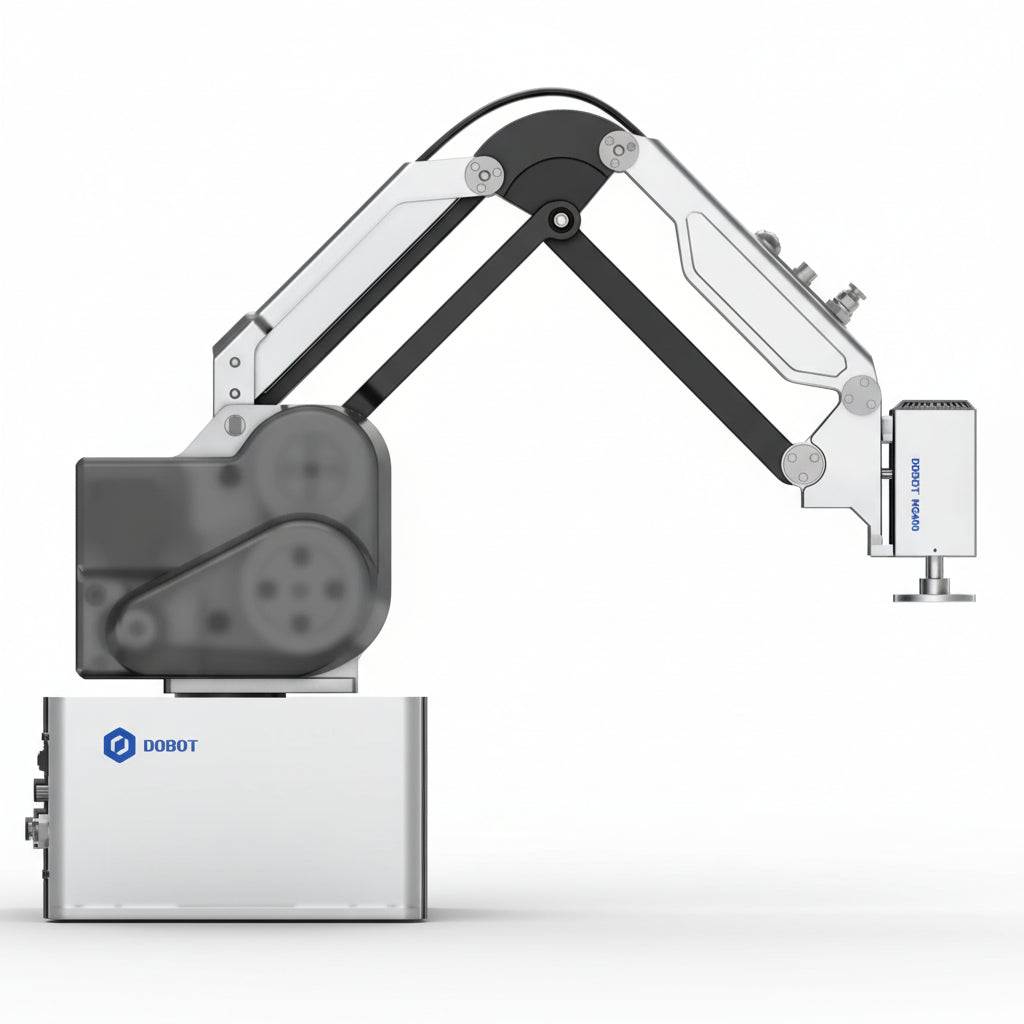

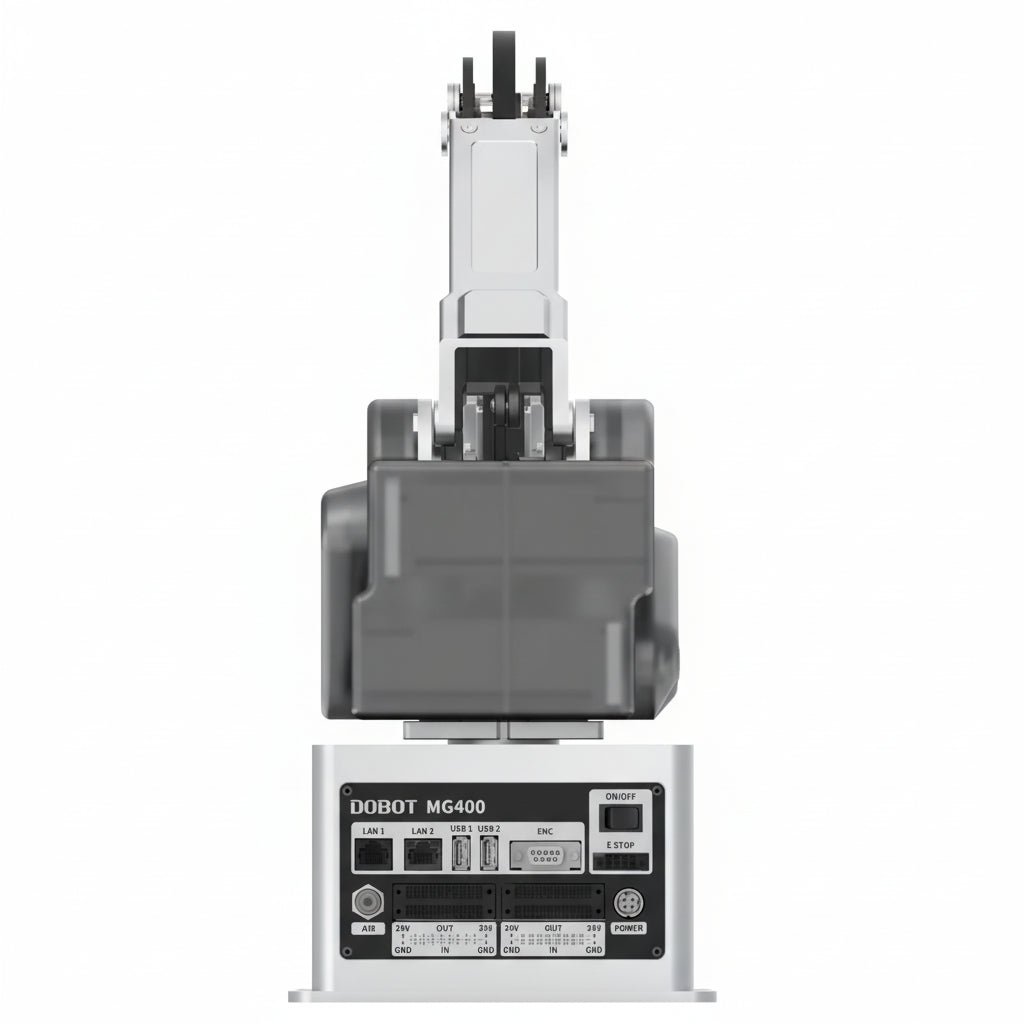

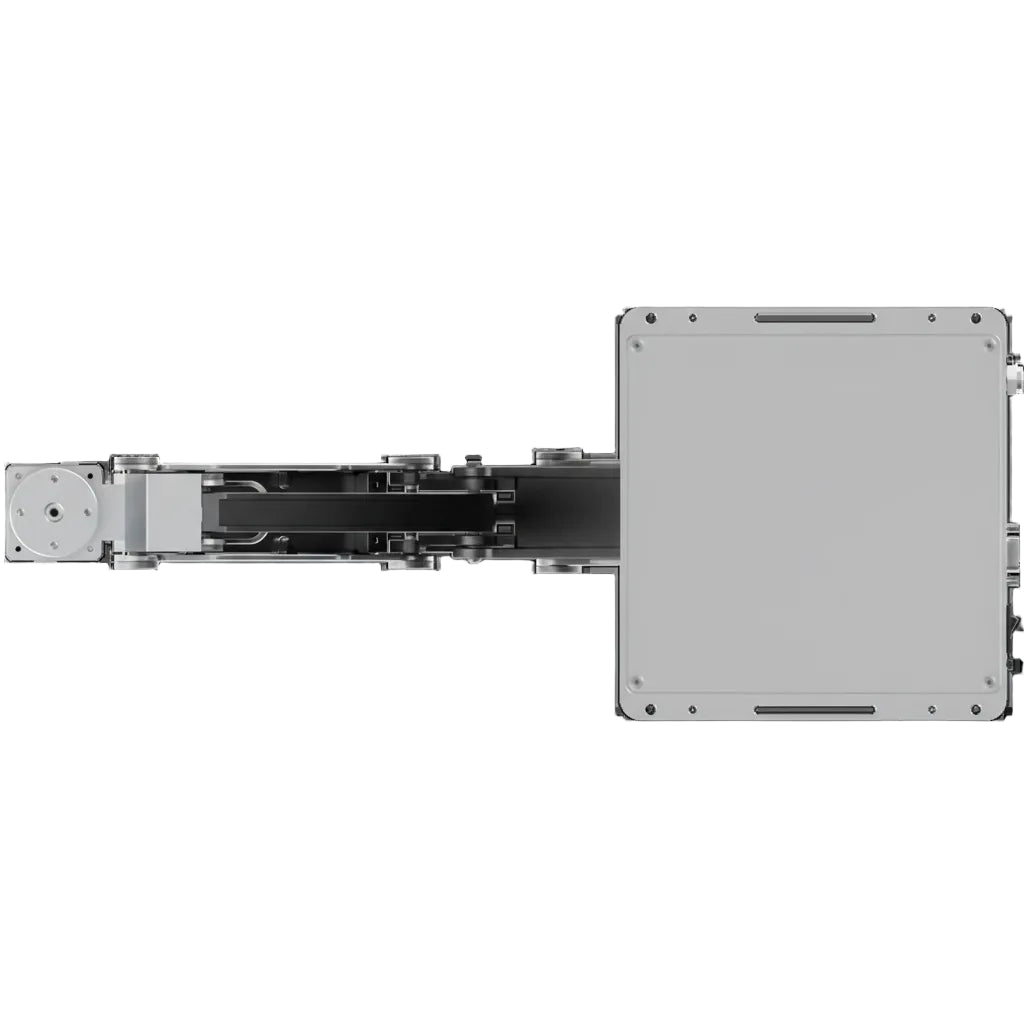

The MG400 is an ultra compact desktop grade robotic arm with footprint smaller than a piece of A4 size paper. It is safe for human collaboration, easy to use, and quick to deploy, making it perfect to automate small batch flexible productions. With 750 g maximum payload, 440 mm maximum reach, drag-to-teach and collision detection features, MG400 is a cost effective option for smart automation tasks.
Ā

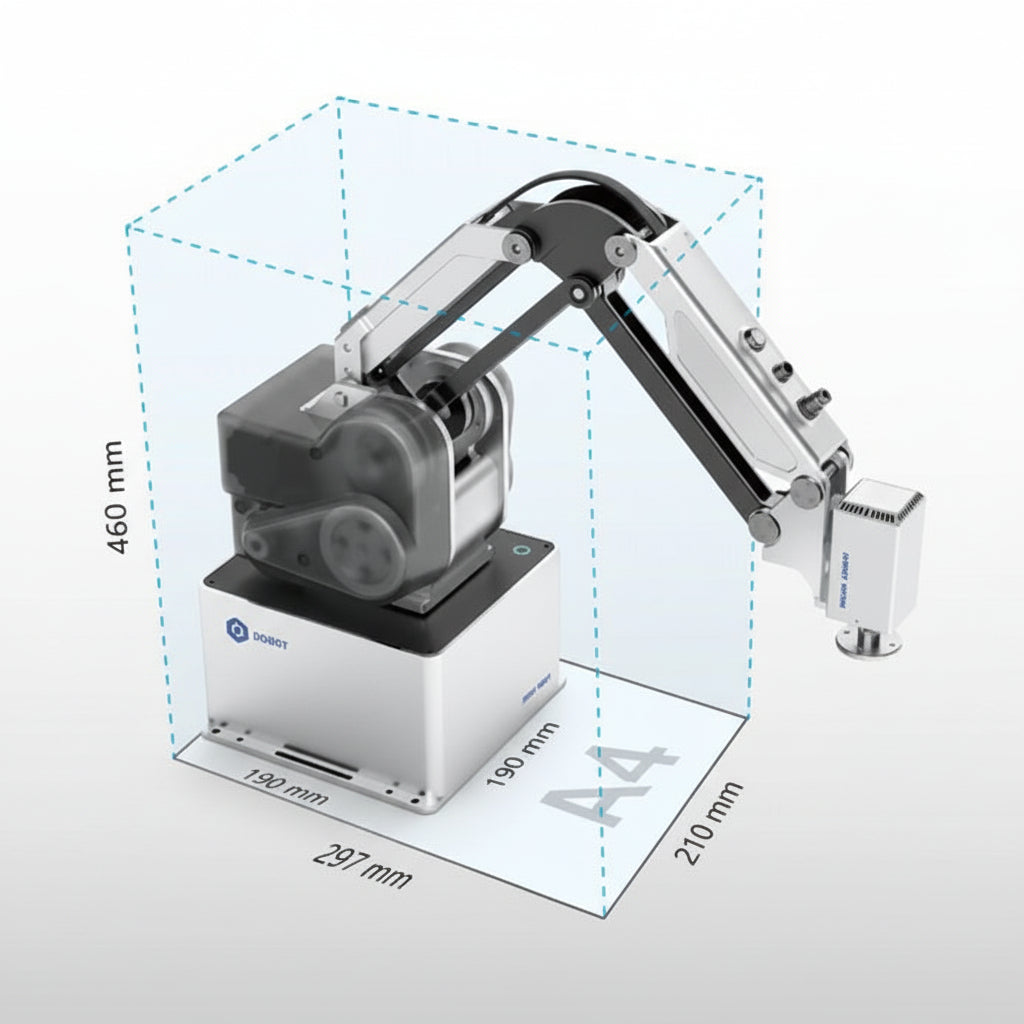

The MG400 has an all-in-one design that effortlessly fits into a 190 mm x 190 mm space. It is highly portable and is ideal for flexible production.
Ā
The MG400 is equipped with a servo motor having a high-precision encoder, proprietary drive and controller, to achieve Ā±0.05 mm repeatability. Vibration suppression algorithm increases multi-joint motion stability time by 60% and reduces residual vibration by 70%.
Ā
With drag-to-teach, the MG400 is designed to be easy to use. The MG400 lowers the barrier of entry into automation and is favored by numerous small and medium enterprises.
Ā
In addition to drag-to-teach, the MG400 can also be programmed using Lua and graphical interface, suitable for developers of all levels.
Ā
Ā
| MG400 |  |
| Number of Axes | 4 |
| Payload | 500 g (Max. 750 g) |
| Working Radius | 440 mm |
| Repeatability | Ā±0.05 mm |
| Range of Motion - J1 | Ā±160Ā° |
| Range of Motion - J2 | -25Ā°~85Ā° |
| Range of Motion - J3 | -25Ā°~105Ā° |
| Range of Motion - J4 | Ā±360Ā° |
| Maximum Joint Speed - J1 | 300Ā° /s |
| Maximum Joint Speed - J2 | 300Ā° /s |
| Maximum Joint Speed - J3 | 300Ā° /s |
| Maximum Joint Speed - J4 | 300Ā° /s |
| Power | 100~240V AC, 50/60 Hz |
| Rated Voltage | 48V |
| Power Consumption | 150W |
| Communication Interface | TCP/IP, Modbus TCP |
| Installation | Desktop |
| Weight | 8 kg |
| Base Size | 190 mm Ć 190 mm |
| Environment | 0Ā° ļ½ 40Ā° C |
Ā
| Ā User Manual | |
| Ā Dobot MG400 User Guide | Ā Download |
| DobotStudio Pro 2.8 User Guide (MG400&M1Pro) | Ā Download |
| Dobot CRStudio APP User Guide (MG400&M1 Pro) | Ā Download |
| Ā Control Software | |
|
DobotStudio Pro 2.8 for Win64 Android APP CRStudio |
Ā Download |
Ā
Ā
