myArm M&C Embodied Humanoid Robot Compound Kit

SKU: RBC1078

₹ 1,297,049.99

Out of stock · Available in 2 weeks

📦 Min order 1

Enter your email or your WhatsApp number.
Chat with us on WhatsApp We reply quickly! Contact Us
myArm M&C Embodied Humanoid Robot Compound Kit₹ 1,297,049.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

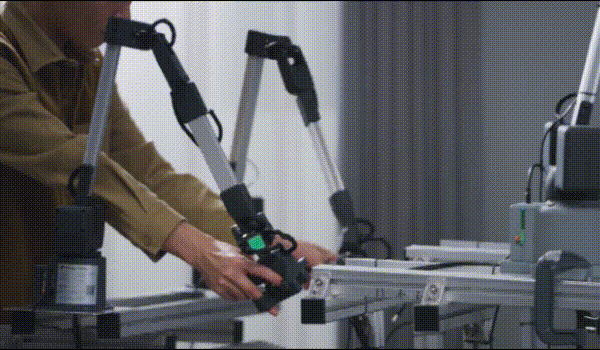

myArm M & C: Robot Arm & Teach Pendant

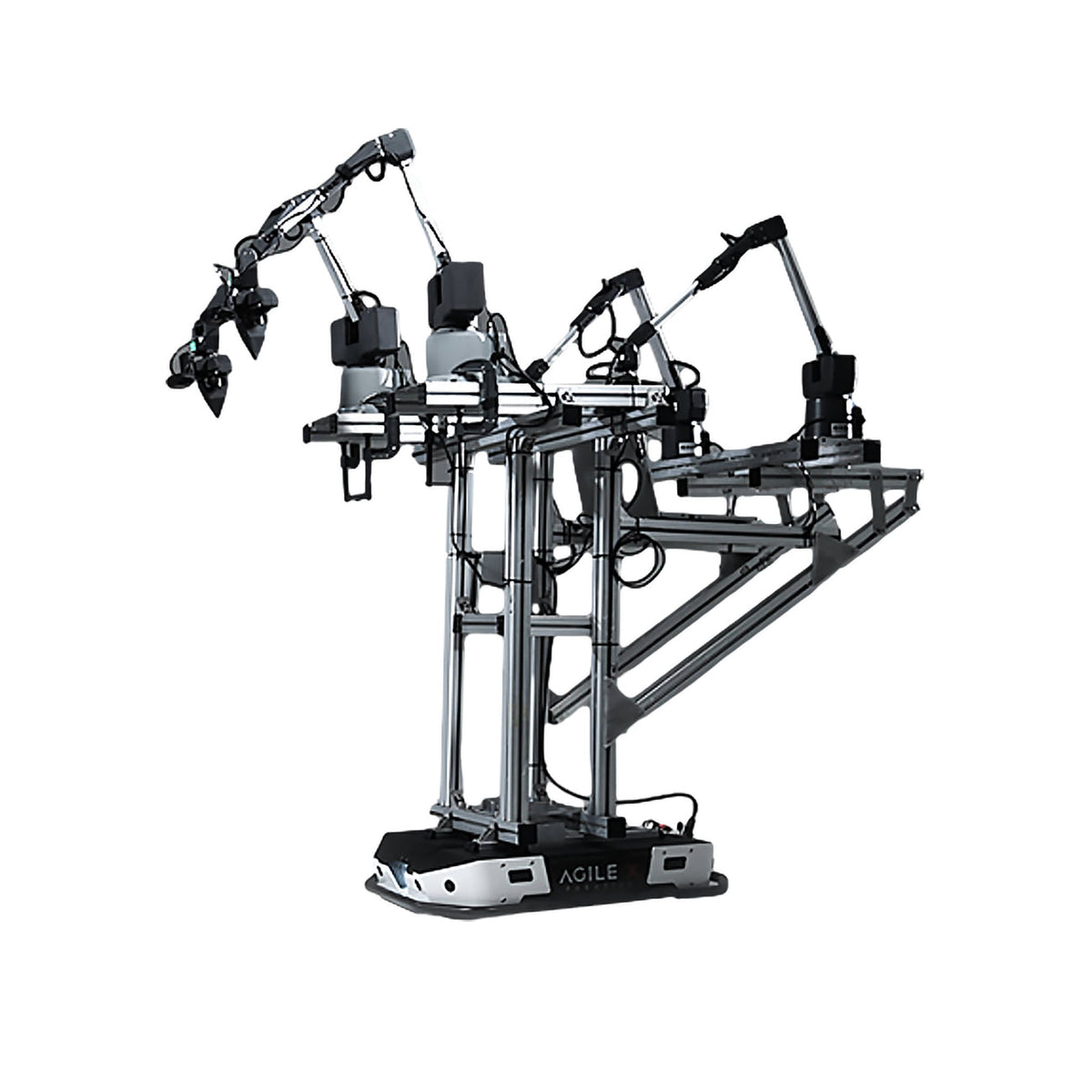

The myArm M&C Embodied Humanoid Robot Compound Kit, combining advanced robotic arm capabilities with a mobile base, opens up a wide range of possibilities for robotics research, mobile exploration, and multi-scene applications.

e.g. Validation of Mobile-ALOHA Robot Motion Control Algorithms, Mobile Monitoring and Security, Education and Research.

Two-arm & Enhanced Control

Dual-arm & Enhanced Control

Equipped with sensors that track real-time motion data (position, speed, etc.), the robot arm also identifies anomalies to ensure safe operation. Additionally, its 6+1-axis design mimics human arm flexibility for versatile multi-angle and multi-directional control.

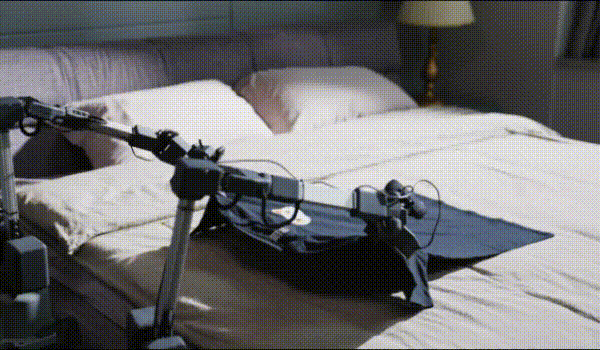

 Handles Diverse Tasks

Handles Diverse Tasks

The 750mm arm length is ideal for reaching objects, while the 500g rated load and 1000g maximum load allow it to handle common household items. myArm M750 can fold clothes, sort books, brew coffee, and more.

 Universal Control Hub

Universal Control Hub

The myArm C650 seamlessly controls various machines, including the myArm M750, myCobot 630 (with its full harmonic motor) & Mercury X1 (with dual-arm cooperation). Its capabilities are vast, opening doors to endless possibilities.



Programming & Development

The myArm series robots are highly valuable in the fields of education and research, particularly within the widely used development environments of Python and ROS (Robot Operating System). These environments provide robust support, enabling the myArm series robots to be extensively utilized in machine learning, artificial intelligence research, complex motion control, and visual processing tasks.



Essential Functions



Specification Differences

Specification myArm M750 myArm C650
Degree of Freedom 6+1 6+1
Payload 500g
Working Load 500g Load Capacity, 1000g Maximum Load -
Working Radius 750mm 650mm
Total Span 1500mm 1300mm
Positioning Accuracy ±1mm ±1mm
Accuracy 5 – 8mm 5 – 8mm
Weight 3.6kg 1.8kg
Number of Steering Gears 8 8
Steering Gear Type Industrial grade high-precision digital servo motor High precision digital servo motor
Power Specifications 24V9.2A 12V5A
Joint Maximum Rotation +/- 180° +/- 180°
End Effector Parallel gripper compatible with optional camera Dual-finger touch control + dual-button operation
USB Connection Type-C Type-C
Atom Tip 5x5 LED matrix 5x5 LED matrix
Communication Frame Rate >50Hz >50Hz
Programming Python + ROS Python + ROS



What's Included

myArm MC Embodied Humanoid Compound Kit myArm M&C Teleoperation Robotic Arm Kit X1
Tracer Intelligent Navigation Kit X1
Tracer Mobile Base X1
USB Data Cable X4
Power Module X1



myStudio

Centralized Robot Management: myStudio offers firmware updates, video tutorials, and maintenance/repair information, all accessible from a one-stop platform.

Robot Management

Download Windows

Download Windows

Download Linux

Download Linux

Download Mac

Download Mac



Instructions

Gitbook User Tutoria [Recommended reading]

Gitbook User Tutoria

GitHub Repository [Get Software Tutorial]

Github Repository

Download User Manual (PDF)

Download User Manual



Video Learning

What does the kit include and what tasks can it perform?
It combines a robotic arm and a mobile base for research and exploration, enabling multi scene applications. The arm features a six plus one axis design and can perform tasks such as folding clothes, sorting books, and brewing coffee.
How does the arm ensure safe operation and flexible control?
Sensors track real time motion data such as position and speed, and anomalies are identified to prevent unsafe movements. The six plus one axis design enables versatile multi angle and multi directional control.
What are the main physical specifications of the arm?
The arm length is 750 mm, the rated payload is 500 grams, and the maximum load is 1000 grams.
What hardware and software compatibility does the system offer?
The Universal Control Hub can control devices such as the myArm M750, myCobot 630, and Mercury X1. Programming is supported in Python and ROS for education and research.
Who should consider using this kit?
It is designed for education and research in robotics and artificial intelligence, supporting machine learning, motion control, and visual processing tasks.
