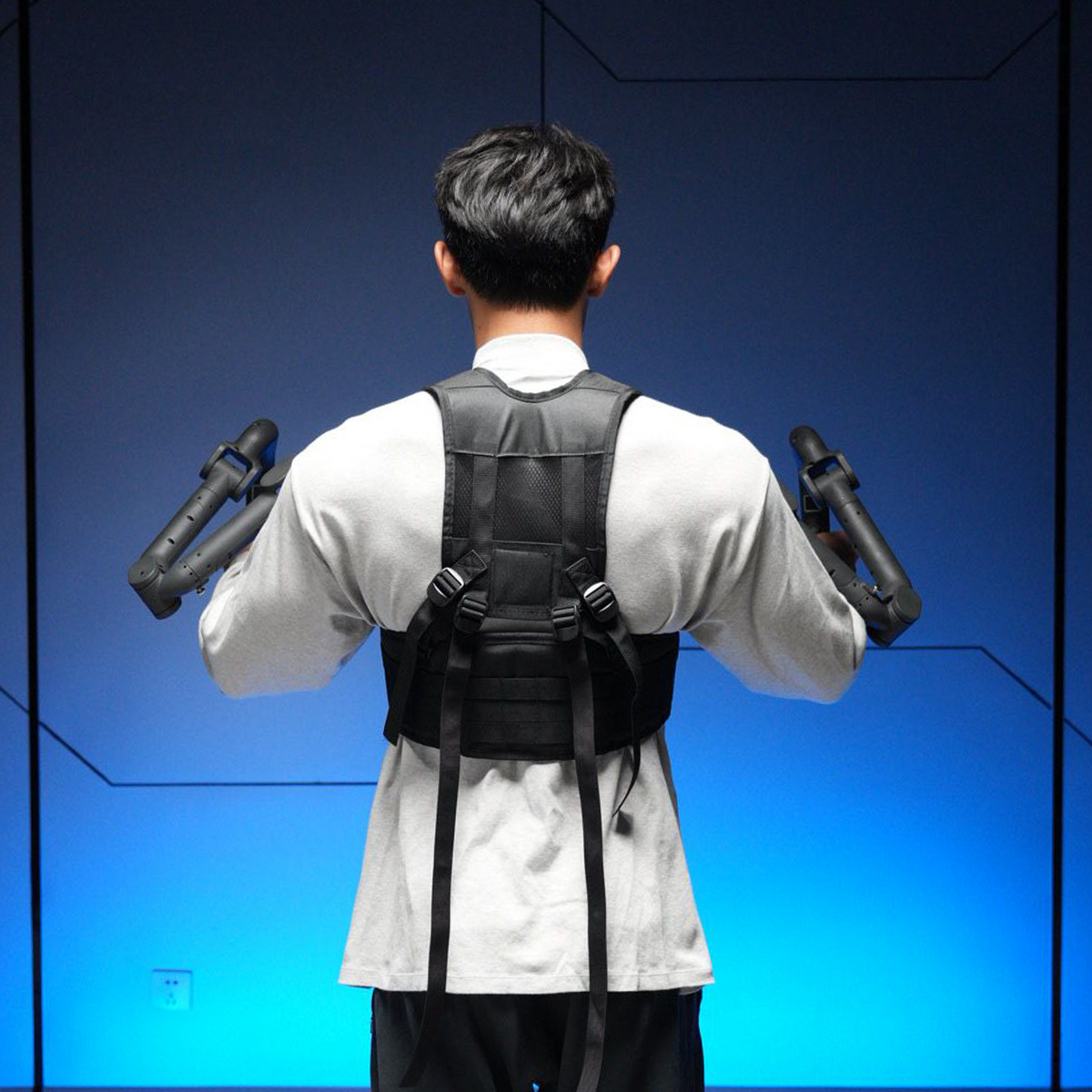

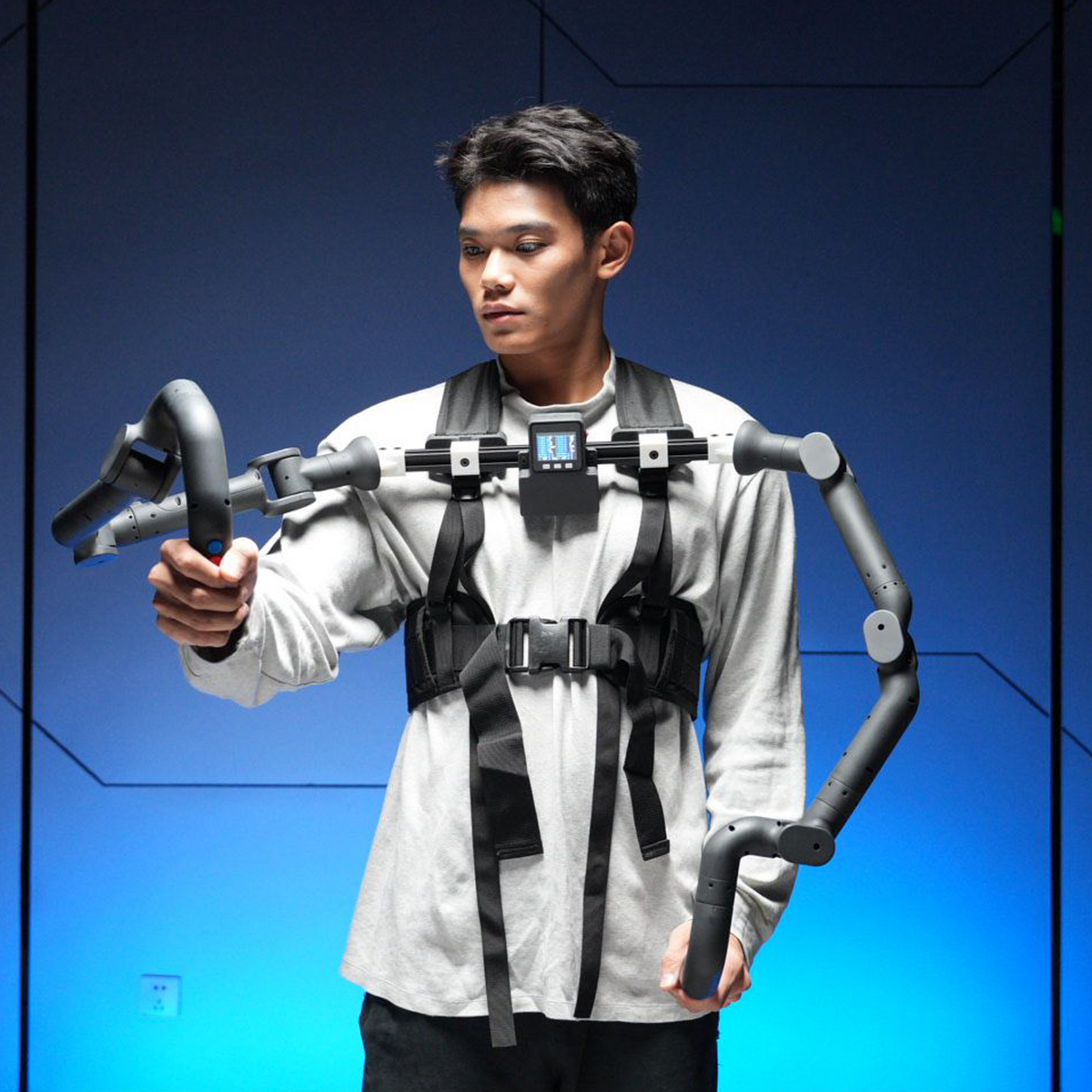

The myController S570 is a portable exoskeleton designed by Elephant Robotics for motion data collection. It can be used for myCobot 280ćmyCobot 320ćmyCobot Pro 630ćmyAGVćmechArm 270ćmyArm M750ćmyBuddy 280ćMercury Humanoid Robot and also works with different types of robots for data capture, remote control, and development. This device enables researchers, developers, and educators to seamlessly integrate robotics into practical applications and learning environments.
|
Research and DevelopmentThe S570 captures motion data at 100Hz, ensuring precise AI training and efficient robotic motion capture. Its advanced data processing capabilities make it ideal for handling complex scenarios in research and algorithm development, providing a |
Education and TrainingThe S570 works seamlessly with robots of various DOFs, offering a flexible platform for hands-on learning. It enables intuitive robot control, helping students and researchers quickly understand |
Robotic TeleoperationWith Python libraries and ROS support, the S570 simplifies robot integration for motion data |

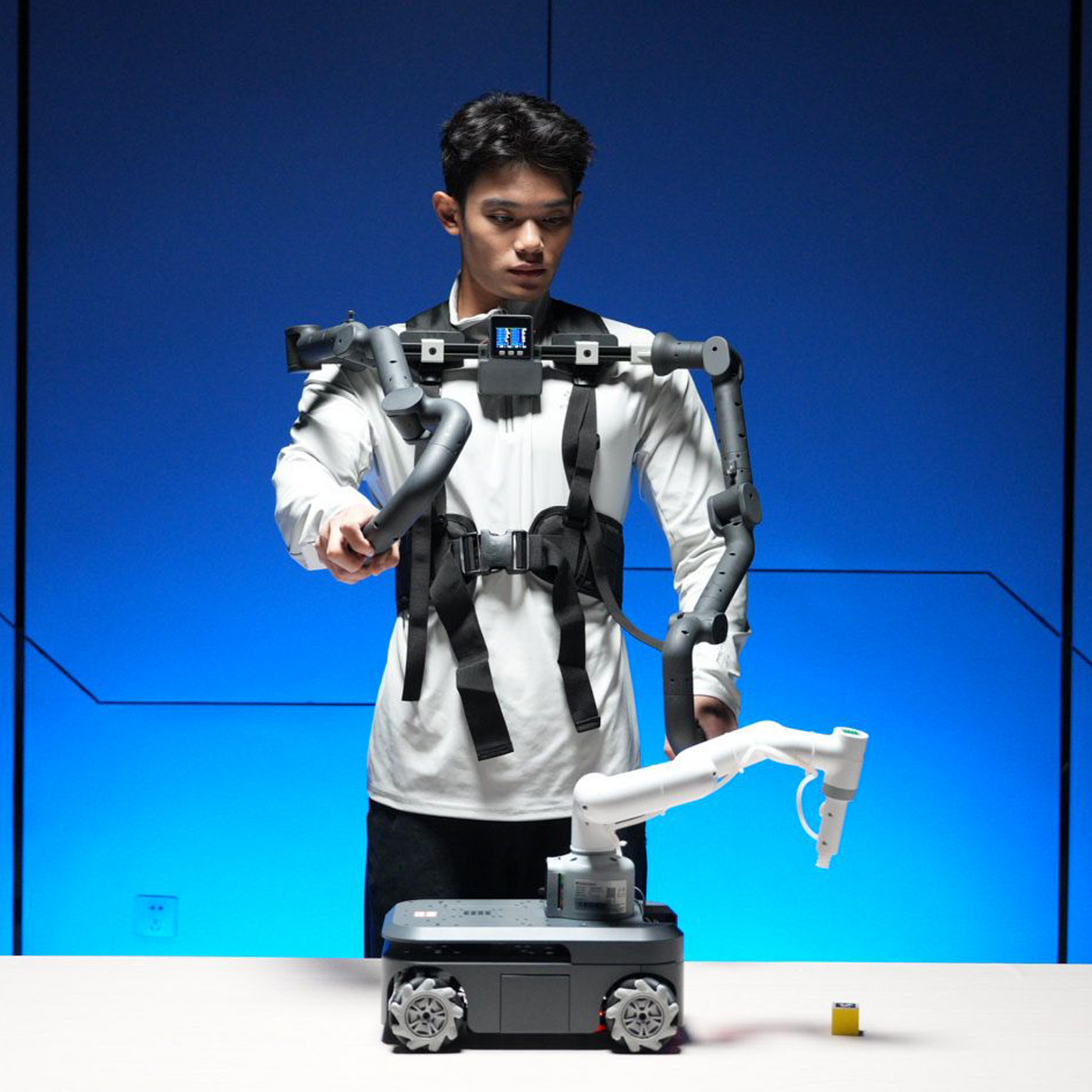

myAGV & myCobot 280 |

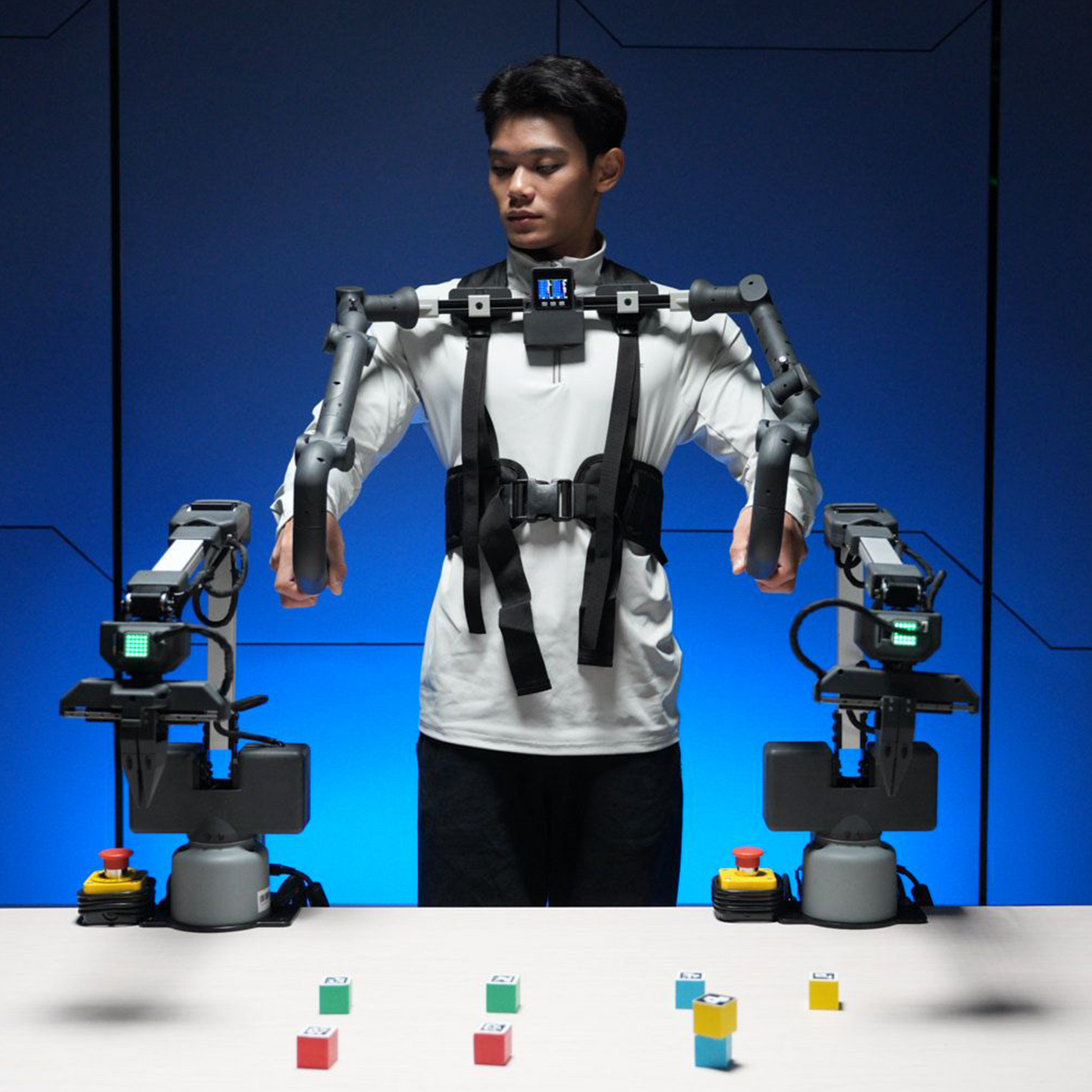

myArm M750 |

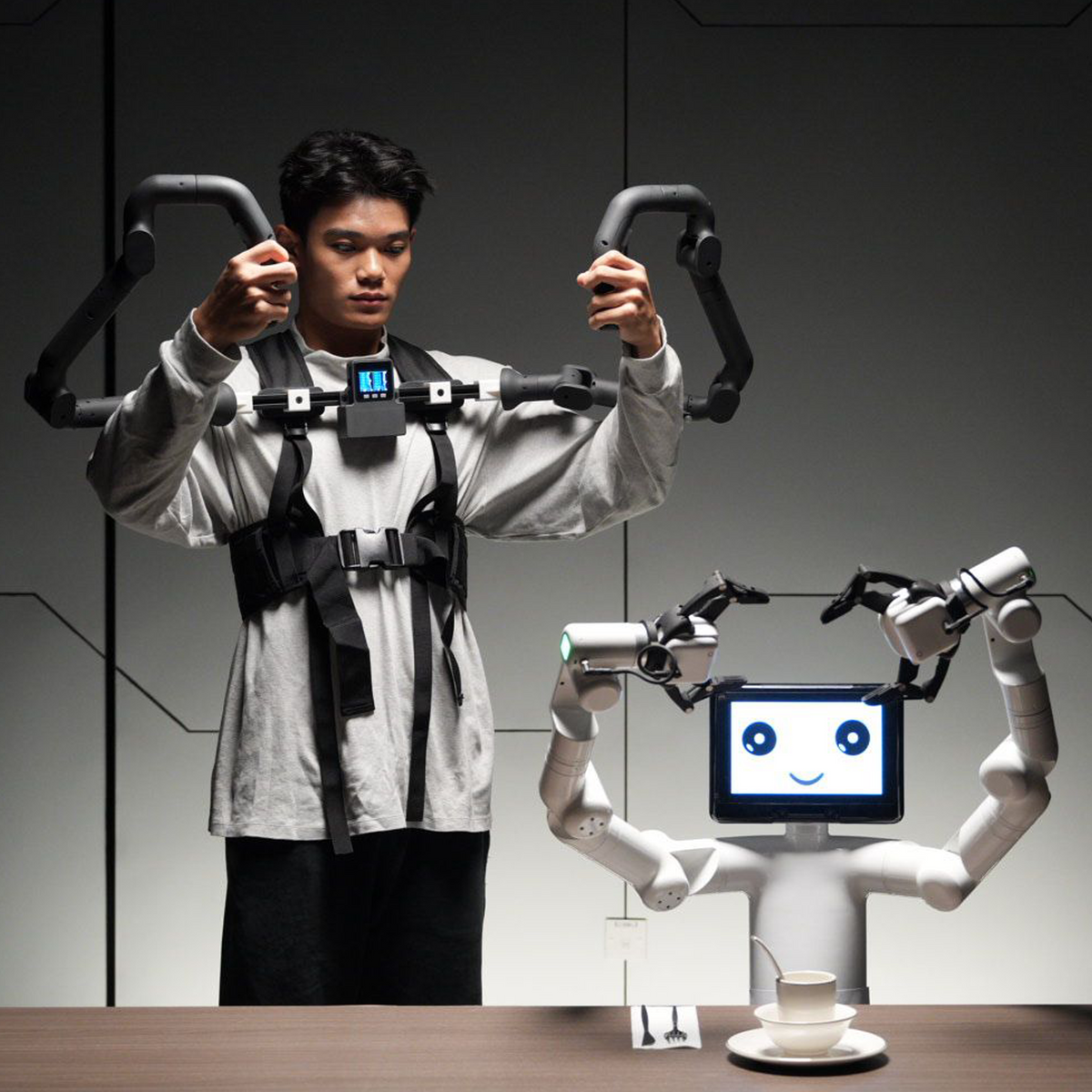

Mercury X1 |
|
Comprehensive Data CollectionThe S570 collects motion and environmental data, making it versatile for a wide range of research and development applications. |
High Precision SensorsEquipped with 4096-resolution magnetic encoders, it ensures precise motion tracking and accurate replication of movements. |
High-Speed SamplingWith a 100Hz sampling rate, the S570 captures |
|
Multi-Connection OptionsSupports USB, Bluetooth, and wireless connectivity, offering flexibility for different environments, from stable indoor setups to remote outdoor use. |
Real-Time FeedbackA built-in 2-inch LCD screen provides live updates on device status, helping users monitor and adjust operations as needed. |
Modular and CustomizableThe modular design allows for easy upgrades and maintenance, with customizable configurations to meet specific user needs. |
Ā
|
|
myController S570 Ć1 āāāāāāāāāāāāāāāāāāāāāāāāāāāāāāāāāāāāā 8.4V Power Adapter Ć1 āāāāāāāāāāāāāāāāāāāāāāāāāāāāāāāāāāāāā USB Data Cable Ć1 āāāāāāāāāāāāāāāāāāāāāāāāāāāāāāāāāāāāā |
Ā
Provides a standardized robot driver library via PyPI, supporting queries for joint angles, Cartesian coordinates, and more.Supports both ROS1 and ROS2, with RViz simulation and real-time robot state display.
|
Python |
ROS |
Ā

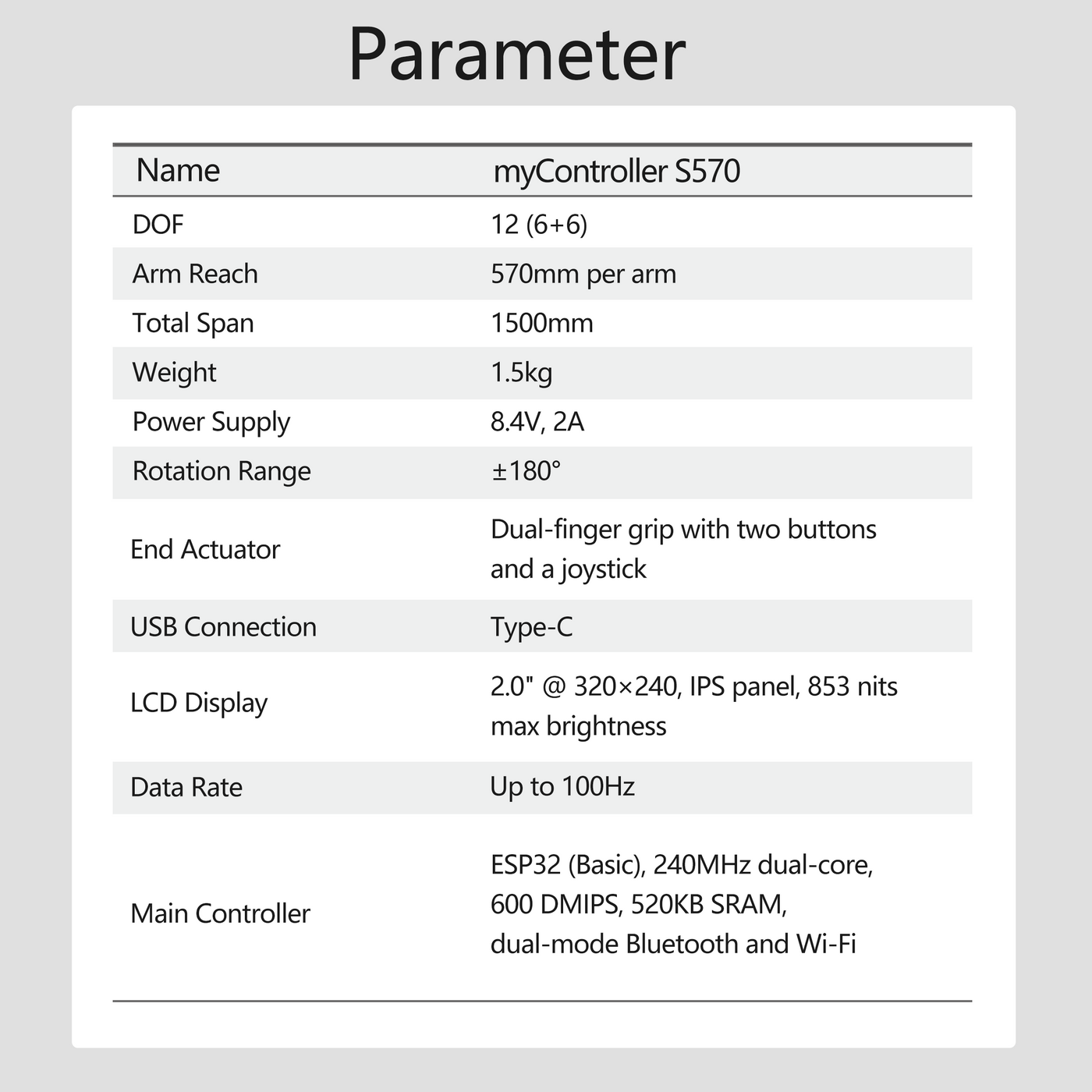

| Item | Specification |
|---|---|
| Name | myController S570 ā Exoskeleton Controller |
| DOF | 12 (6+6) |
| Arm Reach | 570mm per arm |
| Total Span | 1500mm |
| Weight | 1.5kg |
| Power Supply | 8.4V, 2A |
| Rotation Range | Ā±180Ā° |
| End Actuator | Dual-finger grip with two buttons and a joystick |
| USB Connection | Type-C |
| LCD Display | 2.0ā³ @ 320Ć240, IPS panel, 853 nits max brightness |
| Data Rate | Up to 100Hz |
| Main Controller | ESP32 (Basic), 240MHz dual-core, 600 DMIPS, 520KB SRAM, dual-mode Bluetooth and Wi-Fi |
| Auxiliary Controller | ESP32 Ć2 (Atom), 4MB Flash, 5Ć5 LED Matrix |
| Interfaces | Provides access to joint position, speed, acceleration, button status, joystick state, gyroscope data, and customizable LED colors (read/write). |
| File Formats | Supports 3D-Step and 2D CAD files |
| Current Position | Read |
| Current Speed | Read |
| Current Acceleration | Read |
| Button Status | Read |
| Joystick State | Read |
| Gyroscope Data | Read |
| LED Light Color | Read/Write |
Ā
