NAS Multi-functional Mini-Computer Designed for Raspberry Pi Compute Module 4

SKU: WVSH0407

₹ 8,849.99 ₹ 8,999.99

In stock | Ready to ship

⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
NAS Multi-functional Mini-Computer Designed for Raspberry Pi Compute Module 4₹ 8,849.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

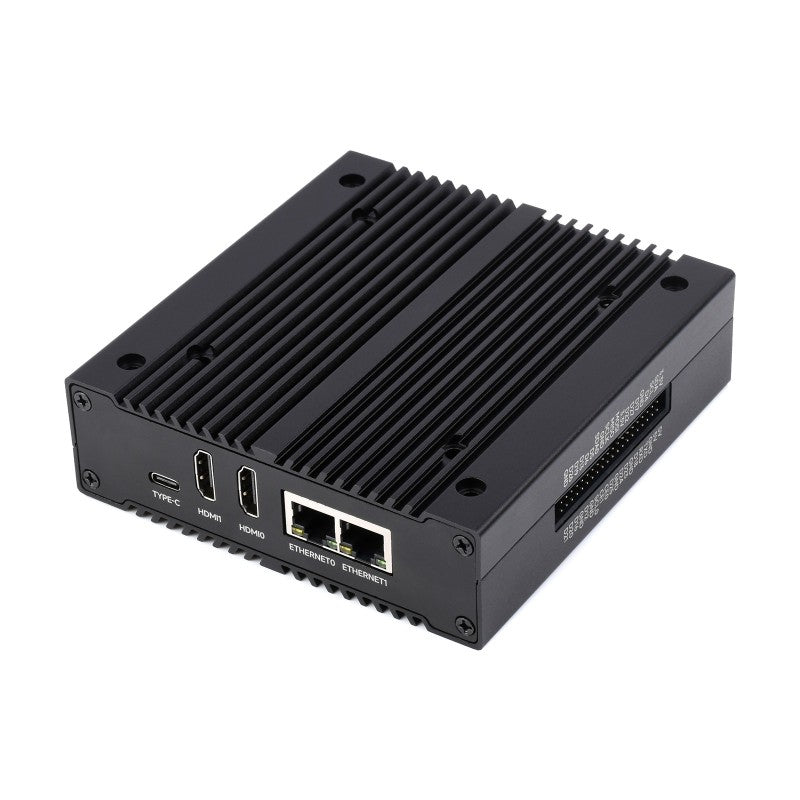

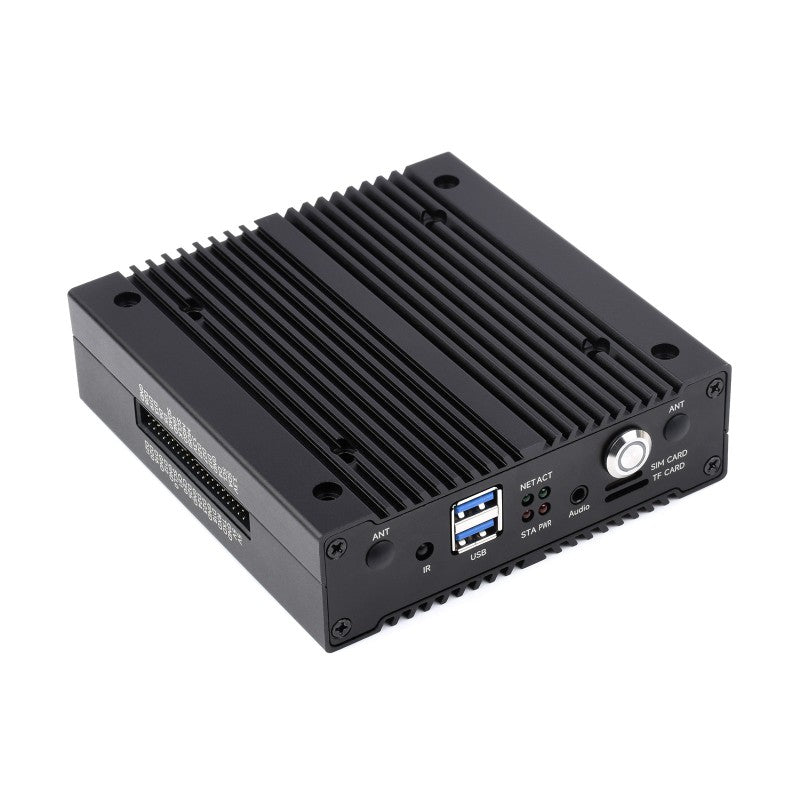

CM4 NAS Mini-Computer Kit

Designed For Raspberry Pi Compute Module 4

Network Storage | USB 3.2 | Dual Gigabit Ethernet ports | 4G


* the Compute Module 4 is NOT included.


Features

  • All-in-one Mini-Computer, mainly designed for home, small home office, etc.
  • Provides a simple and easy-to-use solution, no expert knowledge of networking and storage systems required
  • Onboard 2× M.2 M KEY slots for installing NVME Solid State Drives
  • Onboard MINI PCIE connector for installing 4G module
  • 2× HDMI 4K output interfaces
  • Onboard USB3.2 ports, IR receiver, RTC, dual Gigabit Ethernet connectors, 3.5mm jack, etc.



Specifications

CM4 SOCKET Suitable for all variants of Compute Module 4
NETWORKING Gigabit Ethernet RJ45 connector × 2 (Original Network port ETH0, and PCIE extended Network port ETH1)
MINI PCIE connector, supports 4G module (USB protocol, can not support PCIE protocol)
Nano-SIM card slot, supports standard Nano-SIM card for 4G/3G/2G Internet access
M.2 Dual NVME Solid State Drives slots (compatible with 2230, 2242, 2260, 2280)
USB USB 3.2 Gen1 (5Gbps) port× 2
CSI CAMERA MIPI CSI-2 camera port × 2, 15pin 1.0mm FPC connector
HDMI HDMI × 2, supports 4K 30fps output
AUDIO 3.5mm earphone/mic jack
RTC Real-time clock with battery socket and ability to wake Compute Module 4
TF CARD SLOT TF card socket for Compute Module 4 Lite (without eMMC) variants
POWER INPUT Type-C (5V 4A)
DIMENSIONS 128 × 122 × 36mm

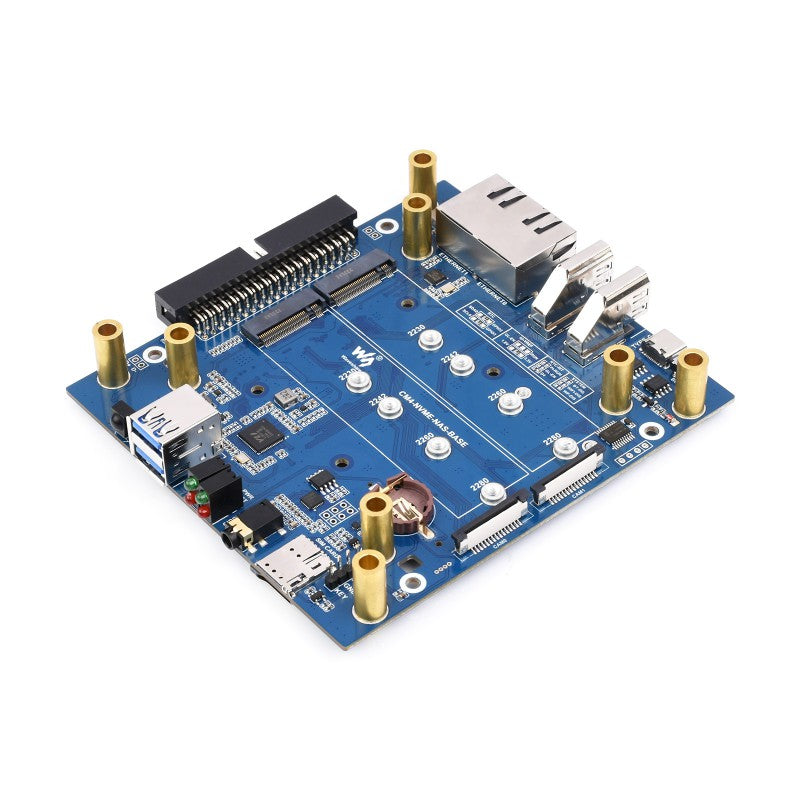

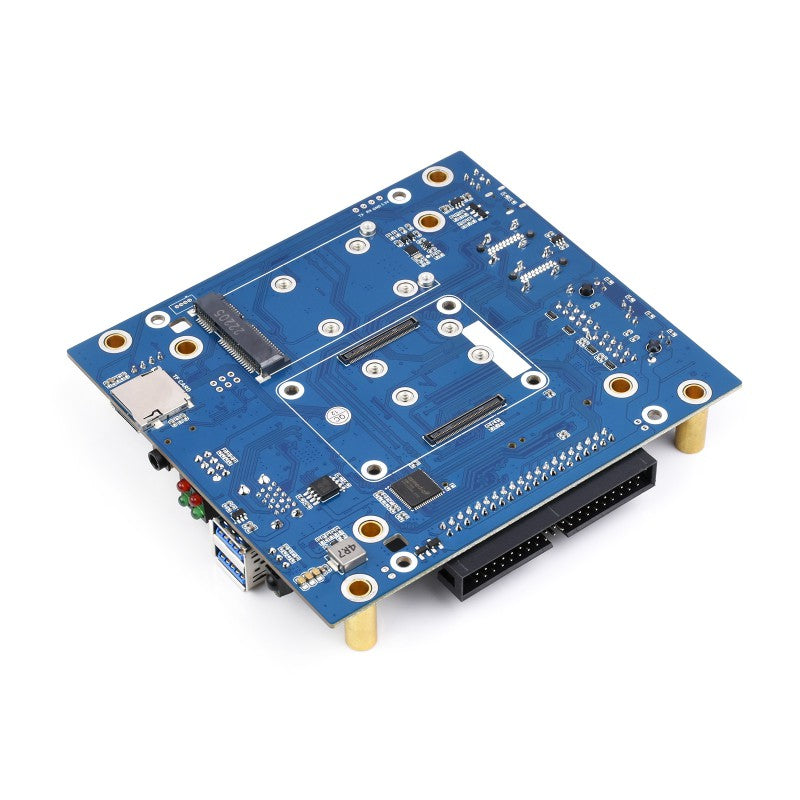

Dual Solid State Drives Slots

Onboard 2× M.2 M KEY Slots, Support All Sizes Of NVME Solid State Drives
(2230, 2242, 2260, 2280)

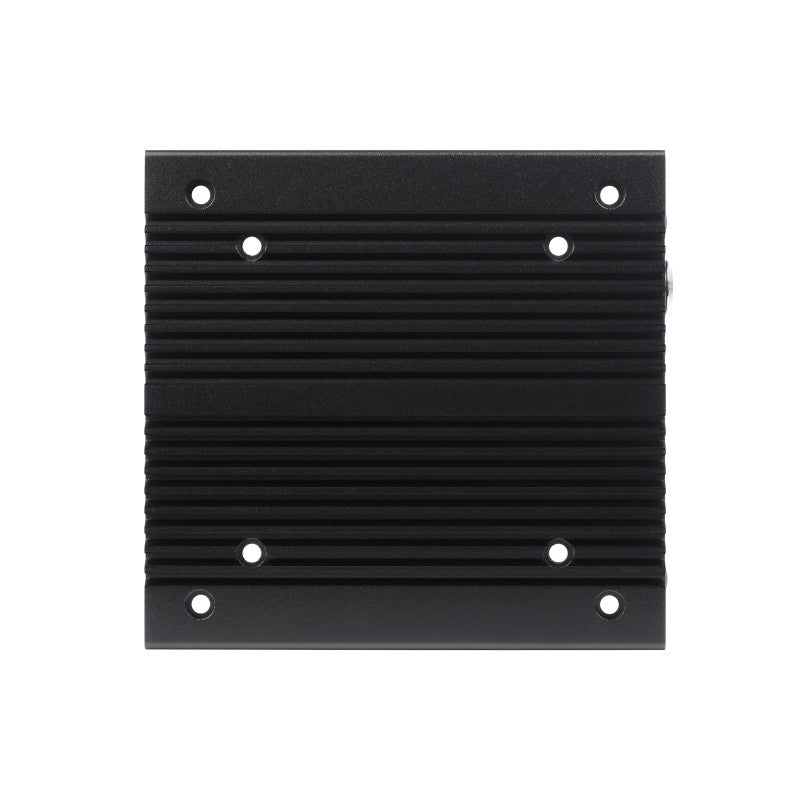

VESA Mounting Support

Supports 100×100mm And 75×75mm Standard VESA Holes

for reference only, the stand and display are NOT included.

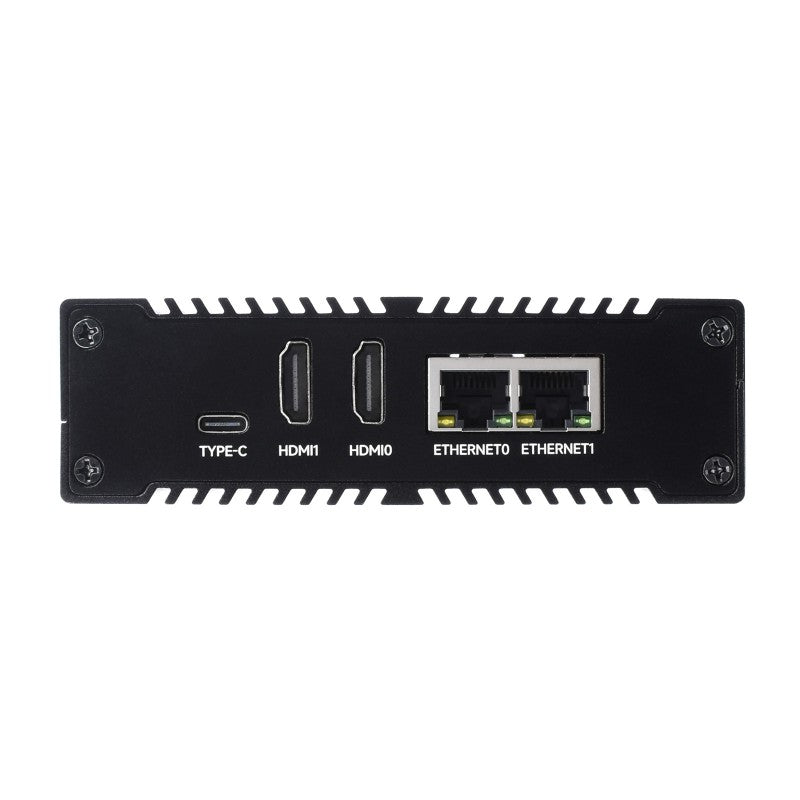

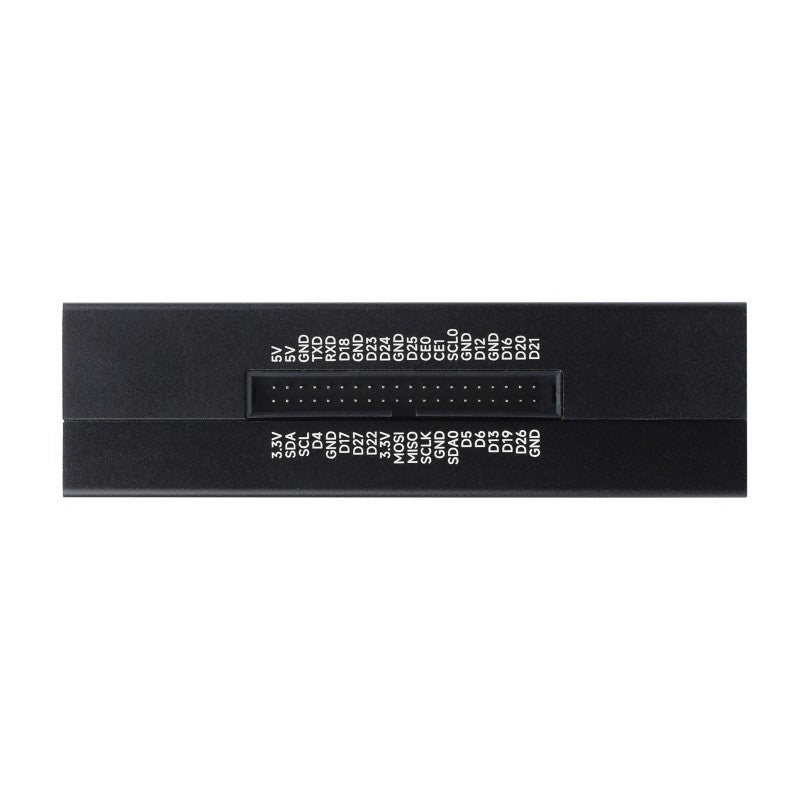

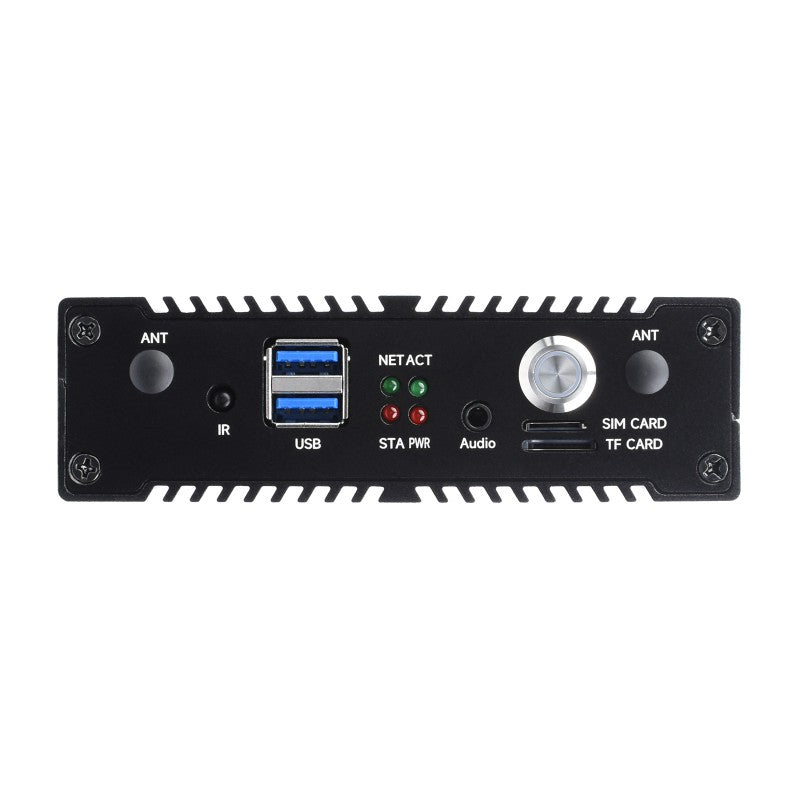

Onboard Rich Interfaces





Precise Cut-Out With Clear Label

Each Cut-Out Is Completely Aligned With The Connector



Applications

Supports Connecting With Multiple Peripheral Devices, Suitable For Various Application Scenarios

for reference only, please check the Package Content for the detailed part list






Installation Instructions


* for reference only, the CM4 is NOT included.



Dimensions



Resources

WIKI: www.waveshare.com/wiki/CM4-NVME-NAS-BOX



Package Contents:

Weight: 0.551 kg

  1. CM4-NVME-NAS-BASE x1
  2. Metal case (top and bottom) x1
  3. Momentary push button switch ~12mm (with LED and four pre-wired cables) x1
  4. 30×40mm Silicone thermal tape x1
  5. 15×15mm Silicone thermal tape (2PCS) x1
  6. 7×7mm Silicone thermal tape (2PCS) x1
  7. Antenna connector rubber plug (2PCS) x1
  8. Screws pack x1
Is the Raspberry Pi Compute Module 4 included and is this board compatible with CM4 variants?
The CM4 module is not included; the board uses a CM4 socket and is suitable for all CM4 variants.
How many NVMe storage drives can be installed and what sizes are supported?
There are two onboard M.2 M KEY slots for NVMe SSDs. They support sizes 2230, 2242, 2260, and 2280.
What are the main networking and wireless connectivity options?
The unit provides two Gigabit Ethernet RJ45 ports (ETH0 and ETH1 via PCIE extension). It also includes a MINI PCIE connector for a 4G module (USB protocol only, not PCIe), a Nano-SIM slot, and USB 3.2 Gen1 ports.
What are the power requirements and mounting options?
Power input is Type C 5V 4A. The case supports 128 x 122 x 36 mm dimensions and 100 x 100 mm or 75 x 75 mm VESA mounting; the stand and display are not included.
What is included in the package contents?
The package includes CM4-NVME-NAS-BASE, a metal case, a push button with LED and pre wired cables, silicone thermal tapes, antenna connector plugs, and a screws pack.
