NEMA 23 closed loop stepper motor as the controlled output returns to the control input in a certain way and exerts control influence on the input. The closed-loop control of the stepper motor uses position feedback or speed feedback to determine the phase conversion corresponding to the rotor position, which can greatly improve the performance of the stepping motor. These motors are also called Easy Servo Motors.

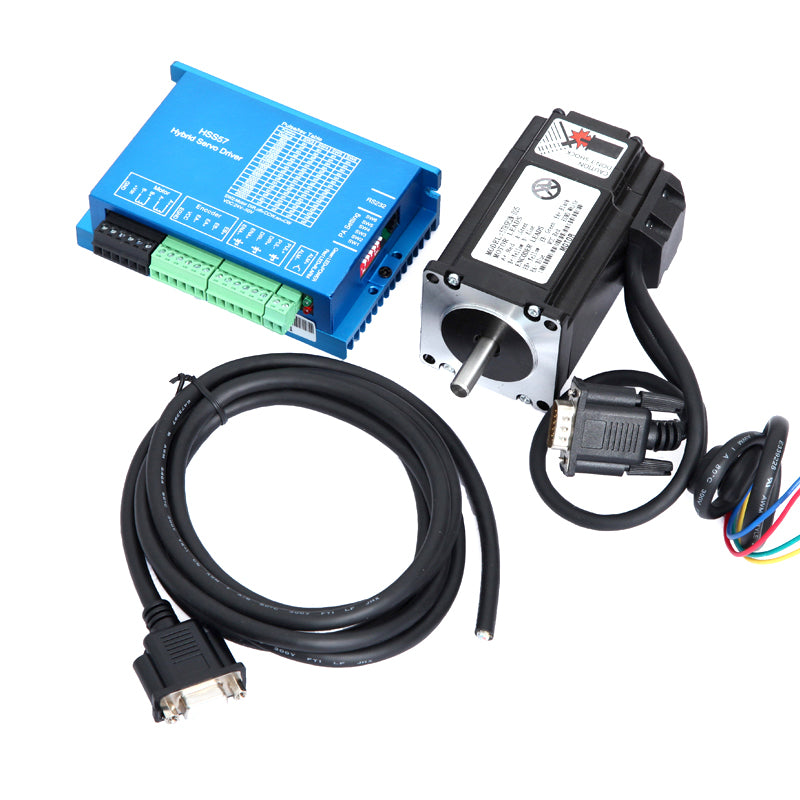

NEMA 23 easy servo motor and driver

Motor Parameters:

Model: 57HSE2N-D25
Step Angle: 1.8°
Rated Current: 4.2A
Rated Voltage: 2.1VDC
Phase Resistance: 0.5 ± 10%Ω
Phase Inductance: 1.8 ± 20%mH
Holding Torque: 2 N.m
Surface Treatment: Black Electrophoresis
Dielectric Strength: 500VAC / 5mA / 1min
Insulation Resistance: ≥100M Ω / 500VDC
Insulation: Class B
Motor Length: 76mm
Total Length: 97mm
Encoder Resolution: 1000 pulse per rotation
Shaft Radial Play 0.02Max.(450g-load)
Shaft Axial Play 0.08Max.(450g-load)

Remark: black curve is NEMA23 standard stepper motor torque curve, red curve is NEMA23 closed loop torque curve.

Driver HSS57 Features:

Position error correction and never lose steps
Quick response and perfect acceleration, High torque at high speed
Automatic current adjustment based on load, lower temperature rising
Over-current, over-voltage and position ultra difference protection function
Pulses response frequency can reach 200KHZ
16 kinds microsteps choice, highest 51200microsteps/rev.
Drive NEMA 23 series 2N.m closed loop stepper motor
Voltage range: DC24V~50V

Microstep selection:

Micorstep/rev	SW3	SW4	SW5	SW6
Default（400）	on	on	on	on
800	off	on	on	on
1600	on	off	on	on
3200	off	off	on	on
6400	on	on	off	on
12800	off	on	off	on
25600	on	off	off	on
51200	off	off	off	on
1000	on	on	on	off
2000	off	on	on	off
4000	on	off	on	off
5000	off	off	on	off
8000	on	on	off	off
10000	off	on	off	off
20000	on	off	off	off
40000	off	off	off	off

What is the benefit of the closed loop design in this motor and driver?

The closed loop uses feedback to determine rotor position and adjust the drive to prevent missed steps, delivering improved torque and positioning accuracy.

What are the motor and driver electrical specifications?

The motor model is 57HSE2N-D25 with 1.8 deg step angle, rated current 4.2 A, rated voltage 2.1 VDC, phase resistance 0.5 ohm, and phase inductance 1.8 mH. It provides 2 N.m holding torque. The driver accepts DC24V to DC50V.

How many microstep options are available and what is the maximum microsteps per revolution?

The driver supports 16 microstep modes with up to 51200 microsteps per revolution, with a default setting of 400 microsteps per revolution.

What are the physical and encoder specifications of the motor?

The unit is a NEMA 23 size motor with motor length 76 mm and total length 97 mm. Encoder resolution is 1000 pulses per rotation. Shaft radial play is 0.02 max and axial play is 0.08 max under a 450 g load.

What performance can be expected from this closed loop system in typical use?

Closed loop control provides high torque at high speed, quick response, and automatic current adjustment based on load to reduce temperature rise, making it suitable for precise positioning and reliable operation in robotics and automation tasks.
