20HS 1.8° NEMA8 2-Phase Hybrid Stepper Motor

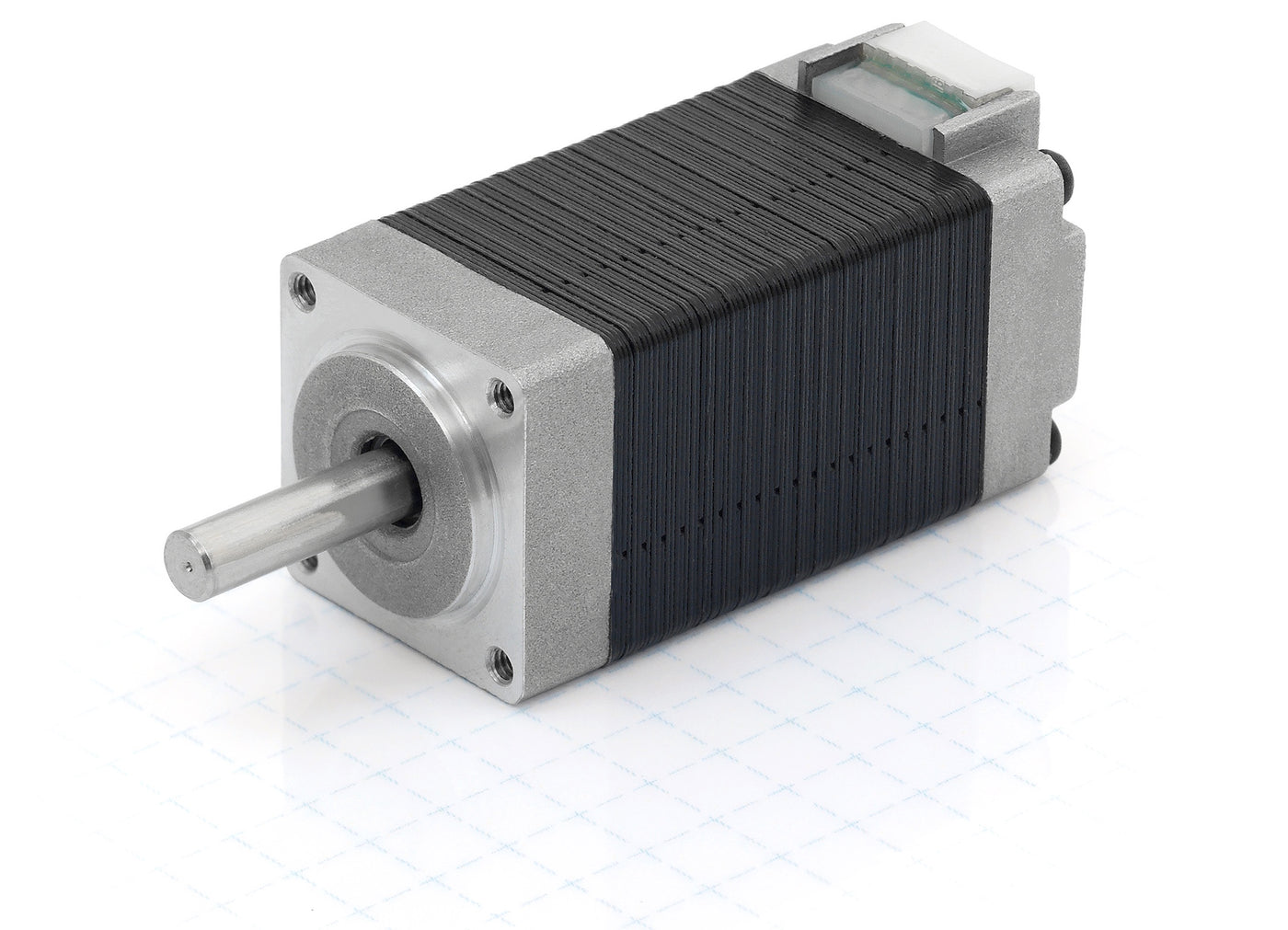

DEWO Motors 20HS 1.8° NEMA8 2-Phase Hybrid Stepper Motor
Specifications:
Model: 20HS30-0604A03-A12
Step Angle: 1.8° ± 5%
Rated Voltage: 3.9VDC
Rate Current: 0.6A
Phase Resistance: 6.5±10%Ω
Phase Inductance: 1.5±20%mH
Holding Torque: 180 g.cm
Surface Treatment: Black Electrophoresis
Dielectric Strength: 500VAC / 5mA / 1min
Insulation Resistance: ≥100MΩ / 500VDC
Insulation: Class B
Wires: AWG26 UL1007
Motor Length: 30mm
Motor Weight: 60g
Shaft Profile: Round
Shaft Diameter: 3mm
Shaft Length: 12mm
Shaft Radial Play 0.02Max.(450g-load)
Shaft Axial Play 0.08Max.(450g-load)
