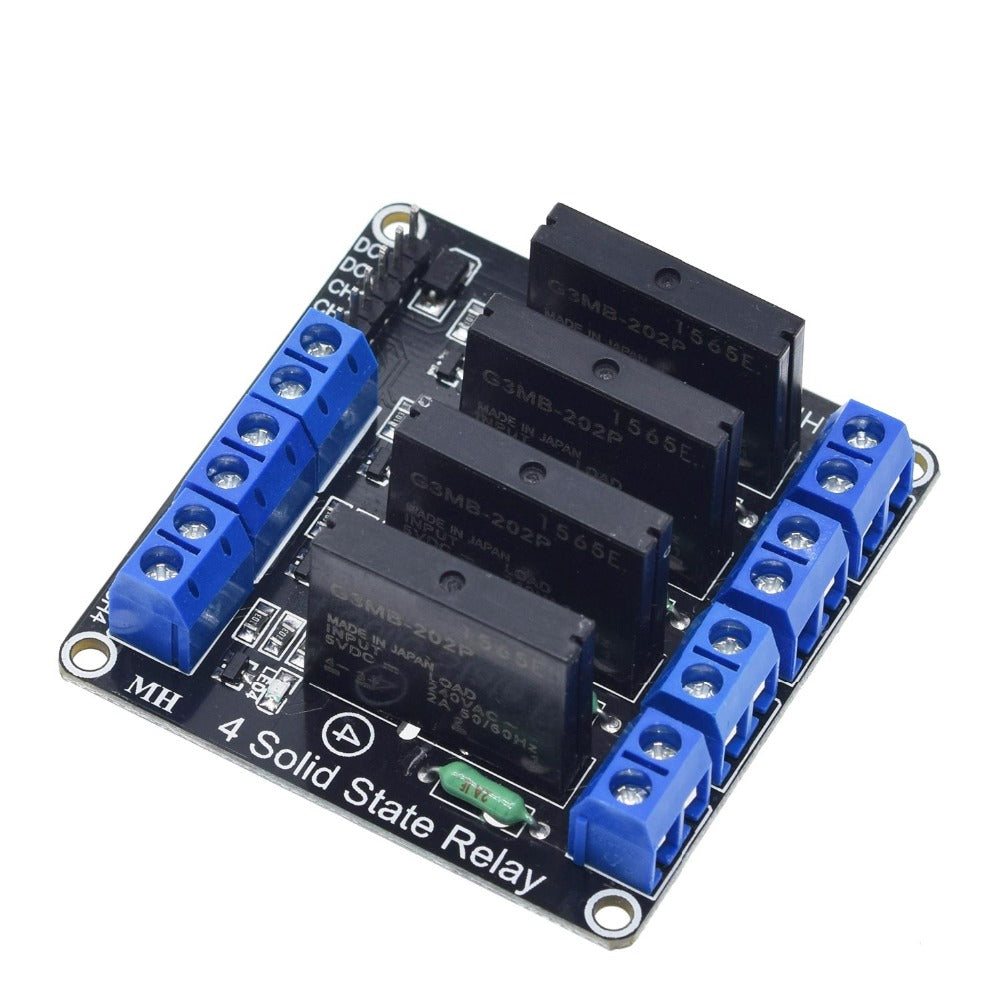

Solid State Relay Module 250VAC 2A

SKU: ELC3036-6

₹ 479.99

In stock | Ready to ship

Select variant

Four Channel
Low
⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Solid State Relay Module 250VAC 2AFour Channel / Low₹ 479.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

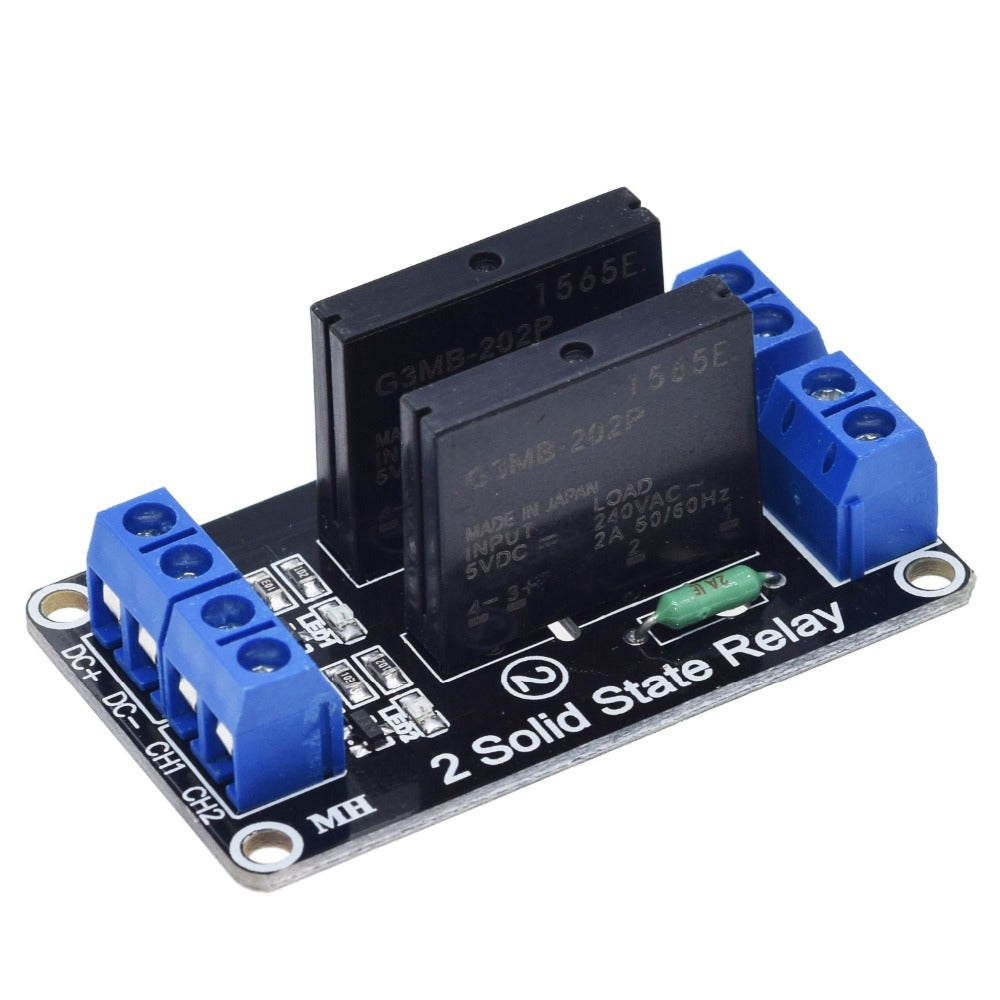

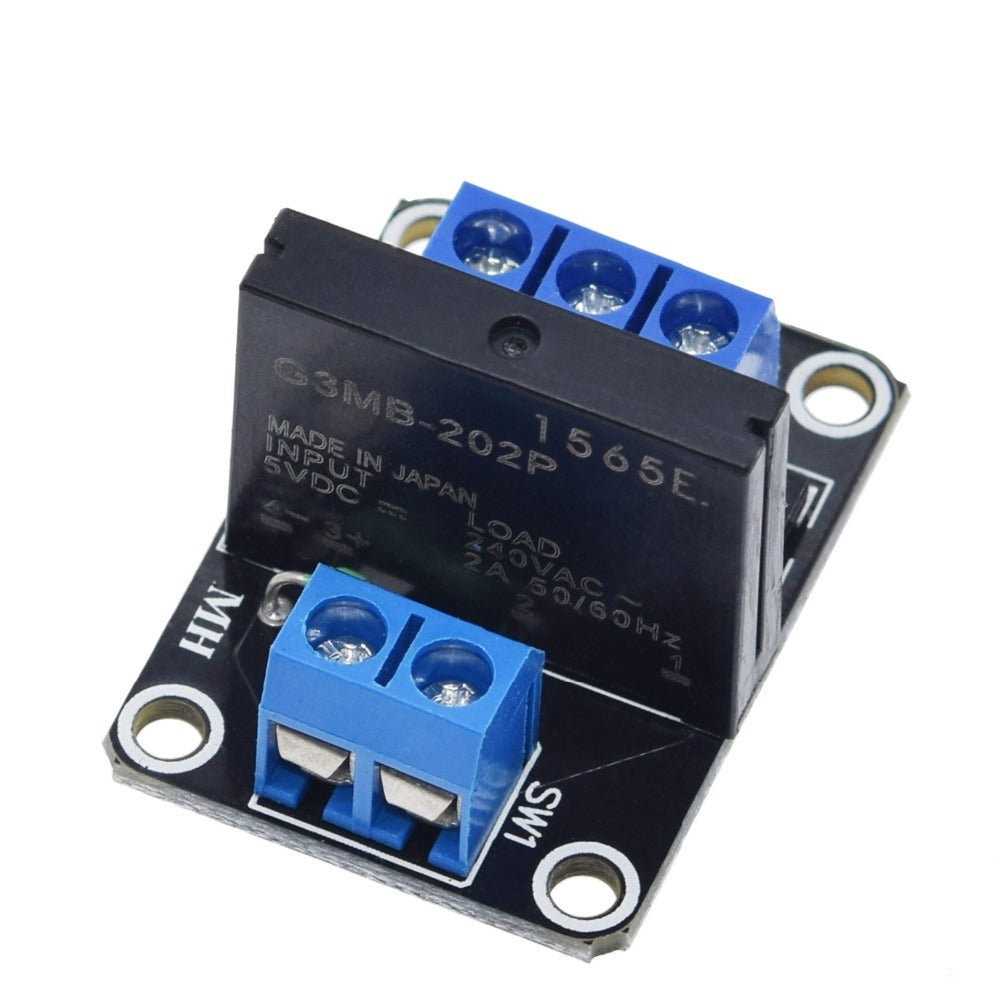

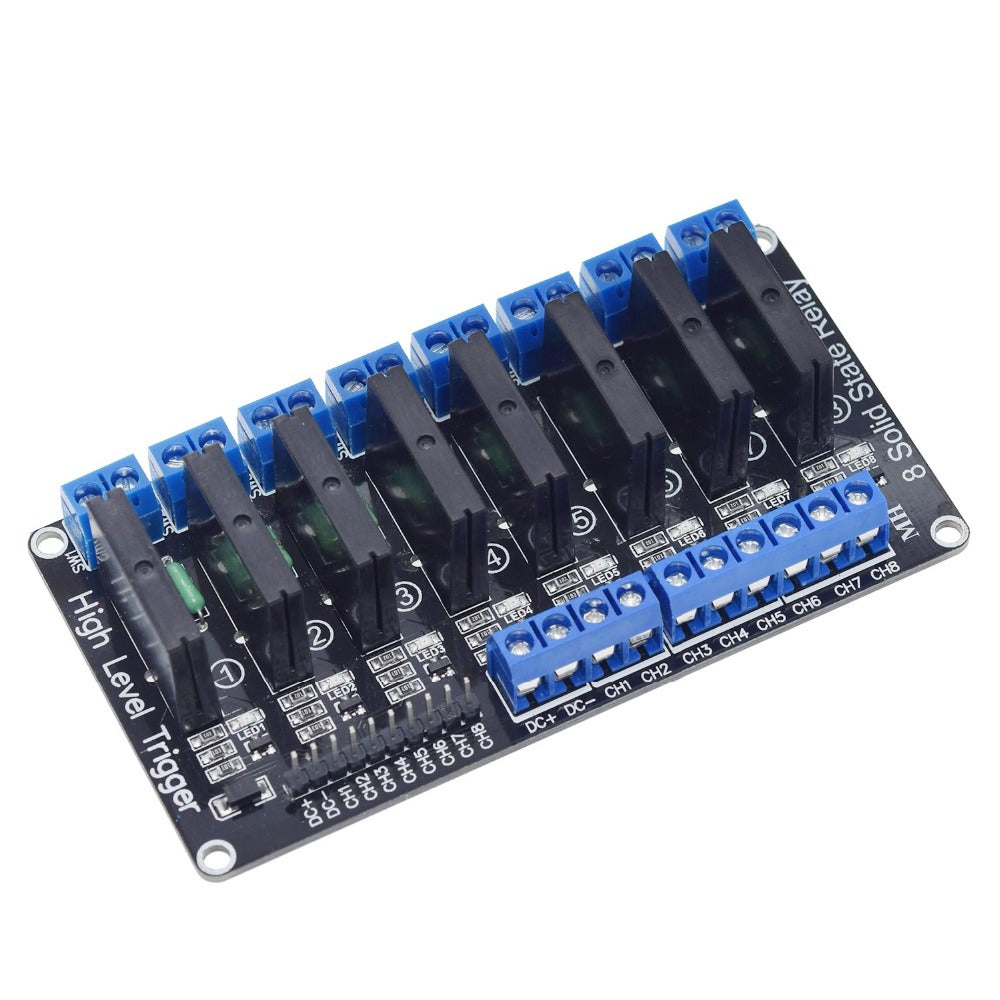

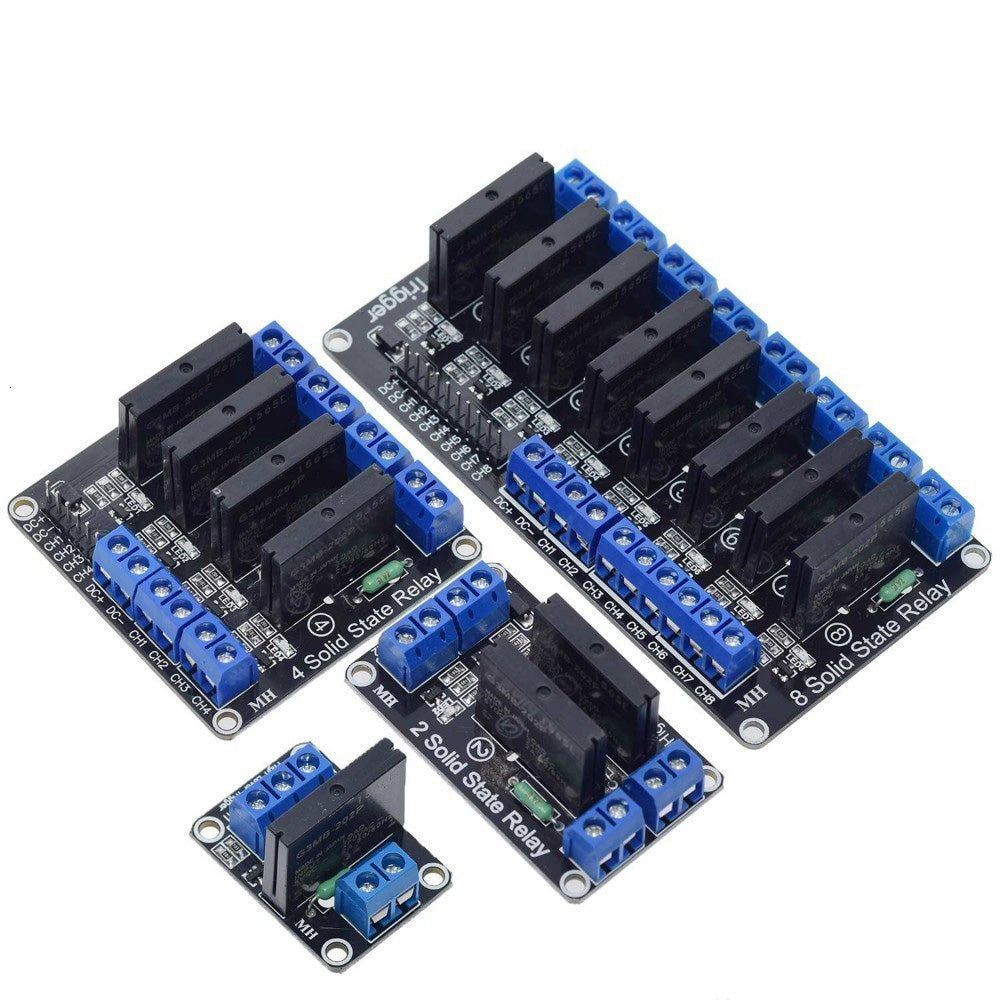

5V solid state relay 240V 2A, output with resistive fuse 240V 2A. The relay triggers when the input goes high.

Salient Features

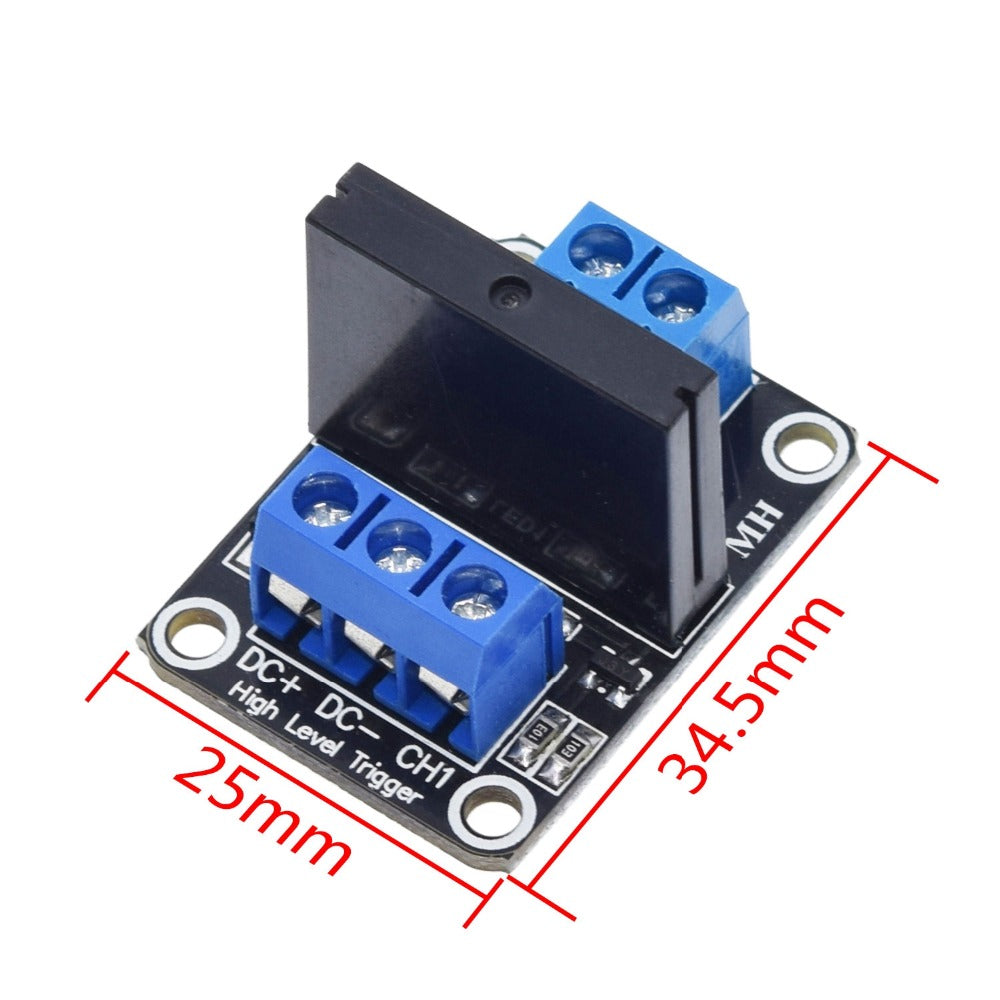

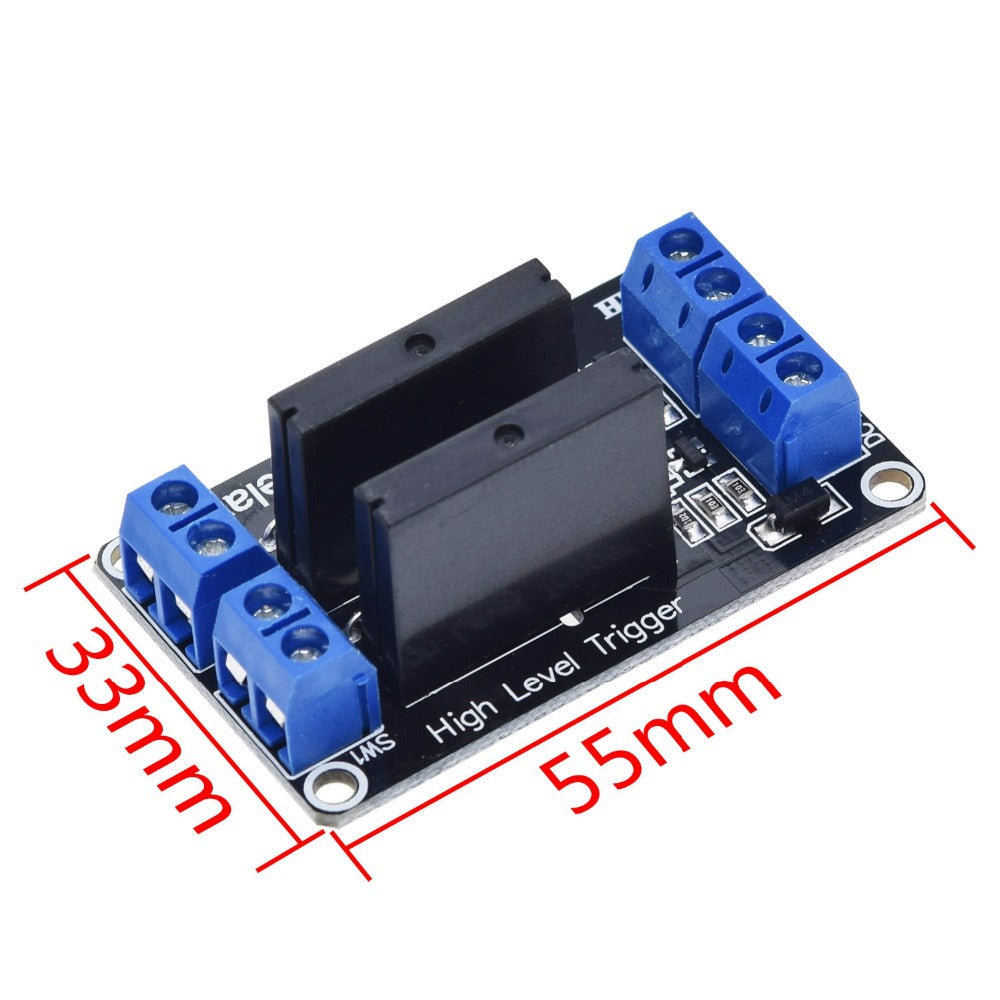

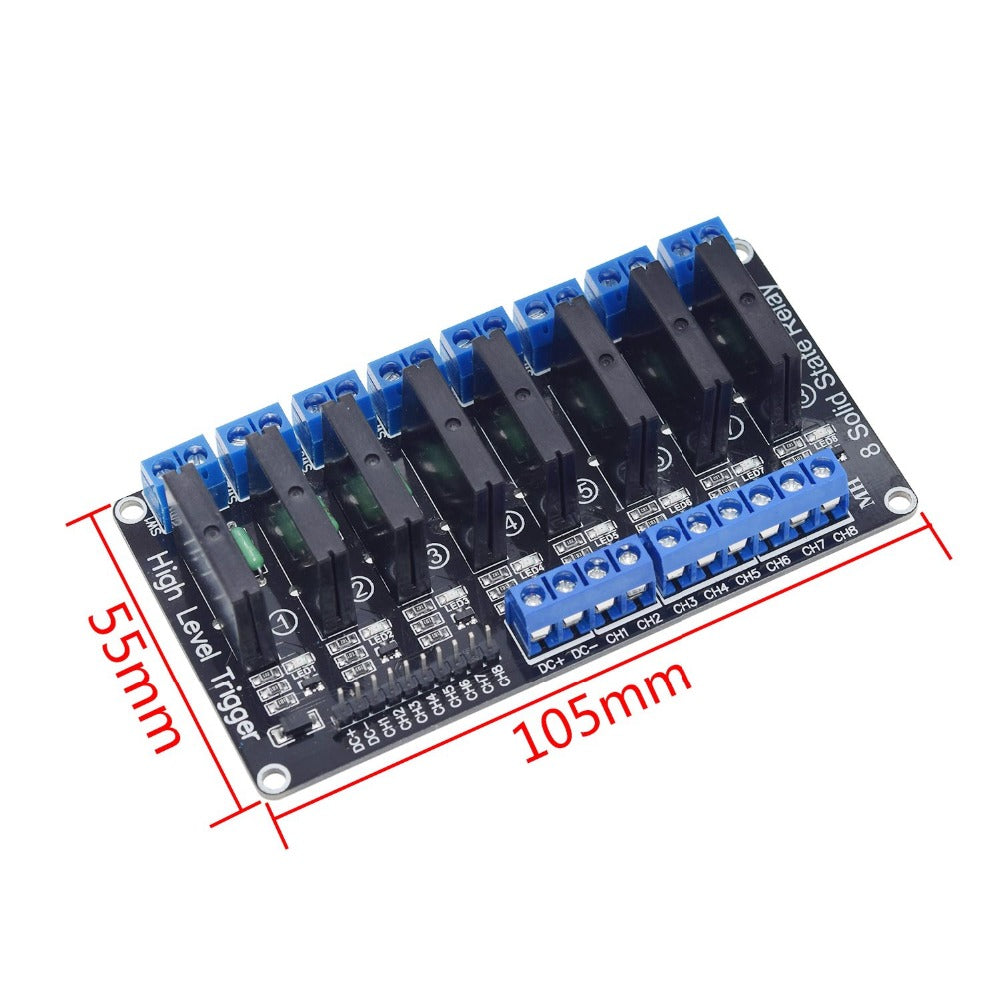

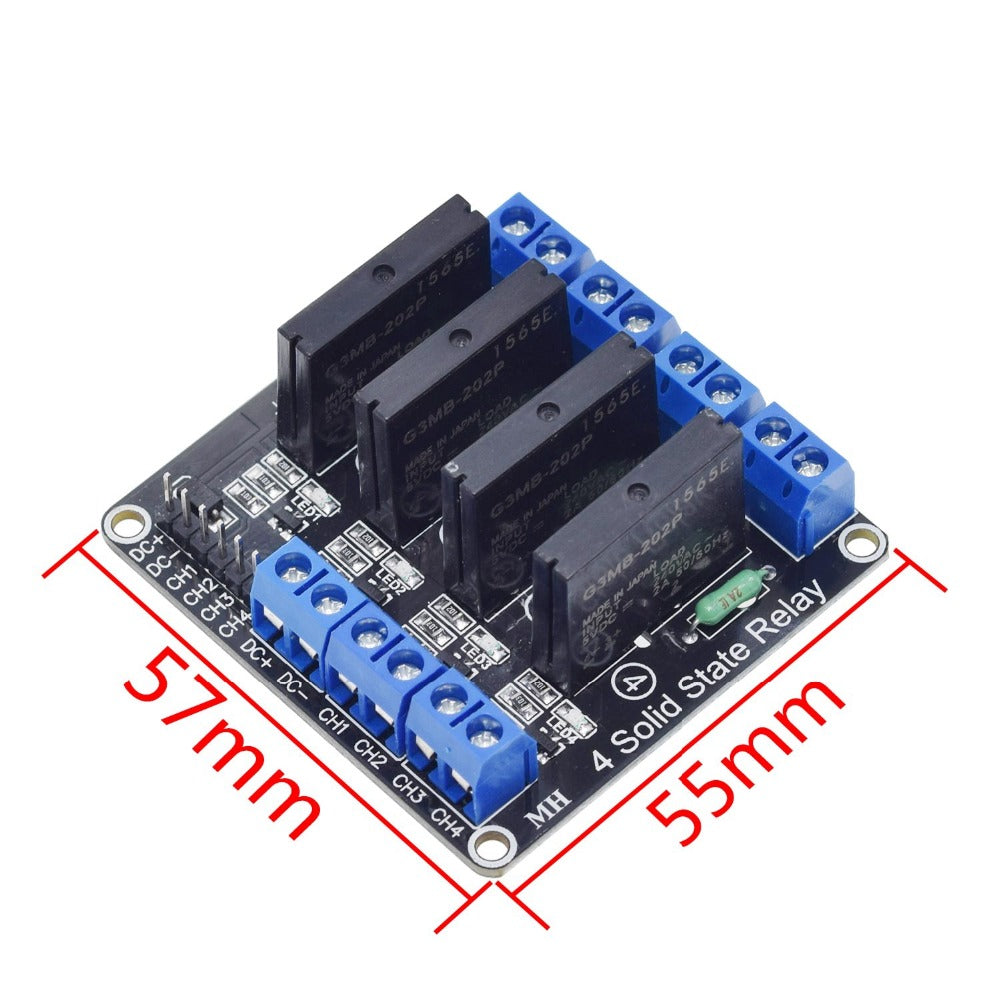

  • Size: 53*32*23mm/2.08*1.31*0.9"
  • Input Power: 5V DC (160mA)
  • Input control signal voltage:
    • (0-2.5V state low relay OFF)
    • (3.3-5V state high relay ON)
  • DC +: positive power supply (by relay voltage power supply)
  • DC-: connect power negative
  • CH: relay module signal to trigger the end (high level trigger effective)
  • Package Contains a single module of the chosen variant.
How does the input control work on this relay module?
The relay uses a high level trigger. A control signal of 3.3 to 5 V turns the relay ON, while 0 to 2.5 V turns it OFF. The module also requires 5 V DC power at about 160 mA.
What is the load rating and voltage for the switching side?
The output is rated for up to 250 VAC and 2 A for resistive loads.
What are the power and connection requirements for the control side?
Input power is 5 V DC at about 160 mA. Connect DC + to a 5 V supply, DC - to ground, and use the CH pin as the control input.
What are the physical dimensions of the module?
The dimensions are 53 mm by 32 mm by 23 mm (2.08 by 1.31 by 0.9 inches).
What is included in the package?
The package contains a single relay module.
