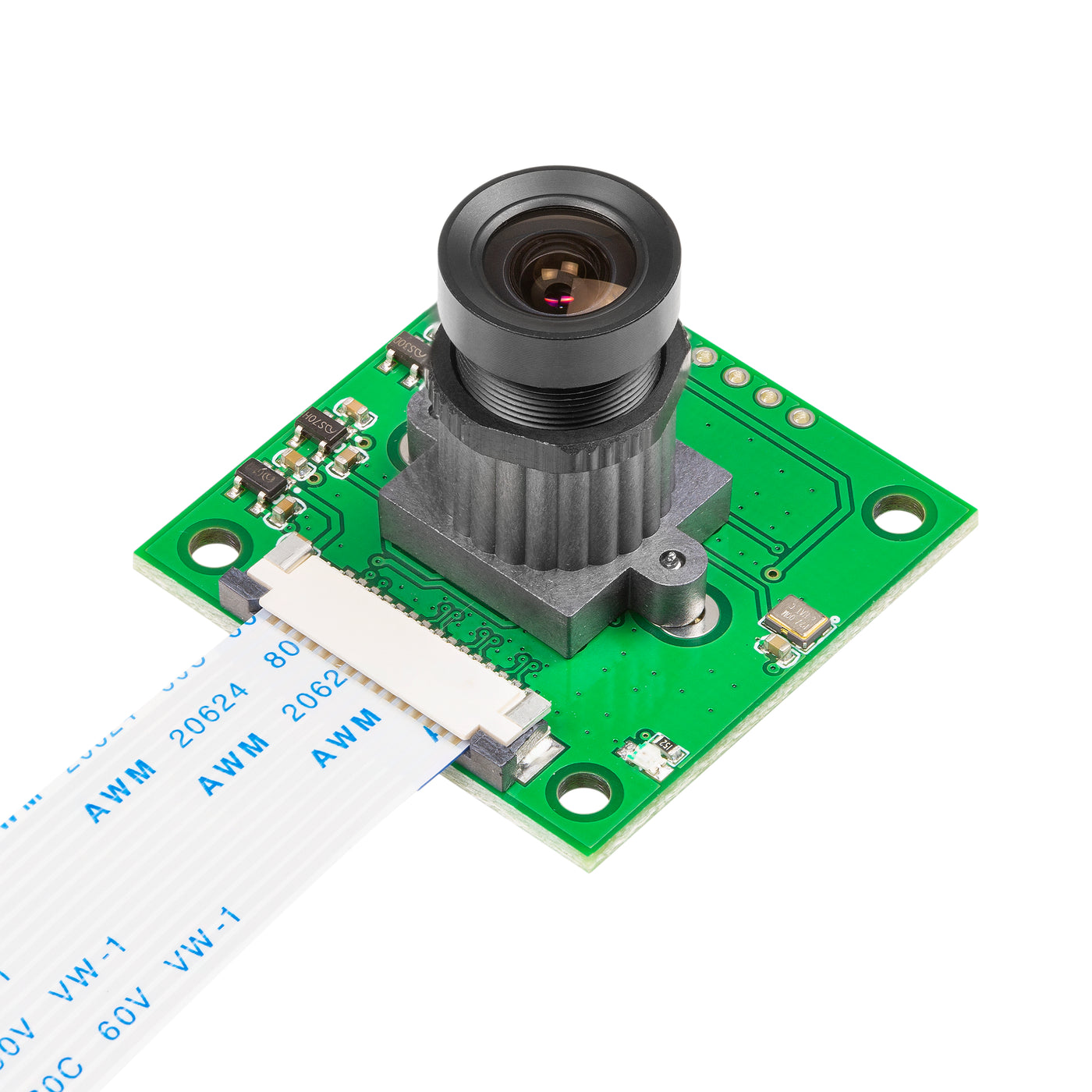

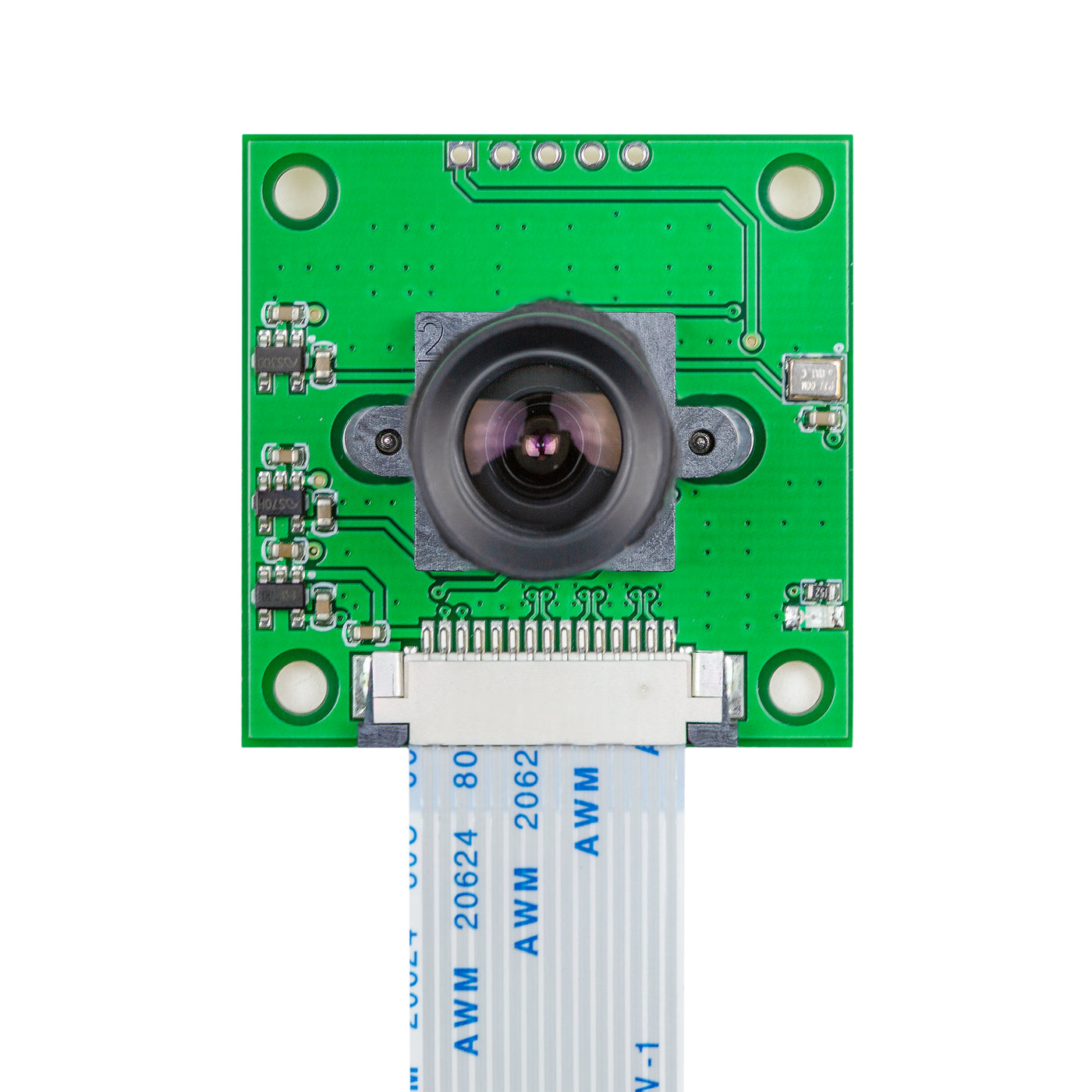

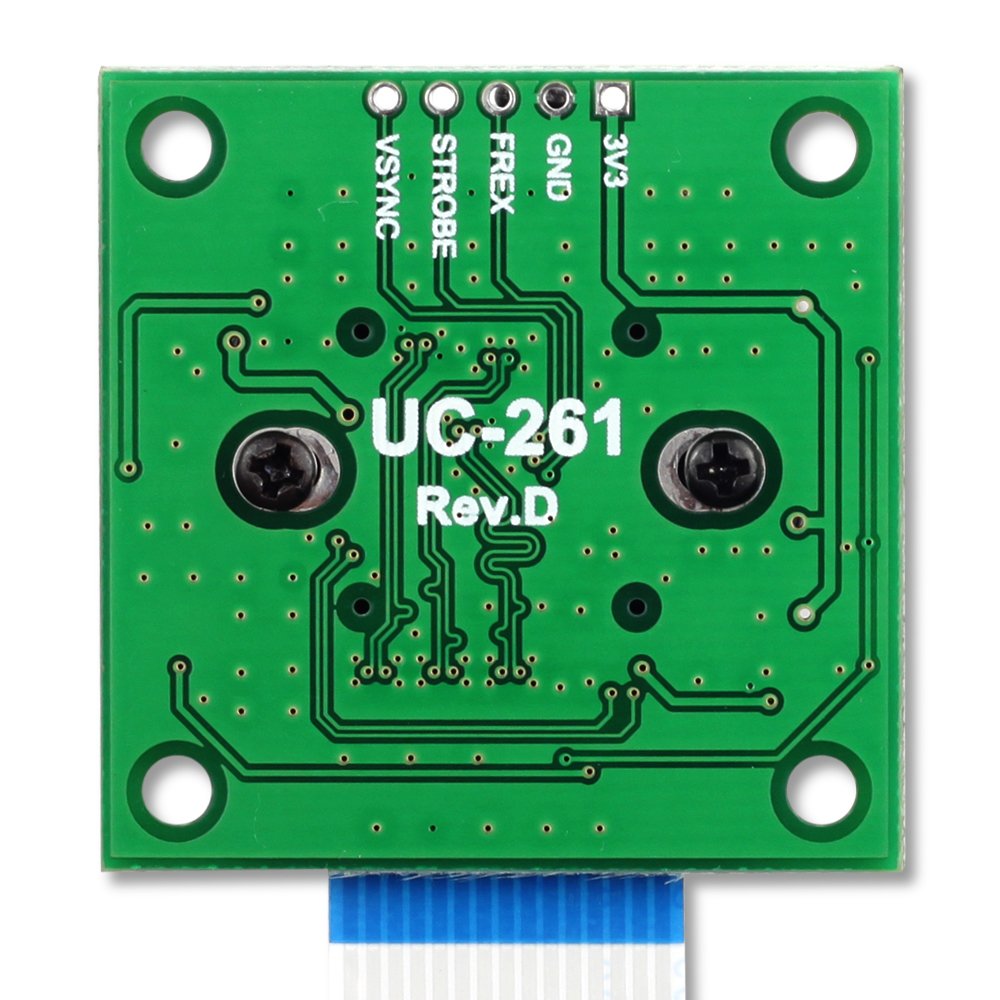

OV5647 Camera Board /w M12x0.5 mount Lens

fully compatible with Raspberry Pi 4/3B+/3 Camera

The Camera Module is a custom designed add-on for Raspberry Pi. It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data.

The board itself is tiny, at around 36mm x 36mm highlight of our module is that the Lens is replaceable compared to official one, making it perfect for mobile or other applications where size and image quality are important. It connects to Raspberry Pi by way of a short ribbon cable. The camera is connected to the BCM2835 processor on the Pi via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor. This bus travels along the ribbon cable that attaches the camera board to the Pi.

The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video.

The camera is supported by the latest Raspberry Pi OS, which suppot using libcamera apps to capture images.

Applications

• Cellular phones,PDAs,Toys
• Other battery-powered products
• PC multimedia
• Digital still cameras,etc.

Features

• Lens holder: M12x0.5
• 5MPixel sensor
• Integral IR filter
• Frame rate at max resolution: 30fps
• Connection by flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector S5 on Raspberry Pi computer board
• The Camera Lens for Raspberry Pi Camera Board is HX-27227
• The camera is OmniVision OV5647 sensor in a fixed-focus module with replaceable Lenes

Specifications

Package Contains

• 1 x 5 Megapixels OV5647 Sensor Camera Module
• 1 x 15cm 15pin FPC cable

Note

• Raspberry Pi Board is not included in the package
• You might need extra m12 lenses to unlock its full potential
• The camera support using libcamera apps under Raspberry Pi Bullseye system
• This board is slightly larger(36cm) than the official Raspberry Pi Camera V2, so it does not fit some cases for Raspberry Pi
• It works with Pi Zero, but you will need to buy an extra cable(B0087)
• Be gentle while changing the lens and holders or you might damage the thread, but it's easily fixable with a new m12 holder.

Documentation

• User Guide Arducam 5MP OV5647 M12 Mount Pi Camera
• Sensor Datasheet OmniVision OV5647
• Arducam Documentation Arducam Cameras for Raspberry Pi
• Blog Arducam 5MP OV5647 M12 Mount Pi Camera
• Demo Arducam Cameras for Raspberry Pi
• Lens Options Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
• 3D Drawing
