Arducam IMX219
Visible Light Fixed Focus Camera Module for Raspberry Pi
No less than the Raspberry Pi official camera V2, this camera module is also equipped with a high-definition IMX219 8MP sensor for shooting HD video and still images. It is excellent in image quality, color fidelity, and low light.
For beginners, this is a very easy camera module to get started; for advanced players, this camera module has more knowledge that you should explore and DIY.
Applications
- Unmanned Aerial Vehicles (UAVs)
- Building Drones
- Autonomous Robotic Systems
- Mobile Medical Imaging
- Intelligent Video Analytics (IVA)
Features
- 8MP HD Camera: Designed for Raspberry Pi, based on Sony 8MP IMX219 Sensor.
- Higher quality: Compared with the official Raspberry Pi Camera v1, not only the resolution is improved, but its image quality, color fidelity, and low light performance are all upgraded by leap.
- 1080P High resolution: Supports 3280 ¡Á 2464 pixel still images, and still captures.

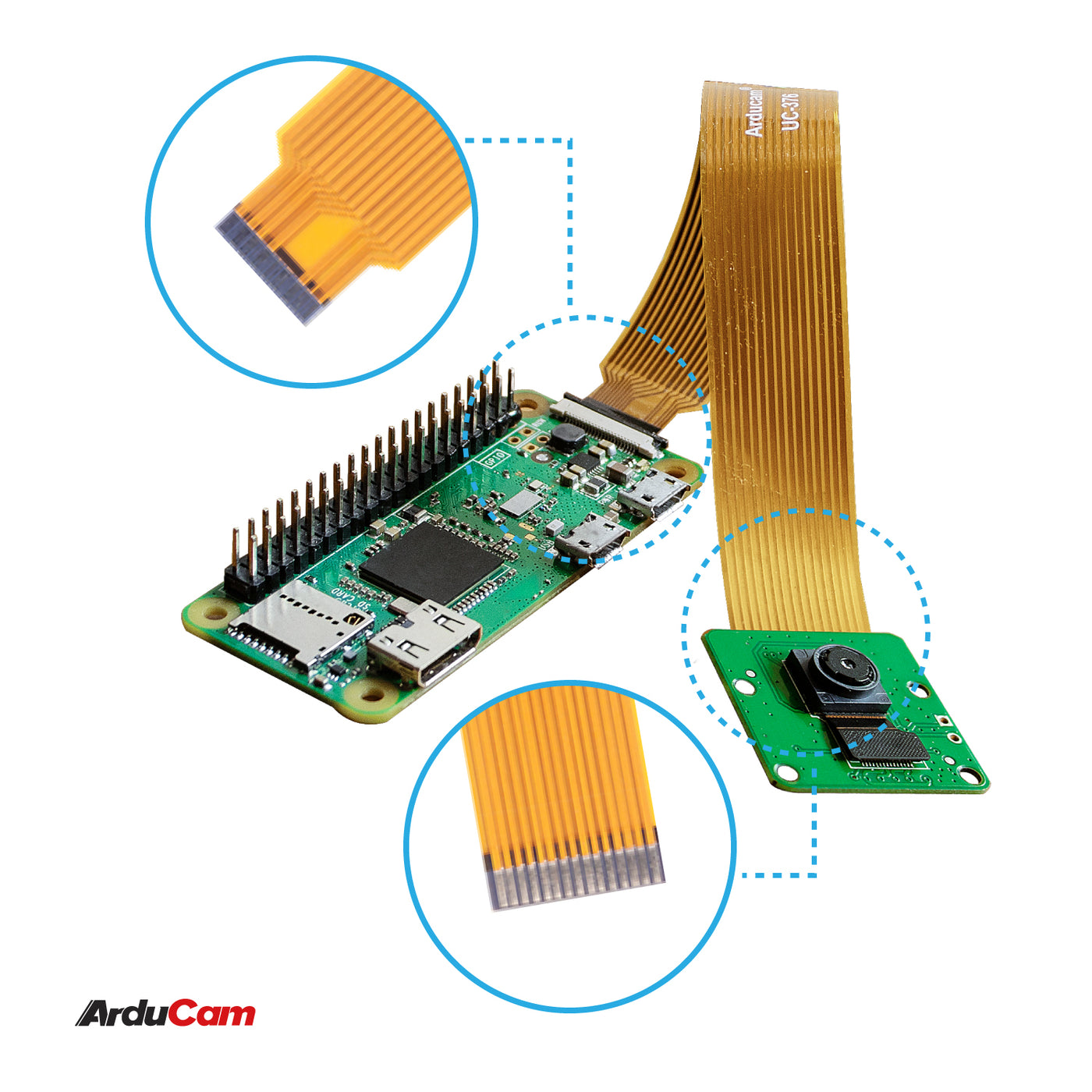

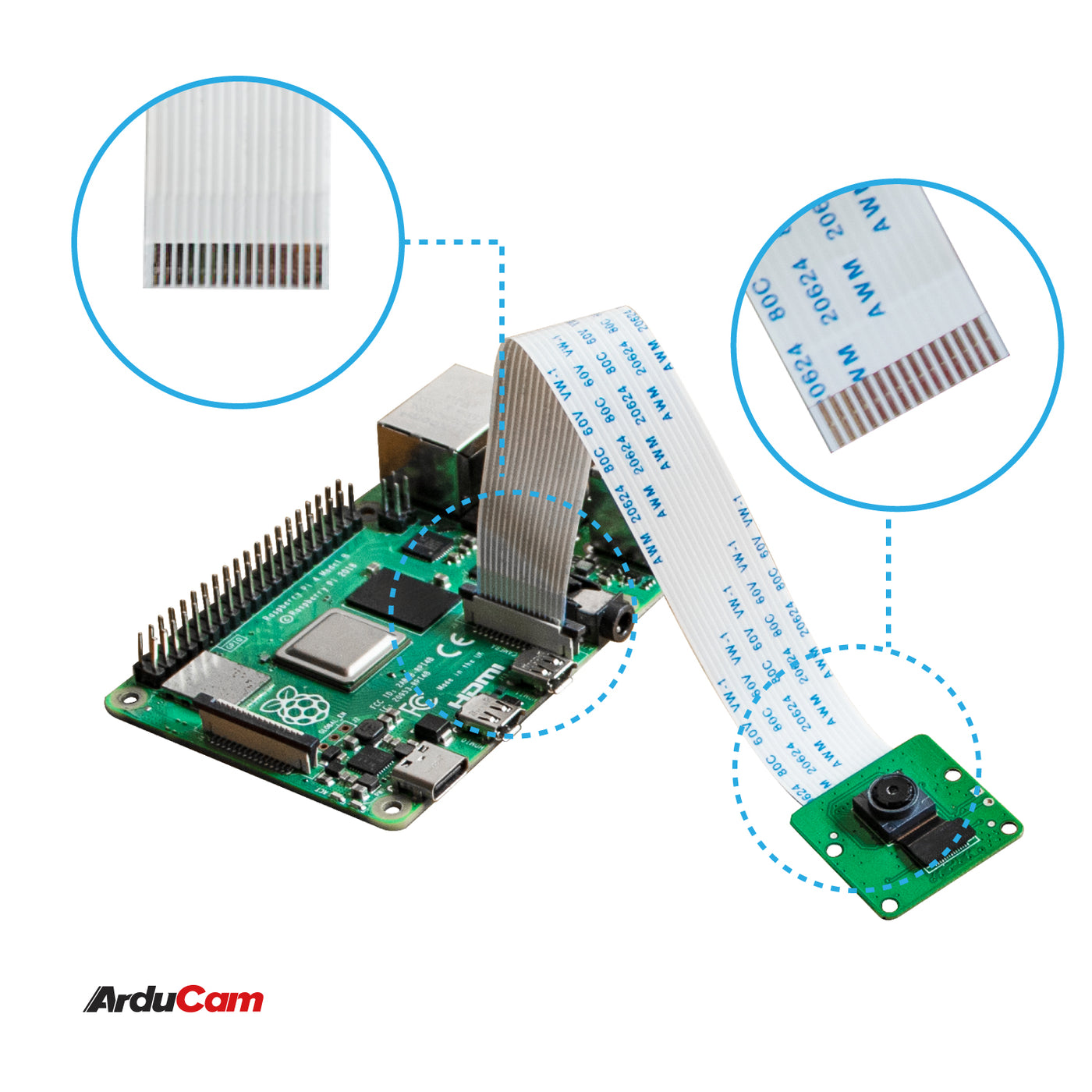

- Easy to setup: Simply use the 15pin ribbon cable to attach the CSI port on the Raspberry Pi, then make a simple configuration and you are ready to use the camera.
- Easy to use for beginners, and for advanced gamers, it offers more to explore.
- Wide Application: Perfect for time-lapse, slow motion, home security applications, monitoring Octoprint 3D Printer, and wildlife camera trap applications.
Specifications
Camera
| Image Sensor | IMX219 |
| Still Resolution | 8 Megapixels |
| Video Modes | 1080p47, 1640 × 1232p41 and 640 × 480p206 |
| Sensor Resolution | 3280 × 2464 pixels |
| Sensor image area | 3.68 x 2.76 mm (4.6 mm diagonal) |
| Pixel Size | 1.12 µm x 1.12 µm |
| Optical Size | 1/4" |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
Lens
| Focus Type | Fixed Focus |
|---|---|
| Focal Length | 3.04mm |
| F.NO | F2.0 |
| Field of View(FOV) | 62.2 °(H) x 48.8 °(V) |
| Lens Type | Stock Lens |
| Focus Distance | 200mm to infinity |
Electrical & Mechanical

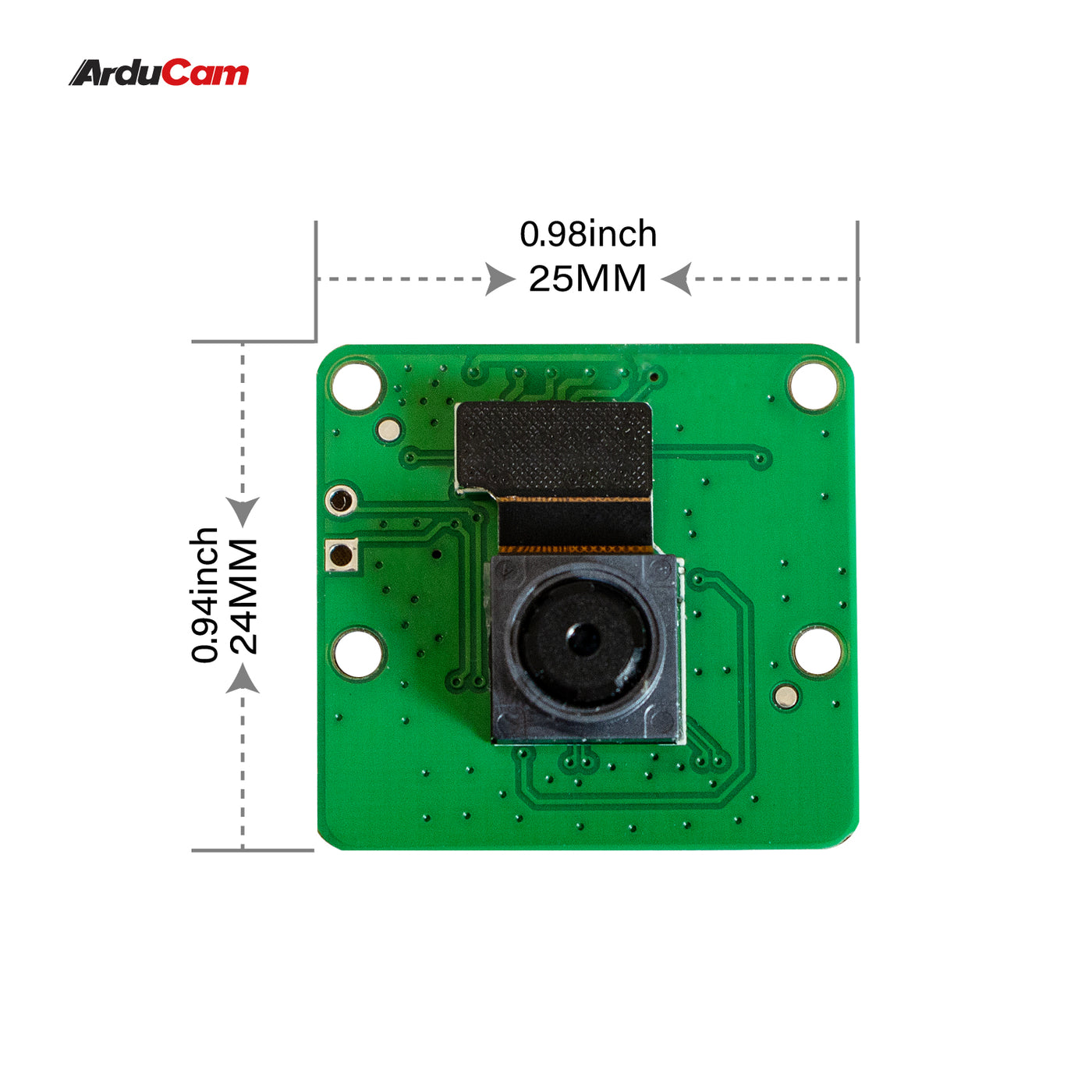

| Camera Board Size | 25 x 24mm |
|---|---|
| Peaking Current | 300mA |

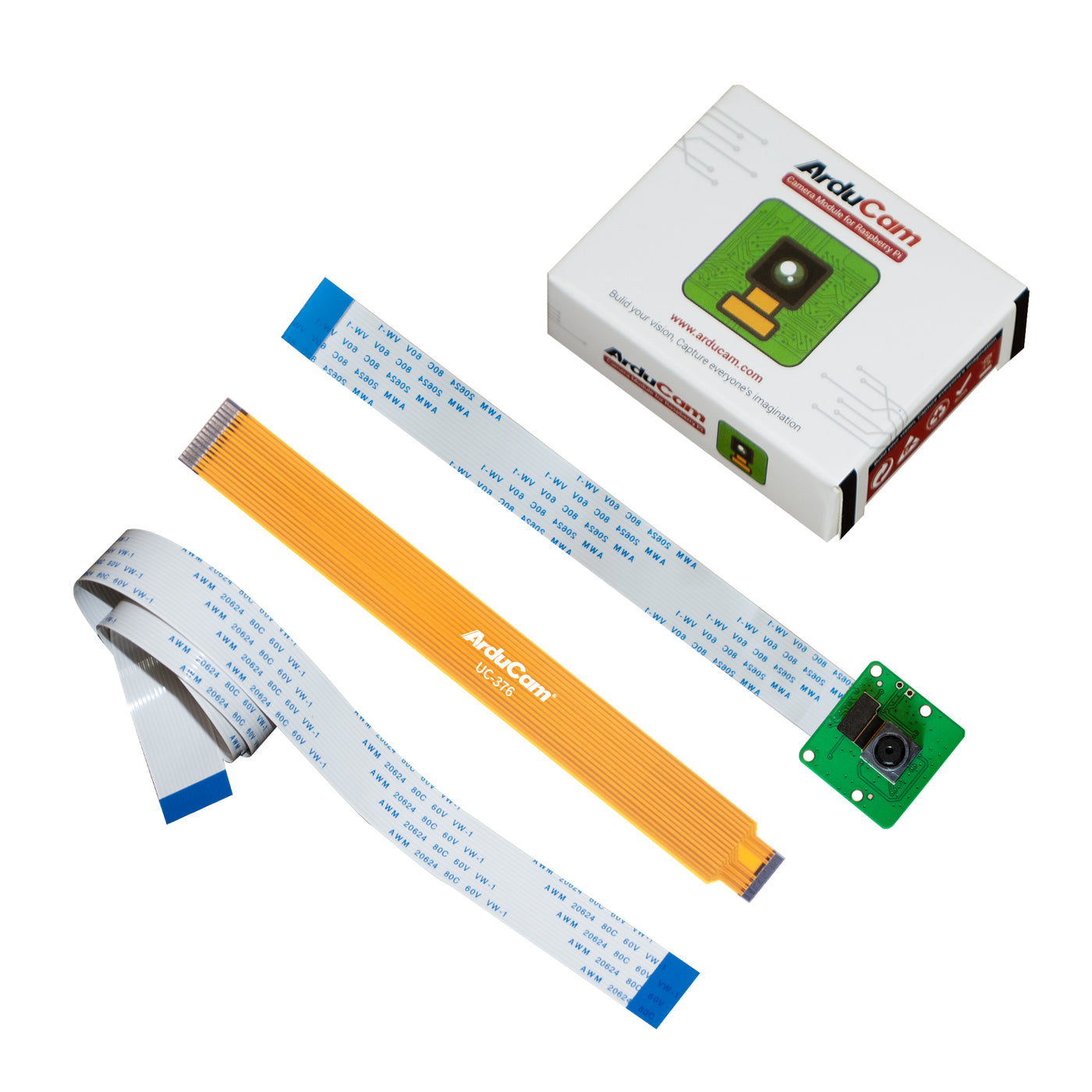

Package Including

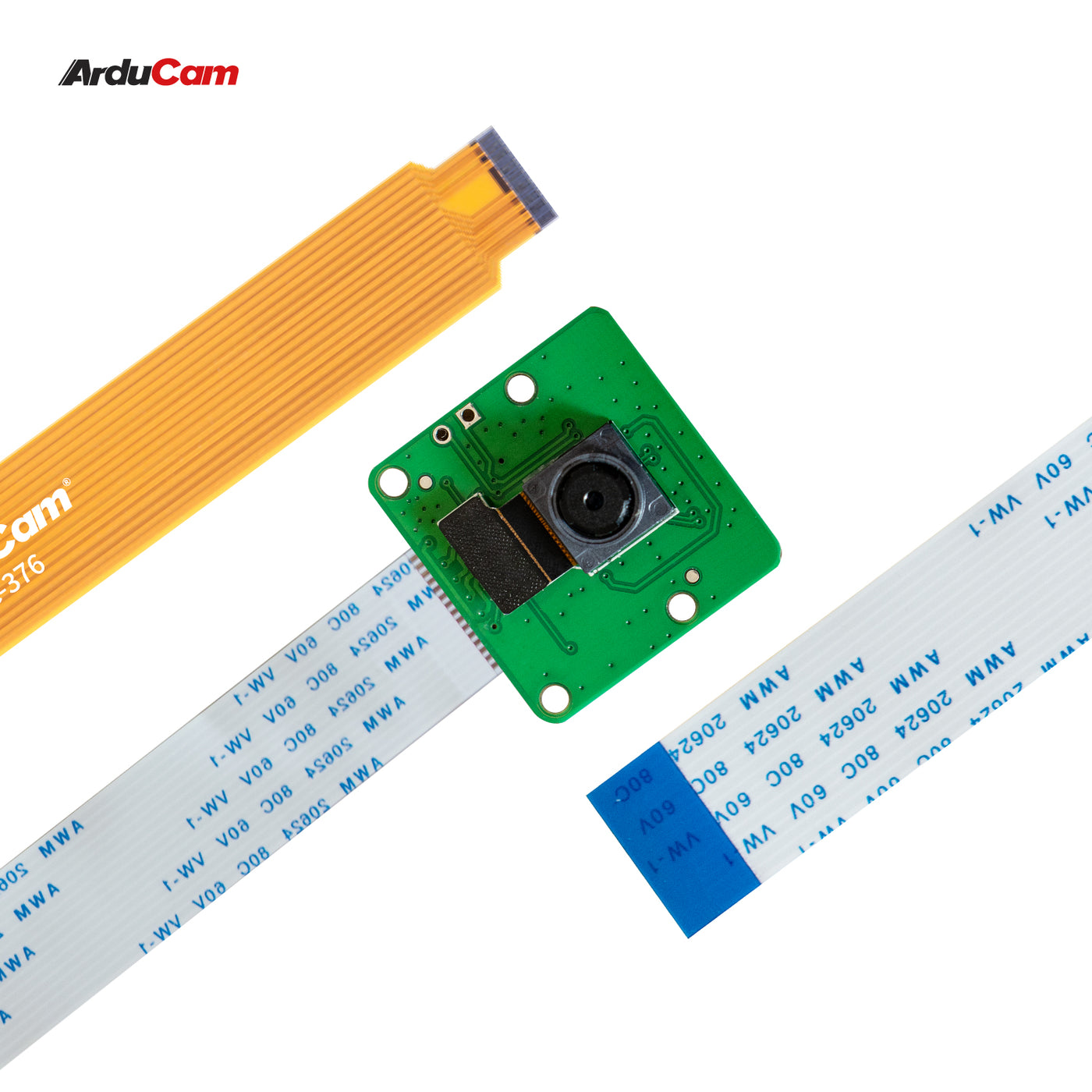

- 1 x Arducam IMX219 Visible Light Fixed Focus Camera Module
- 1 x 15cm 15pin FPC cable
- 1 x 15cm 15pin to 22pin FPC cable

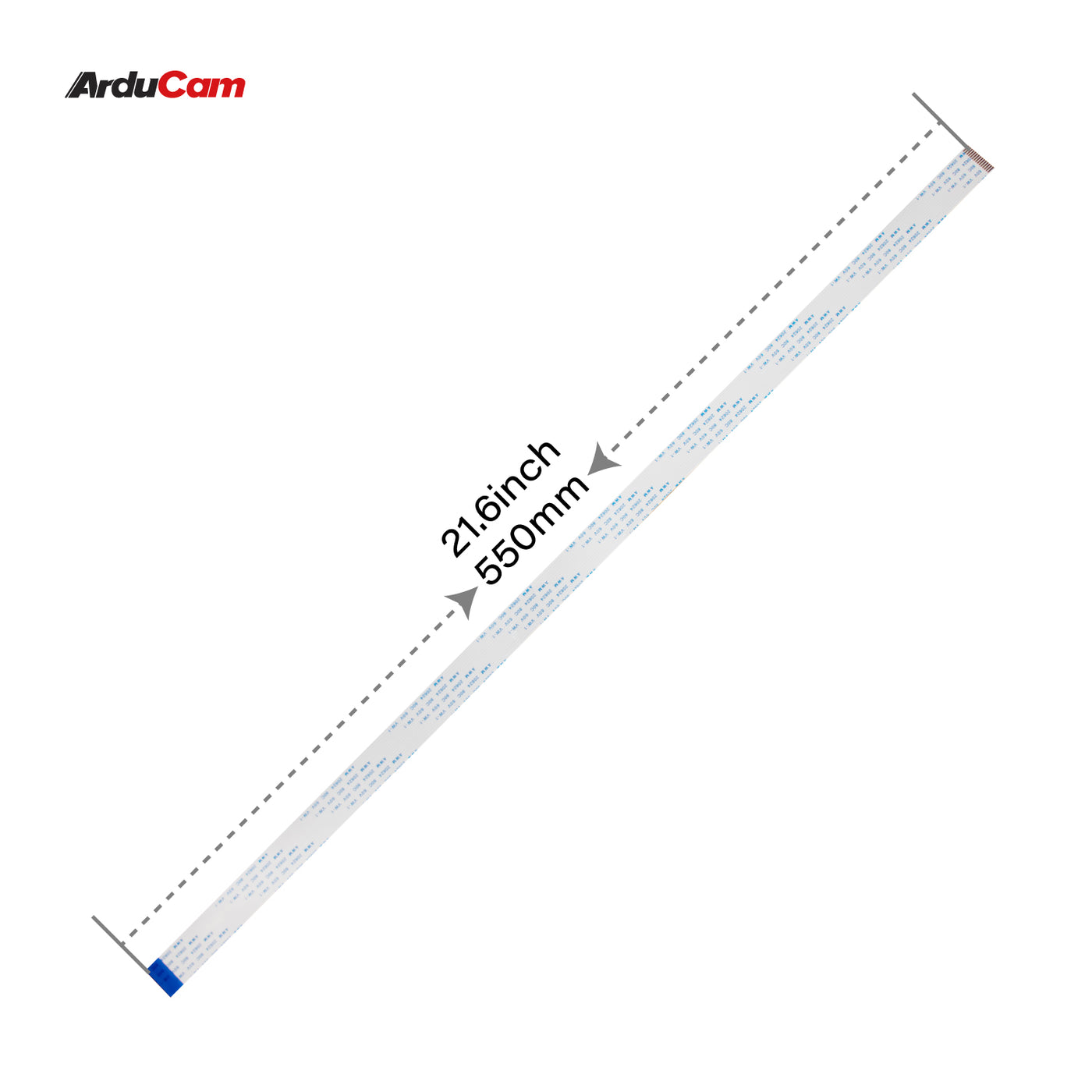

- 1 x 50cm 15pin FPC cable
Note
- Raspberry Pi board is not included in the package
- This camera module supports the latest Raspberry Pi OS Bullseye (January 28, 2022 and later) and libcamera apps and is not available for users of previous Raspberry Pi OS (Legacy).
