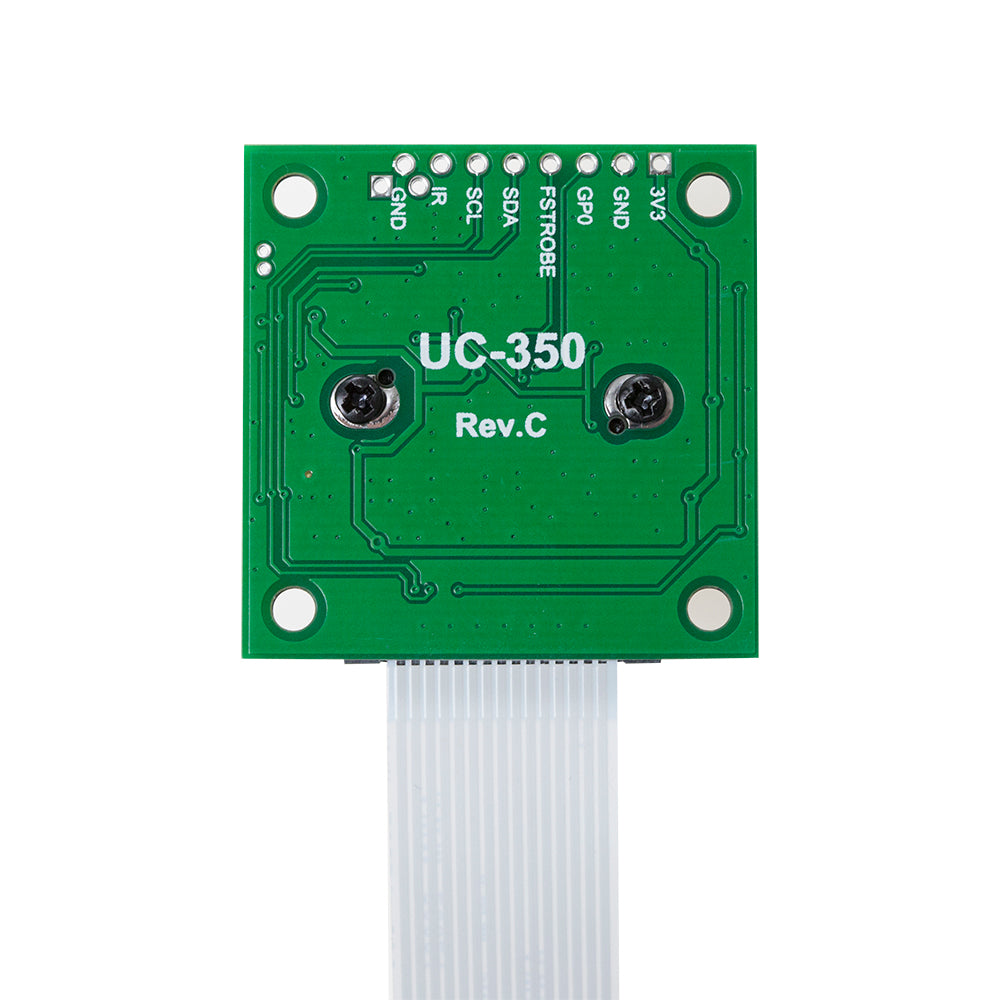

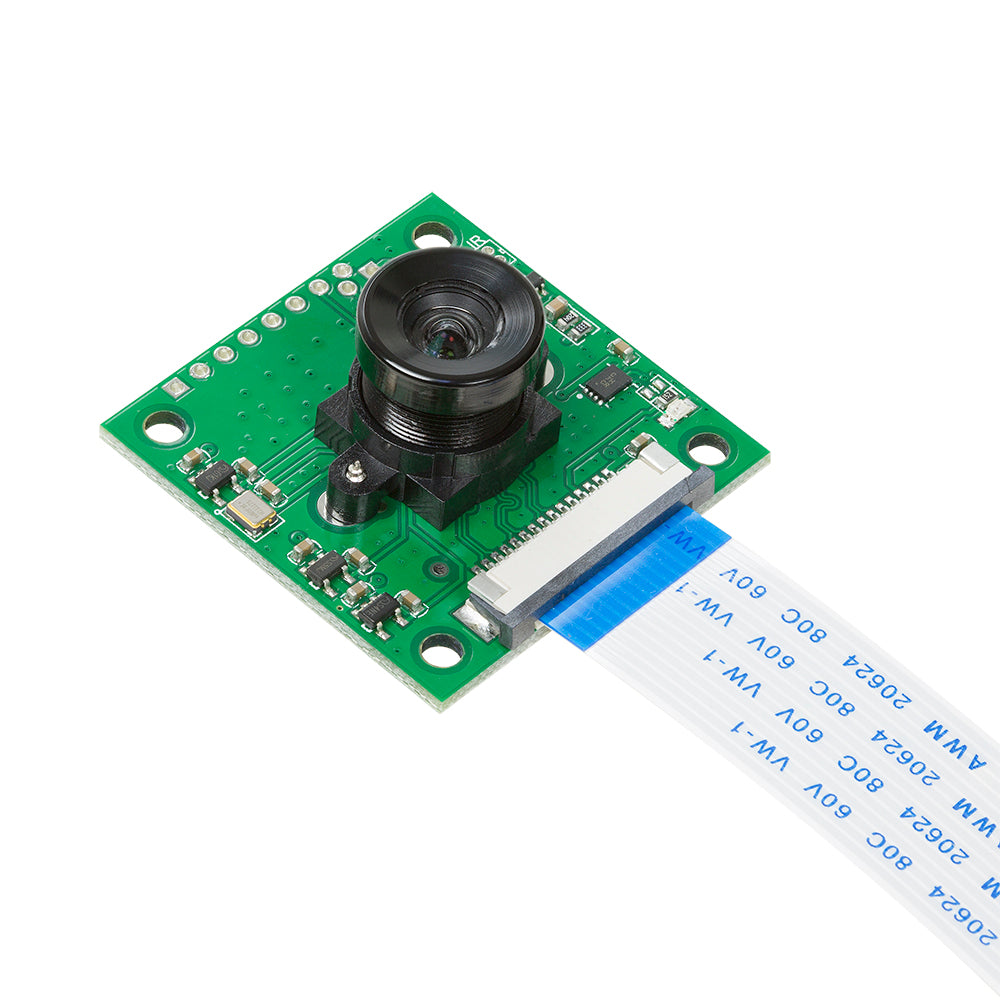

Arducam 8MP Sony IMX219 camera module
with M12 lens LS40136 for Raspberry Pi 4/3B+/3

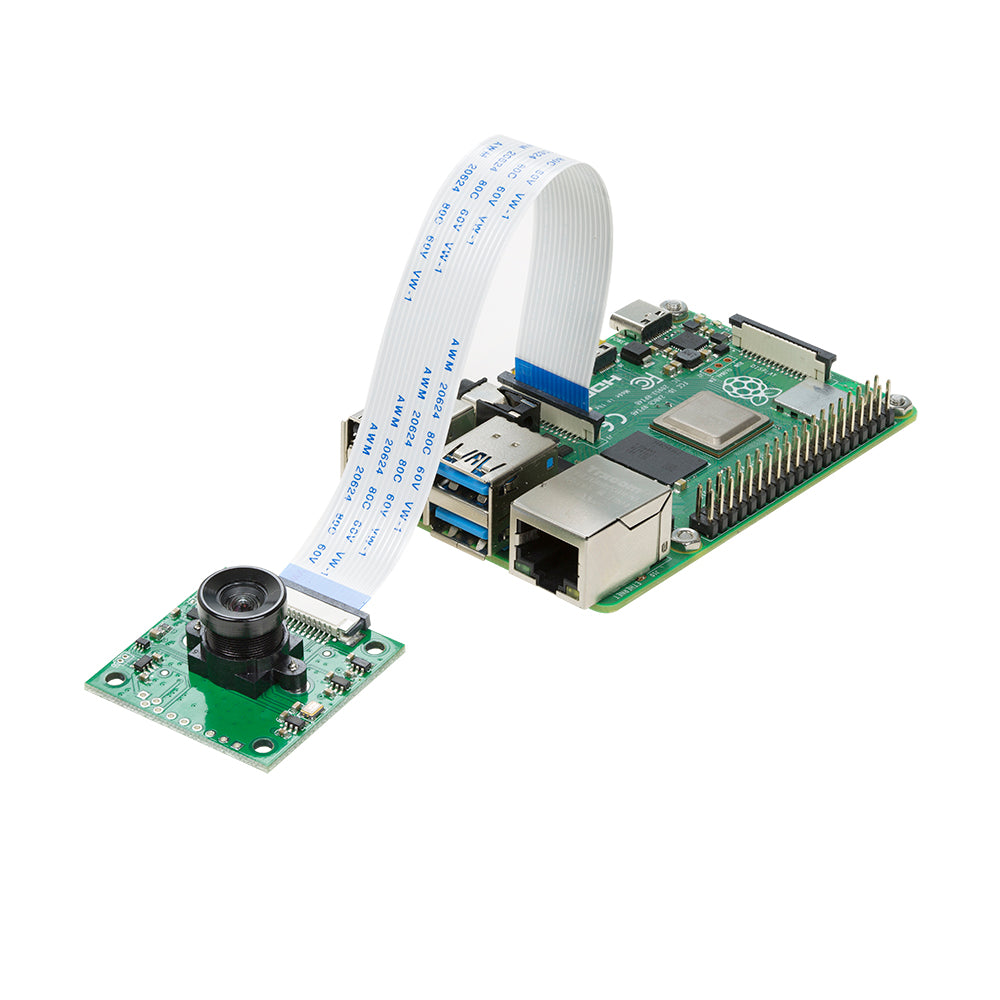

ArduCAM team just released a 8MP Raspberry Pi compatible camera based on the same Sony IMX219 image sensor. It's capable of 3280 x 2464 pixel static images. It attaches to Pi by the dedicated standard CSi interface.
It is supplementary for Raspberry Pi official camera in order to fulfill the demands for different lens mounts, field of view (FOV) and depth of the field (DOF) as well as the motorized IR cut filter for both daylight and night vision.
There is a wide range of lens options which can be chosen from us: LK002
Applications
- Cellular phones, PDAs, Toys
- Other battery-powered products
- Wildlife Photograph
- Home Security Supervise
- Recording slow motion
- Machine vision, etc.
Specifications
Camera
| Image Sensor | IMX219 |
| Still Resolution | 8 Megapixels |
| Video Modes | 1080p47, 1640 × 1232p41 and 640 × 480p206 |
| Sensor Resolution | 3280 × 2464 pixels |
| Sensor image area | 3.68 x 2.76 mm (4.6 mm diagonal) |
| Pixel Size | 1.12 µm x 1.12 µm |
| Optical Size | 1/4" |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
Lens
| Focus Type | Manual Focus |
|---|---|
| Focal Length | 2.8mm |
| F.NO | F2.2 |
| Field of View(FOV) | 70¡ã(H) |
| Lens Mount | M12 Mount |
Electrical & Mechanical
| Camera Board Size | 36mm x 36mm |
| Peaking Current | 300mA |
|---|
Package Includes
- 1 x 8 Megapixels IMX219 Sensor Camera Module
- 1 x 15cm 15pin FPC cable
Note
- Raspberry Pi Board is not included in the package
- This camera module supports the latest Raspberry Pi OS Bullseye (Jan 28th, 2022 and later) and libcamera apps, for the previous Raspberry Pi OS (Legacy) users, contact us at sales@arducam.com
Documentations
- User Guide Arducam 8MP Sony IMX219 M12 Mount Pi Camera
- Sensor Datasheet Sony IMX219
- 3D Drawings
- Arducam Documentation Arducam Cameras for Raspberry Pi
- Blog Arducam 8MP Sony IMX219 M12 Mount Pi Camera
- Lens Options Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
