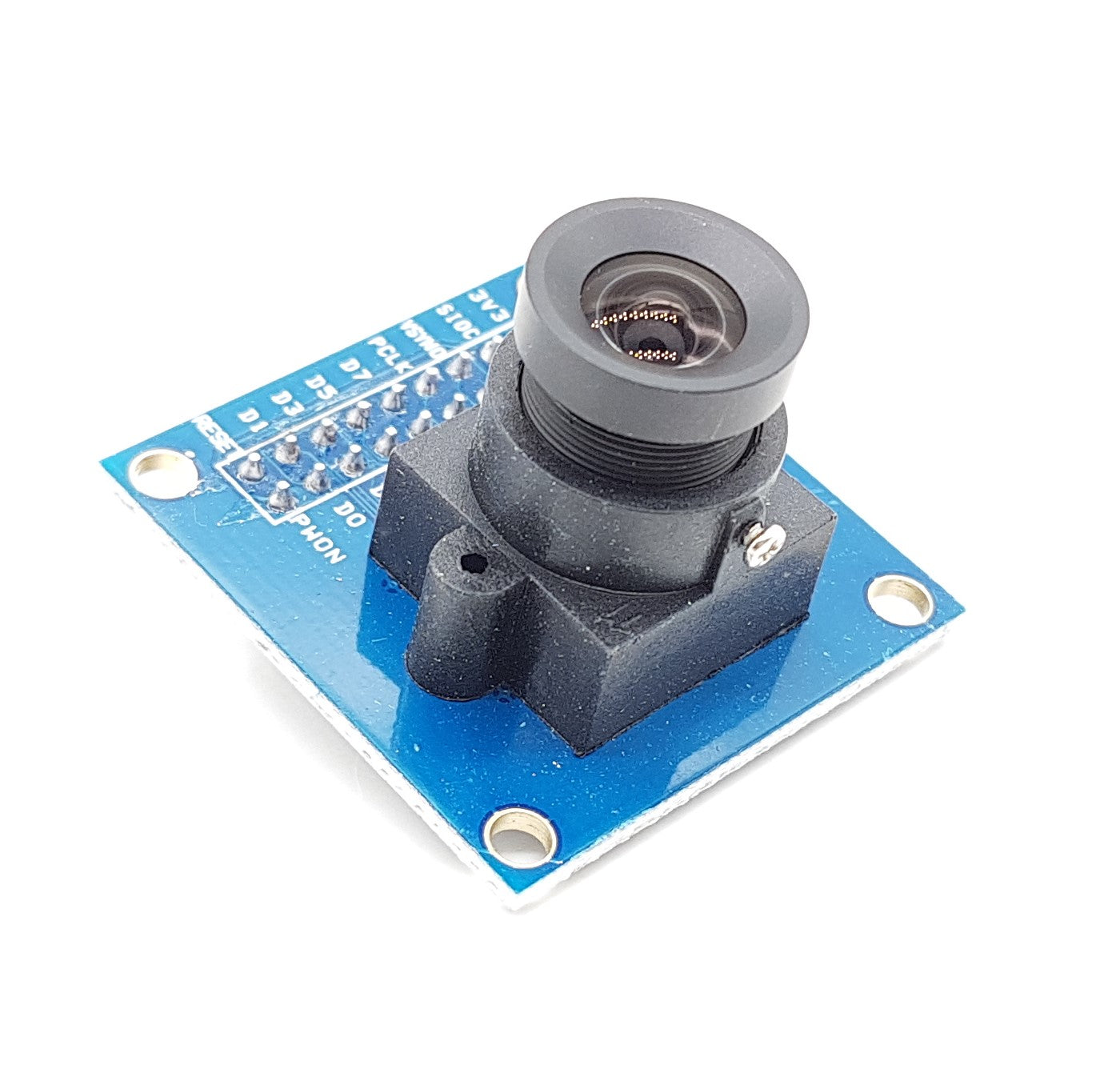

OV7670 image sensor, small volume, low operating voltage, providing all functions of a single chip of VGA camera and image processor.
OV7670 built-in JPEG decoder supported reatime encoding for collected image, and external controller can easily read the M – JPEG video streams, achieving the camera design of double stream. OV7670 supported motion detection and OSD display function of screen characters and pattern overlay, capable of self-defining detection area and sensitivity.
Optical Sensor Size: 1/6 inch or 4.25mm
Resolution: 640×480 VGA
Operating Voltage: 3.3V

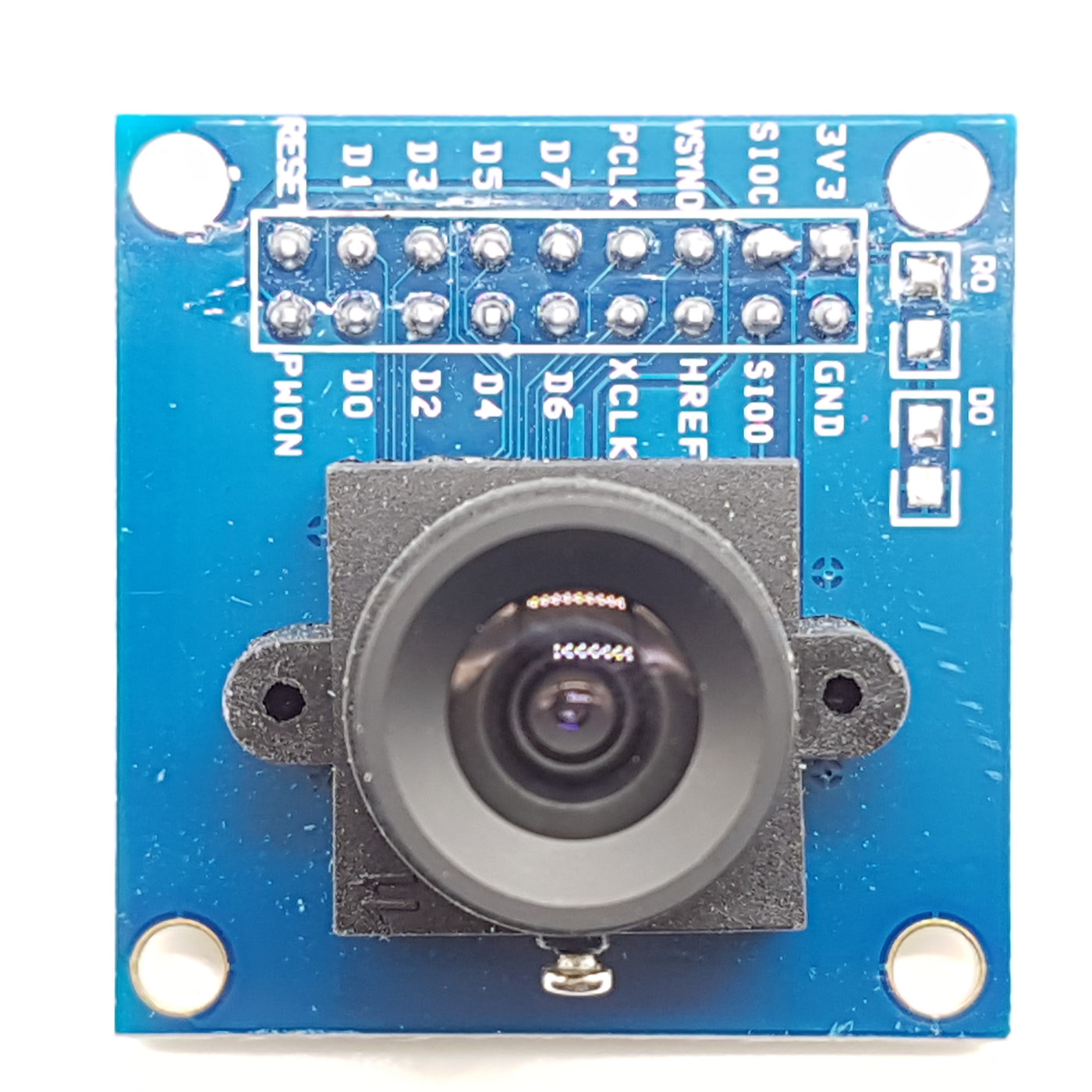

Connector: Standard 0.1inch (2.54mm) pitch header (18 Pin)
Lens: High Quality F1.8 / 6mm lens
Output Formats:
Raw RGB,
RGB (GRB 4:2:2, RGB565/555/444),
YUV (4:2:2)
YCbCr (4:2:2)
High sensitivity for Low-Light Operation
Standard SCCB interface compatible with I2C interface
Supports image sizes: VGA, CIF, and any size scaling down from CIF to 40×30
VarioPixel® method for sub-sampling
Automatic image control functions including:
Automatic Exposure Control (AEC)
Automatic Gain Control (AGC)
Automatic White Balance (AWB)
Automatic Band Filter (ABF)
Automatic Black-Level Calibration (ABLC)
Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming
ISP includes noise reduction and defect correction
