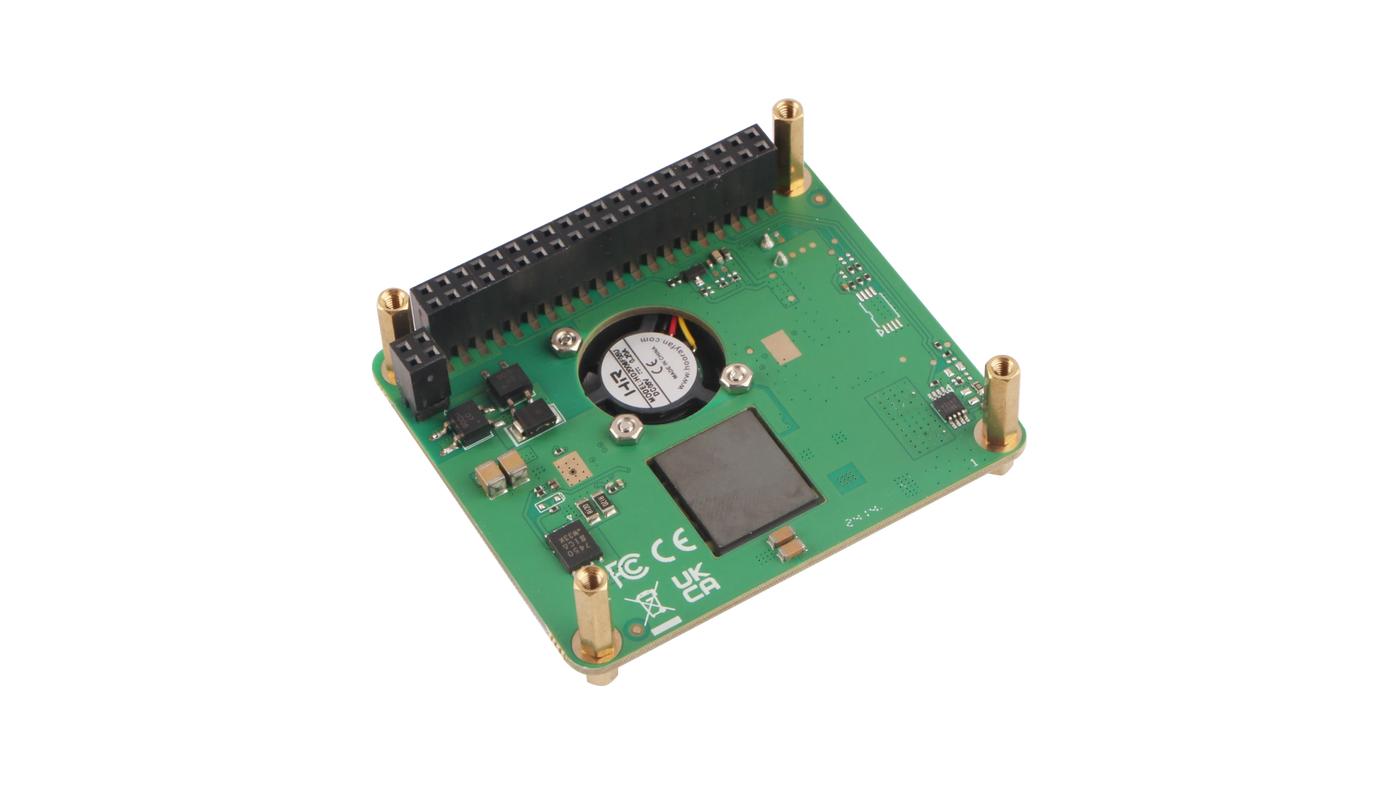

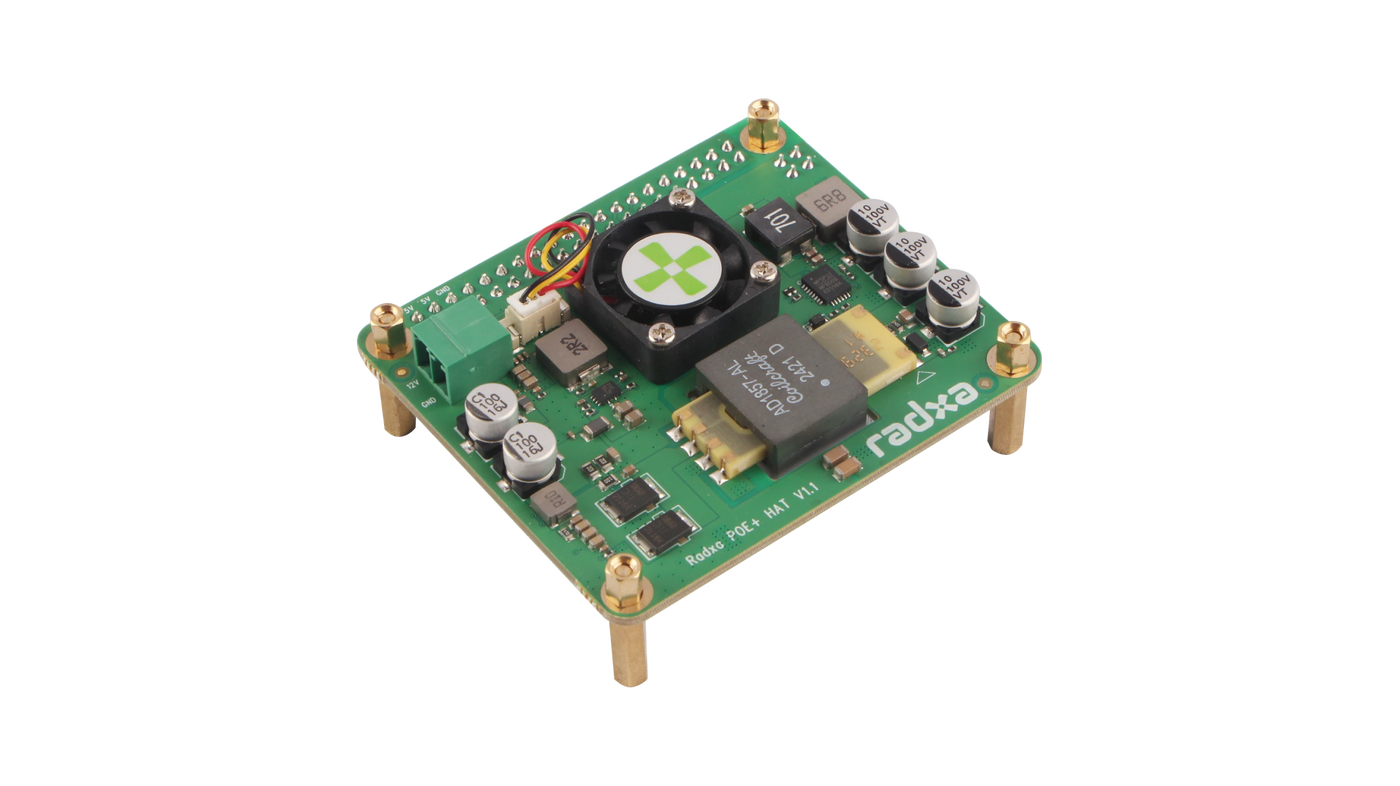

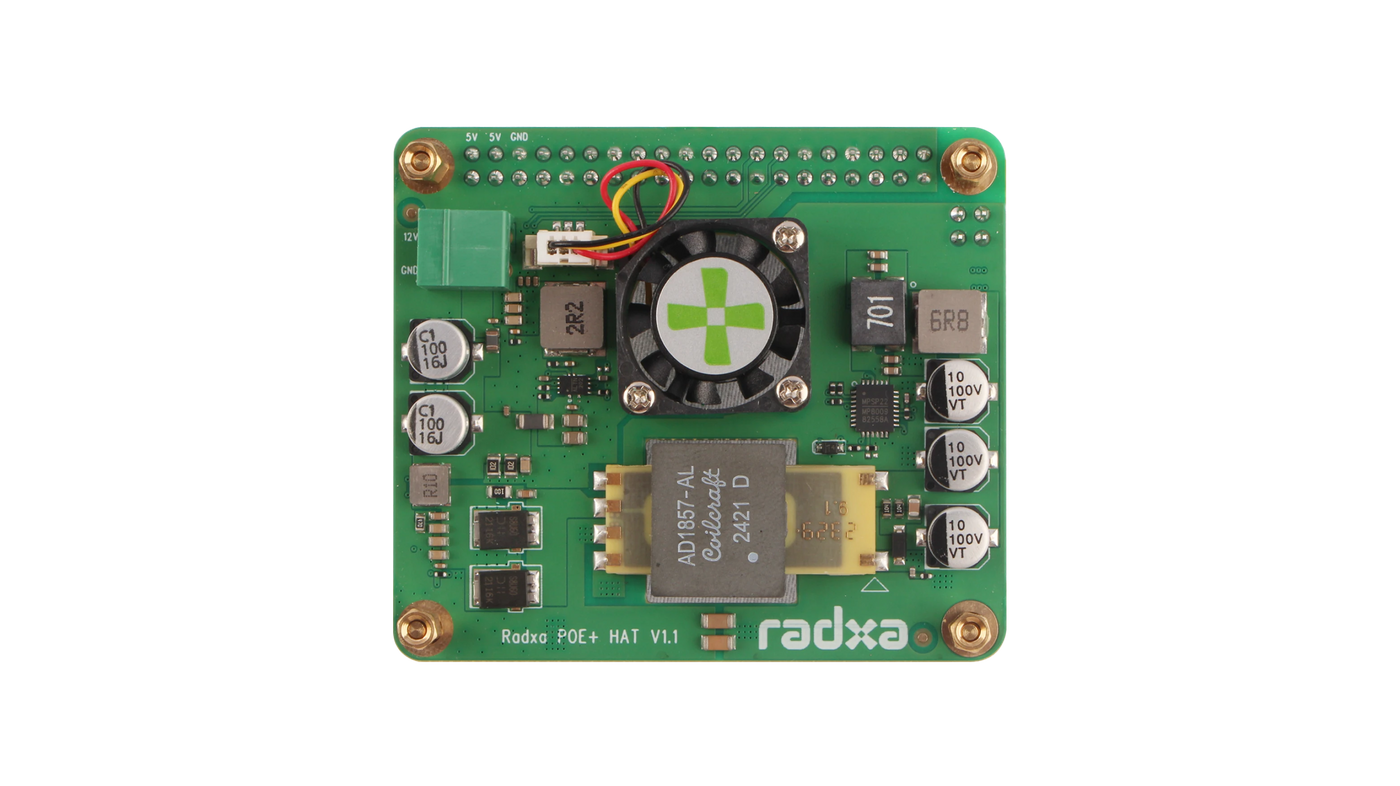

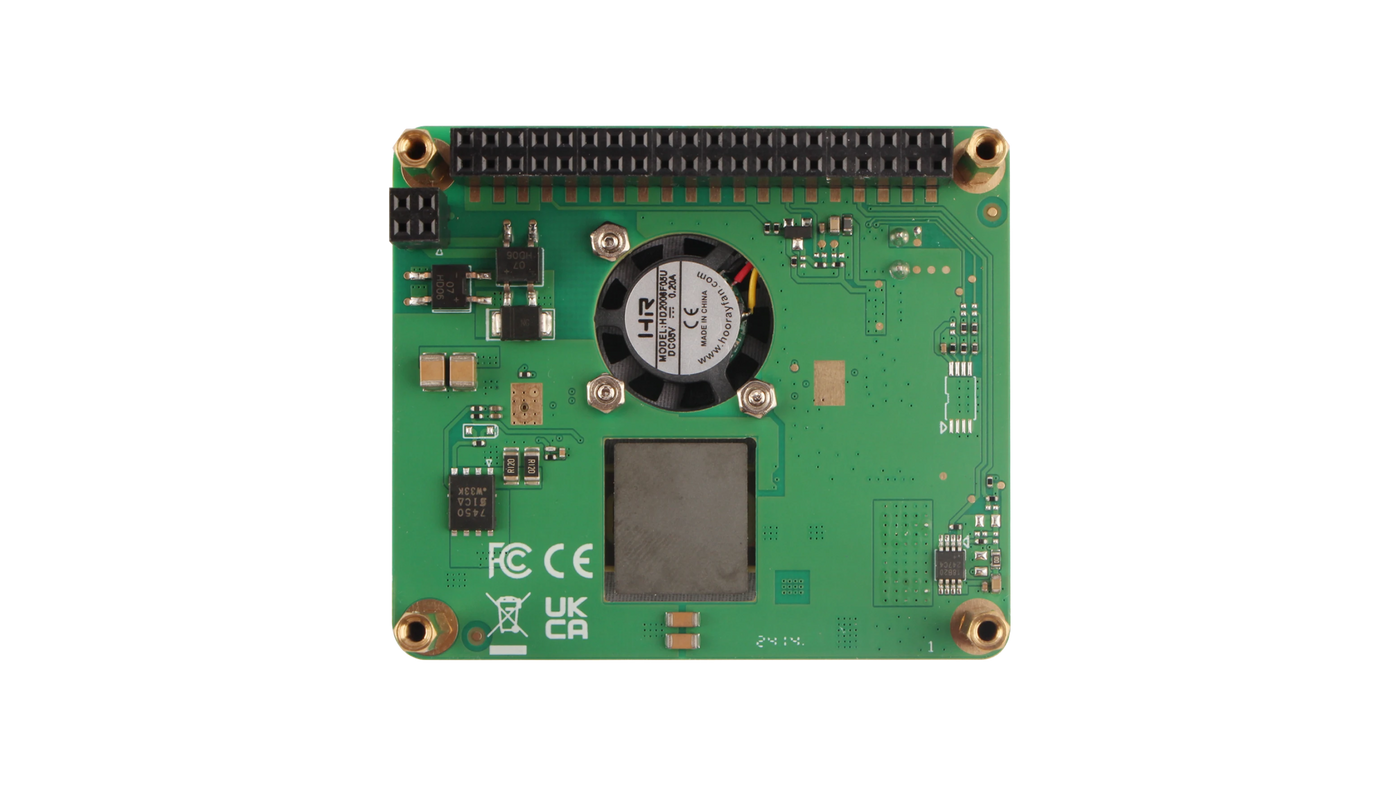

Compatible with ROCK 3A / ROCK 3B / ROCK 3C / ROCK 4C+ / ROCK 5A / ROCK 5B
Significantly streamlines the complexity of network cabling and power management.
The Radxa 25W PoE+ HAT comes equipped with a programmable cooling fan and temperature sensor
Delivering an airflow of 1.45 CFM to help you achieve exceptional processor cooling performance.
Step 1
Insert four M2.5 * 4 copper pillars through the four positioning holes of the Radxa SBCs, and individually secure them to four M2.5 * 14 + 6 copper pillars to ensure a sturdy fixation.
Step 2
Align the Radxa 25W PoE+ HAT with the PoE interface and the 40-Pin interface, and insert it carefully, ensuring that it passes through the four M2.5 * 14 + 6 Copper Pillars.
Step 3
On top of the Radxa 25W PoE+ HAT, align the four M2.5 * 4 Copper Pillars with the four M2.5 * 14 + 6 Copper Pillars, then secure them by rotating them into place.
・ 1x Radxa 25W PoE+ HAT
・ 4x M2.5 * 5 Copper Pillars
・ 4x M2.5 * 14 + 6 Copper Pillars
・ 4x M2.5 * 4 + 6 Copper Pillars
| Radxa 25W PoE+ HAT Specifications | |
|---|---|
| PoE Standard | IEEE 802.3at |
| Input Voltage Range | 37 ~ 57V |
| Output Voltage / Current | 5V / 4.8A or 12V / 2.1A - 5V load: 5V DC / 4.8A - 12V load: 12V DC / 2.1A |
| Sensor | Programmable Temperature Sensor |
| Cooling Fan | Customizable 20x20mm Fan, 15000±15% RPM, 1.45 CFM |
| Compatibility | ROCK 3A / ROCK 3B / ROCK 3C / ROCK 4C+ / ROCK 5A / ROCK 5B |
| Operating Temperature | 0°C to +50°C |
| Package List | Radxa 25W PoE+ HAT 4× M2.5x9+6 Copper Pillars 4× M2.5x4+6 Copper Pillars 4× M2.5x5 Copper Pillars |
Documentation
| Introduction | Download |
Product Information
| Product Brief | Download |
| Schematic V1.0 | Download |
| Components Placement Map (SMD V1.0) | Download |
| 2D Drawings | Download |
No reviews yet. Be the first to share your experience!
