A Feature Rich Embedded SoM

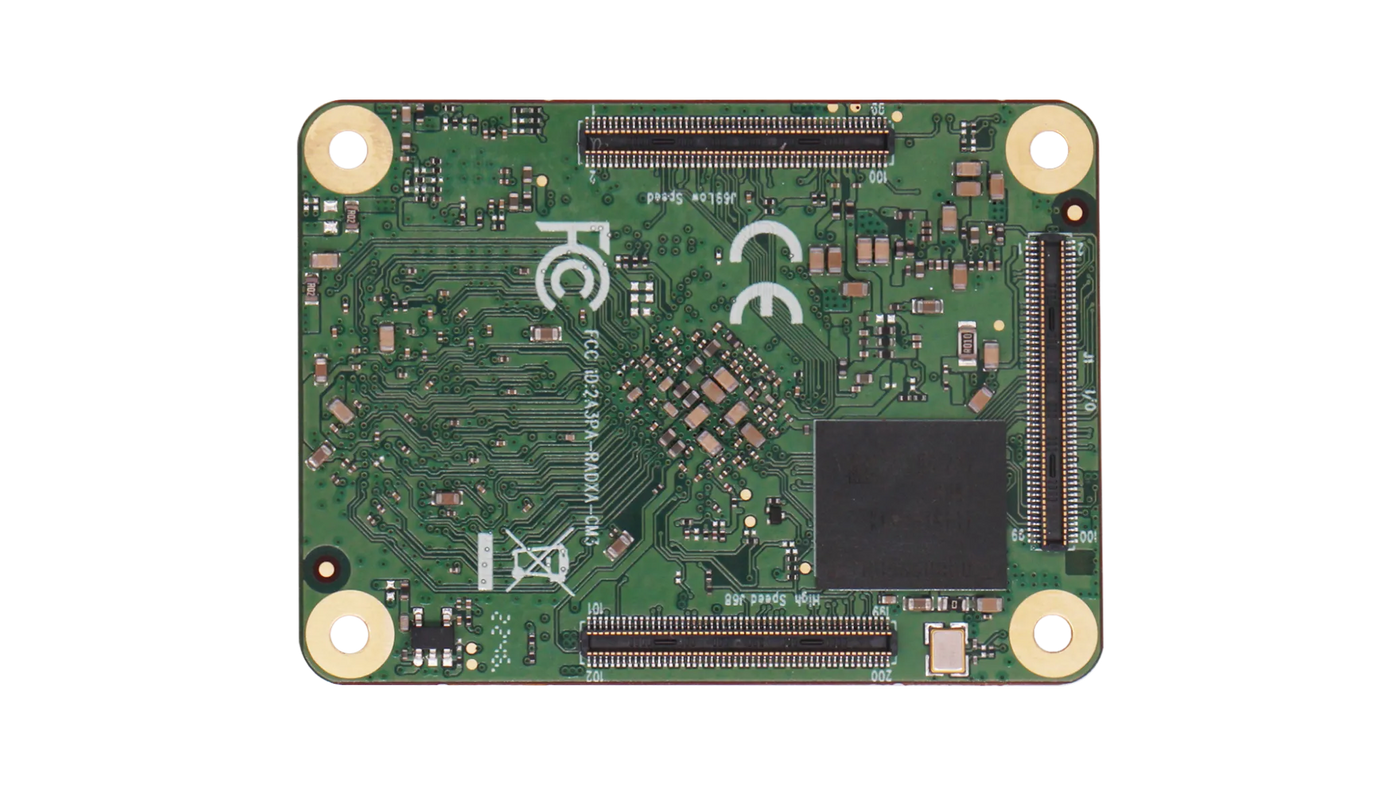

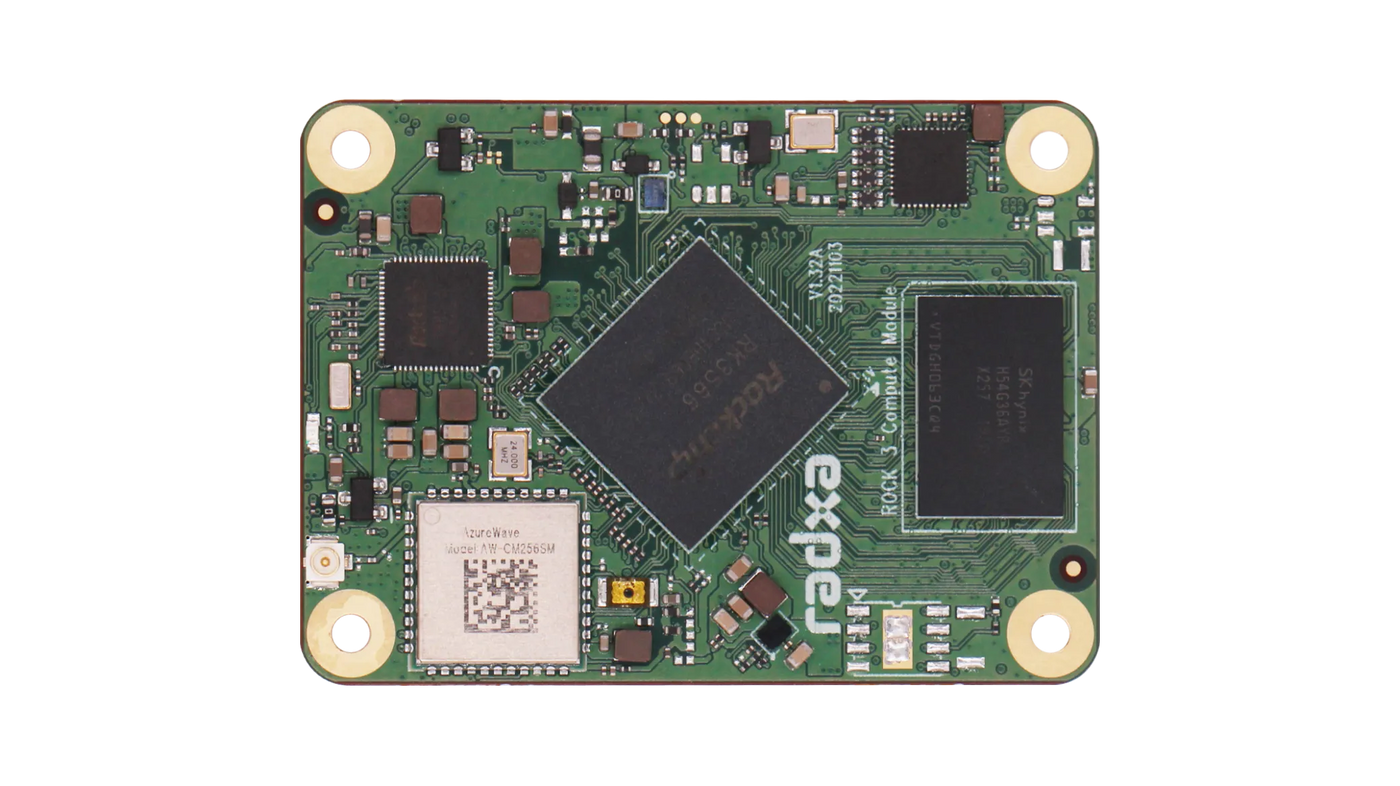

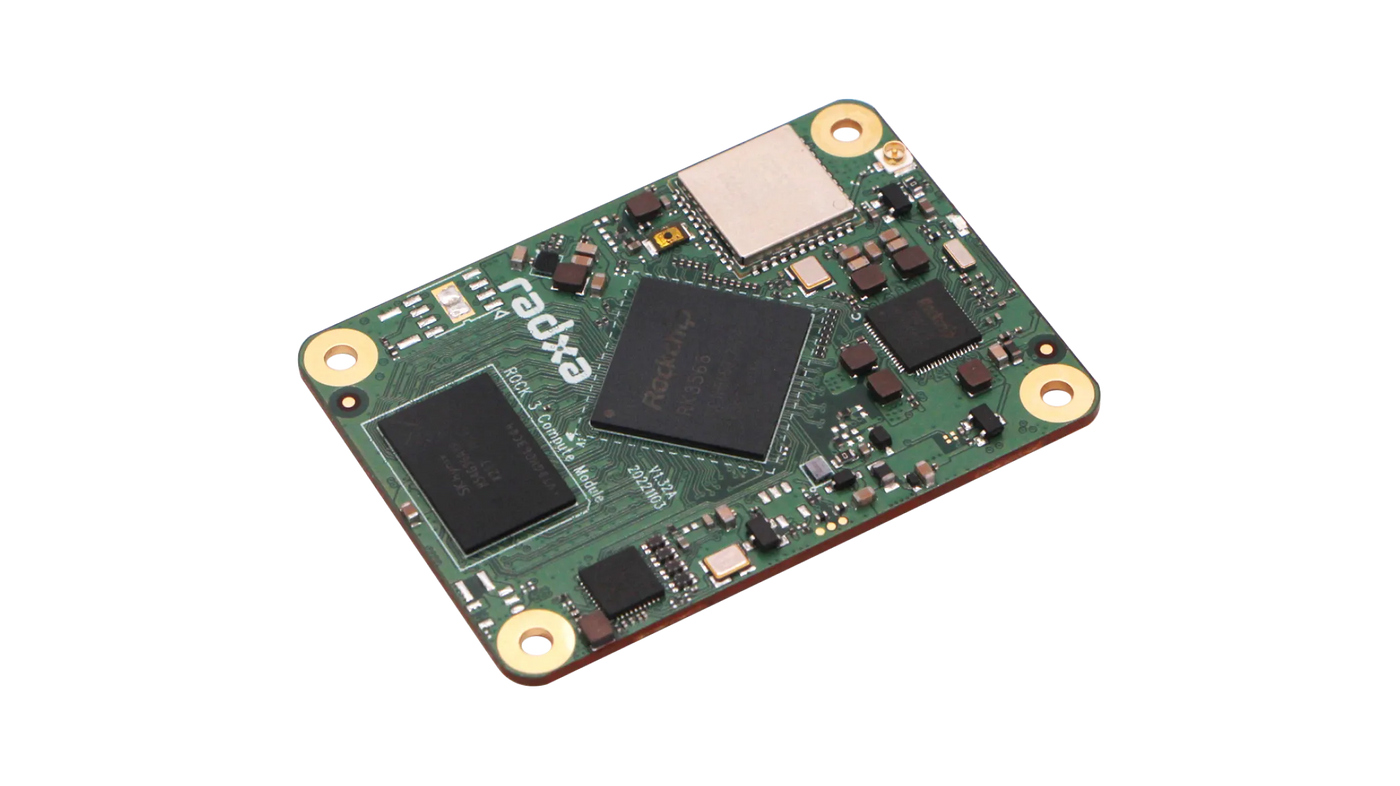

The Radxa CM3 Module is a System on Module (SoM) based on a the Rockchip RK3566 System on Chip (SoC). It integrates the Central Process Unit (CPU), power management Unit (PMU), DRAM memory, flash storage and wireless connectivity (WiFi 5 and BT 5.0) in a small form factor of just 55mm x 40mm. The Radxa CM3 offers a costefficient solution out of the box for many different applications.
Enables fast AI inference and edge computing tasks
Support Deep Learning frameworks: TensorFlow, Pytorch, Caffe, ONNX etc
Radxa CM3 features an advanced video decoder
supporting popular formats like H.265, H.264, and VP9, delivering unmatched 4K viewing.
Seamless integration and Industry-Standard compatibility define Radxa CM3's pinout, featuring three B2Bconnectors with 100 pins and a 0.4mm pitch.
Empower your connectivity with the option to choose between Gigabit Ethernet PHY, high-speed 802.11ac Wi-Fi, and BT5, ensuring seamless data transfer with the outside world.
Abundance of interface options including HDMI, MIPI-DSI, MIPI-CSI, PCIe, SATA, USB, SDIO, enabling seamless connection to various peripherals and expansion modules.
| Radxa CM3 Specifications | |
|---|---|
| SoC | Rockchip RK3566 |
| CPU | Quad-core Arm® Cortex®-A55 (Armv8) 64-bit @ 1.8GHz |
| GPU | Arm® Mali™-G52-2EE - OpenGL® ES 1.1 / 2.0 / 3.0 / 3.1 / 3.2 - Vulkan® 1.1, OpenCL™ 2.1 |
| NPU | 1TOPs@INT8, supports INT8, INT16, FP16, BFP16 Frameworks: TensorFlow, Caffe, Tflite, Pytorch, Onnx, Android™ NN |
| Multimedia | Decoder: 4K@60fps H.265 / H.264 / VP9 Encoder: 1080p@60fps H.264 / H.265 |
| RAM | LPDDR4 RAM up to 8GB |
| Storage | Optional onboard eMMC Supports SDMMC interface for data/OS boot via SD card |
| Ethernet | 1x Onboard Gigabit Ethernet PHY |
| Wireless | Optional WLAN 2.4GHz / 5.0GHz IEEE 802.11b/g/n/ac Bluetooth 5.0, BLE with external antenna support |
| Video Input | 2 x 2-lane or 1 x 4-lane MIPI CSI |
| Video Output | 1x HDMI up to 4K x 2K@60fps 1x eDP (4 lanes, 2.7Gbps/lane) 2x MIPI DSI @ 1.6Gbps/lane 1x LVDS combo (4 lanes, mux with MIPI DSI0) |
| USB | 1 x USB 3.0 Host (shared with SATA) 2 x USB 2.0 Host 1 x USB 2.0 OTG |
| PCIe | 1 x PCIe 2.1 (1 lane host @ 5Gbps, shared with SATA) |
| SATA | 1 x SATA shared with USB 3.0 HOST 1 x SATA shared with PCIe 2.0 |
| Connectivity | 50 × GPIO 8 × I2C 4 × SPI 8 × UART 9 × PWM 2 × ADC 1 × SDIO 3.0 1 × I2S 1 × PDM (microphone array support) |
| Connector | 3 × 100 pins 0.4mm pitch B2B connector |
| Operating Conditions | 0 ～ 50°C |
| Software | Debian / Linux / Android |
| Dimension | 55 mm × 40 mm |
Product Information
| Product Brief | Download |
| Schematic V1.31 | Download |
| Schematic V1.321 | Download |
| Schematic V1.322 | Download |
| Components Placement Map (SMD V1.31) | Download |
| Components Placement Map (SMD V1.321) | Download |
| Components Placement Map (SMD V1.322) | Download |
| Datasheet | Download |
| 3D STP | Download |
Design Resources
| Radxa CM3 IO Board | Download |
