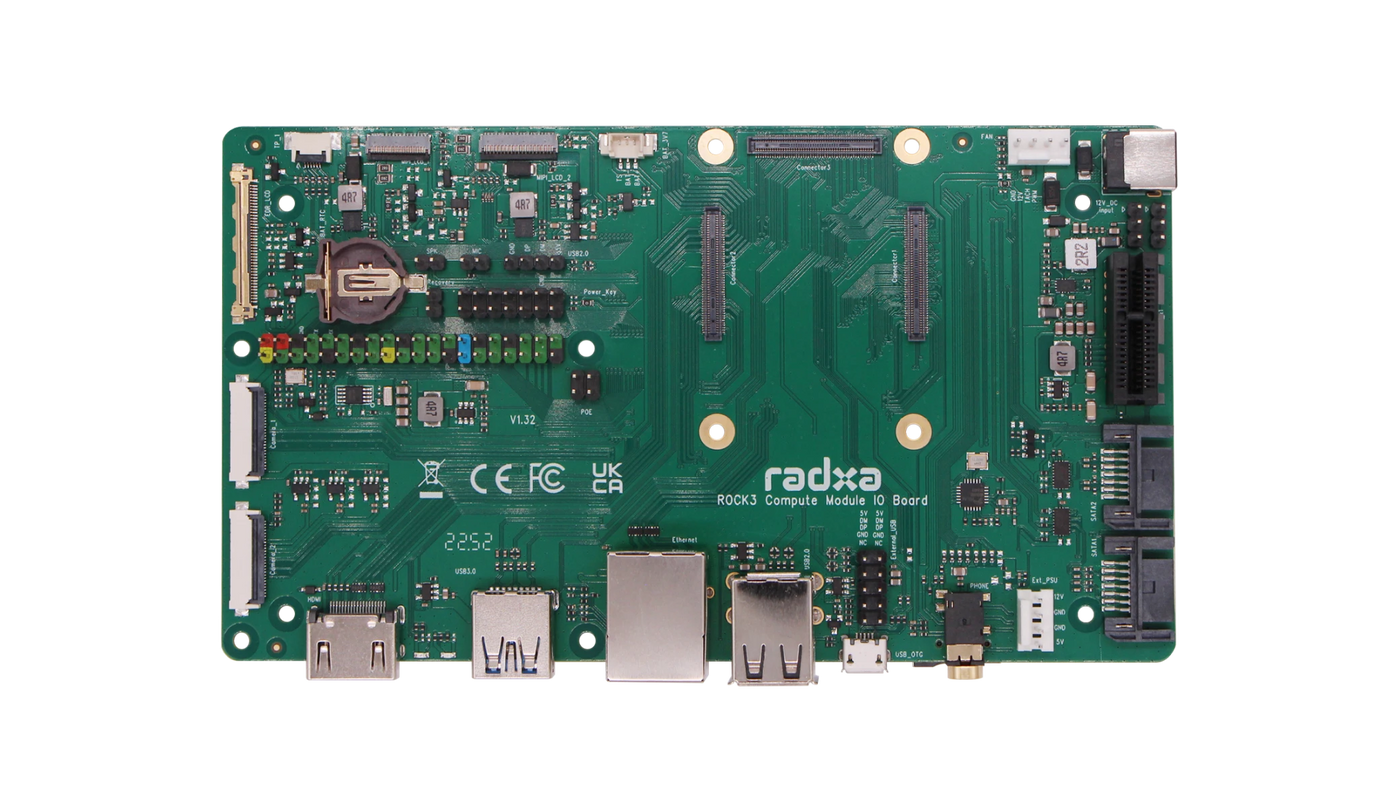

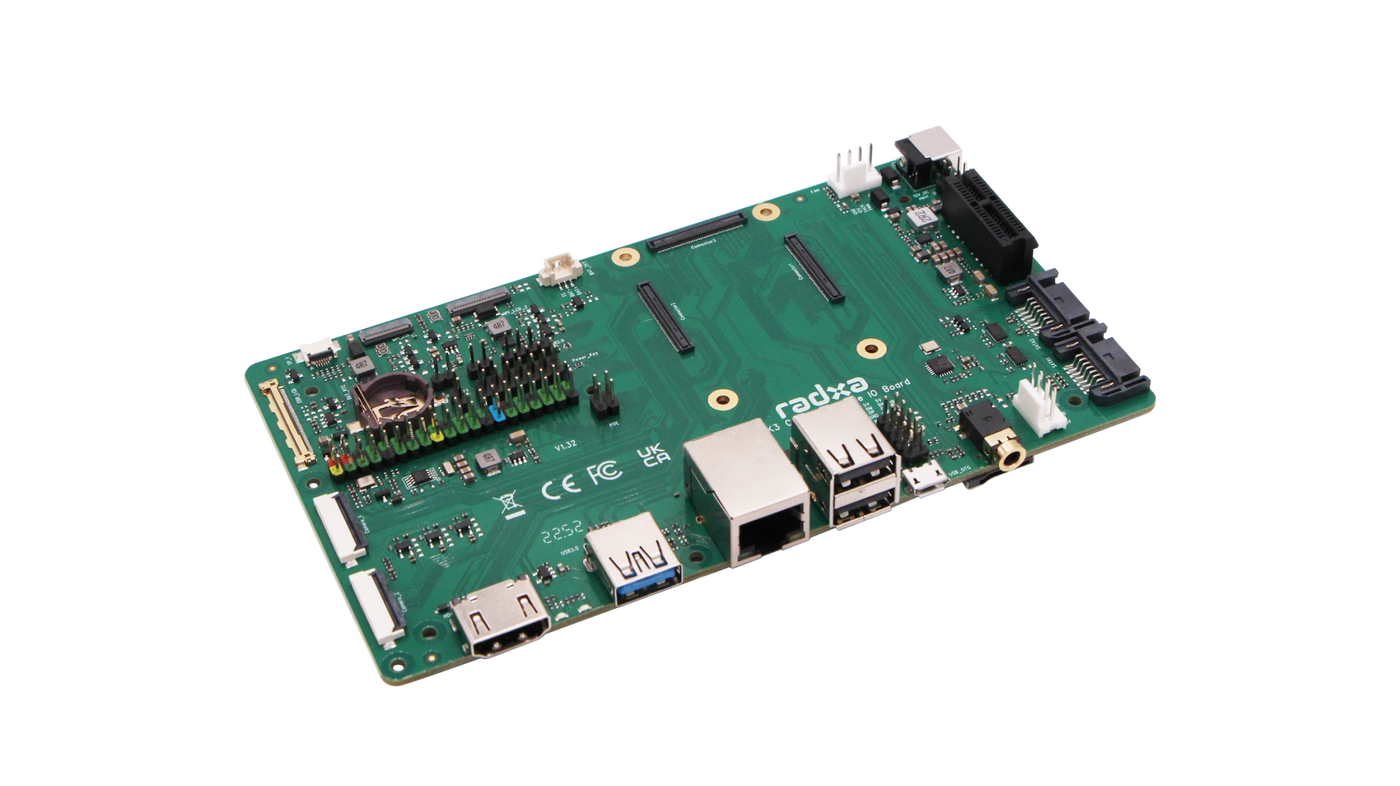

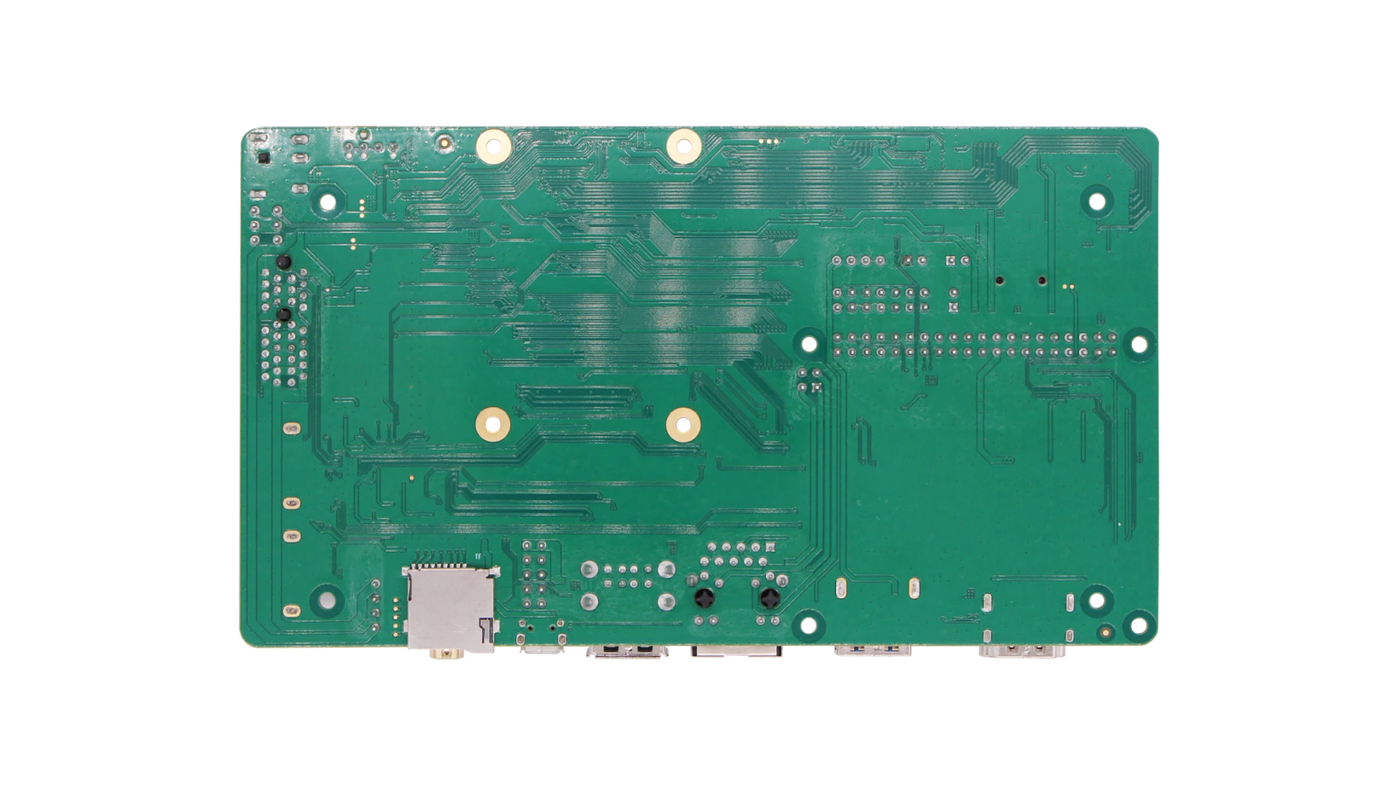

Radxa CM3 IO Board

SKU: RDXA1069

₹ 4,449.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Radxa CM3 IO Board₹ 4,449.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

CM3 IO Board

An Application Board for Radxa CM3

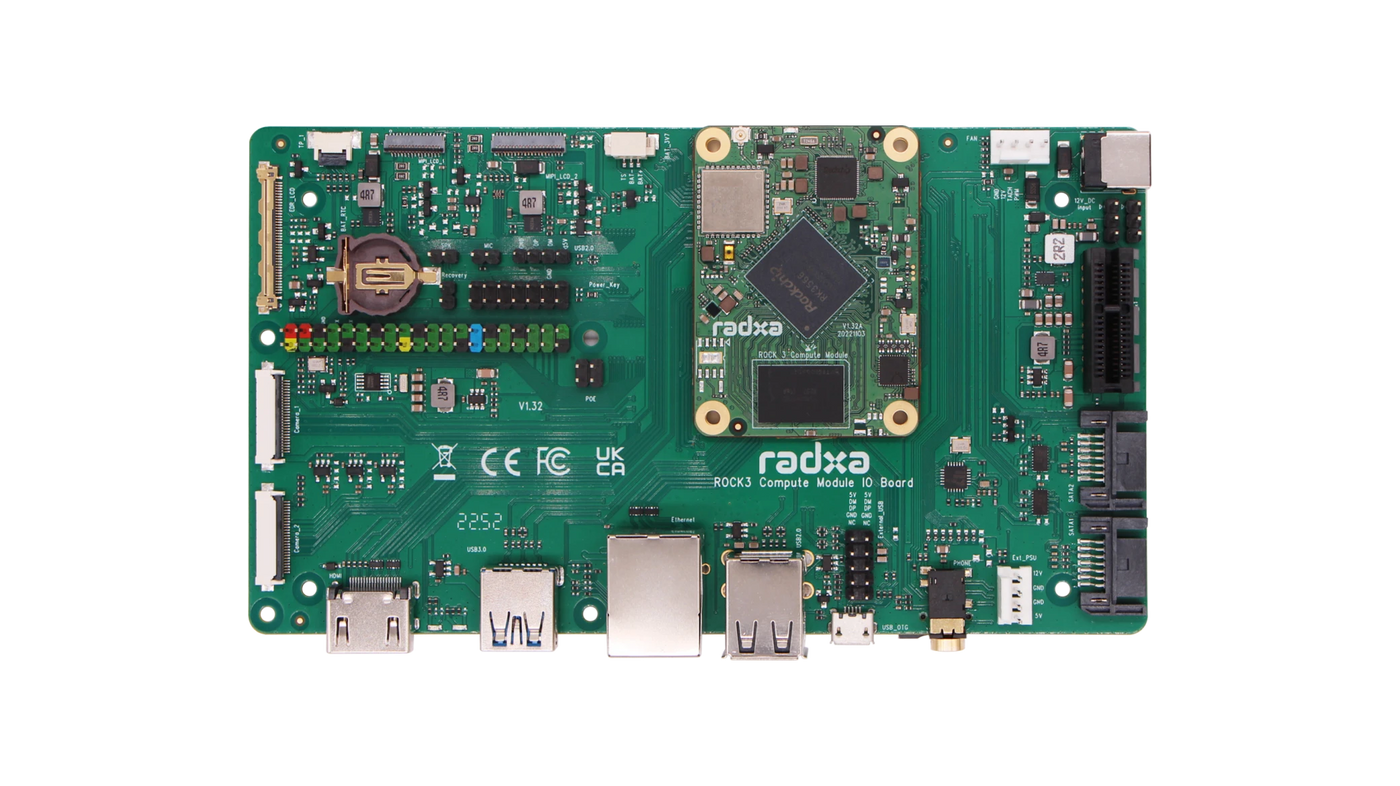

Radxa CM3 with Radxa CM3 IO Board

Quick Functional Verification of 3 x 100 Pin





Interface Details


Camera
2x MIPI CSI

Video
1x HDMI

1x eDP with Touch Panel Interface

Storage
1x Micro SD Card Slot

USB
2x USB2 Host Ports, 1x USB3 HOST Port, 1x Micro USB OTG Port

PCIe

1x PCIe2.0 Interface



Ethernet
1x Gigabit Ethernet with PoE Support (Additional PoE HAT Required)

Audio
Headphone Jack with Microphone Input

40-Pin GPIO
I2S, UART, SPI, I2C, PWM, SDMMC, GPIO, 5V Power Out, 3.3V Power Out





Interfaces



Tech Specs

Radxa CM3 IO Board Specifications
Display 2x MIPI DSI
1x HDMI
1x eDP with Touch Panel
Camera 2x MIPI CSI
USB 2x USB2.0 HOST Type-A Ports
1x USB3.0 HOST Type-A Port
1x Micro USB2.0 OTG
Ethernet 1x 1000Mbps Ethernet with PoE support
Storage 1x MicroSD Card Slot
2x SATA3.0 with PSU
Audio 1x Headphone Jack with MIC IN
Connectivity 1x Fan Header
1x RTC Battery Seat
40-Pin GPIO Header
PCIe 1x PCIe2.0 Interface
Dimensions 160mm x 90mm



What video and display interfaces are supported on the board?
The board supports 2x MIPI DSI displays, 1x HDMI output, and 1x eDP with touch panel.
What storage and USB connectivity are provided?
It includes 1x Micro SD Card Slot, 2x USB2.0 host ports, 1x USB3.0 host port, and 1x Micro USB OTG port.
Does the board support PoE?
Yes, it has PoE capable Ethernet and requires an additional PoE HAT.
What expansion options are available?
It includes a PCIe 2.0 interface and a 40-pin GPIO header, plus I2S, UART, SPI, I2C, PWM and other signals.
What are the board dimensions?
The board measures 160 mm by 90 mm.
