Free Delivery Above ₹999

Best seller

Radxa

Radxa CM3I IO Board

SKU: RDXA1124

₹ 3,399.99

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

Radxa CM3I IO Board₹ 3,399.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

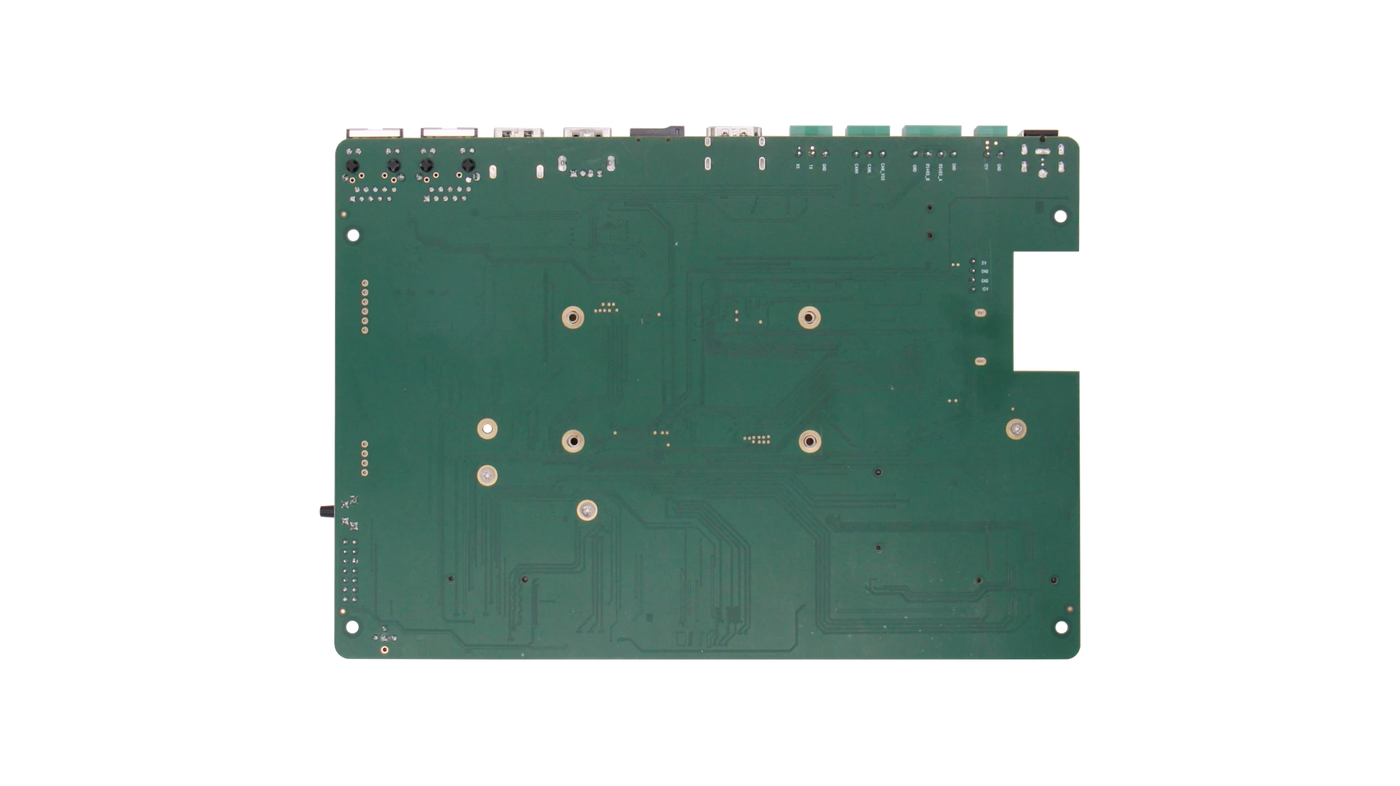

CM3I IO Board

An Application Board for Radxa CM3I

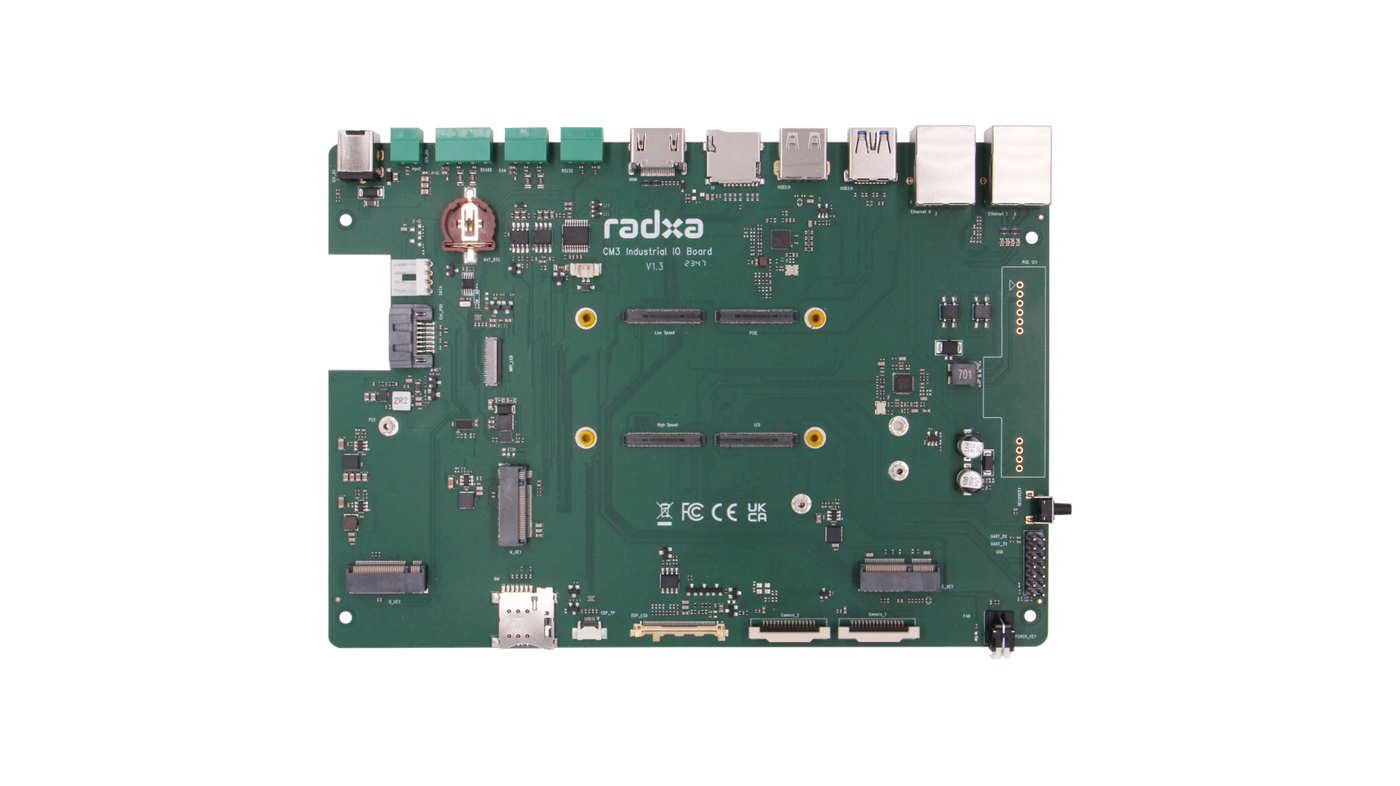

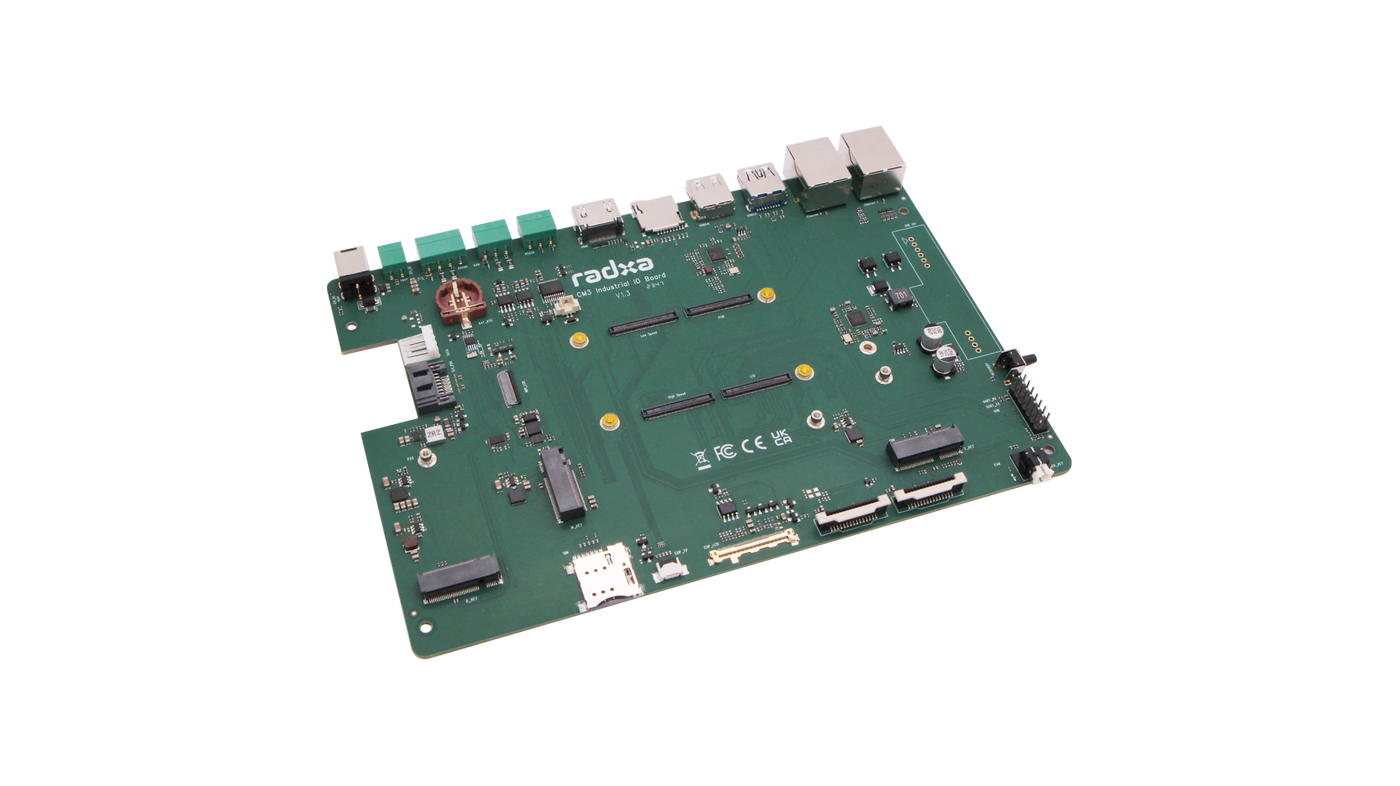

Radxa CM3I with Radxa CM3I IO Board

Quick Functional Verification of 4x 100 Pin

Interface Details

Camera

2x MIPI CSI

Video

1x HDMI

1x eDP with Touch Panel

1x MIPI DSI

Storage

1x Micro SD Card

USB

1x USB 2.0 HOST Port

1x USB 3.0 HOST Port

PCIe

1x PCIe2.0 Interface

Ethernet

2x Gigabit Ethernet, one of which supports PoE

SIM Card Slot

1x SIM Card Slot for 4G Mobile Network

Button

1x Recovery Button

1x Power Button

Serial Port

1x RS232

1x RS485

1x CAN

M.2 M Key Connector

1x M.2 M Key Connector for 2280 NVMe SSD

M.2 E Key Connector

1x M.2 E Key Connector for Wi-Fi / BT

M.2 B Key Connector

1x M.2 B Key Connector with SIM Card for 4G Mobile Network

Interfaces

Tech Specs

Category	Specifications
Display	1x MIPI DSI 1x HDMI 1x eDP with Touch Panel
Camera	2x MIPI CSI
USB	1x USB2.0 HOST Type-A Port 1x USB3.0 OTG Type-A Port
Ethernet	1x 1000Mbps Ethernet with PoE support 1x 1000Mbps Ethernet without PoE support
Storage	1x MicroSD Card Slot 1x SATA3.0 with PSU 1x M.2 M Key Connector for 2280 NVMe SSD
Connectivity	1x Fan Header 1x RTC Battery Seat 1x SIM Card Slot 1x RS232 1x RS485 1x CAN 1x M.2 B Key with SIM Card Slot for 4G Module 1x M.2 E Key Connector for Wi-Fi / BT 14-Pin GPIO Header
Button	1x Power Button 1x Recovery Button
Dimensions	200mm x 140mm

Download

Schematic V1.3	Download
Components Placement Map V1.3	Download
3D Drawings	Download

What display and camera interfaces are available on the board?

Display interfaces include 1x HDMI, 1x MIPI DSI and 1x eDP with Touch Panel, while 2x MIPI CSI inputs support cameras.

What storage options can be used with this IO board?

It supports MicroSD Card Slot, SATA3.0 with PSU, and a M key 2280 NVMe SSD through a dedicated connector.

How many network ports are provided and is PoE supported?

There are two 1000 Mbps Ethernet ports with PoE support on one port, and a SIM based 4G option via M key slots for mobile connectivity.

What peripherals and expansion options are available for connectivity?

USB ports include 1x USB 2.0 Type A host and 1x USB 3.0 OTG Type A, plus serial ports RS232 RS485 CAN, PCIe 2.0, and multiple M key connectors for NVMe, Wi Fi/BT, and 4G modules.

Are design documents and dimensions available for planning integration?

Yes, downloadable schematics and component placement maps are provided (Schematic V1.3, Components Placement Map V1.3, 3D drawings) and the board dimensions are 200 mm by 140 mm.

A

Admin

Welcome to the discussion thread for Radxa CM3I IO Board
Feel free to ask questions, share tips or report issues.

Discover More In:

Radxa | Official Page →

Category: View all Carrier Board

Radxa

Radxa ZERO 3W

₹ 2,649.99

Radxa

Radxa Heatsink 5519A - Specialized for Radxa ZERO 3W/3E

₹ 199.99

Radxa

Radxa ROCK 2F

₹ 1,749.99

Radxa

Radxa Heatsink for X4

₹ 2,199.99

Fill out the form below and our team will get back to you with bulk pricing.

Description

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

CM3I IO Board

An Application Board for Radxa CM3I

Radxa CM3I with Radxa CM3I IO Board

Quick Functional Verification of 4x 100 Pin

Interface Details

Camera

2x MIPI CSI

Video

1x HDMI

1x eDP with Touch Panel

1x MIPI DSI

Storage

1x Micro SD Card

USB

1x USB 2.0 HOST Port

1x USB 3.0 HOST Port

PCIe

1x PCIe2.0 Interface

Ethernet

2x Gigabit Ethernet, one of which supports PoE

SIM Card Slot

1x SIM Card Slot for 4G Mobile Network

Button

1x Recovery Button

1x Power Button

Serial Port

1x RS232

1x RS485

1x CAN

M.2 M Key Connector

1x M.2 M Key Connector for 2280 NVMe SSD

M.2 E Key Connector

1x M.2 E Key Connector for Wi-Fi / BT

M.2 B Key Connector

1x M.2 B Key Connector with SIM Card for 4G Mobile Network

Interfaces

Tech Specs

Category	Specifications
Display	1x MIPI DSI 1x HDMI 1x eDP with Touch Panel
Camera	2x MIPI CSI
USB	1x USB2.0 HOST Type-A Port 1x USB3.0 OTG Type-A Port
Ethernet	1x 1000Mbps Ethernet with PoE support 1x 1000Mbps Ethernet without PoE support
Storage	1x MicroSD Card Slot 1x SATA3.0 with PSU 1x M.2 M Key Connector for 2280 NVMe SSD
Connectivity	1x Fan Header 1x RTC Battery Seat 1x SIM Card Slot 1x RS232 1x RS485 1x CAN 1x M.2 B Key with SIM Card Slot for 4G Module 1x M.2 E Key Connector for Wi-Fi / BT 14-Pin GPIO Header
Button	1x Power Button 1x Recovery Button
Dimensions	200mm x 140mm

Download

Schematic V1.3	Download
Components Placement Map V1.3	Download
3D Drawings	Download

FAQ

What display and camera interfaces are available on the board?

Display interfaces include 1x HDMI, 1x MIPI DSI and 1x eDP with Touch Panel, while 2x MIPI CSI inputs support cameras.

What storage options can be used with this IO board?

It supports MicroSD Card Slot, SATA3.0 with PSU, and a M key 2280 NVMe SSD through a dedicated connector.

How many network ports are provided and is PoE supported?

There are two 1000 Mbps Ethernet ports with PoE support on one port, and a SIM based 4G option via M key slots for mobile connectivity.

What peripherals and expansion options are available for connectivity?

USB ports include 1x USB 2.0 Type A host and 1x USB 3.0 OTG Type A, plus serial ports RS232 RS485 CAN, PCIe 2.0, and multiple M key connectors for NVMe, Wi Fi/BT, and 4G modules.

Are design documents and dimensions available for planning integration?

Yes, downloadable schematics and component placement maps are provided (Schematic V1.3, Components Placement Map V1.3, 3D drawings) and the board dimensions are 200 mm by 140 mm.

Reviews
