Radxa

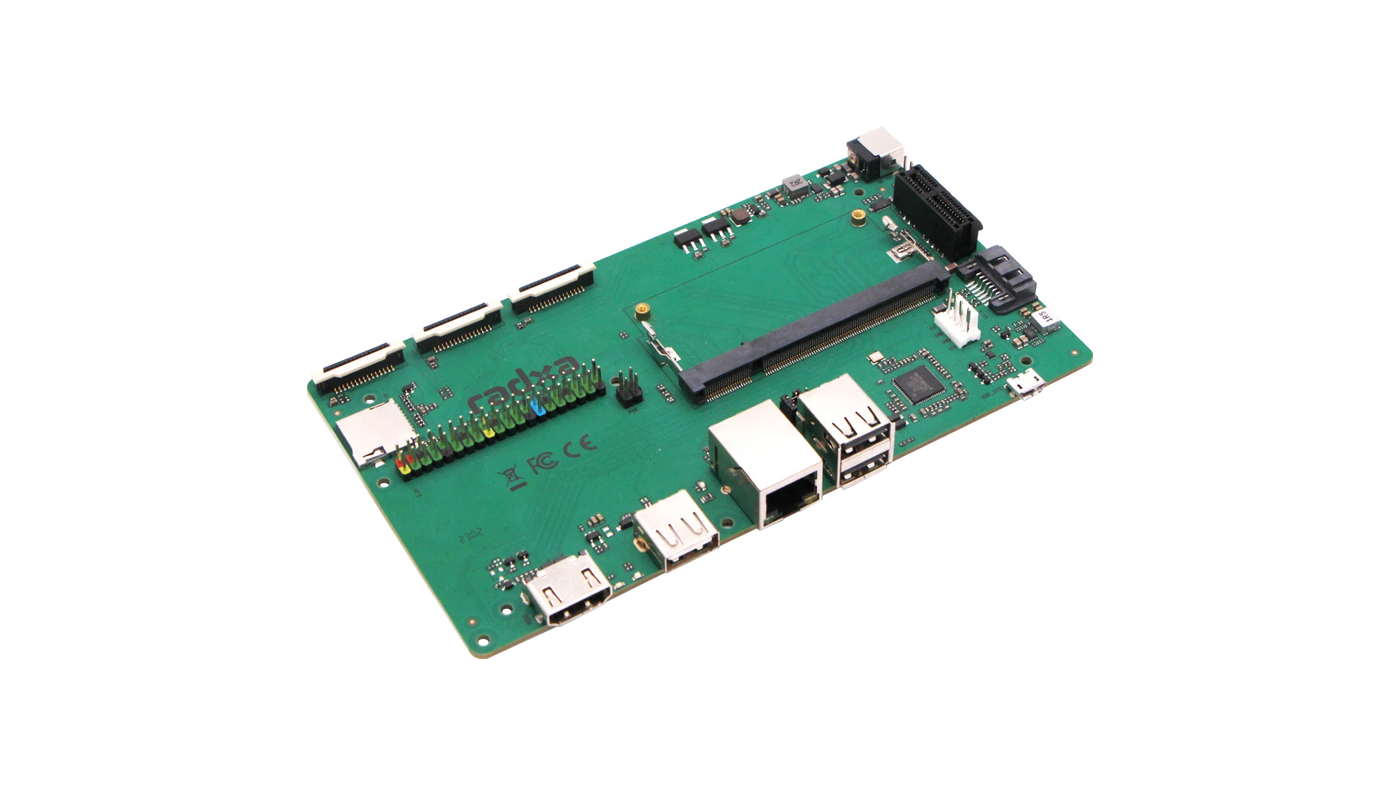

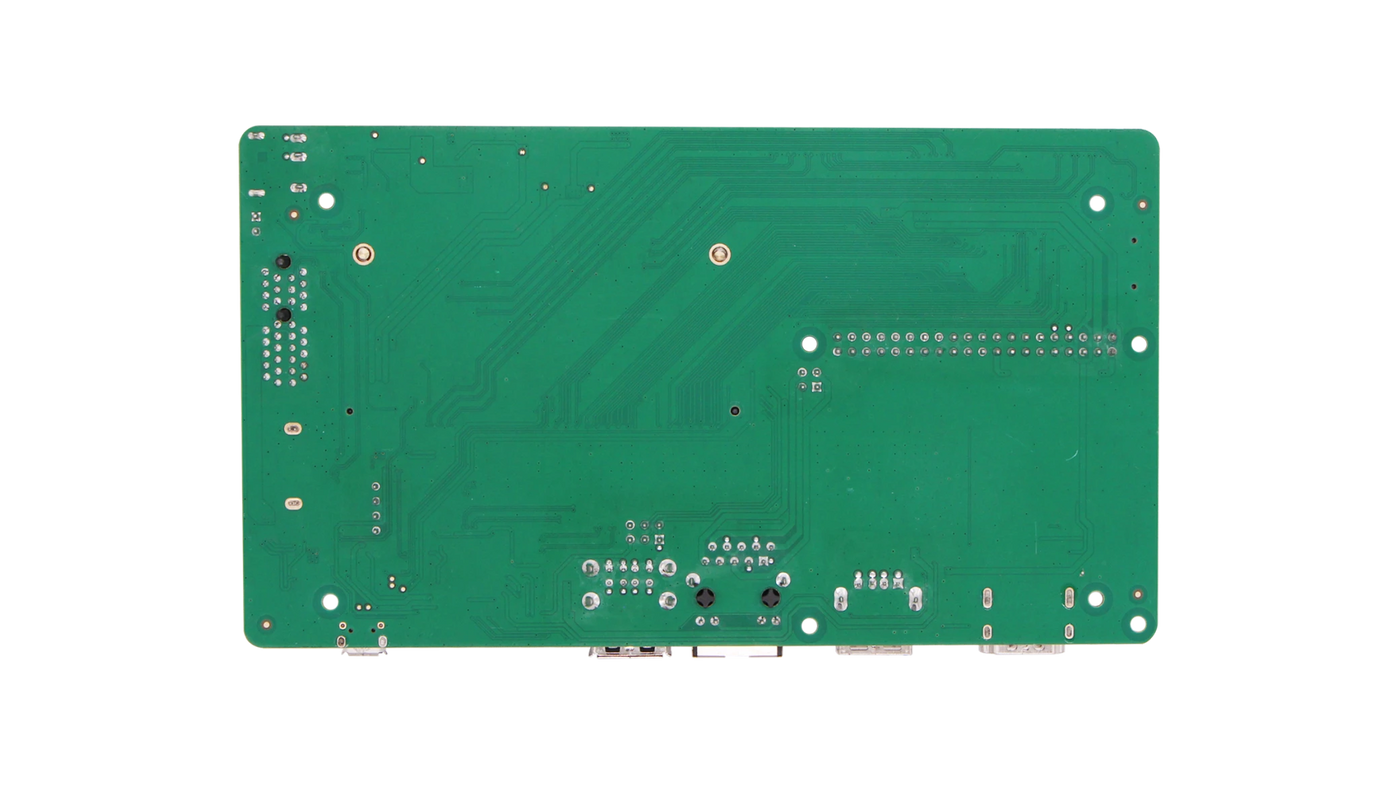

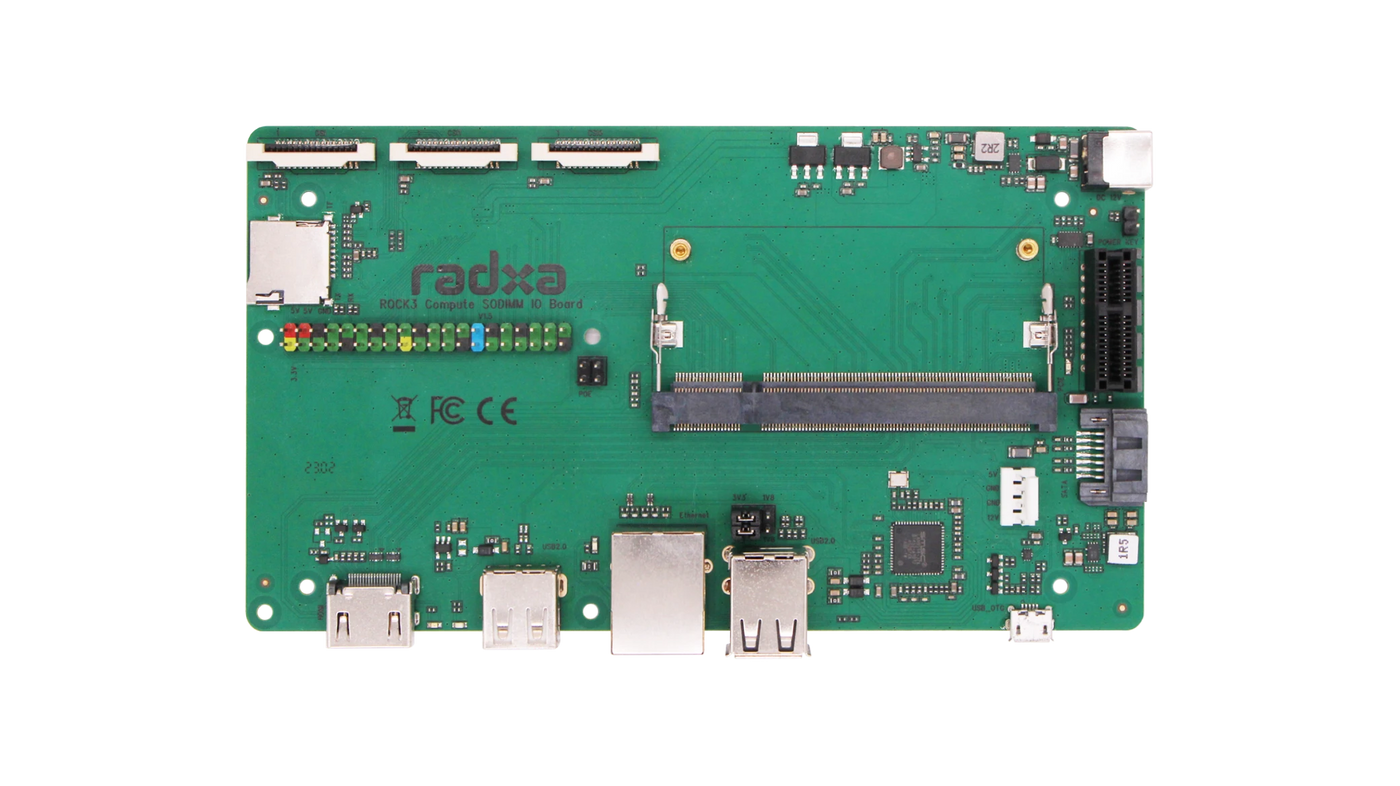

Radxa CM3S IO Board

SKU: RDXA1097

₹ 4,449.99

Out of stock

Chat with us on WhatsApp We reply quickly! Contact Us

Radxa CM3S IO Board₹ 4,449.99

Ask AI about this product

Open in ChatGPT Open in Claude Open in Gemini

CM3S IO Board

An Application Board for Radxa CM3S(mEdge-RK3566)

Radxa CM3S with Radxa CM3S IO Board

Quick Functional Verification of 200 Pin

Interface Details

Camera

2x MIPI CSI

Video

1x MIPI DSI

1x HDMI

SATA

1x Micro SD Card Slot

USB

3x USB2.0 HOST Type A Ports

1x Micro USB 2.0 OTG Port

PCIe

1x PCIe2.0

Ethernet

1x 100Mbit Ethernet with PoE support(Additional PoE HAT Required)

40-Pin GPIO

I2S, UART, SPI, I2C, PWM, SDMMC, GPIO, 5V Power Out, 3.3V Power Out

Interfaces

Tech Specs

Category	Specifications
Display	1x MIPI DSI 1x HDMI
Camera	2x MIPI CSI
USB	3x USB2.0 HOST Type-A Ports 1x Micro USB2.0 OTG Port
Ethernet	1x 100Mbps Ethernet with PoE support
Storage	1x MicroSD Card Slot 1x SATA3.0 with PSU
PCIe	1x PCIe2.0 Interface
Connectivity	40-Pin GPIO Header
Dimensions	160mm x 90mm

Download

Schematic V1.51	Download
Components Placement Map V1.51	Download
2D Drawings	Download

What is this IO board designed for and what interfaces does it expose?

It is an application board for the Radxa CM3S module. It exposes multiple interfaces including 2x MIPI CSI, 1x MIPI DSI, 1x HDMI, 3x USB 2.0 host ports, 1x Micro USB OTG, 1x PCIe2.0, 1x 100 Mbps Ethernet with PoE support (PoE HAT required), a 40-pin GPIO header, and signals for I2S, UART, SPI, I2C, PWM and SDMMC, plus 5V and 3.3V power outs.

Does it support PoE Ethernet and what is required to enable PoE?

Yes, it supports 100 Mbps Ethernet with PoE. An additional PoE HAT is required.

What storage options are available on the board?

The board provides a MicroSD Card Slot and a SATA3.0 interface with PSU.

What are the physical dimensions and which downloadable resources are available?

The dimensions are 160 mm by 90 mm. Downloadable resources include Schematic V1.51, Components Placement Map V1.51, and 2D Drawings.

Which module is this IO board compatible with and what is its intended use?

It is designed as an application board for the Radxa CM3S (mEdge-RK3566) and is intended for quick functional verification of interfaces.
