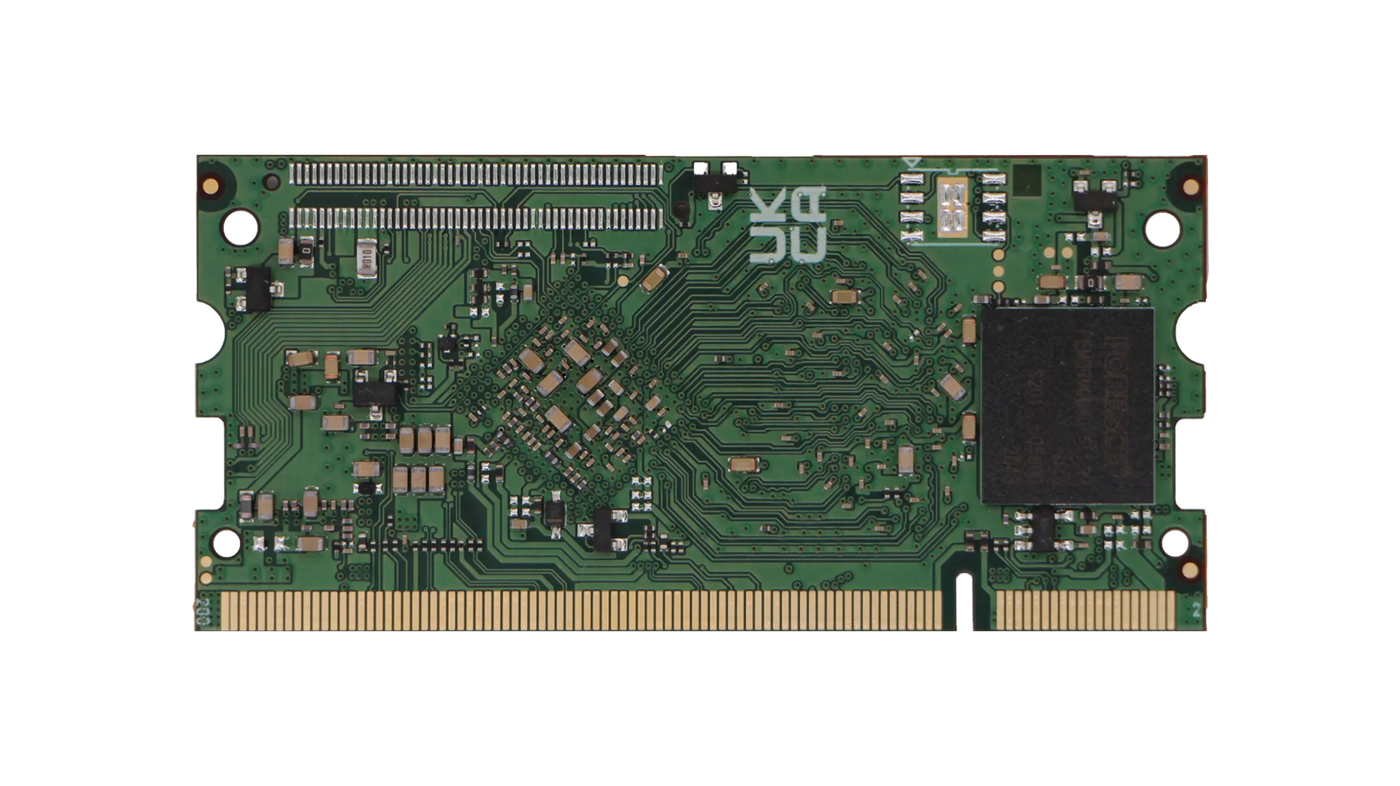

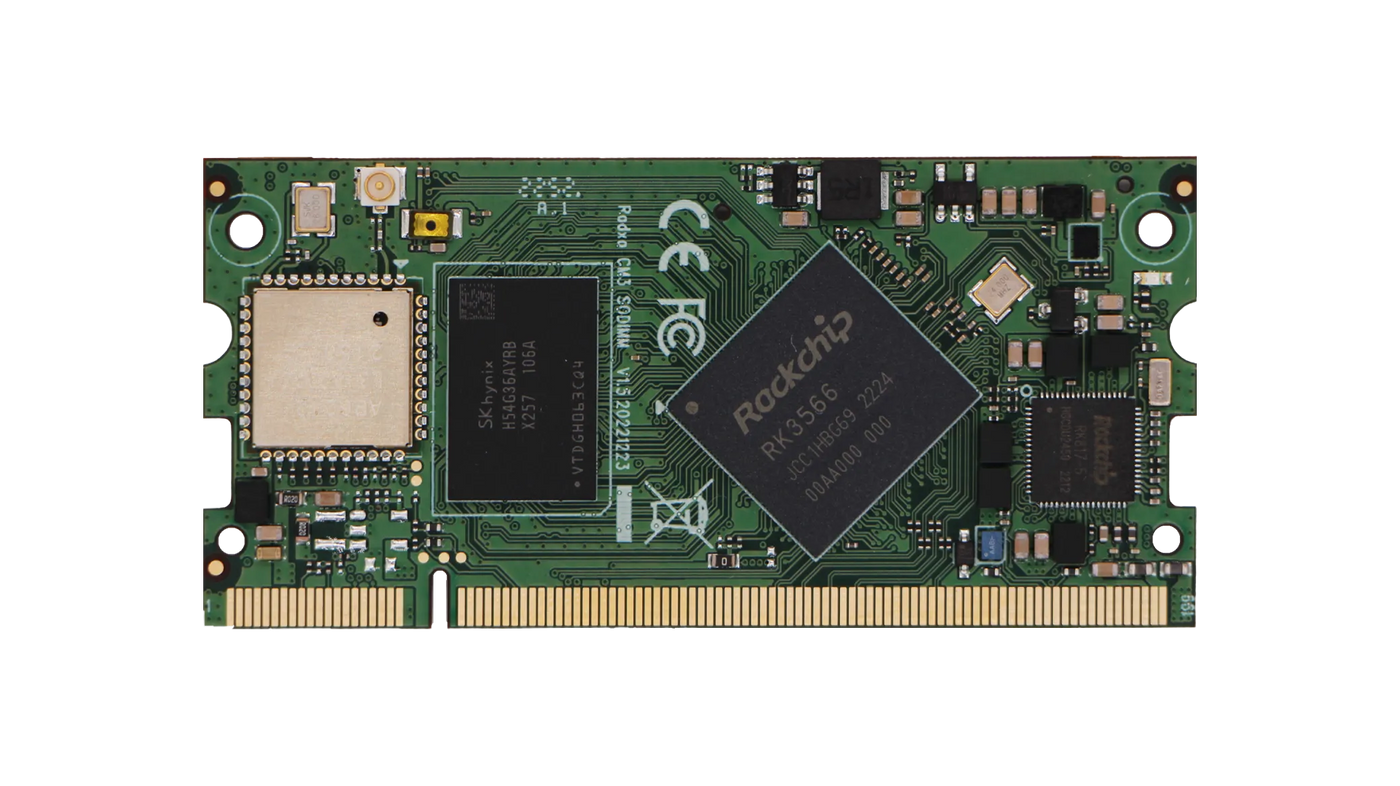

Radxa mEdge-RK3566
High performance and low power consumption
Radxa CM3S features an advanced video decoder
supporting popular formats like H.265, H.264, and VP9, delivering unmatched 4K viewing.
Wi-Fi 4 (802.11 b/g/n) and BT 5 with BLE
Compact and space-efficient, Radxa CM3S with SODIMM interface is ideal for limited-space devices and systems, boasting a standard pinout for seamless integration.
Abundance of interface options including HDMI, MIPI-DSI, MIPI-CSI, PCIe, SATA, USB, SDIO, enabling seamless connection to various peripherals and expansion modules.
| Radxa CM3S Specifications | |
|---|---|
| SoC | Rockchip RK3566 |
| CPU | Quad-core Arm® Cortex®-A55 (Armv8) 64-bit @ 1.6GHz |
| GPU | Arm® Mali™-G52-2EE - OpenGL® ES 1.1 / 2.0 / 3.0 / 3.1 / 3.2 - Vulkan® 1.1, OpenCL™ 2.1 |
| NPU | 1 TOPs @ INT8 Supports INT8, INT16, FP16, BFP16 Deep learning frameworks: TensorFlow, Caffe, Tflite, Pytorch, Onnx, Android™ NN |
| RAM & Storage | LPDDR4: 1 / 2 / 4 / 8GB eMMC: 0 / 8 / 16 / 32 / 64 / 128GB |
| Multimedia | 4K@60fps H.265 / H.264 / VP9 decoder 1080p@60fps H.264 / H.265 encoder |
| Wireless | Optional 2.4GHz IEEE 802.11b/g/n, BT 5.0, BLE with external antenna support |
| USB | 1 x USB 2.0 OTG |
| PCIe | 1 x PCIe 2.0, 1 lane host (5Gbps) |
| SATA | 1 x SATA 3.0 (shared with PCIe) |
| Connectivity | Up to 5 x I2C Up to 3 x SPI Up to 8 x UART Up to 12 x PWM Up to 60 x GPIO 1 x ADC 1 x SDIO 3.0 |
| Power Input | 3.3V ~ 5V |
| Display | 1 x HDMI up to 4K x 2K@60fps 1 x MIPI DSI 2-lane @ 1.6Gbps/lane 1 x MIPI DSI 4-lane @ 1.6Gbps/lane |
| Camera | 2 x 2-lane or 1 x 4-lane MIPI CSI |
| Audio | 2 x I2S, 1 x PDM (mic array support) |
| Operating Conditions | 0 ~ 50°C (recommended) |
| Software | Debian / Linux / Android |
| Dimension | 67.6 x 30 mm |
| Connector | 200-Pin SODIMM golden finger edge |
| Compliance | FCC / CE / IMDA / MIC / RCM / OFCA |
Official Images
| Debian OS | Download |
Product Compliance
| Product Brief | Download |
| Schematic V1.51 | Download |
| Components Placement Map V1.51 | Download |
| Pinout V1.51 | Download |
| 2D Drawings | Download |
> Radxa CM3S IO Board
an Application Board for Radxa CM3S(mEdge-RK3566)
