A High-Performance Embedded SoM

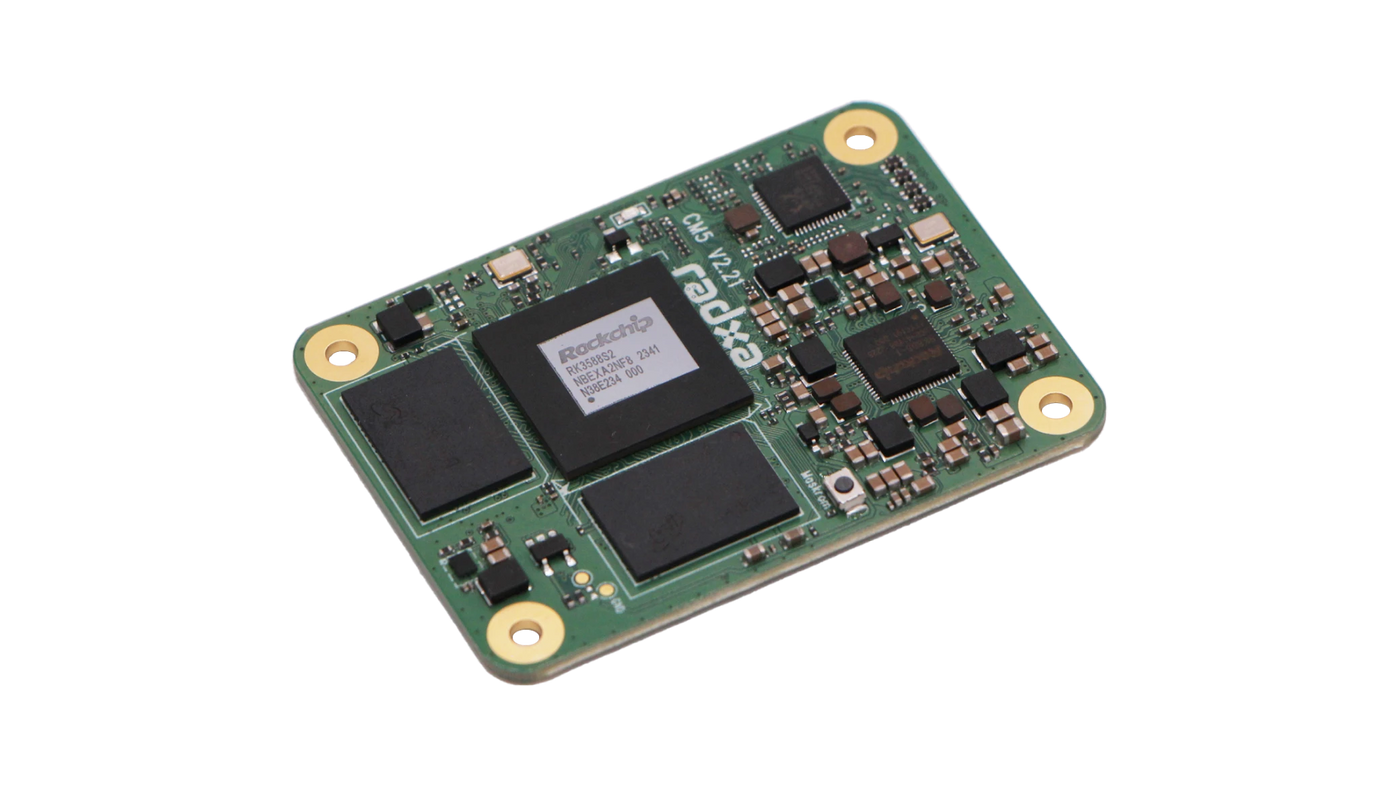

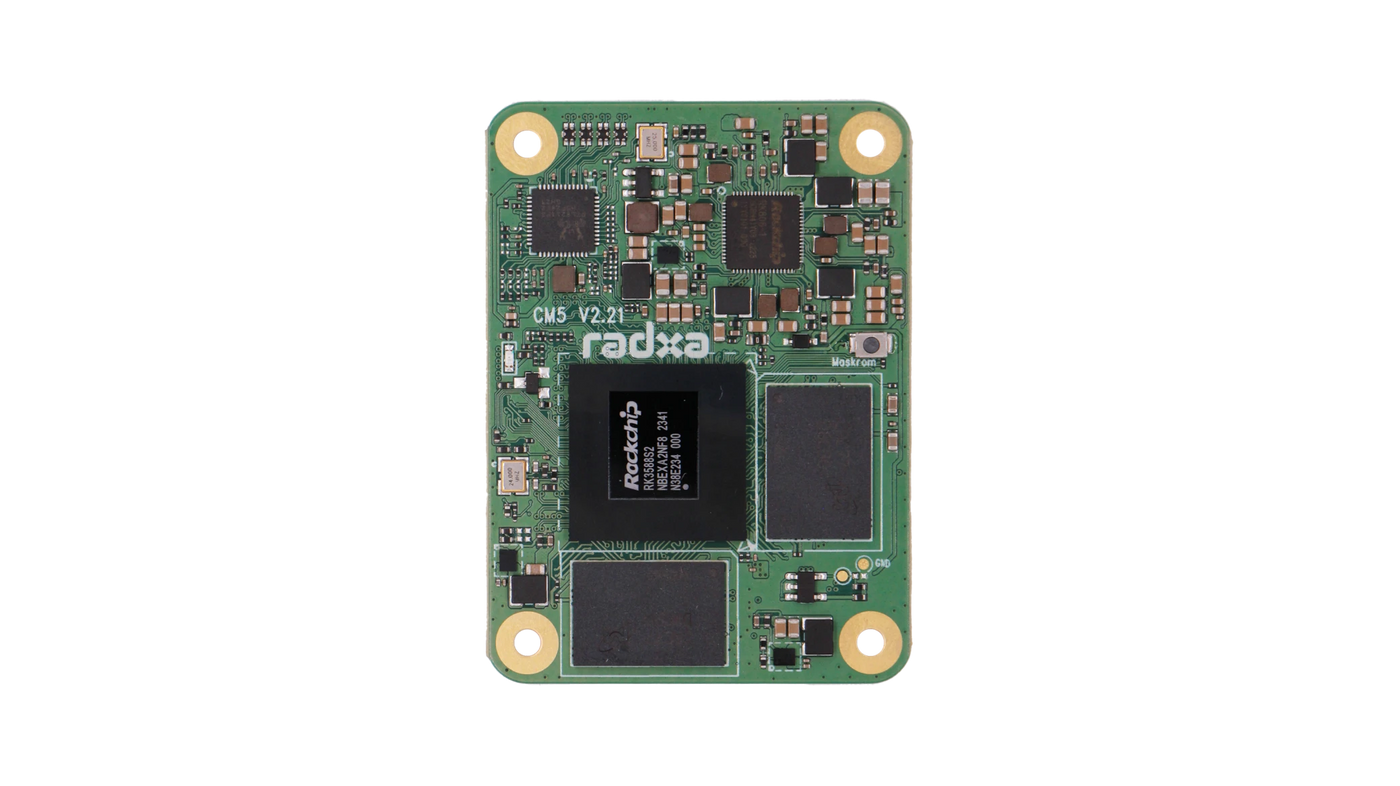

The Radxa CM5 is a high-performance compute module based on the Rockchip RK358x SoC, which integrates the CPU, GPU, NPU, PMU, LPDDR4X memory, and eMMC storage into a compact 56 mm Ć 41 mm form factor. It boasts impressive capabilities not only in terms of computational performance but also in graphics rendering and AI computing. Whether it's high-performance computing or multimedia processing, the Radxa CM5 can handle it smoothly and stably.
Ā
Ā
Experience Outstanding Performance, Explore Endless Possibilities
Ā
Ā
Make AI Easy with Support for Popular Deep Learning Frameworks
TensorFlow, Caffe, Tflite, PyTorch, ONNX NN, Android NN, and More!
Ā
Ā
LPDDR4X RAM: 2GB / 4GB / 8GB / 16GB / 32GB
Onboard eMMC: 8GB / 16GB / 32GB / 64GB / 128GB
Ā
Ā
Simultaneous 8K, 4K, and 2K Support
Ā
Ā
Ā
Ā
Ā
Ā

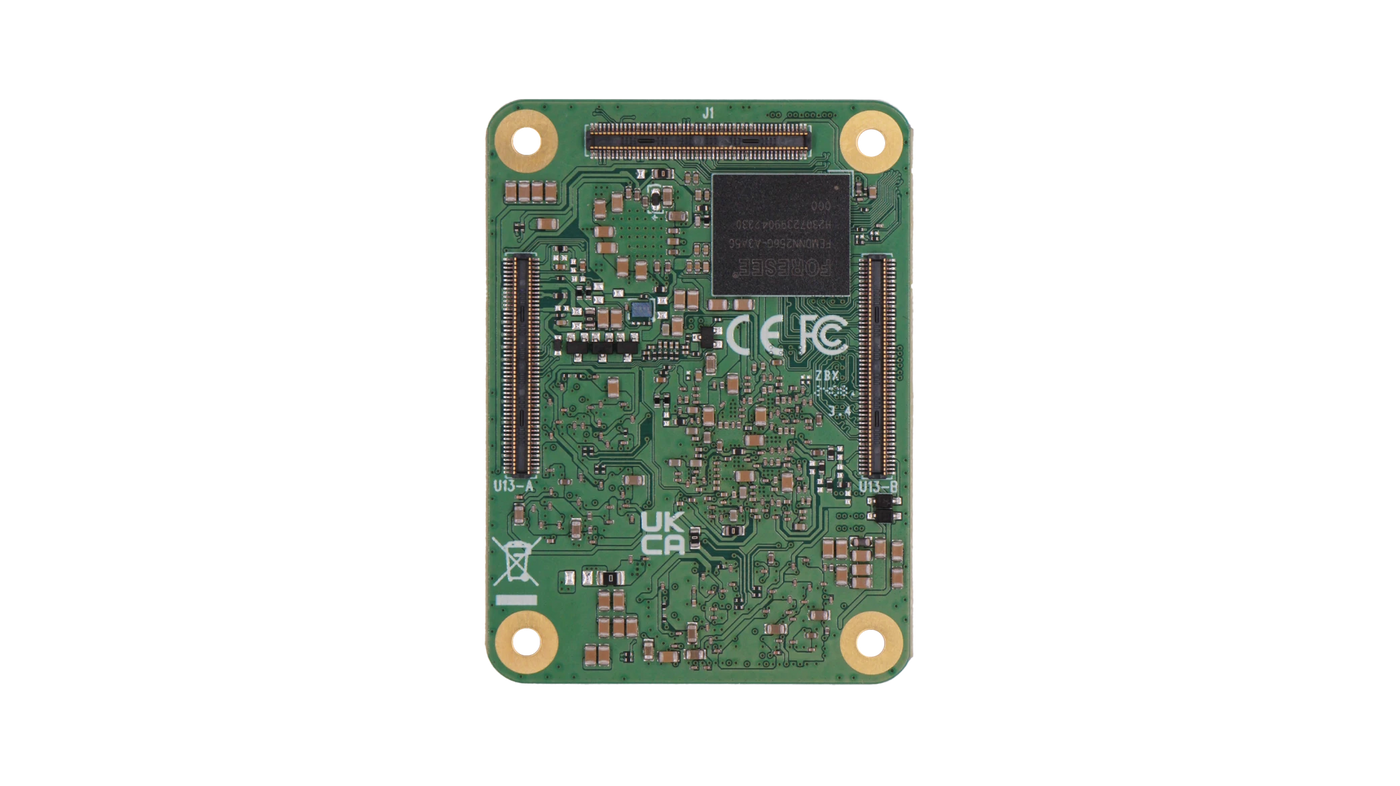

Radxa CM5 utilizes an industrial-grade B2B connector with 3x100 pins,
providing convenient disassembly and installation.
Ā
Ā
Ā
Ā
Accelerate your testing process with the convenience of Radxa CM5 IO board, ensuring swift and efficient functional verification.
Ā
Ā
Ā
Ā
Ā
Ā
Ā
Ā
| Item | Radxa CM5 | Radxa CM5 Lite |
|---|---|---|
| SoC | Rockchip RK3588S2 | Rockchip RK3582 |
| CPU | Arm Quad CortexĀ®āA76 and Quad CortexĀ®āA55 | Arm Dual CortexĀ®āA76 and Quad CortexĀ®āA55 |
| GPU | Arm Maliā¢ G610MP4 - OpenGLĀ® ES1.1, ES2.0, ES3.2 - OpenCLĀ® 1.1, 1.2, 2.2 - VulkanĀ® 1.1, 1.2 - 2D image acceleration module |
No GPU |
| NPU | Supports INT4 / INT8 / INT16 / FP16 / BF16 / TF32, up to 6 TOPs | Supports INT4 / INT8 / INT16 / FP16 / BF16 / TF32, up to 5 TOPs |
| Multimedia | H.265 & VP9 decode 8K@60fps H.264 decode 8K@30fps AV1 decode 4K@60fps H.264 & H.265 encode 4K@120fps |
H.265 & VP9 decode 8K@60fps H.264 decode 8K@30fps AV1 decode 4K@60fps H.264 & H.265 encode 4K@60fps |
| RAM | LPDDR4x Up to 32GB | |
| Storage | Onboard eMMC Up to 128GB Supports SDMMC interface for data storage and OS boot |
|
| Ethernet | 1x Onboard Gigabit Ethernet PHY | |
| Video Output | 1x HDMI TX up to 8K@60Hz 1x eDP TX up to 4K@60Hz 1x DP TX (USB3 combo) up to 8K@30Hz 1x 2-lane MIPI D/C PHY TX 1x 4-lane MIPI D/C PHY TX |
|
| Video Input | 1x 2-lane MIPI DPHY CSI RX 1x 4-lane MIPI D/C PHY RX |
|
| USB | 2x USB 2.0 HOST Ports 1x USB 3.0 HOST Port 1x USB 3.0 OTG / HOST Port |
|
| PCIe | 2x PCIe2.0 (1-lane) - One shared with USB3 and SATA - One shared with SATA |
|
| SATA | 2x SATA ports - One shared with USB3 & PCIe2.0 - One shared with PCIe2.0 |
|
| Connectivity | Up to 2x I2S, 2x PDM, 2x SPDIF TX Up to 10x UART Up to 5x SPI Up to 3x CAN Up to 7x I2C Up to 15x PWM |
|
| Connector | 3 x 100 pins B2B connectors | |
| Operating Conditions | 0 ļ½ 50Ā°C recommended | |
| Software | Debian / Android | Debian |
| Dimension | 56 mm Ć 41 mm | |
Documentation
| Overview | Download |
| Getting Started | Download |
| Radxa OS | Download |
| Android | Download |
| Accessories | Download |
| Hardware | Download |
Ā
Product Information
| Product Brief | Download |
| Carrier Board Design Note | Download |
| Schematic V2.21 | Download |
| Components Placement Map (SMD V2.21) | Download |
| Pinout V2.21 | Download |
| Cad Files V2.21 2D | Download |
| Cad Files V2.21 3D | Download |
Ā
Design Resources
| Radxa CM5 IO Board | Download |
Ā
