Radxa Display 8 HD

SKU: RDXA1263

₹ 5,699.99

Out of stock

📦 Min order 1

Enter your email or your WhatsApp number.
Chat with us on WhatsApp We reply quickly! Contact Us
Radxa Display 8 HD₹ 5,699.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Display 8 HD

An All-in-One Touchscreen Module

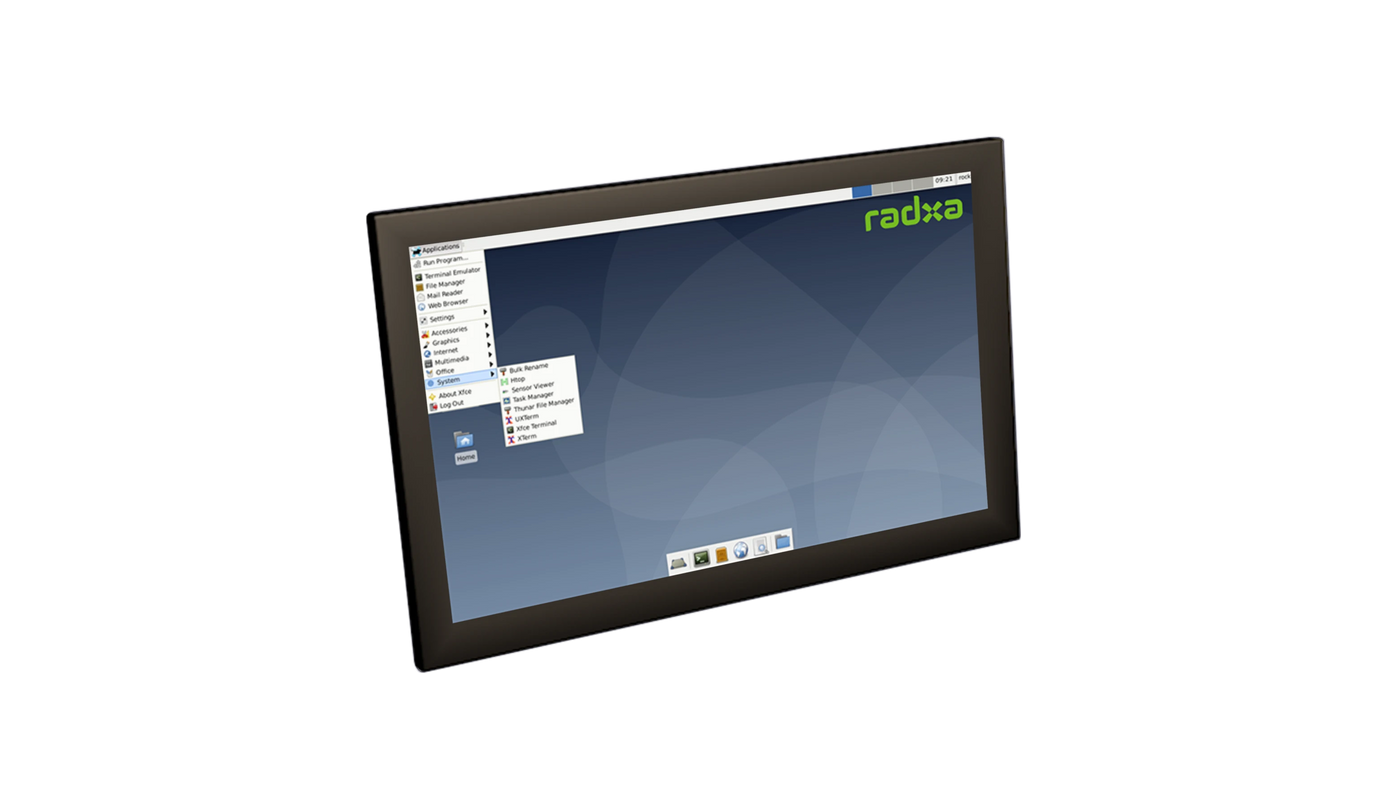

The Radxa Display 8 HD is an 8.0-inch all-in-one touchscreen module designed specifically for Radxa Single Board Computers (SBCs). It integrates display, touch, and rotation detection functionalities through a single MIPI DSI interface, making it ideal for applications like tablets, industrial Human-Machine Interfaces (HMIs), and information dashboards.





8-inch 800*1280 TFT Display

supports 5-point capacitive touch

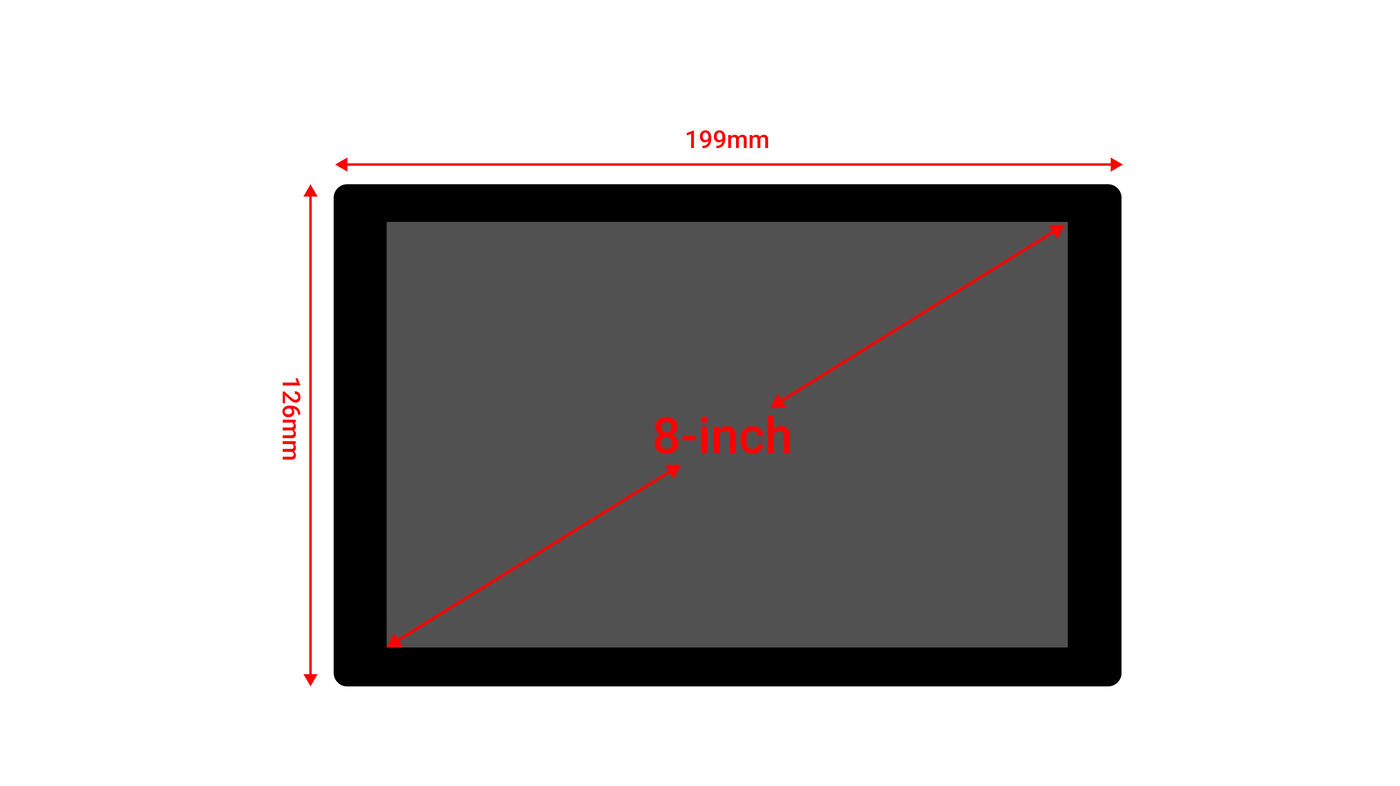

8-inch



800*1280 TFT display





One Cable for Power, Touch,
Rotation Detection and Display



FPC Cable Specification: 39-pin 0.3mm pitch (SBC side) to 40-pin 0.5mm pitch (10 FHD side)
FPC Cable Specification: 15-pin 1.0mm pitch (SBC side) to 40-pin 0.5mm pitch (10 FHD side)
Radxa Display 8 HD requires 2-lane or 4-lane MIPI DSI signal support.





Built-in Gravity Sensor
Supports Automatic Screen Rotation

Android only at the moment, Linux wip (work-in-progress)





Copper Pillars on the Back Compatible with Various SBC Sizes for Secure Mounting

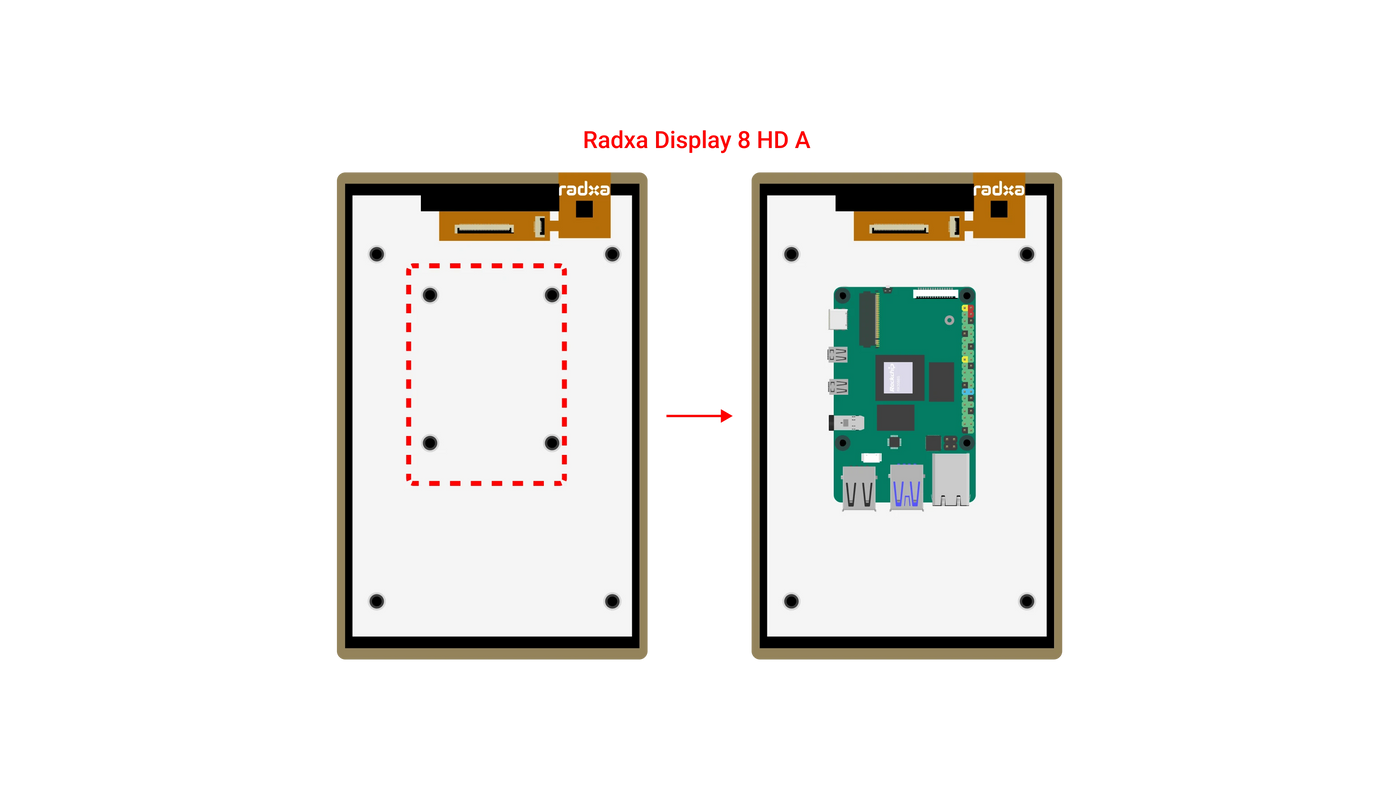

Positions Marked with Red Circles Support the Following SBC: ROCK 5A, ROCK 5C, ROCK 4C+ etc

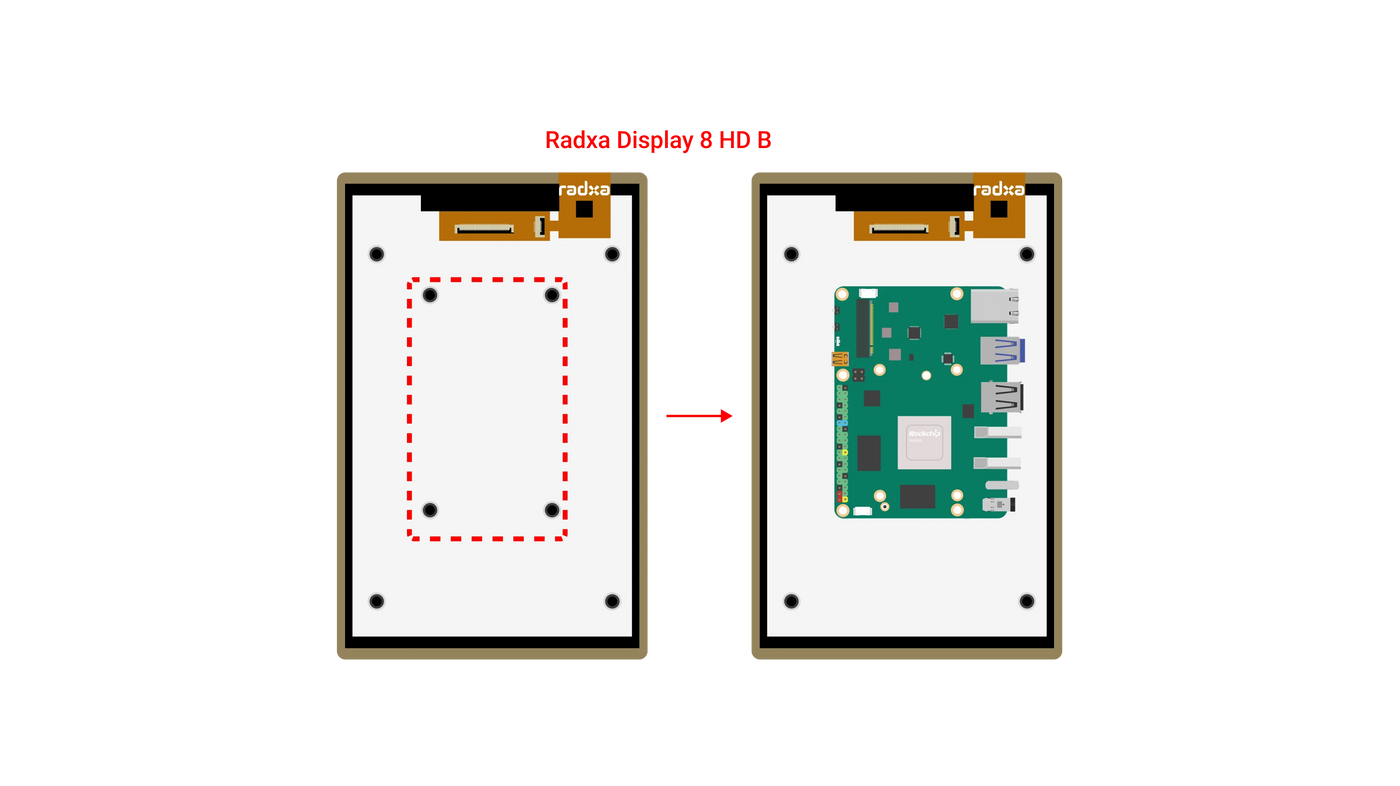

Positions Marked with Red Circles Support the Following SBC: ROCK 5B, ROCK 3B etc





TECH SPECS

Specifications - Radxa Display 8 HD
Panel Size 8.0 inch
Number of Pixels 800(H) × 3(RGB) × 1280(V) Pixels
Active Area 107.64(H) x 172.224(V) mm
Sensor Gravity Sensor for Rotation
Touch 5‑Point Capacitive Touch Panel
Screen Dimension 127.00 x 199.22 x 5.9 mm
Connector 40-Pin 0.5mm Pitch MIPI DSI Connector
Package List 1x Radxa Display 8 HD
1x FPC Cable 15p to 40p
2x FPC Cable 39p to 40p
10x M3 Copper Pillars
10x DuPont Wires
10x M3 × 6 Screws
Operation Temperature -10°C to 60°C





DOWNLOADS

Product Information

Radxa Display 8 HD - Product Brief Download >>
Radxa Display 8 HD- 3D Drawings Download >>



Documentation

Radxa Display 8 HD - Introduction Download >>



What SBCs are compatible with the Radxa Display 8 HD?
It supports a range of Radxa SBCs including ROCK 5A, ROCK 5C, ROCK 4C+ and other models in red circle mounting positions such as ROCK 5B and ROCK 3B.
What cables and connectors are included with the display?
The module uses a single MIPI DSI interface and 2 or 4 lane support. The package includes 1x Radxa Display 8 HD, 1x FPC cable 15p to 40p, 2x FPC cables 39p to 40p, 10x M3 copper pillars, 10x DuPont wires, and 10x M3 x 6 screws.
Does the display support rotation and how is it implemented?
The device has a gravity sensor for rotation detection; automatic screen rotation is available in Android and Linux support is a work in progress.
What are the display and touch specifications?
The module uses an 8.0 inch TFT panel with 800 x 1280 resolution and 5-point capacitive touch. Active area is 107.64 by 172.224 mm.
What are the operating conditions and mounting notes?
Operating temperature is -10 degrees C to 60 degrees C. It is designed for secure mounting on Radxa SBCs using red circle marked positions and supports multiple SBC sizes.
