Radxa Heatsink 5540B - Specialized for Radxa CM5
Radxa Heatsink 5540B - Specialized for Radxa CM5
Radxa Heatsink 5540B - Specialized for Radxa CM5
Need Support? Click Here
Free Delivery Above ā‚¹999

Best seller

Radxa

Radxa Heatsink 5540B - Specialized for Radxa CM5

SKU: RDXA1250

ā‚¹ 899.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Radxa Heatsink 5540B - Specialized for Radxa CM5ā‚¹ 899.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

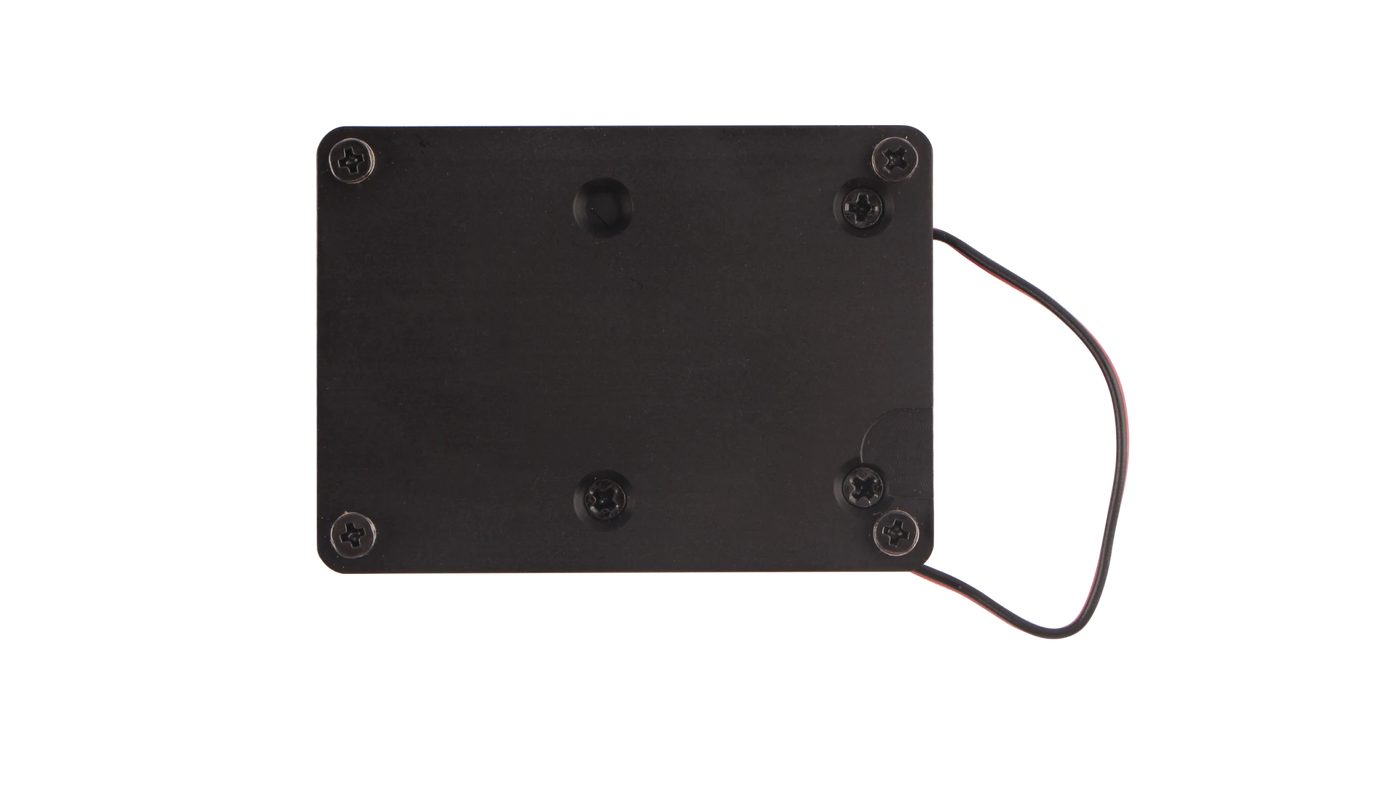

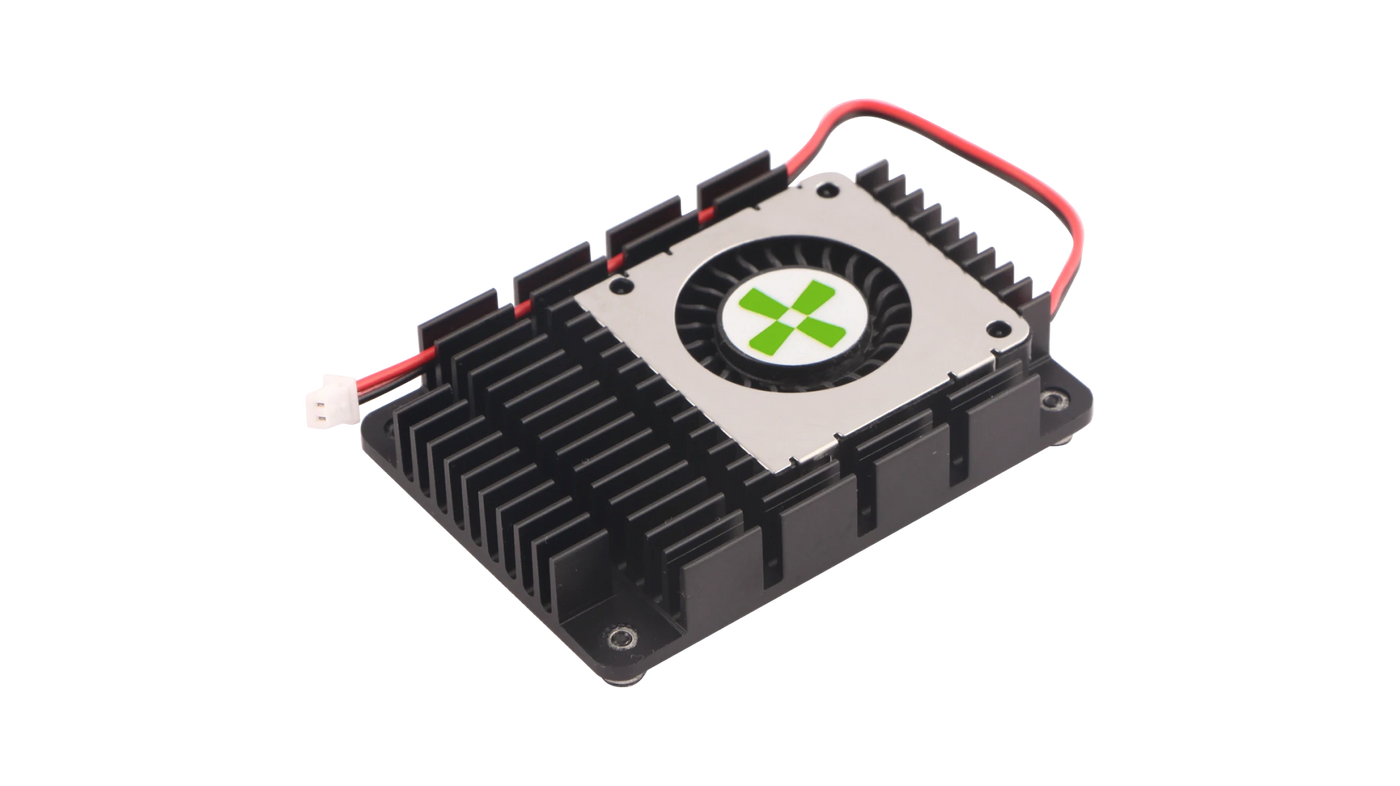

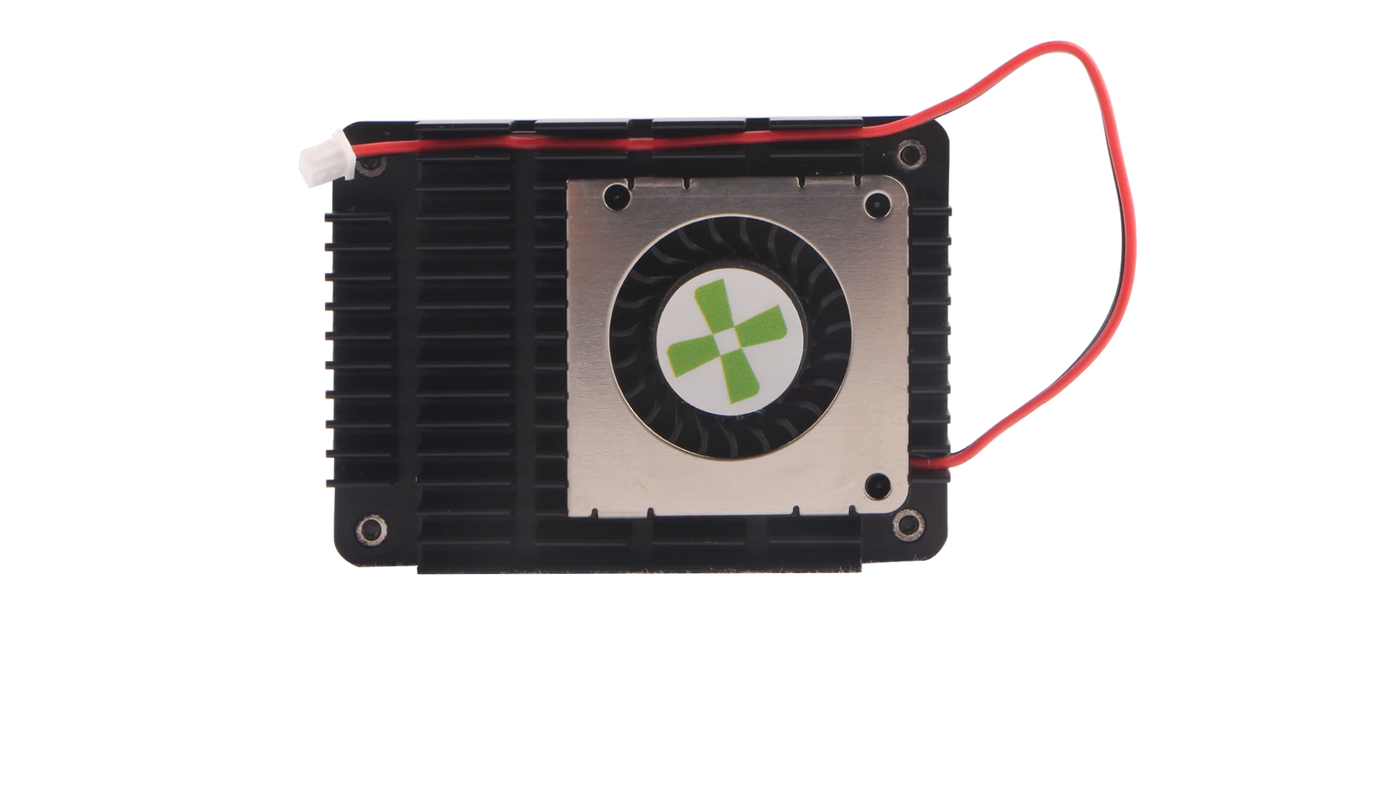

Heatsink 5540B

Specialized for Radxa Compute Module

Ā

Ā

Heatsink Specialized for Radxa CM5

Ā

Ā

Adjustable Speed Fan

SPEEDĀ up to 7000 RPM

Aluminum Heat Sink

Ā

Ā

Tech Specs

Parameter Description
Compatibility Radxa CM3 / CM5
Material Aluminum
Dimension 55 x 40 x 10 mm
Speed 7000rpm Ā± 10%
Connector 2-Pin 1.25mm Pitch Connector
Input Voltage 5V DC
Package List
  • Heatsink 5540B
  • Thermally Conductive Paste
  • CM2x4 Screws

Ā

Ā

Download

3D Drawings Download

Ā

Ā

Heatsink 5540B Works with

> Radxa CM3
A Feature Rich Embedded SoM

> Radxa CM5
A High-Performance Embedded SoM

Which Radxa modules is this heatsink designed for?
Compatible with Radxa CM3 and CM5 modules. The description also notes support for CM3A variants.
What items are included in the packaging?
The package includes the heatsink, thermally conductive paste, and CM2x4 screws.
What are the fan specifications and how is it powered?
The fan can reach up to 7000 rpm with a tolerance of plus minus 10 percent, powered by a 5V DC input via a 2-pin 1.25 mm pitch connector.
What are the dimensions and material of the heatsink?
It is made from aluminum and measures 55 x 40 x 10 mm.
Is technical documentation available and is there information on warranty or returns?
3D drawings are available for download. Warranty and returns information are not provided in the listing.
A
Admin
Welcome to the discussion thread for Radxa Heatsink 5540B - Specialized for Radxa CM5
Feel free to ask questions, share tips or report issues.

Discover More In:

Radxa | Official Page ā†’

Category: View all Heatsink

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Heatsink 5540B

Specialized for Radxa Compute Module

Ā

Ā

Heatsink Specialized for Radxa CM5

Ā

Ā

Adjustable Speed Fan

SPEEDĀ up to 7000 RPM

Aluminum Heat Sink

Ā

Ā

Tech Specs

Parameter Description
Compatibility Radxa CM3 / CM5
Material Aluminum
Dimension 55 x 40 x 10 mm
Speed 7000rpm Ā± 10%
Connector 2-Pin 1.25mm Pitch Connector
Input Voltage 5V DC
Package List
  • Heatsink 5540B
  • Thermally Conductive Paste
  • CM2x4 Screws

Ā

Ā

Download

3D Drawings Download

Ā

Ā

Heatsink 5540B Works with

> Radxa CM3
A Feature Rich Embedded SoM

> Radxa CM5
A High-Performance Embedded SoM

FAQ
Which Radxa modules is this heatsink designed for?
Compatible with Radxa CM3 and CM5 modules. The description also notes support for CM3A variants.
What items are included in the packaging?
The package includes the heatsink, thermally conductive paste, and CM2x4 screws.
What are the fan specifications and how is it powered?
The fan can reach up to 7000 rpm with a tolerance of plus minus 10 percent, powered by a 5V DC input via a 2-pin 1.25 mm pitch connector.
What are the dimensions and material of the heatsink?
It is made from aluminum and measures 55 x 40 x 10 mm.
Is technical documentation available and is there information on warranty or returns?
3D drawings are available for download. Warranty and returns information are not provided in the listing.
