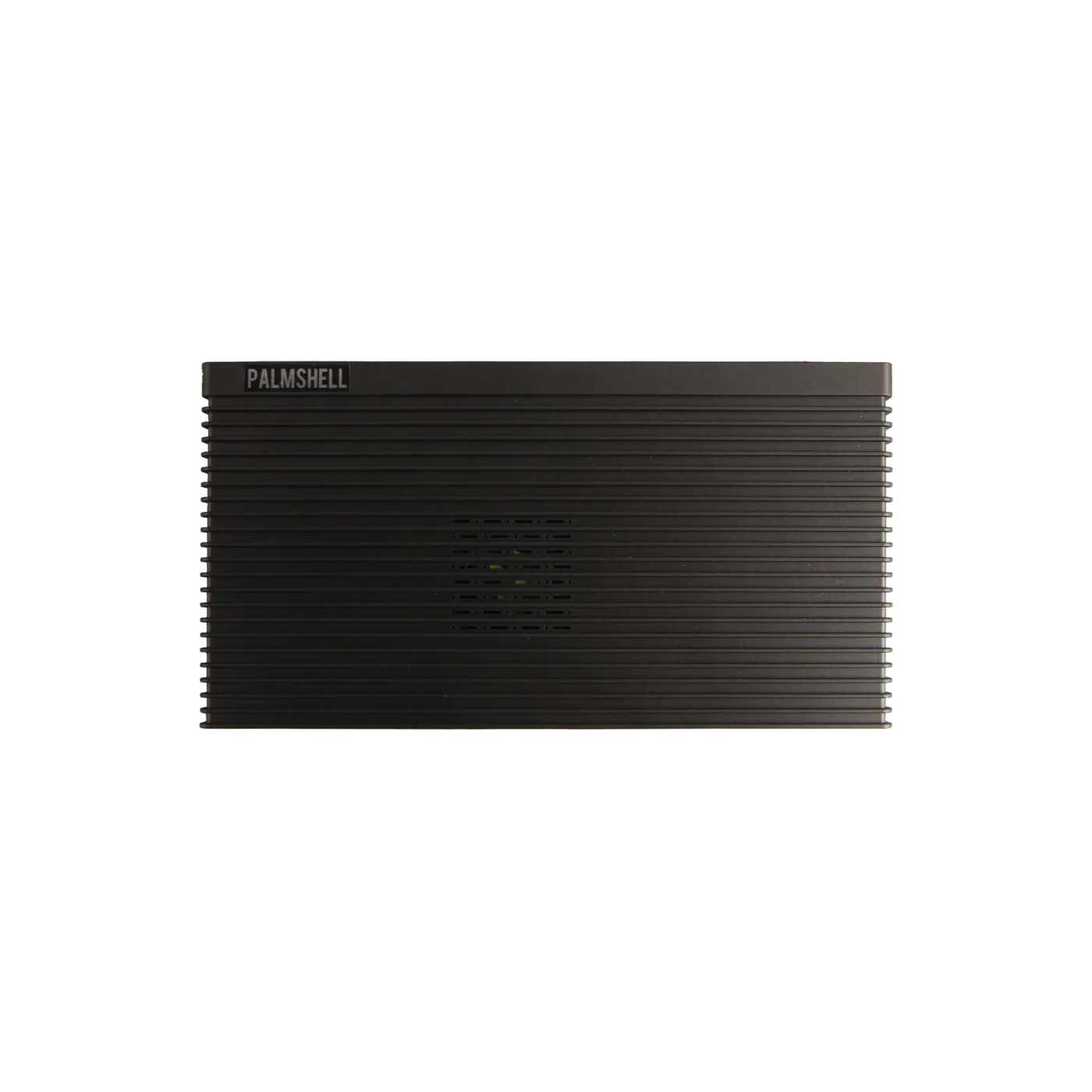

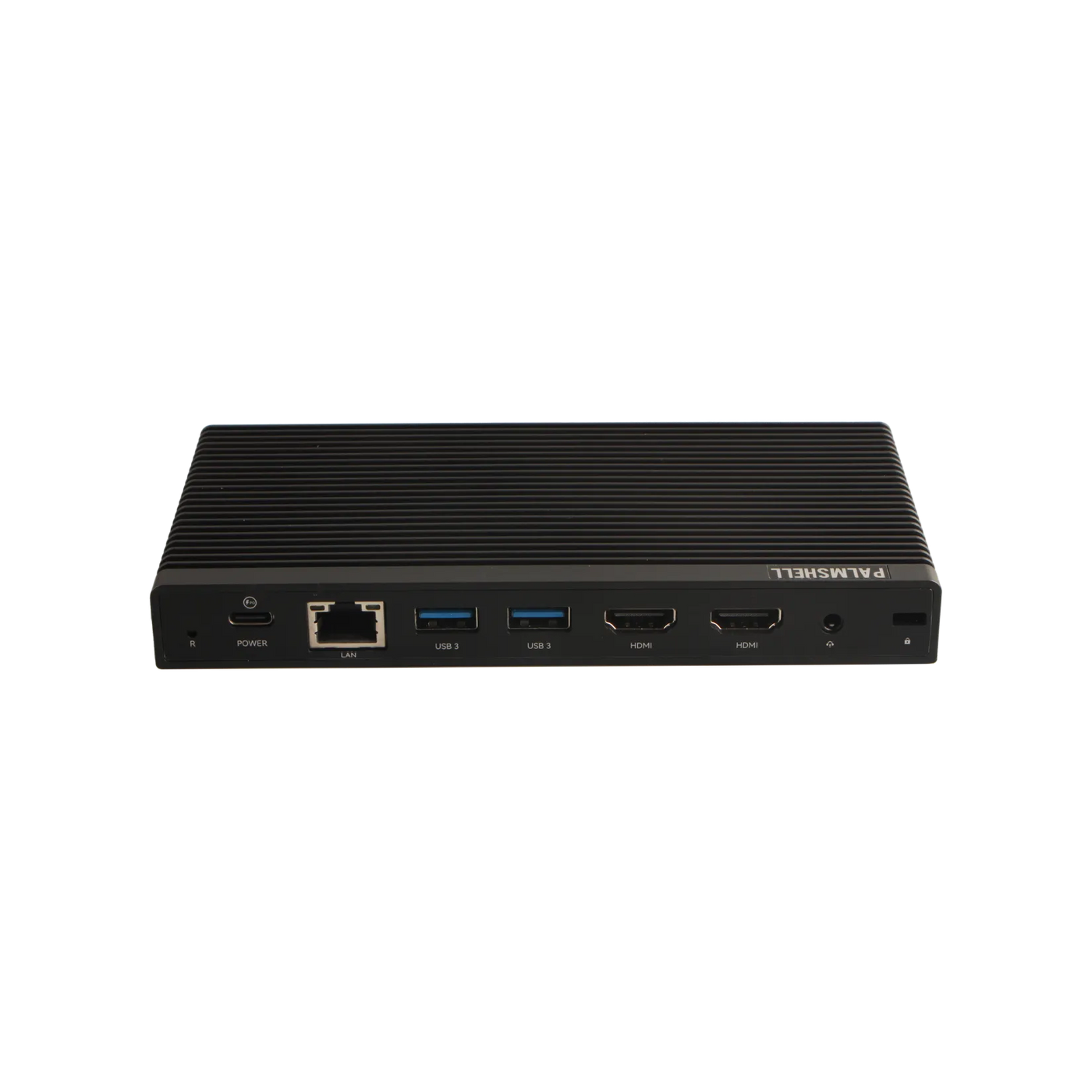

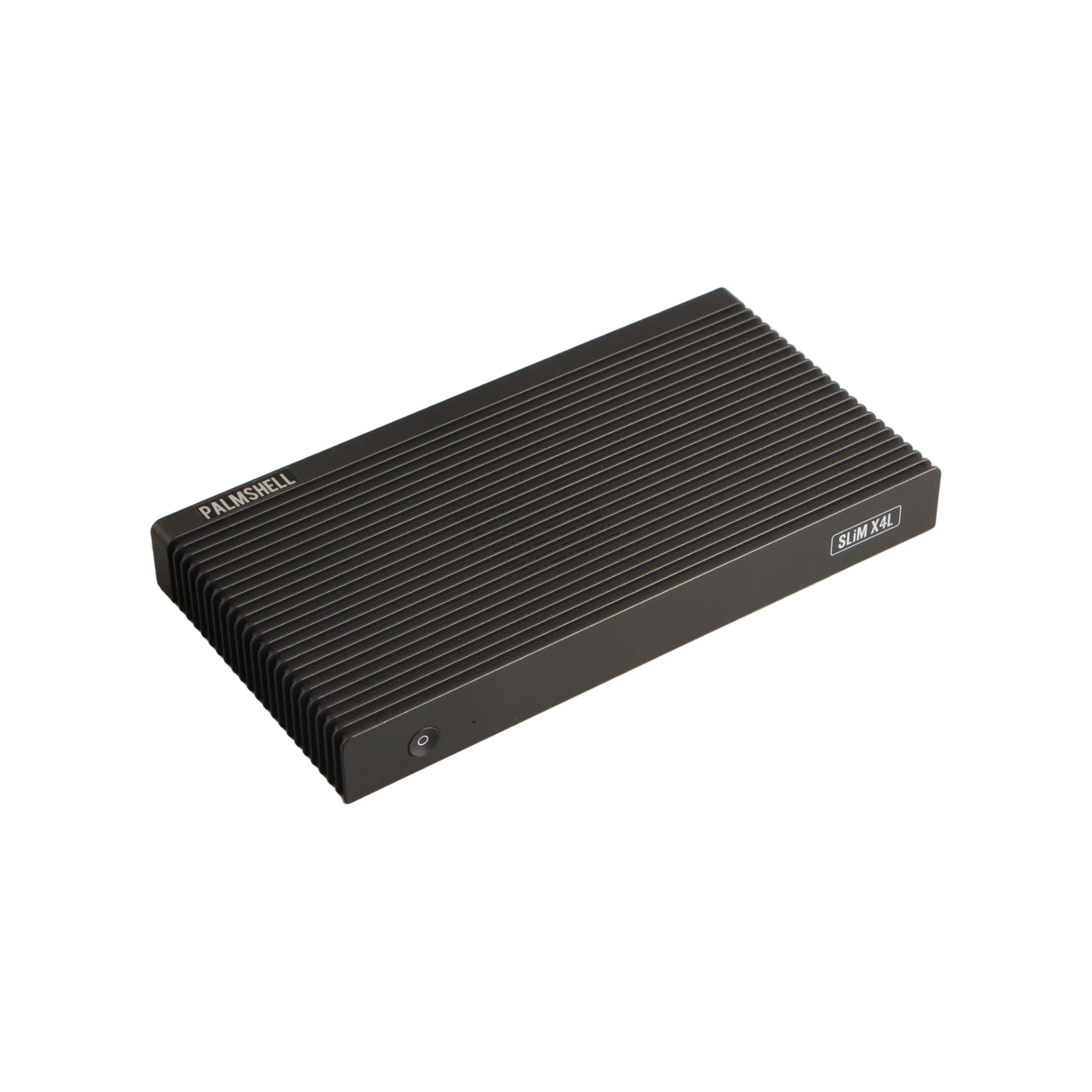

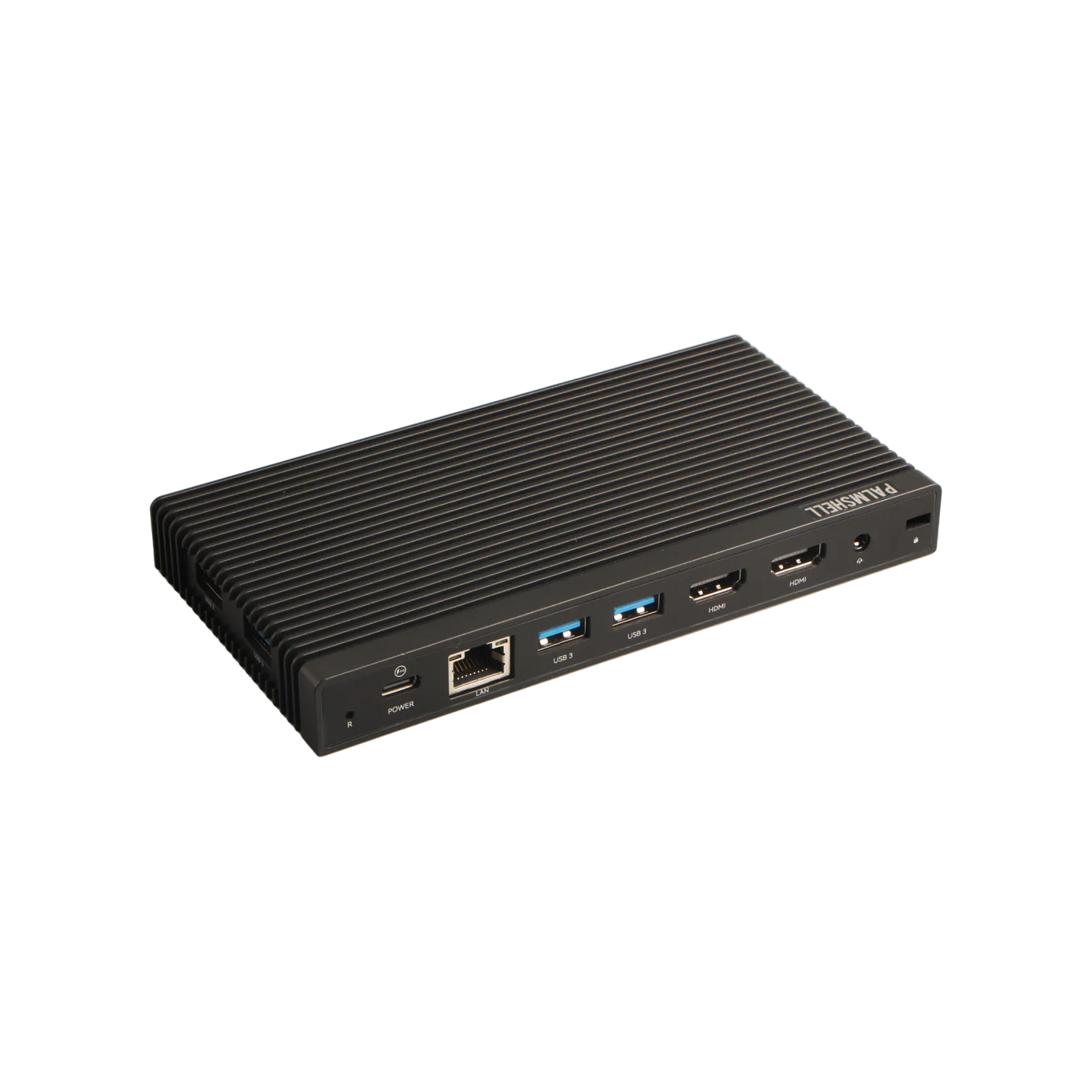

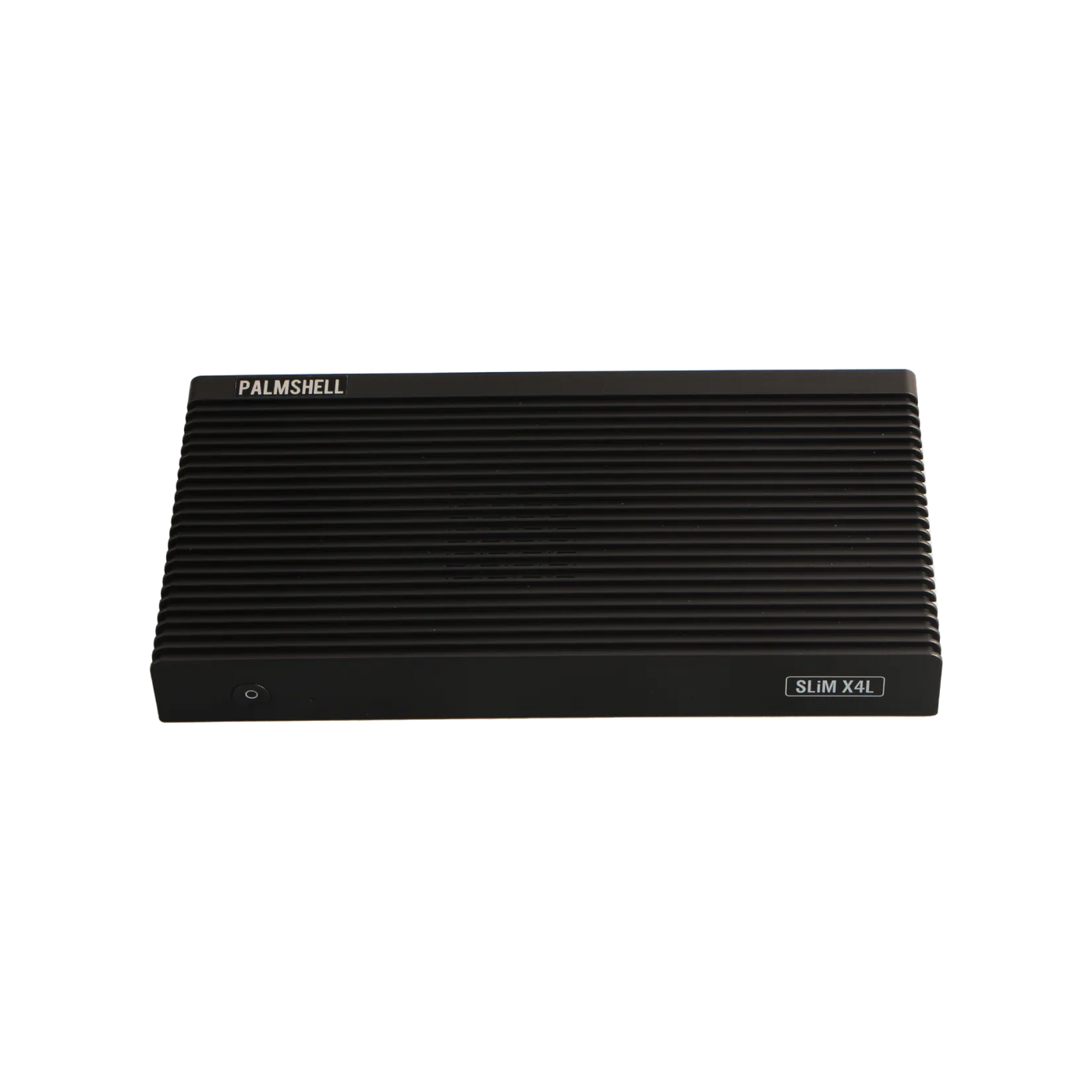

Palmshell SLiM X4L
A Feature-Packed, Stylishly Pocket PC
Palmshell SLiM X4L is a pocket-sized mini-PC, featuring a quad-core Intel CPU, dual 4K HDMI outputs, and a 2.5 Gigabit Ethernet port. It's perfect for presentations, speeches, office work, and travel.
Put Productivity Tools in Your Pocket
Feature-Rich Functionality, Compact Design
| CPU |
Intel® Processor N100 4 Cores / 4 Threads Max Turbo Frequency: 3.40 GHz Intel’s mobile PC processor helps users collaborate, create, learn, and play like never before. It powers thin and light PCs with the security and connectivity for a modern lifestyle. |
| Graphics |
Intel® UHD Graphics Burst Frequency: 750 MHz Execution Units: 24 DirectX Support: 12.1 OpenGL Support: 4.6 OpenCL Support: 3.0 |
| Memory |
Up to 32 GB RAM Memory Type: LPDDR5 @ 4800 MT/s With up to 32GB of LPDDR5@4800MT/s RAM, experience blazing-fast responsiveness and seamless multitasking for an unparalleled computing experience. |
| Storage |
M.2 M Key for NVMe SSD Supercharge your storage with M.2 M Key support for NVMe SSD. Enjoy lightning-fast data transfer and enhanced performance. |
| Ethernet |
2.5 Gigabit RJ45 Port Experience blazing-fast 2.5 Gigabit Ethernet for seamless streaming, quick downloads, and lag-free gaming. |
| Wi-Fi / Bluetooth |
Built-in Wi-Fi 6 / BT 5.2 Module Supports IEEE 802.11a/b/g/n/ac/ax and Bluetooth 5.2 |
Software
Supports Multiple OS
Supports almost all operating systems compatible with the X86 architecture.
Equipped with an intelligent temperature-controlled variable speed fan, coupled with a unique heat dissipation airflow design, our system ensures optimal performance while maintaining a low noise level, even under heavy workloads
Applications
Compact and portable, supports dual-screen output and Wi-Fi 6, take your pocket PC with you anytime, anywhere.
So small, but great at cooling
Equipped with a 7000RPM PWM speed-controlled fan, balancing cooling and quiet operation.
Small and Handy
Intel® Processor N100
4 Cores | 4 Threads | Base Freq: 2.0GHz | Burst Freq: 3.4GHz
Perfect for office tasks.
Quad-core, Fearless Multitasking
TDP: 6W | Cache: 6 MB
Efficient office power powered by Intel® UHD Graphics
Boosting Productivity
Up to 32GB LPDDR5@4800MT/s
Experience Smooth and Fast Networking with 2.5 Gigabit Ethernet
Supports Higher Quality
Wireless Networks
Optional VESA Mount Support
M.2 M Key for NVMe SSD
Supercharge your storage with M.2 M Key support for NVMe SSD. Enjoy lightning-fast
data transfer and enhanced performance.
Applications
Office
Fits Right in Your Pocket
Easy to Take Anywhere
Supports Multiple OS
Specification
| Model | 8 + 256 | 16 + 512 | 32 + 1024 |
|---|---|---|---|
| CPU | Intel N100, Quad-Core up to 3.4GHz | ||
| Memory (LPDDR5 @ 4800 MT/s) |
8GB | 16GB | 32GB |
| Ethernet | 1 x 2.5 Gigabit RJ45 port | ||
| Wireless | AW-XB547NF (Wi-Fi 6 / BT 5.2) with 2x antennas | ||
| Display | 2x HDMI 2.0 up to dual 4Kp60 support | ||
| USB | 3x USB 3 + 1x USB 2 | ||
| Storage | 256GB NVMe SSD | 512GB NVMe SSD | 1024GB NVMe SSD |
| Audio | 1x 3.5mm jack, support audio input/output | ||
| Power Supply | Not included, 12V/3A direct or USB PD (Power Delivery) capable power adapter with USB C connector required | ||
| Others | 1x Power Button 1x R (Recovery) Button 1x Status LED 1x Kensington Lock |
||
| Enclosure | Yes | ||
| Mount | Optional VESA mount brackets | ||
Download
Drivers & Tools
| Name | Version | Description |
|---|---|---|
| N100_DRV_Chipset_Intel_TP_W11_64.zip | 10.1.19222.8341 | Chipset Driver for Intel N100 |
| intel_gfx_win_31_0_101_4577.zip | 31.0.101.4577 | Graphic Driver for Intel N100 |
| ME_heci.inf_amd64_6467379f0b0f181f.zip | 2229.3.2.0 | Intel® Management Engine Drivers |
| SIO_ialpss2_gpio2_adl_n.inf_amd64_cacc621ea12c00b5.zip | 30.100.2229.4 | INTEL GPIO Drivers |
| SIO_ialpss2_i2c_adl_n.inf_amd64_cea888afe7e27a33.zip | 30.100.2229.4 | INTEL I2C Drivers |
| INTEL_LAN_Release_29.1.2.zip | 1.1.4.43 | INTEL 225/226 Ethernet Drivers |
| RTLAudio_Win10_R282.exe | 6.0.1.8186 | Realtek ALC269 Audio Drivers |
| zadig-2.8.exe | 2.8 | RP2040 Drivers |
| wireless_module_a8.zip | 6001.15.117.0 | Radxa_A8_Wireless_BT_module Drivers |
| AX210_BT-22.200.0-64UWD-Win10-Win11.exe | 22.200.0 | BT Driver for AX210 Wireless module Second source for X4L |
| AX210_WiFi-22.200.2-Driver64-Win10-Win11.exe | 22.200.2 | WIFI Driver for AX210 Wireless module Second source for X4L |
BIOS & Firmware
| Name | Version | Description |
|---|---|---|
| X4L_v009.zip | 20240630 | BIOS for SLiM X4L Usage: unzip the EFI folder to FAT32 USB disk, insert USB disk into X4L and boot from USB devices, automatic flash the BIOS. WARNING: Don't turn off your computer During BIOS upgrade |
User Manual
| User Manual | Download |
