Radxa Penta SATA HAT

SKU: RDXA1273

₹ 7,549.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Radxa Penta SATA HAT₹ 7,549.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Penta SATA HAT

A Complete NAS Solution





Perfectly Supported by
Radxa ROCK Series and Raspberry Pi 5


Raspberry Pi 5 / Radxa ROCK 5C

Radxa ROCK 5A

Radxa ROCK 3C

Radxa ROCK 4A / 4B / 4A+ / 4B+ / 4SE / 3A





The Perfect NAS Server Solution

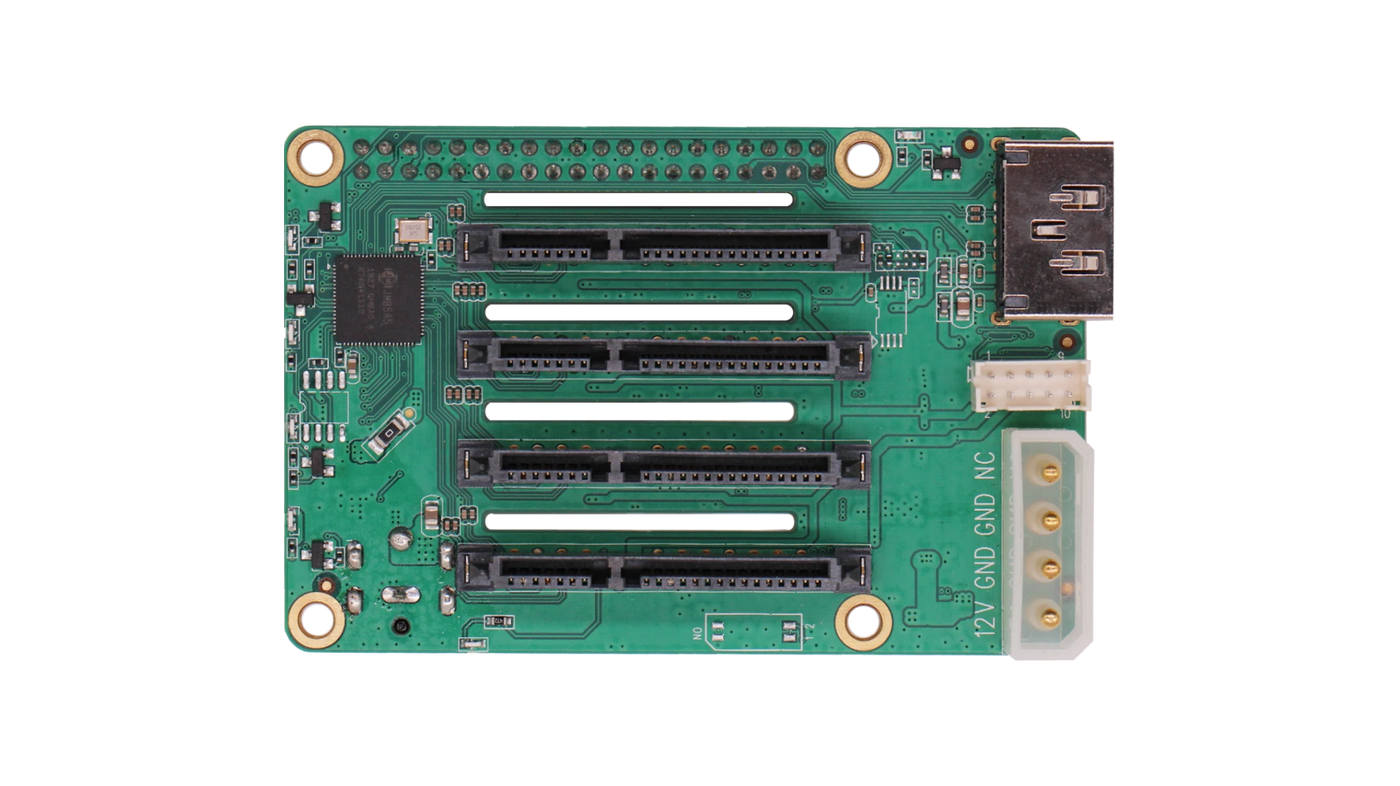

4 SATA + 1 eSATA Interface





Flexible Power Interface Options

12V DC 5525 Power Jack or Molex 4-Pin Peripheral Power Connector

Please note: Once the Radxa Penta SATA HAT is powered, it will supply power to the SBC through the 40Pin connector, so there is no need to power the SBC separately.





Additional Expansion Interfaces

Designed to Support OLED Displays and Fan





RAID 0 / RAID 1 / RAID 5 Software Configuration

Performance and Safety Within Reach





Interfaces





Tech Specs

Category Details
Feature
  • Supports up to 5x HDDs (2.5-inch or 3.5-inch), up to 100TB storage
  • 4x SATA + 1x eSATA with power
  • Utilizes PCIe buses on SBCs
  • Supports external standard ATX power supply for HDD and SBC
  • 12V DC input for powering HDDs and SBCs
  • HDD suspend mode supported
  • Supports software RAID 0 / RAID 1 / RAID 5
  • Optional PWM control fan for HDD heat dissipation
  • Optional OLED display for IP and storage info

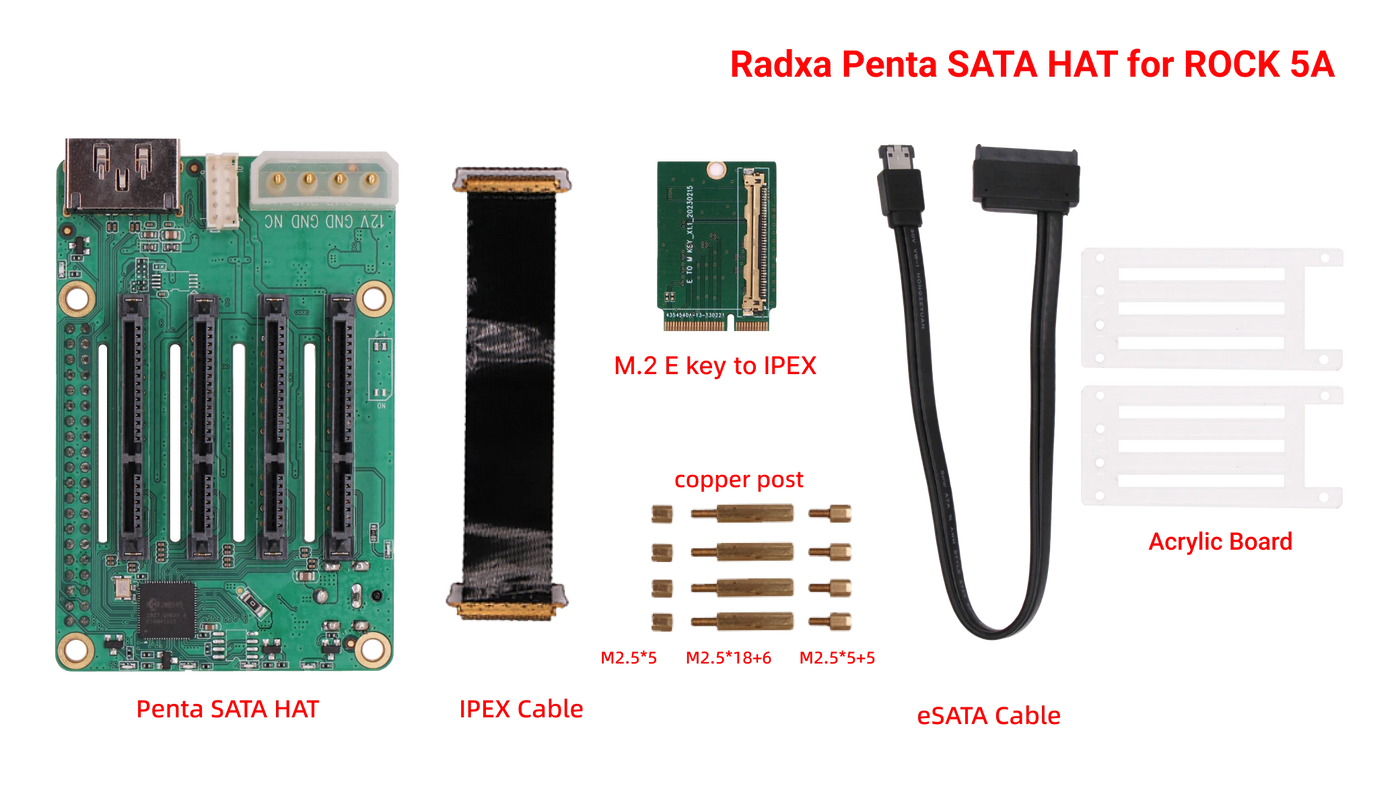

Package List
  • Radxa ROCK Penta SATA HAT
  • eSATA to SATA Cable
  • Screws for fixing
  • Adapter Board and FPC Cable
  • Acrylic Plate





Download

Official Images

Introduction Download
Using with ROCK 5A Download



Product Compliance

Product Brief Download
V1.2 2D Drawings Download
V1.15 2D Drawings Download
3D Drawings Download



Which platforms is the Penta SATA HAT compatible with?
It supports Raspberry Pi 5 and Radxa ROCK series including 5C, 5A, 3C, 4A, 4B, 4A plus, 4B plus, 4SE and 3A.
How many drives can be connected and what interfaces are available?
Supports up to 5 drives: 4 SATA ports and 1 eSATA with power, for 2.5 inch or 3.5 inch drives.
Do I need to power the SBC separately when using this hat?
No. Once powered, it will supply power to the SBC through the 40Pin connector.
What RAID configurations are supported?
Software RAID 0, RAID 1, and RAID 5 are supported.
What power options are available for HDDs and the SBC?
An external standard ATX power supply is supported for HDD and SBC, and there are 12V DC input options including a 12V DC 5525 power jack or a Molex 4 pin peripheral power connector.
