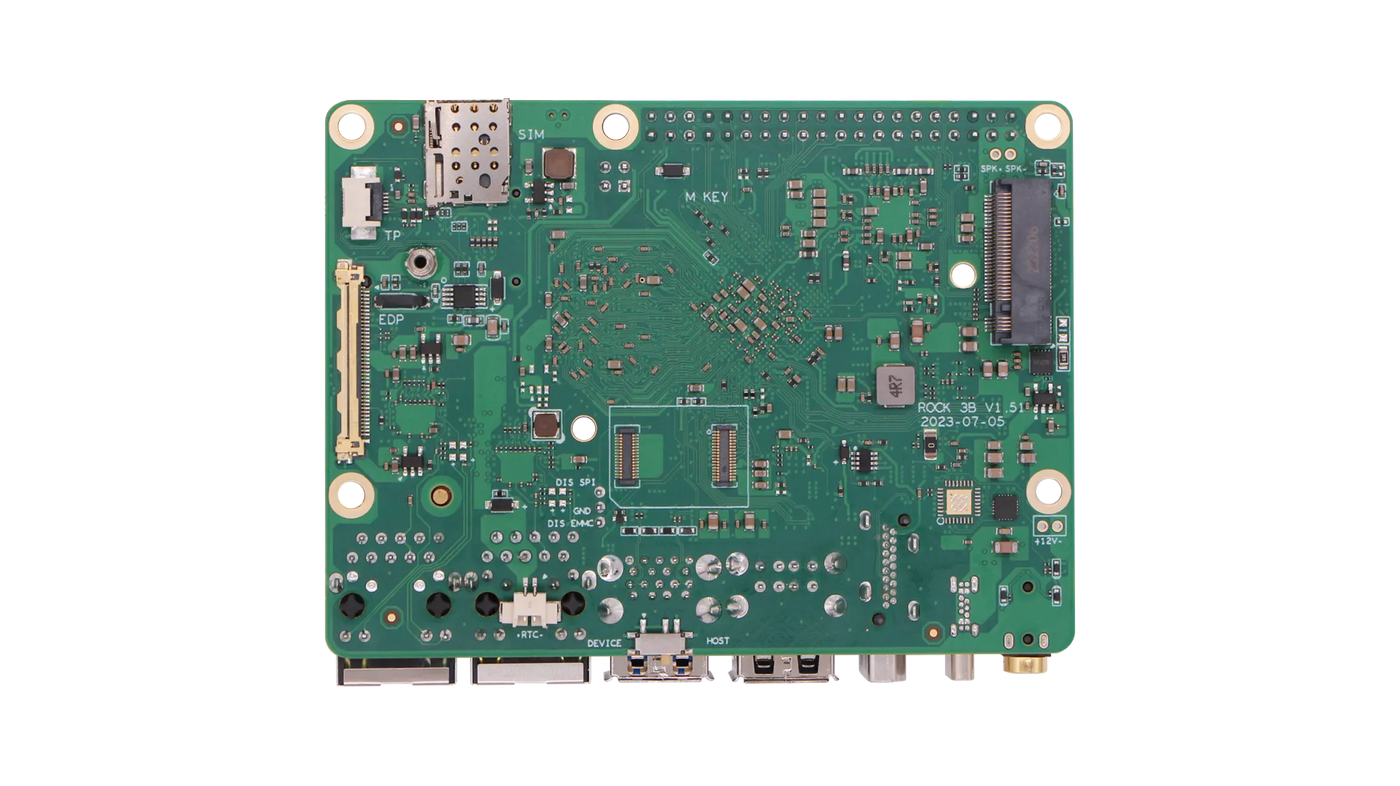

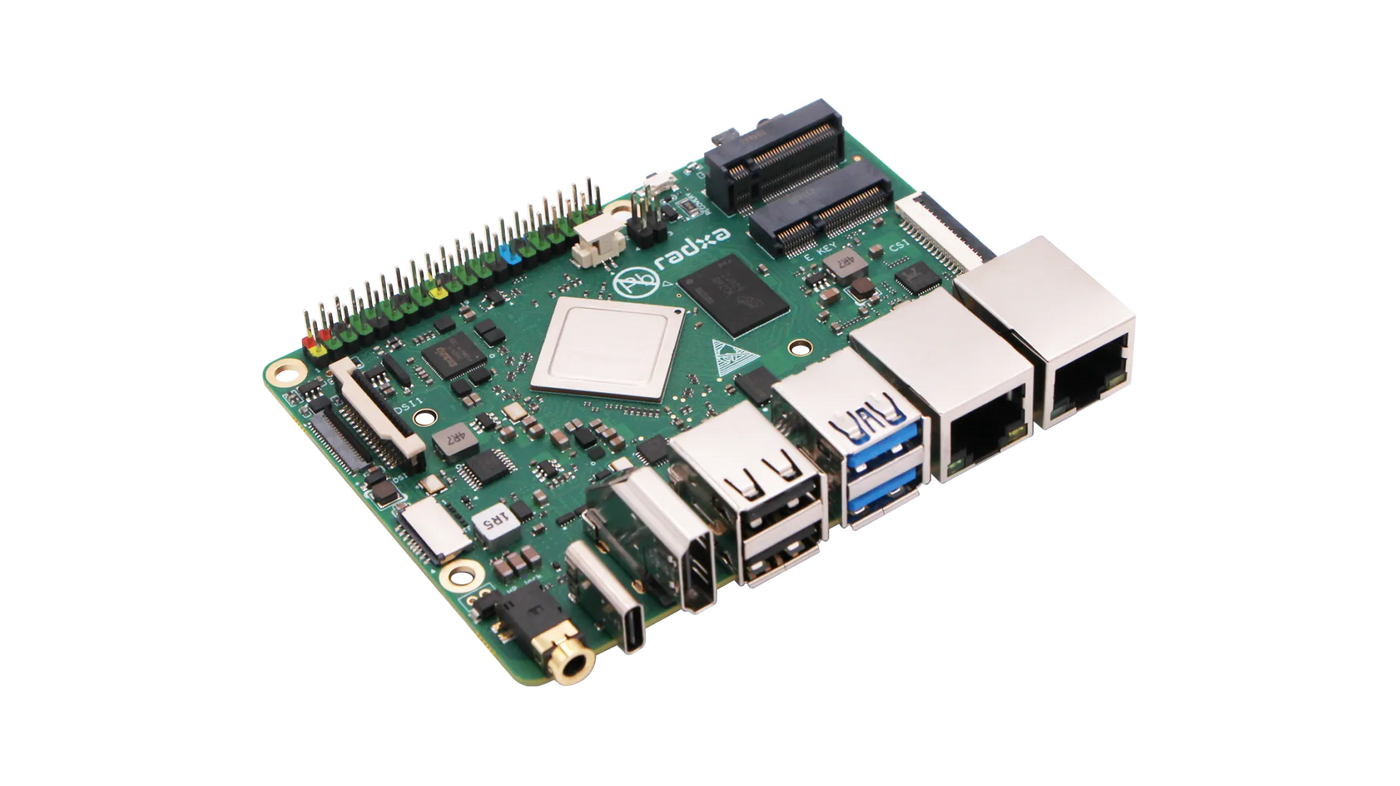

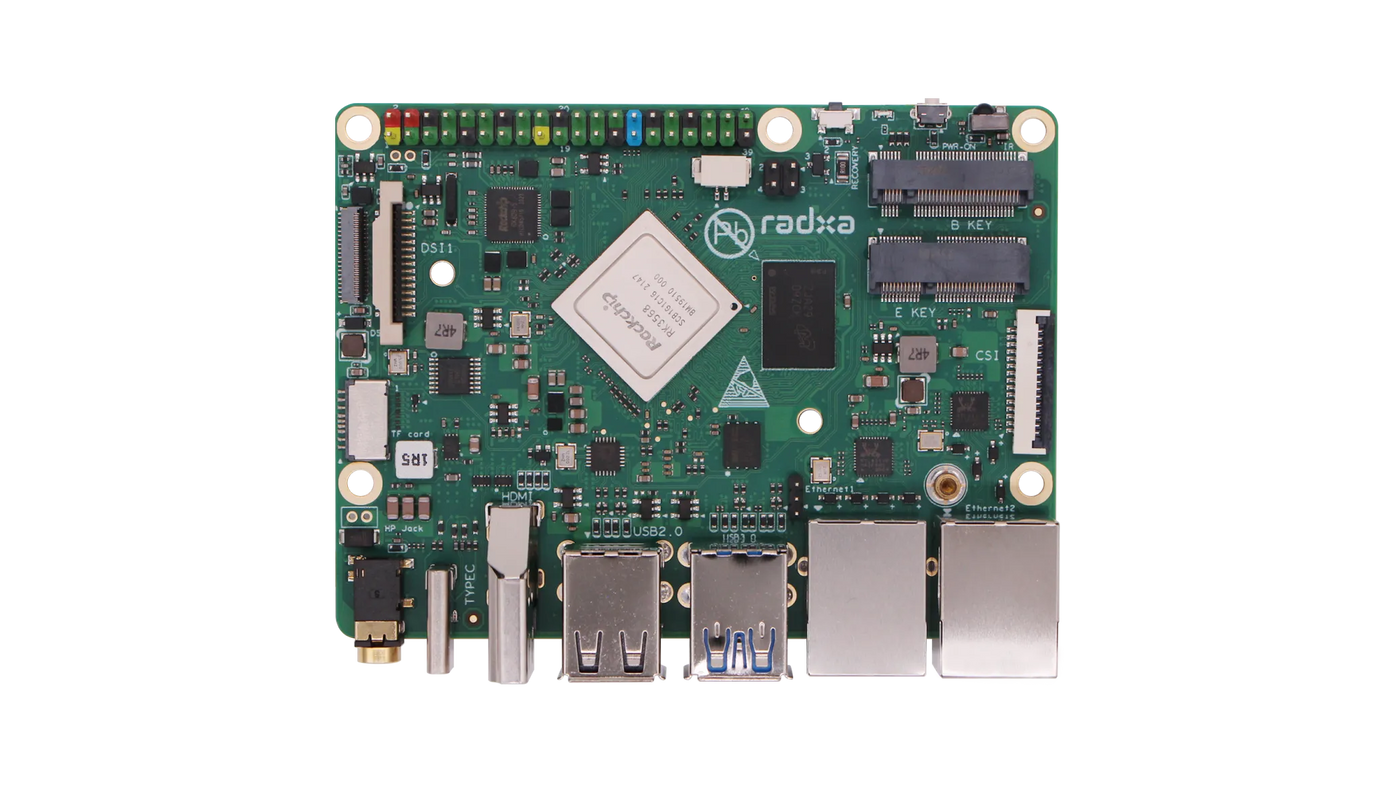

A Pico-ITX form factor SBC with Multifunctional Interface
Consumer-Grade comes with RK3568 SoC
Industrial-Grade comes with RK3568J SoC
Rockchip RK3568(J) With 22nm Lithography Process,
It Features High Performance and Low Power Consumption with Lightweight AI NPU
The Mali™-G52 utilizes a wider execution engine, offering up to 8 threads compared to its predecessor's 4
threads. It provides higher graphics performance on the same chip area, resulting in a 15% improvement in
energy efficiency, reducing device power consumption and heat generation, while also supporting longer gaming time.
The RK3568(J), integrated with a specialized NPU, catalyzes innovations with its remarkable computing capabilities, delivering
Enjoy the 4G mobile network experience
Experience High-Speed, Low-Latency Wired and Wireless Connections
Triple Display Support three of them:
1x LVDS / MIPI DSI, 1x MIPI DSI, 1x eDP, 1x HDMI
Multiple Storage and Booting OS Solution:
eMMC Connector, MicroSD Card Slot, M.2 M Key 2280 NVMe SSD
Camera
1x MIPI CSI
01- Stringent Testing, Pursuing Excellence in Quality
A standardized manufacturing process, from component procurement and surface mounting to final production, undergoes multiple rigorous tests to ensure strict quality control.
 Advanced Manufacturing |
 Quality Assurance |
 Premium Materials |
02- Million-Level Shipment Quality Assurance and Supply Chain Optimization
With annual shipments of Radxa-related products in the millions, our supply chain has been optimized for large-scale production with quality assurance. By choosing Radxa's design services, customers can enjoy cost-effective and reliable quality guarantees.
 Steady Supply |
 Automated Production |
 Timely Logistics |
| Radxa ROCK 3B Specifications | |
|---|---|
| SoC | Rockchip RK3568(J) |
| CPU | Quad‑core Arm® Cortex™‑A55 (Armv8) 64‑bit @ 2.0GHz |
| GPU | Arm® Mali™ G52 - OpenGL® ES 1.1/2.0/3.2 - OpenCL™ 2.0 - Vulkan® 1.1 |
| NPU | 1TOPs @ INT8/INT16/FP16/BFP16 MAC hybrid operation Supports TensorFlow, TF-lite, Pytorch, Caffe, ONNX, MXNet, Keras, Darknet |
| Multimedia | - H.264 / H.265 / VP9 decoder up to 4K@60fps - H.264 / H.265 encoder up to 1080@60fps |
| RAM | 2 / 4 / 8GB 32-bit LPDDR4 |
| Storage | - 1x eMMC connector - 1x Micro SD(TF) card slot - 1x M.2 M Key (PCIe 3.0 x2) for NVMe SSD - 1x SPI Flash for Bootloader |
| Display | - 1x HDMI 2.0 (up to 4Kp60) - 1x 2-lane MIPI DSI - 1x 4-lane MIPI DSI - 1x eDP port with touch panel support |
| Camera | 1x 2-lane MIPI CSI |
| Ethernet | 2x Gigabit Ethernet (1x with PoE support via HAT) |
| Wireless | - 1x M.2 E Key with SDIO, UART, USB (supports WiFi 6 / BT modules) - Compatible with standard M.2 Wireless modules (SDIO type) |
| Mobile Network | - 1x M.2 B Key (PCIe, SATA, USB) - 1x SIM Card slot for 4G cellular access - Supports M.2 3042 B Key modules |
| USB | - 1x USB 3.0 HOST - 1x USB 3.0 OTG - 2x USB 2.0 HOST |
| Audio | 1x 4‑ring 3.5mm Headphone Jack |
| Connectivity | 40-pin GPIO Header: - 5x UART - 1x SPI - 2x I2C - 1x PCM/I2S - 1x CAN - 6x PWM - 1x ADC - 6x GPIO - 1x USB 2.0 - 2x 5V DC power in - 2x 3.3V power pins |
| Software | Debian Linux, Android 11 support |
| Power Requirements | - USB PD 2.0: 9V/2A, 12V/2A, 15V/2A, 20V/2A via USB Type-C - Qualcomm® QC 2.0/3.0: 9V/2A, 12V/1.5A - Fixed voltage input: 6V to 24V via USB-C - 5V via GPIO Pin 2 & 4 |
| Operating Conditions | - Recommended temperature: 0 ~ 50°C - Throttles above 80°C; cooling advised for full performance |
| Dimensions | 100 mm x 75 mm |
| Certifications | FCC / CE |
Documentation
| Getting Started | Download |
Product Information
| Product Brief | Download |
| Schematic V1.51 | Download |
| Components Placement Map (SMD V1.51) | Download |
| 2D Drawings | Download |
Official Images
| Debian OS | Download |
Product Compliance
| CE | Download |
| FCC | Download |
| KC | Download |
