8K Quality in the Palm of Your Hand!

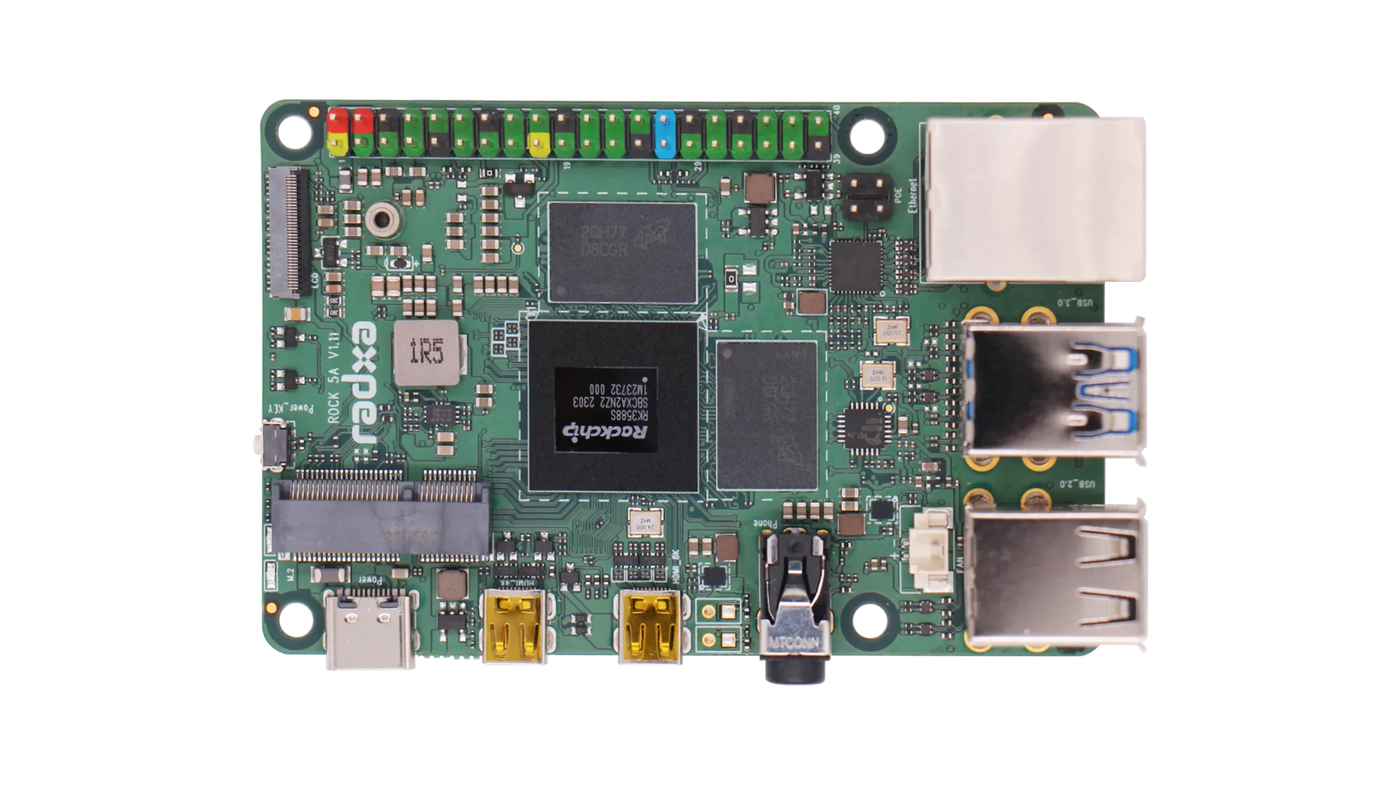

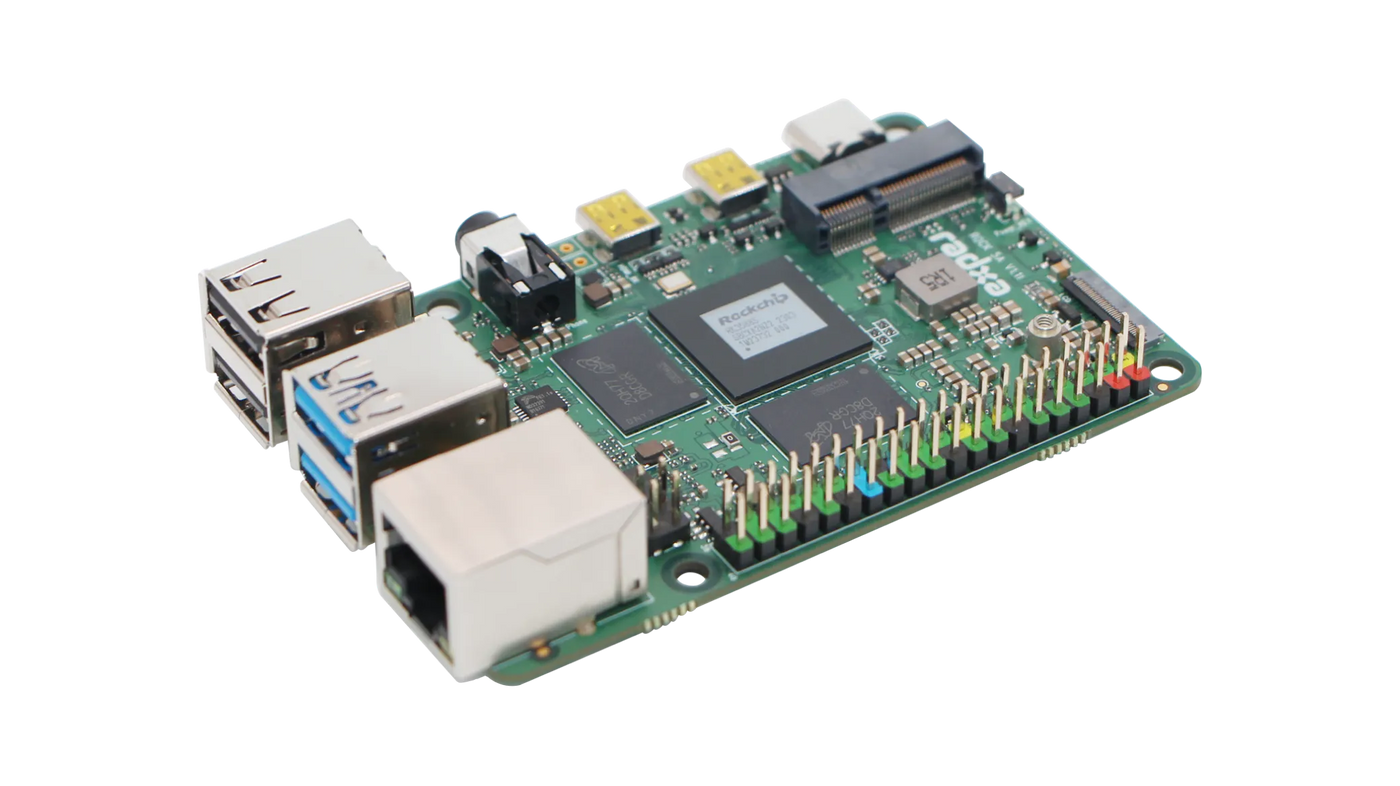

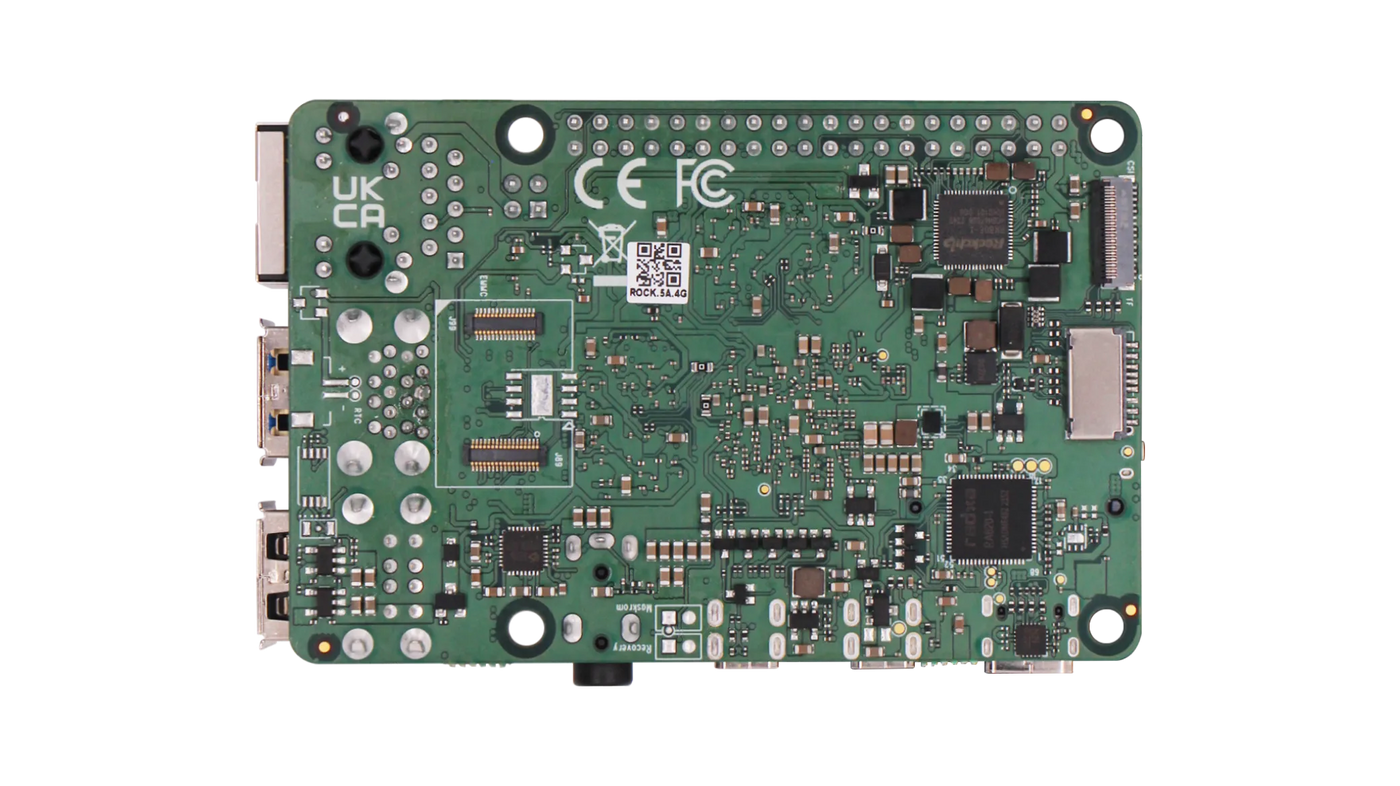

The ROCK 5A is a compact yet powerful single-board computer powered by the Rockchip RK3588S SoC. Featuring a high-performance octa-core CPU (quad Cortex-A76 and quad Cortex-A55), a Mali-G610 GPU, and an integrated NPU delivering up to 6 TOPs of AI performance, the ROCK 5A supports advanced multimedia and compute applications.
Quad Core A76 and Quad Core A55
Quad Cortex A76 up to 2.2~2.4GHz and a Quad Cortex A55 up to 1.8GHz
Arm Mali-G610 MP4 GPU
build-in NPU supports INT4/INT8/INT16/FP16 hybrid operation computing power is up to 6TOPs
Supporting INT4/INT8/INT16/FP16 Hybrid Operation
Allow multiple apps at the same time
Supports booting OS from NVMe SSD, USB, Hard Drives
(Additional Penta SATA HAT / M.2 Extension Board Required)
Developing and Verifying Your Program or Circuit on ROCK 5A
| Specifications - Radxa ROCK 5A | |
|---|---|
| SoC | Rockchip RK3588S |
| CPU | Quad Cortex®‑A76 @ 2.2~2.4GHz and Quad Cortex®‑A55 @ 1.8GHz (Arm® DynamIQ™) |
| GPU |
Arm Mali™ G610MP4 - OpenGL® ES1.1/2.0/3.2 - OpenCL® 1.1/1.2/2.2 - Vulkan® 1.1/1.2 - 2D Image Acceleration Module |
| NPU | Supports INT4 / INT8 / INT16 / FP16 / BF16 / TF32, up to 6 TOPs |
| RAM | 64-bit LPDDR4x (4GB / 8GB / 16GB / 32GB) |
| Storage |
SPI Flash Module for Bootloader eMMC 5.1 / SPI Flash Connector (shared) MicroSD (SDHC / SDXC / UHS-I) M.2 NVMe SSD (2230/2242/2260/2280 via Extension Board) SATA SSD/HDD via Penta SATA HAT |
| Audio | 1x 4-ring 3.5mm Headphone Jack with Mic Input |
| Display |
1x Micro HDMI 2.1 (up to 8K@60) 1x Micro HDMI 2.1 (up to 4K@60) 1x MIPI DSI (up to 1080p@60) Supports 3 display outputs simultaneously |
| Camera | 1x MIPI CSI (1x four-lane or 2x two-lane) |
| Multimedia |
H.265 / VP9 / AVS2 decoding up to 8K@60fps H.264 decoding up to 8K@30fps H.265 / H.264 encoding up to 8K@30fps |
| USB | 1x USB Type-C™ (Power, USB PD 2.0 & QC 2.0) |
Documentation
| Getting Started Guide - Radxa ROCK 5A | Download >> |
| Raxda OS - Radxa ROCK 5A | Download >> |
| Build Guide - Radxa ROCK 5A | Download >> |
| Compliance - Radxa ROCK 5A | Download >> |
Product Information
| Radxa ROCK 5A - Product Brief | Download >> |
| Radxa ROCK 5A - Schematic V1.1 | Download >> |
| Radxa ROCK 5A - Components Placement Map (SMD V1.1) | Download >> |
| Radxa ROCK 5A - 2D Drawings | Download >> |
| Radxa ROCK 5A - 3D Drawings | Download >> |
Official Images
| Radxa ROCK 5A - Debian OS | Download >> |
| Radxa ROCK 5A - Android 12 | Download >> |
Radxa Camera 4K, Radxa Camera 8M 219, Radxa Heatsink 2513,
Radxa Metal Case for ROCK 5A, Radxa 25W PoE+ HAT, Radxa Power PD 30W,
Radxa eMMC USB3 Reader, Radxa Penta SATA HAT, Radxa M.2 E Key to SATA Breakout Board,
Radxa M.2 Extension Board, Radxa Dual 2.5G Router HAT, Radxa eMMC Module,
Radxa eMMC to uSD, Radxa SPI Flash Module, Radxa Display 8 HD,
Radxa Display 10 FHD, and Radxa Wireless Module A8
