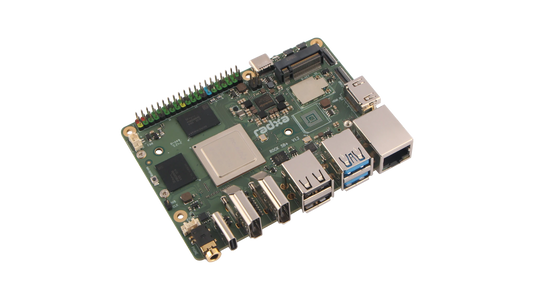

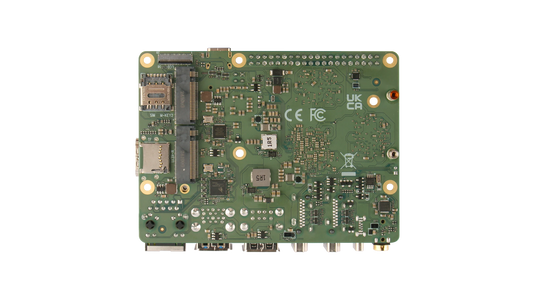

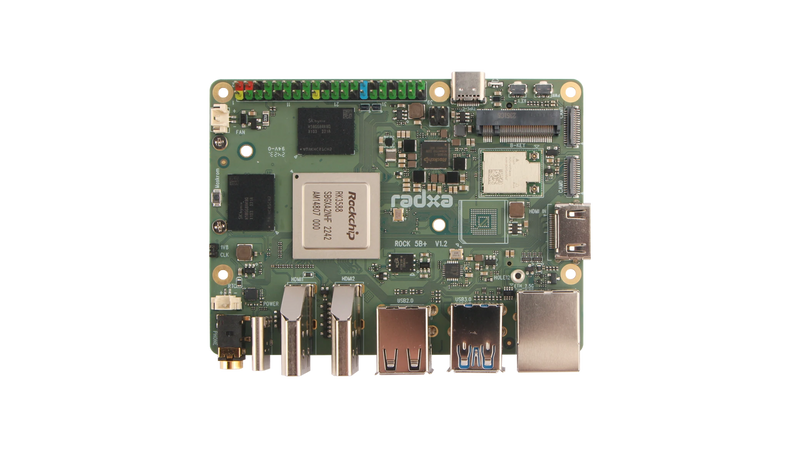

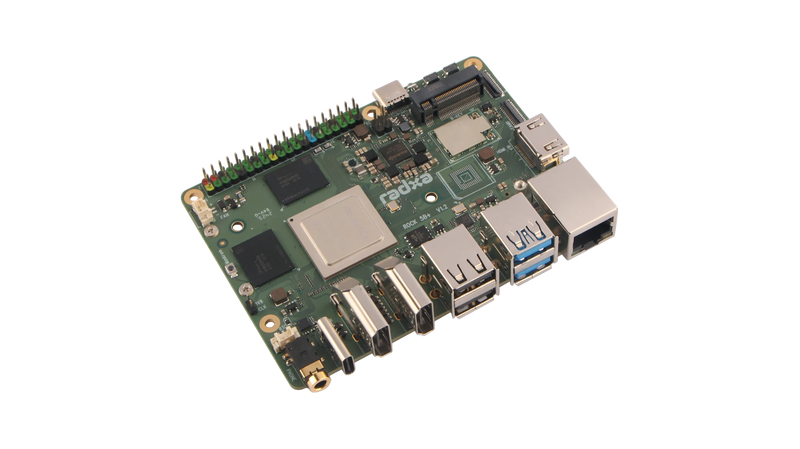

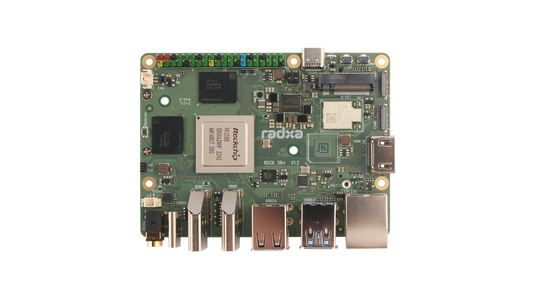

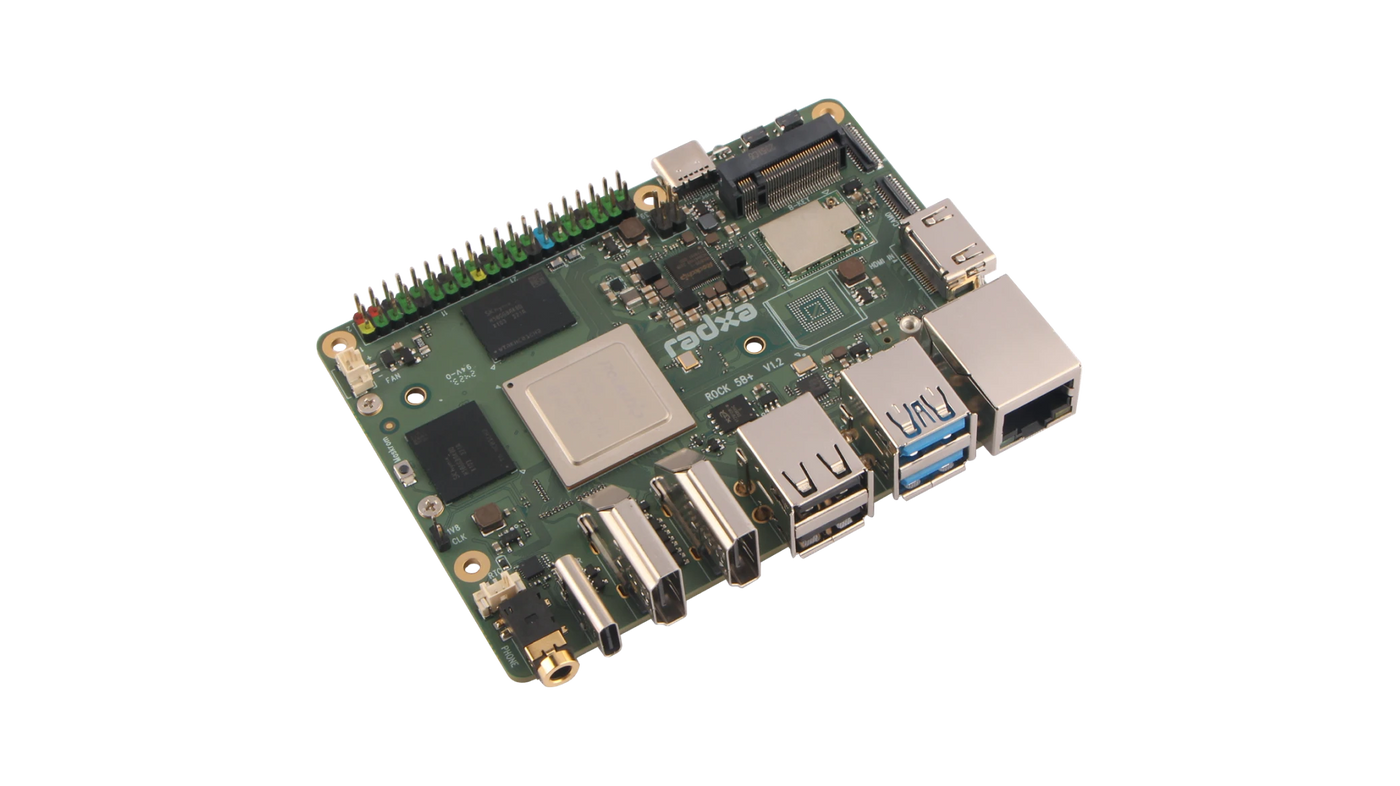

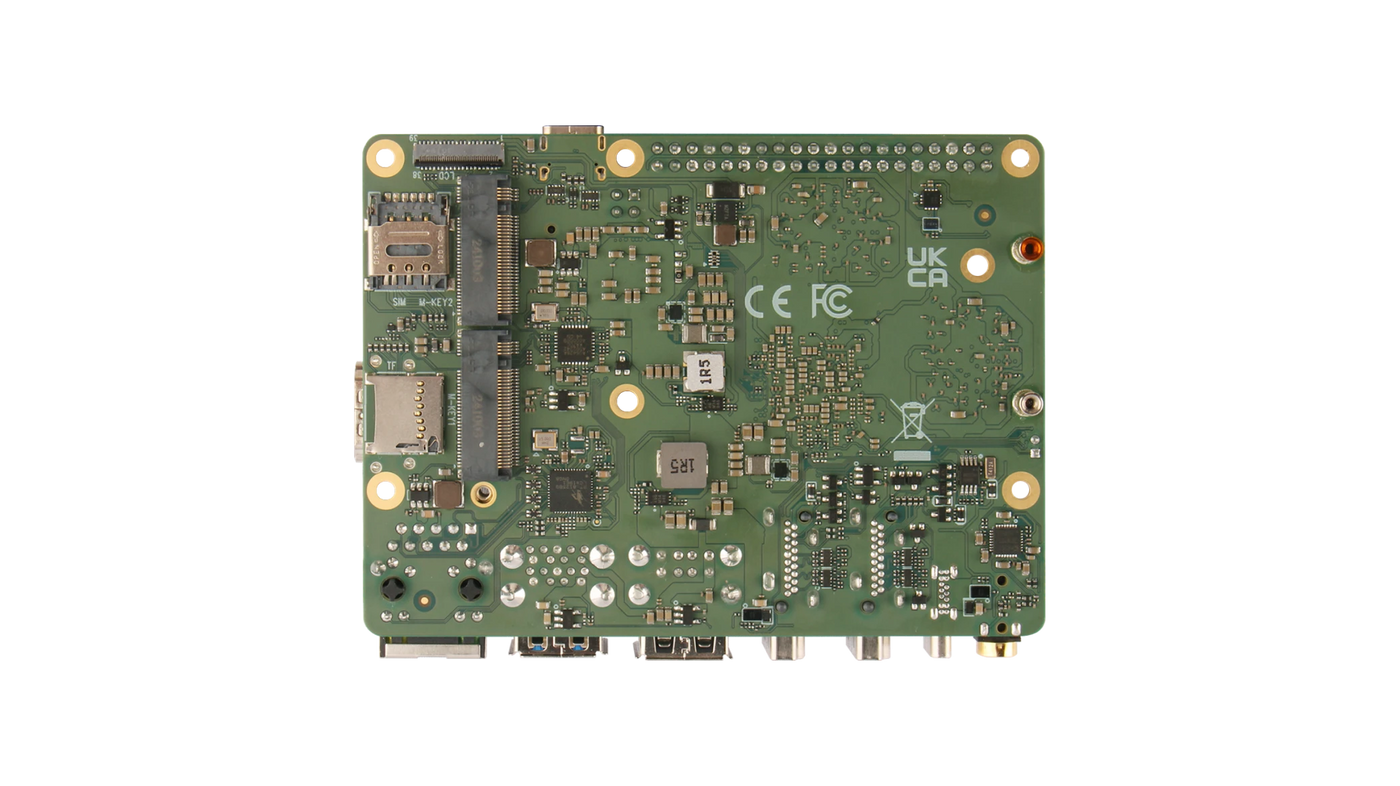

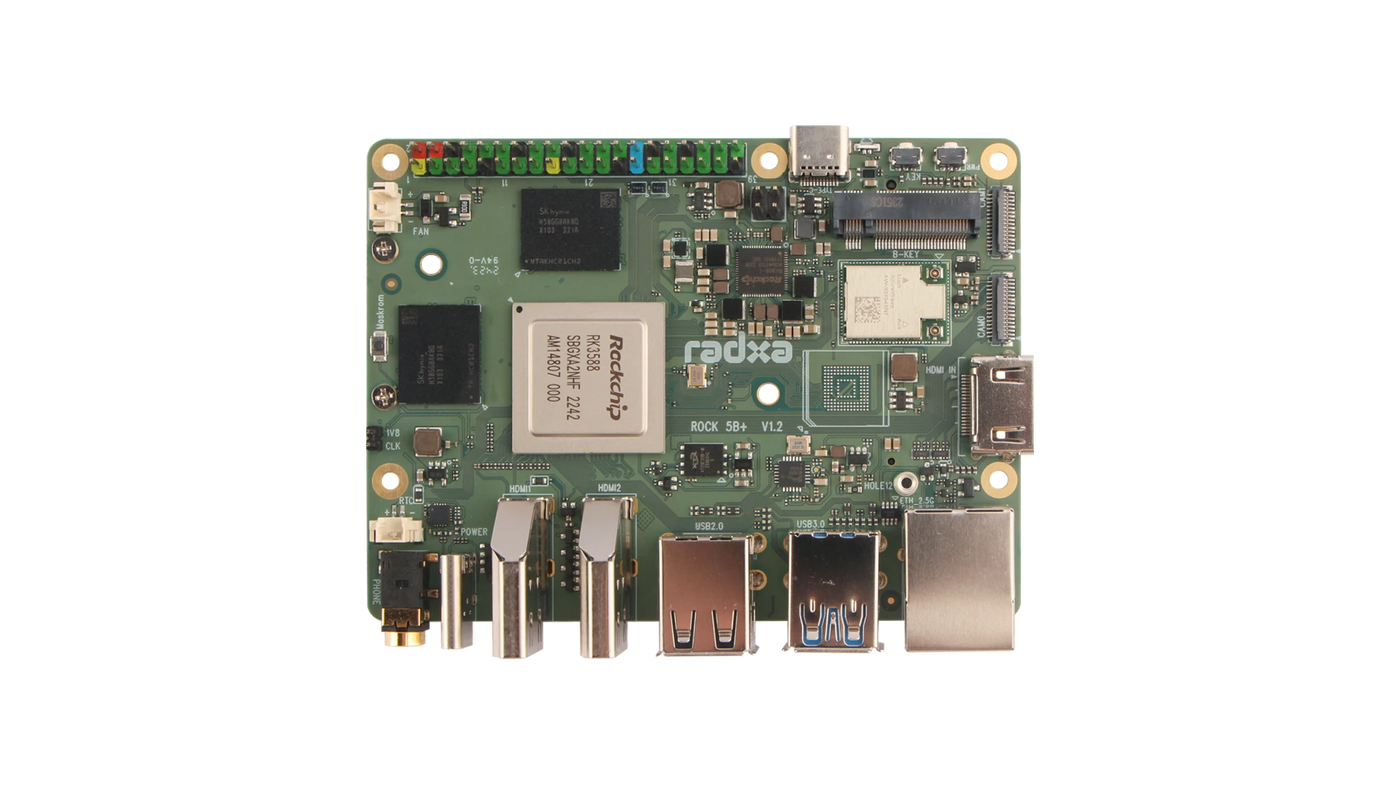

ROCK 5B+
New Upgrade Version of ROCK 5B
The ROCK 5B+ is the next-generation upgrade to the popular ROCK 5B single board computer, delivering even greater performance and I/O flexibility. Powered by the advanced Rockchip RK3588 SoC, it features a powerful octa-core CPU (4x Cortex-A76 + 4x Cortex-A55), Mali-G610 GPU, and a 6 TOPS NPU for AI workloads.
The Best SBC Just Got Even Better
Major Upgrade for ROCK 5B
Robust Performance
Rockchip RK3588
Memory Upgrade
High Bandwidth, Large Capacity, Low Power Consumption
High Performance Graphics Processing Unit
Arm® Mali™ G610 MC4 GPU
High Computing Power NPU
Supporting Multiple Data Types
INT4 / INT8 / INT16 / FP16 / BF16 / TF32
Flexible Storage Options
Dual M.2 M Key Connector each with PCIe 3.0 2-lane
Onboard eMMC Up To 128GB
microSD Card Slot
8K Video Encoding and Decoding Technology
- H.265 / H.264 / VP9 / AV1 / AVS2 video decoder up to 8K@60fps
- H.264 / H.265 video encoder up to 8K@30fps
Support Multi-screen Display
Simultaneous 4K, 4K, 4K, and 2K Support
Simultaneous 8K, 4K, and 2K Support
Smooth and Fluent Video Input
Supports 4K@60fps HDMI2.0 RX
Supports 2x 4-lane MIPI CSI or 4x 2-lane MIPI CSI
High Bandwidth, High Stability
WiFi 6 & BT5.2 with Dual Antenna Connector
2.5 Gigabit Ethernet with PoE Support (Additional PoE HAT Required)
USB Interfaces
Extensive USB extensions and up to 5Gbps rates
Interfaces
Tech Specs
| Radxa ROCK 5B - Specifications | |
|---|---|
| SoC | Rockchip RK3588 |
| CPU | Quad Cortex-A76 @ 2.2~2.4GHz and Quad Cortex-A55 @ 1.8GHz |
| GPU | Arm Mali-G610MC4 - OpenGL ES1.1, ES2.0, ES3.2 - OpenCL 1.1, 1.2, 2.2 - Vulkan 1.1, 1.2 - 2D image acceleration module |
| NPU | INT4 / INT8 / INT16 / FP16 / BF16 / TF32, up to 6TOPs |
| Multimedia | Decoder: H.265 / H.264 / AV1 / AVS2 up to 8K@60fps Encoder: H.264 / H.265 up to 8K@30fps |
| RAM | 64-bit LPDDR5: 4GB / 8GB / 16GB / 24GB / 32GB |
| Storage | 1x SPI Flash, 1x eMMC (optional), 1x microSD slot, 2x M.2 M Key (PCIe 3.0 x2) |
| Audio | 1x 4-ring 3.5mm jack with mic input |
| Display | 2x HDMI 2.1 (8Kp60 & 4Kp60), 1x DP via USB-C (4Kp60), 1x MIPI DSI (1080p60) 4 Displays: 4K+4K+4K+2K 3 Displays: 8K+4K+2K |
| Video Input | 1x HDMI Input (4Kp60), 2x 4-lane or 4x 2-lane MIPI CSI |
| USB | 1x USB-C (DP 4Kp60, USB 3.1 Gen1 OTG), 2x USB 3.1 Gen1 Type-A, 2x USB 2.0 Type-A |
| Ethernet | 1x 2.5GbE (PoE support with HAT) |
| Wireless | WiFi 6 & BT 5.2 onboard, Dual Antenna Connector |
| Mobile Network | 1x M.2 B Key, 1x SIM card socket |
| Miscellaneous | RTC battery, PWM fan, Power & Recovery buttons, RGB LED |
| Power Requirements | USB-C PD 2.0: 9V–20V @ 2A, GPIO: 5V via pin 2 & 4, Adapter: 5.2V–20V |
| Software | Radxa OS, Android |
| Operating Conditions | 0~50°C, throttles at 80°C, external cooling recommended |
| Dimensions | 100mm x 75mm |
| Compliance Certification | FCC / CE |
