ROCK Pi E
Compact Networking SBC

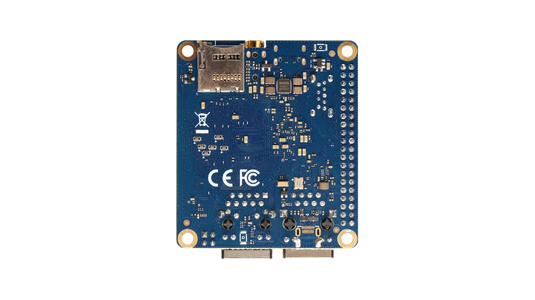

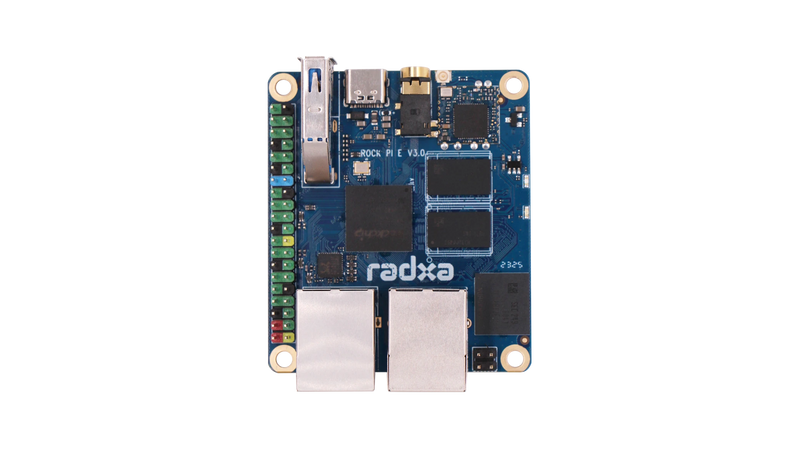

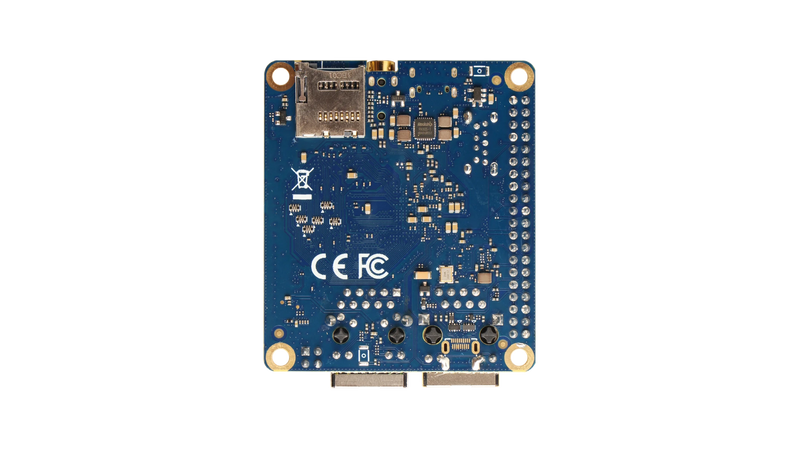

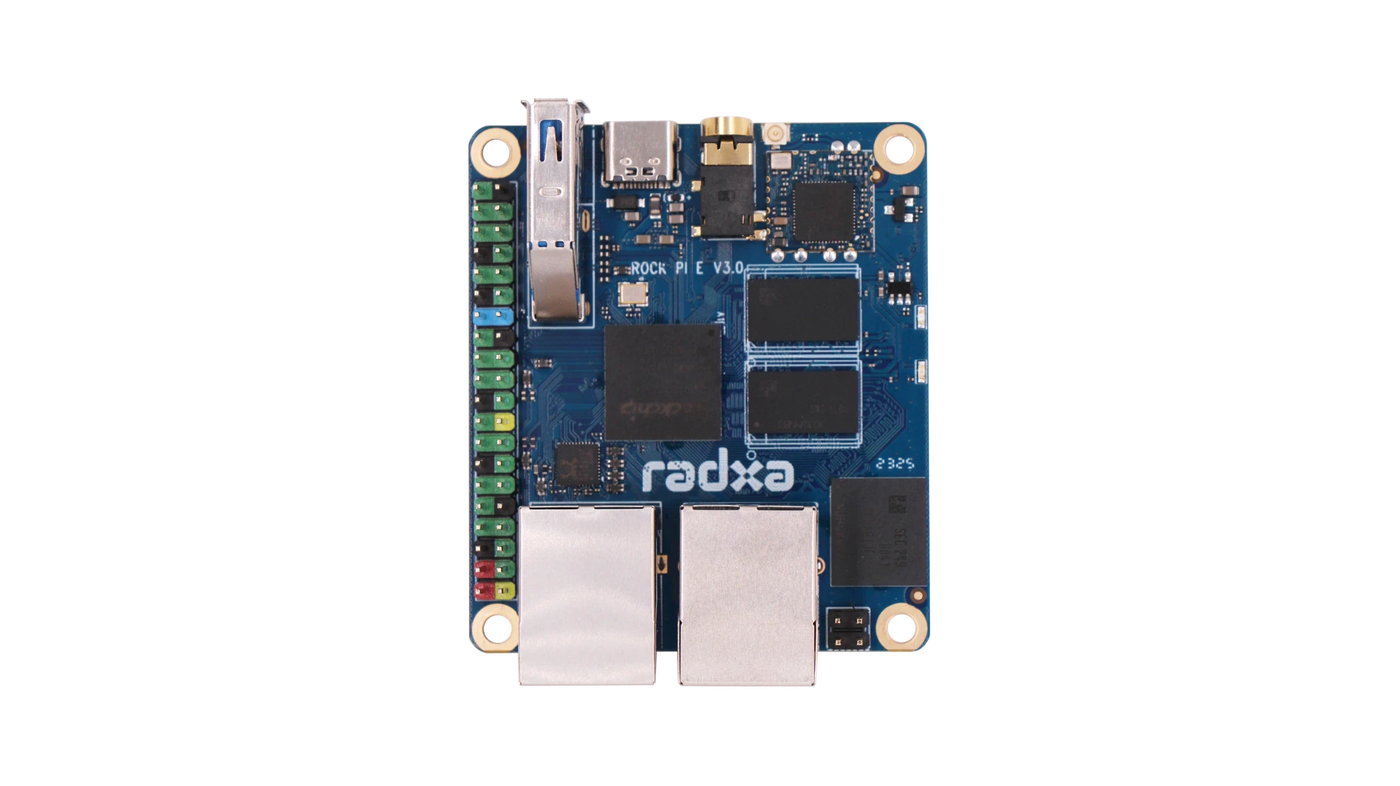

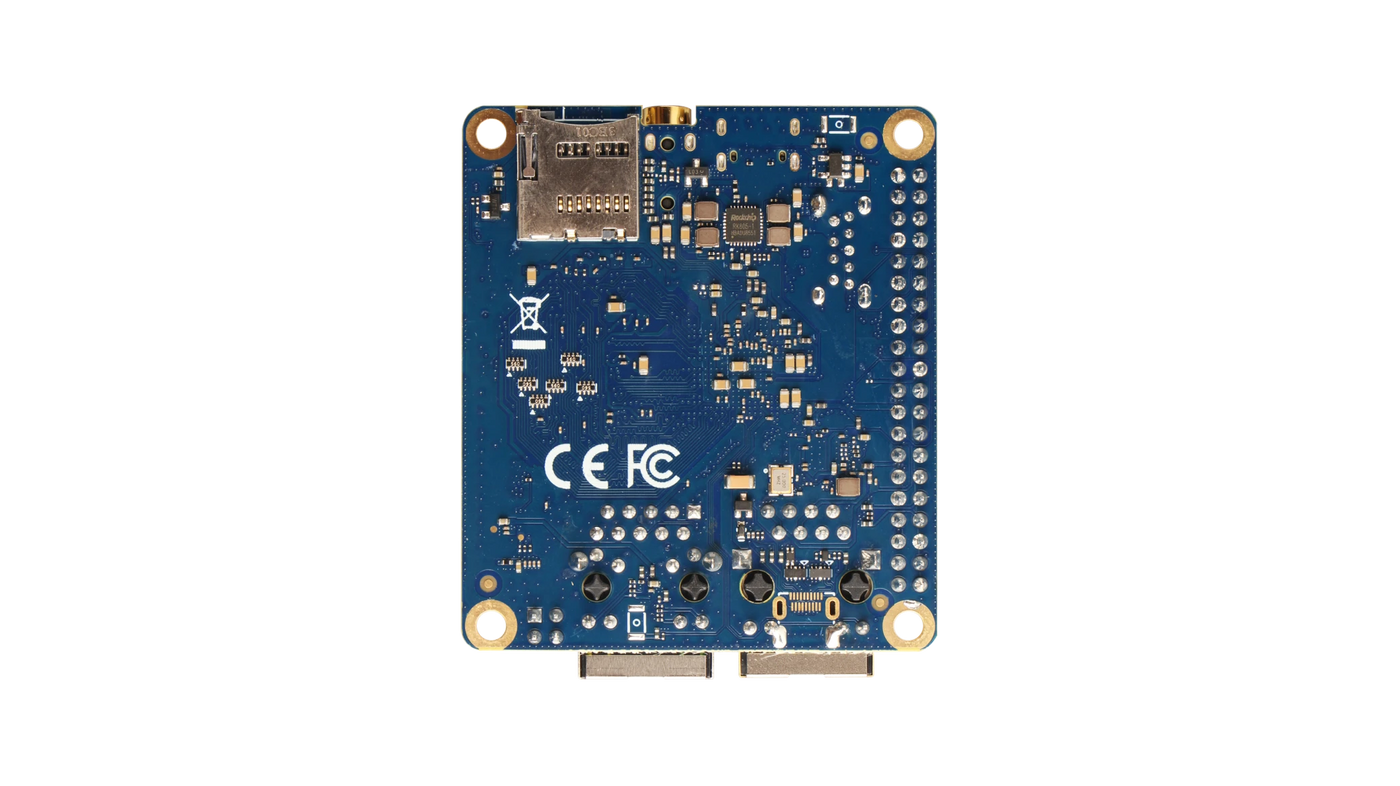

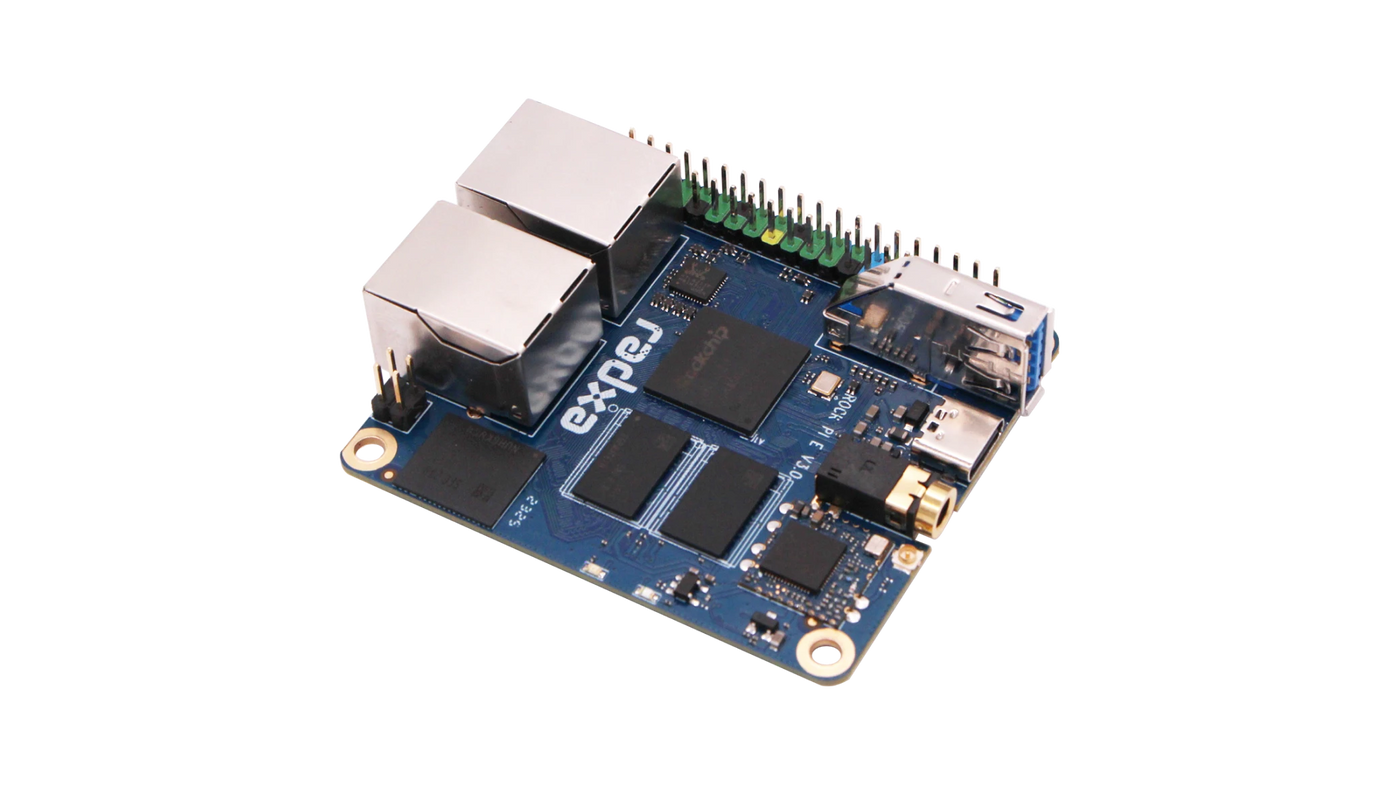

Radxa ROCK Pi E
A Compact and Cost-Effective 2.5x2.2-inch Mini SBC
Versatile Memory and eMMC Configuration Choices
Optional DDR4 RAM: 512MB / 1GB / 2GB
Optional Onboard eMMC: 4GB / 8GB / 16GB, up to 128GB
Interface Details
Micro SD Card Slot
Utilized for Mass Storage and OS Boot
Optional Onboard eMMC
Maximize Storage and OS Boot Efficiency
eMMC 5.1 Compatibility, up to 128GB!
Optional OnBoard Wireless Module
Support WiFi4 and BT4 with an External Antenna Connector
1000M Ethernet with PoE Support
100M Ethernet without PoE Support
One network cable supports power supply and networking
USB Ports
1x USB 3.0 HOST Type-A Port
1x USB Type-C DC 5V
40x Color GPIO
Supporting various interface options
1x USB 2.0 OTG, 1x I2C, 1x SPI, 2x UART, 1x I2S0, 2x 5V DC power in, 2x 3.3V DC power in
Comprehensive Technical Documentation and
Active Community
Interfaces
Tech Specs
| Radxa Pi E Specifications | |
|---|---|
| SoC | Rockchip RK3328 |
| CPU | Quad‑core Arm® Cortex®‑A53 64‑bit @ 1.3GHz |
| RAM | 512MB / 1GB / 2GB DDR4 RAM |
| Storage | Optional 4GB / 8GB / 16GB / 32GB high performance eMMC Micro SD Card Slot |
| Wireless | WiFi 4 / BT 4 or WiFi 5 / BT 5 wireless with external antenna support |
| Ethernet | 1x 1000M Ethernet supporting PoE with add‑on PoE HAT 1x 100M Ethernet |
| USB | 1x USB3.0 Type‑A HOST |
| Audio | 1x 4‑ring 3.5mm headphone jack |
| Operating Conditions | Recommended environmental temperature: 0 ~ 50°C Radxa Pi E has a temperature limit of 80°C, beyond which it throttles clock speeds for reliability For continuous high-performance use, external cooling methods like heat sinks or fans can maintain maximum clock speed below the 80°C limit |
| Software | Support Debian / Linux / Android |
| Dimension | 2.5 x 2.2 inch (56 x 65 mm) |
| Compliance Certification | CE / FCC |
Download
Product Information
| Product Brief | Download |
| Schematic V3.0 | Download |
| Components Placement Map (SMD V3.0) | Download |
| 2D Drawings | Download |
Official Images
| Debian OS | Download |
