ZERO
An Ultra Tiny SBC Supports 4K Display

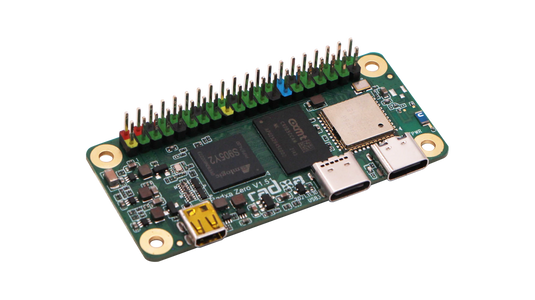

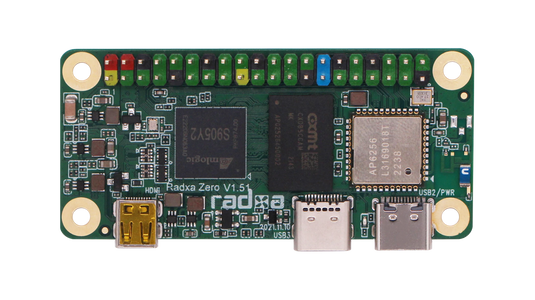

Radxa Zero is a small form factor high performance single board computer based on the Amlogic S905Y2, which runs Android and Linux!
Radxa Zero has a 4-core 64-bit processor, up to 4GB (32bit) LPDDR4 memory, 4k@60 HDMI output support, Wi-Fi and Bluetooth support, and onboard USB3.0, 40-pin GPIO interface.
The onboard USB2.0 OTG interface supports power supply and data transfer.
Amlogic S905Y2
Tiny Form Factor, Big Heart
Multiple RAM and onboard eMMC Configurations
RAM: 1GB / 2GB / 4GB LPDDR4
Onboard eMMC: 0GB / 8GB / 16GB / 32GB / 64GB
Multimedia Processing and Video Output Capabilities
Onboard Dual-Mode Wi-Fi and Bluetooth
> Wi-Fi 4 & BT 5(512MB / 1GB RAM) or Wi-Fi 5 & BT 5(2GB / 4GB RAM)
> Equipped with onboard antenna or external antenna

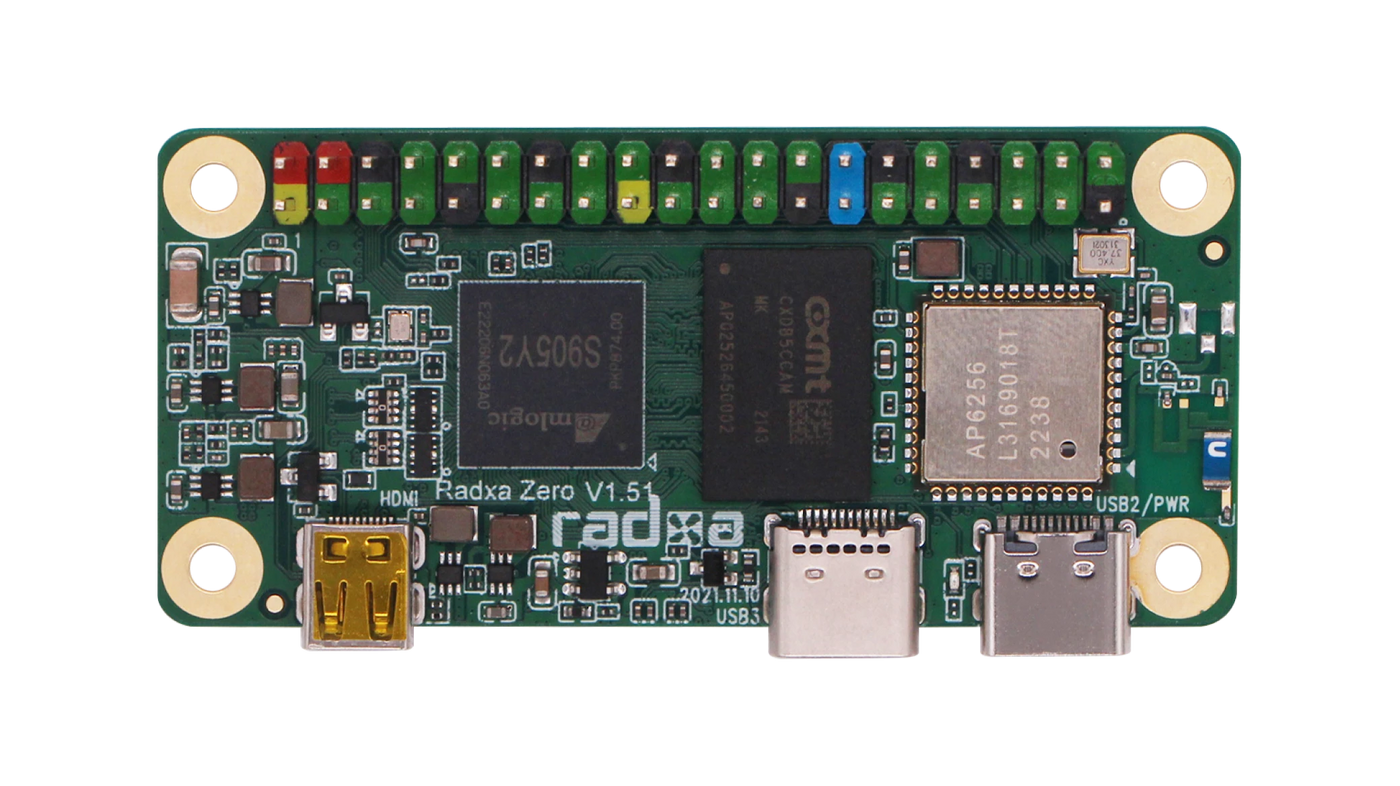

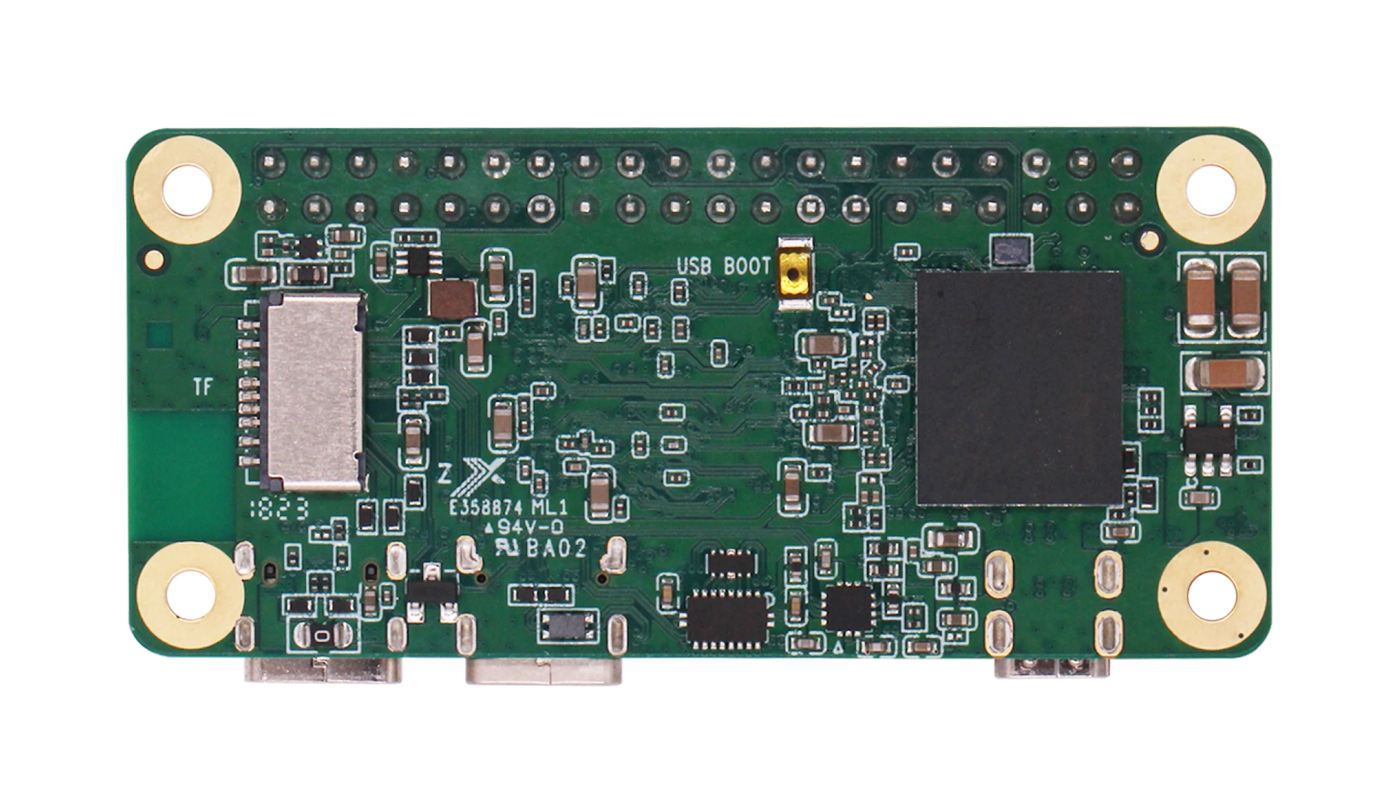

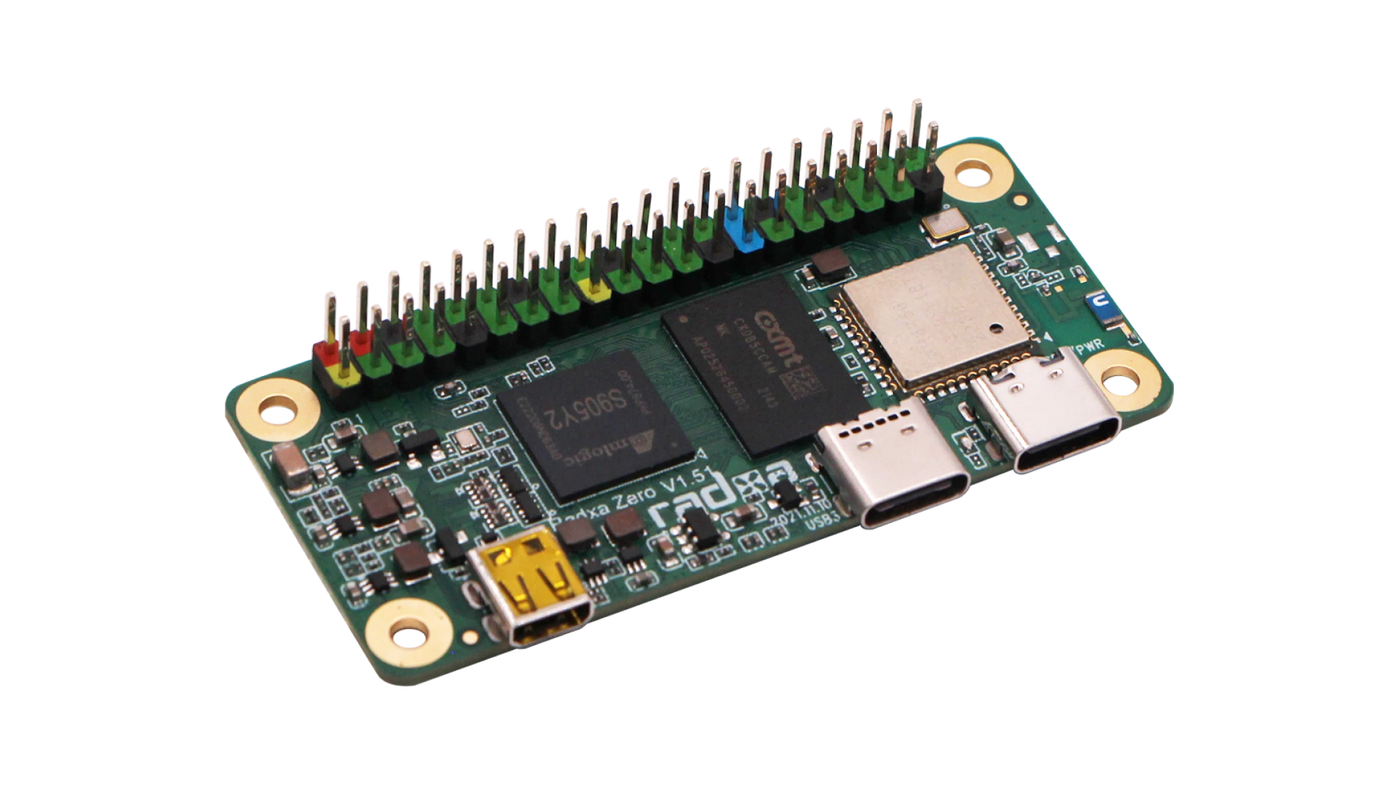

The images presented depict a particular configuration of the Radxa Zero. Please note that the actual component layout and specifications may differ based on the selected Stock Keeping Unit (SKU).
Flexible Booting Options & Mass Storage Support Onboard eMMC and TF Card
High Speed and Capacity to Fulfill Diverse Storage Needs
Comprehensive Technical Documentation and Active Community
ADDITIONAL FEATURES
USB Ports
> 1x USB 2.0 OTG Type C Port for Power and Data
> 1x USB 3.0 Host Type C Port
40x Color GPIO
supporting a wide range of interface options
> UART > SPI > I2C > PWM > GPIO etc.
INTERFACES
TECH SPECS
Specifications - Radxa ZERO |
|
|---|---|
| SoC | Amlogic S905Y2 |
| CPU | Quad core Cortex‑A53 (Arm v8) 64‑bit SoC @ 1.8GHz |
| GPU | Arm® G31 MP2 GPU - OpenGL® ES1.1/2.0/3.0/3.1/3.2 - Vulkan® 1.0, OpenCL™ 2.0 |
| RAM | 1 / 2 / 4GB LPDDR4 |
| Storage | Onboard eMMC: 8 / 16 / 32 / 64 / 128GB 1 x Micro SD Card |
| Wireless | WiFi4 / WiFi5 with external antenna support BT 5.0, BLE |
| USB | 1x USB 2.0 Type C OTG 1x USB 3.0 Type C Host |
| Display | 1 x Micro HDMI 2.0 support 4K@60fps |
| Connectivity | 40 x color user GPIO supporting various interface options: - up to 3 x UART - up to 2 x SPI - up to 3 x I2C - up to 3 x PWM - up to 2 x ADC - up to 22 x GPIO - 2 x 5V DC power in - 2 x 3.3V power in - 2 x 3.3V power pin |
| Operating Conditions |
Recommended environmental temperature: 0 ~ 50°C Radxa ZERO has a temperature limit of 80°C, beyond which it throttles clock speeds for reliability For continuous high-performance use, external cooling methods like heat sinks or fans can maintain maximum clock speed below the 80°C limit |
| Software | Support Debian / Linux / Android |
| Dimension | 65 mm × 30 mm |
| Compliance Certification | CE / FCC |
DOWNLOAD
Product Information
| Radxa ZERO - Product Brief | Download >> |
| Radxa ZERO - Schematic V1.51 | Download >> |
| Radxa ZERO - Components Placement Map (SMD V1.51) | Download >> |
| Radxa ZERO - 2D Drawings V1.51 | Download >> |
| Radxa ZERO - Schematic V1.4 | Download >> |
| Radxa ZERO - Components Placement Map (SMD V1.4) | Download >> |
Official Images
| Debian OS - Radxa ZERO | Download >> |
Documentation
| Getting Started Guide - Radxa ZERO | Download >> |
| Overview - Radxa ZERO | Download >> |
ZERO WORKS WITH
> Radxa Power PD 30W
5A High Current Super-Fast Charge
