ZERO 3E
A Light, Compact and Tiny SBC
Radxa ZERO 3E is a powerful and energy-efficient single-board computer designed for embedded and industrial applications. Built around the Rockchip RK3566 quad-core 64-bit ARM Cortex-A55 processor, it delivers reliable performance for a wide range of use cases. It features onboard LPDDR4 RAM, optional eMMC storage, and supports high-speed interfaces including USB 3.0 and Gigabit Ethernet for fast data transfer and network connectivity.
Rockchip RK3566
High performance and low power consumption
Superior Performance, Energy Efficient
Arm® Mali™-G52 2EE GPU
Powerful Multimedia Processing Capability
H.264/H.265 decoder up to 4K@60fps
H.264/H.265 encoder up to 1080P@60fps
Precision and Clarity, Flowing with Natural Ease
1080P@60fps via Micro HDMI
Wired Connection
More Stable and Low Latency
One Network Cable Solves Power Supply and Network
Gigabit Ethernet Port with PoE Support(Additional PoE Support)

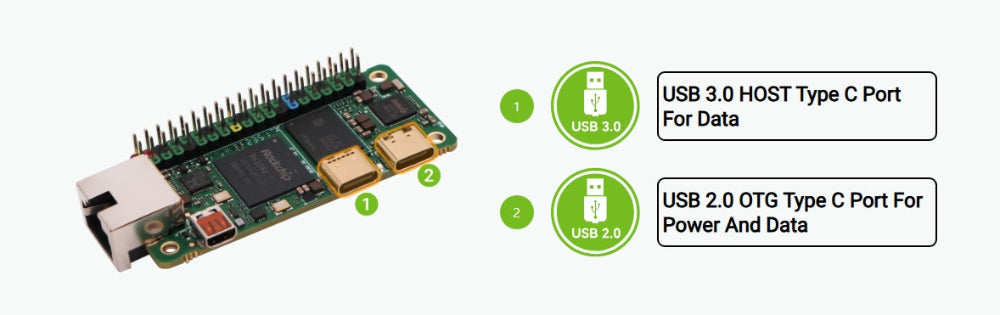

Multifunctional USB Interface
High-Definition Image Capture, Within Reach
Bringing Every Photo to Life!
> 22-Pin MIPI CSI with 0.5mm Pitch
OS Bootable from Micro SD Card
Comprehensive Technical Documentation and Active Community
INTERFACES
TECH SPECS
| Specifications - Radxa ZERO 3E | |
|---|---|
| SoC | Rockchip RK3566 |
| CPU | Quad‑core Arm® Cortex®‑A55 (Armv8) 64‑bit @ 1.6GHz |
| GPU | Arm® Mali™‑G52‑2EE - OpenGL® ES1.1 / 2.0 / 3.0 / 3.1 / 3.2 - Vulkan® 1.1, OpenCL™ 2.0 |
| RAM | 1GB / 2GB / 4GB / 8GB LPDDR4 |
| Storage | 1 x Micro SD Card Slot |
| Ethernet | 1x Gigabit Ethernet with Power over Ethernet (PoE) support, powered by PoE with an additional PoE HAT required |
| USB | 1x USB 2.0 OTG Type C Port 1x USB 3.0 Host Type C Port |
| Display | 1x Micro HDMI support 1080P@60fps |
| Camera | 1 x MIPI CSI camera port |
| Connectivity | 40 x color user GPIO supporting various interface options: - up to 5 x UART - 1 x SPI bus - up to 2 x I2C bus - 1 x PCM/I2S - up to 6 x PWM - up to 28 x GPIO - 2 x 5V DC power in - 2 x 3.3V power pin |
| Operating Conditions |
Recommended temp: 0 ~ 50°C Radxa ZERO 3E has a temperature limit of 80°C, beyond which it throttles clock speeds for reliability For continuous high-performance use, external cooling methods like heat sinks or fans can maintain maximum clock speed below the 80°C limit |
| Software | Support Debian / Linux |
| Dimensions | 72 mm × 30 mm |
| Compliance | CE / FCC |
DOWNLOAD
Documentation
| Overview - Radxa ZERO 3E | Download >> |
| Getting Started Guide - Radxa ZERO 3E | Download >> |
| Radxa OS - Radxa ZERO 3E | Download >> |
| Configuration setting - Radxa ZERO 3E | Download >> |
| Accessories - Radxa ZERO 3E | Download >> |
| App Deployment - Radxa ZERO 3E | Download >> |
| Low-Level Dev - Radxa ZERO 3E | Download >> |
| Android - Radxa ZERO 3E | Download >> |
Official Images
| Debian OS - Radxa ZERO 3E | Download >> |
Product Information
| Radxa ZERO 3E - Product Brief | Download >> |
| Radxa ZERO 3E - Schematic V1.2 | Download >> |
| Radxa ZERO 3E - Components Placement Map (SMD V1.2) | Download >> |
| Radxa ZERO 3E - 2D Drawings V1.2 | Download >> |
| Radxa ZERO 3E - 3D Drawings | Download >> |
ZERO 3E WORKS WITH
> Radxa Camera 8M 219
IMX 219
> Radxa Heatsink 5519A
Specialized for Radxa ZERO 3W / 3E
> Radxa Power PD 30W
5A High Current Super-Fast Charge
> Radxa ZERO 3E PoE HAT
Designed for Radxa ZERO 3E
