2-Wheel Drive Rugged Robot Chassis with 37mm 37B280 Gear Motor

SKU: RBC1006

₹ 1,799.99 ₹ 2,599.99

Out of stock

📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
2-Wheel Drive Rugged Robot Chassis with 37mm 37B280 Gear Motor₹ 1,799.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

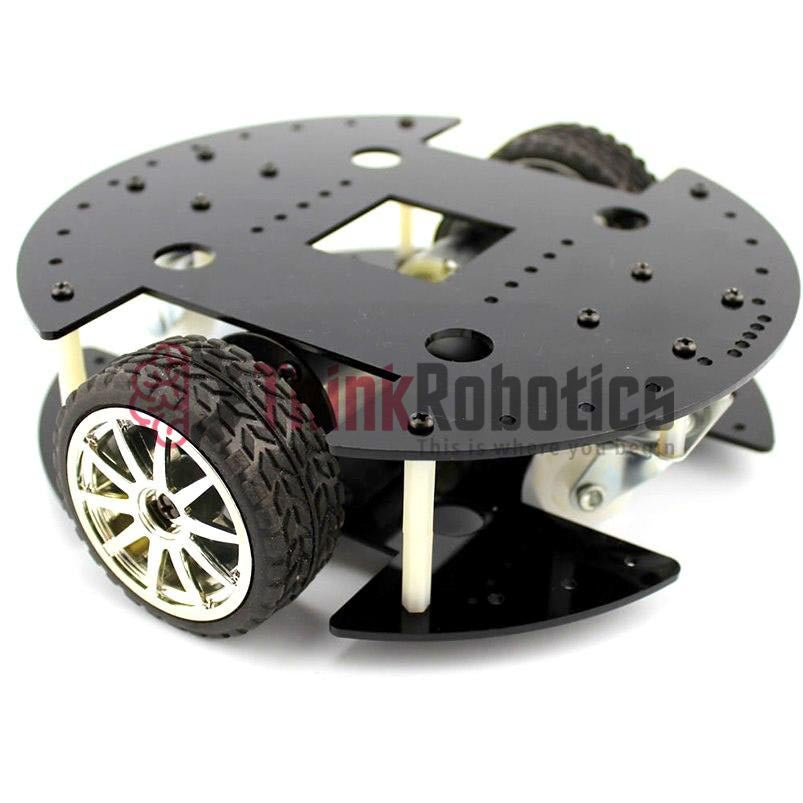

8" circular dual-layer 2-Wheel drive acrylic chassis is best suited for building fast robots and enable speedy development. The caster wheel and large wheels offer a stable platform for sophisticated robots.

  • Acrylic dual layer chassis
  • Offers a great base for small robots
  • Tons of mounting holes & slots!
  • Size: 200m diameter; Ground Clearance: 1mm; Layer Clearance: 49mm
  • 3mm thick transparent acrylic plate
  • 37mm DC Geared Motor: 4.5V (100 RPM) and 9V (200 RPM)
  • Tire: 65mm Diameter, 26mm Width, Rubber Tread Material with electroplated plastic wheels
  • Weight: 650 grams
Resources

Tutorial



    What is the chassis configuration and build type?
    It is an 8 inch circular dual layer acrylic chassis with a two wheel drive configuration and a caster wheel for stability.
    What motor and speed options are provided?
    The motor is a 37 mm DC Geared Motor with voltage options of 4.5 V for 100 RPM and 9 V for 200 RPM.
    What are the tire and wheel specifications?
    The tires are 65 mm in diameter and 26 mm wide with a rubber tread, mounted on electroplated plastic wheels.
    What materials and weight are involved?
    The chassis uses 3 mm thick transparent acrylic plates and weighs about 650 grams.
    What installation support is available?
    The design includes many mounting holes and slots and a resources tutorial is provided to assist with assembly and development.
