RTC Battery for Raspberry Pi 5 with 2PIN JST connector

SKU: WVSH0487

₹ 149.99 ₹ 199.99

Out of stock

Select variant

25mAh
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
⏱ This is a pre-order item. We'll ship it as soon as it's back in stock.
RTC Battery for Raspberry Pi 5 with 2PIN JST connector25mAh₹ 149.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

RTC Battery for Raspberry Pi 5

2PIN JST connector, Available in 25mAh / 64mAh / 180mAh Capacity

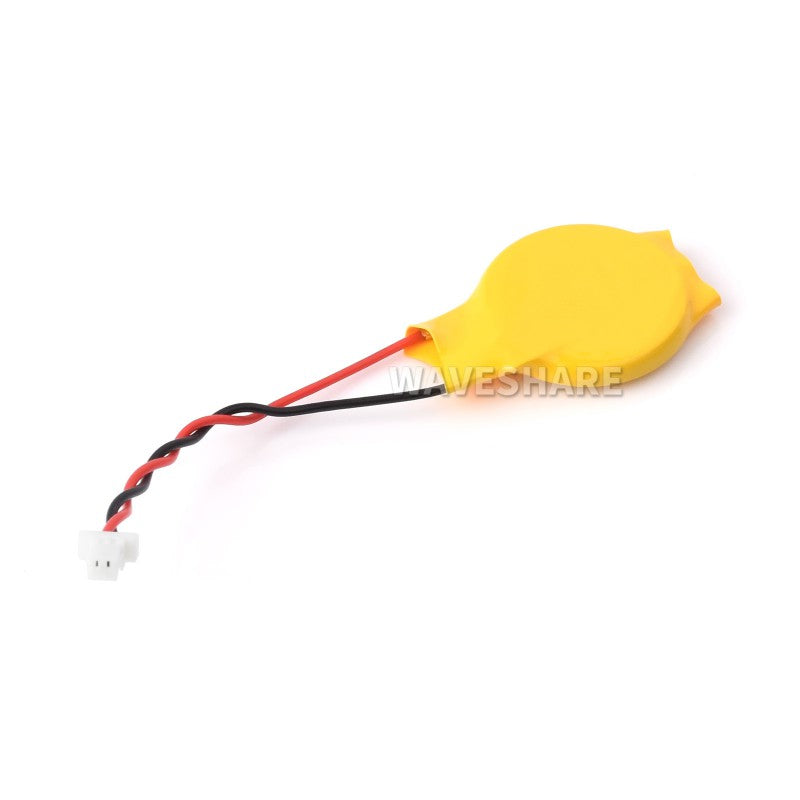

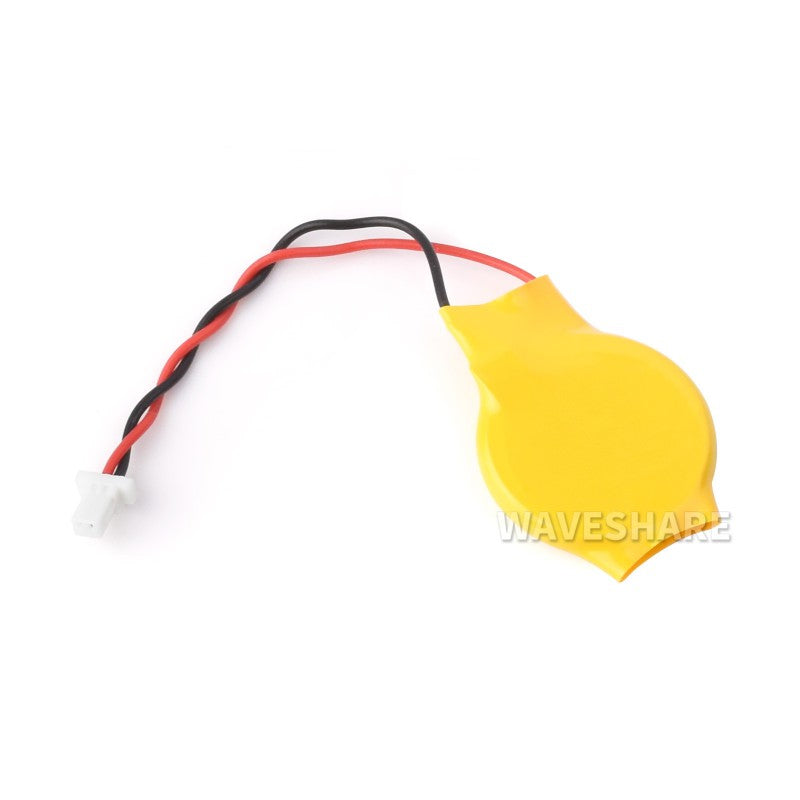

RTC Battery, front view



SAFETY CAUTIONS

  • Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
  • Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
  • Do not mix use old batteries with new ones, avoid using batteries of different brands.
  • When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
  • Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
  • Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.



Specifications

Version RTC-Battery-A RTC-Battery-B RTC-Battery-C
Battery Model LIR2025 ML2032 CR2032
Battery Capacity 25mAh 64mAh 180mAh
Battery Dimensions 20.2mm diameter, 2.6mm thickness 20.2mm diameter, 3.3mm thickness
Rated voltage 3.6V 3V
Max voltage 4.2V 3.3V
battery lifespan After 300 recharge and discharge cycles, the capacity remains above 80% of the initial level Does not support recharging
Connector 2PIN JST connector
Cable length 50mm
Protection Over-voltage protection;
Over-current Protection;
Over-temperature Protection;
Overcharging Protection;
Short-circuit Protection		 Over-current Protection;
Over-temperature Protection;
Short-circuit Protection
Host support Raspberry Pi 5 Luckfox Pico Ultra series; Raspberry Pi 5

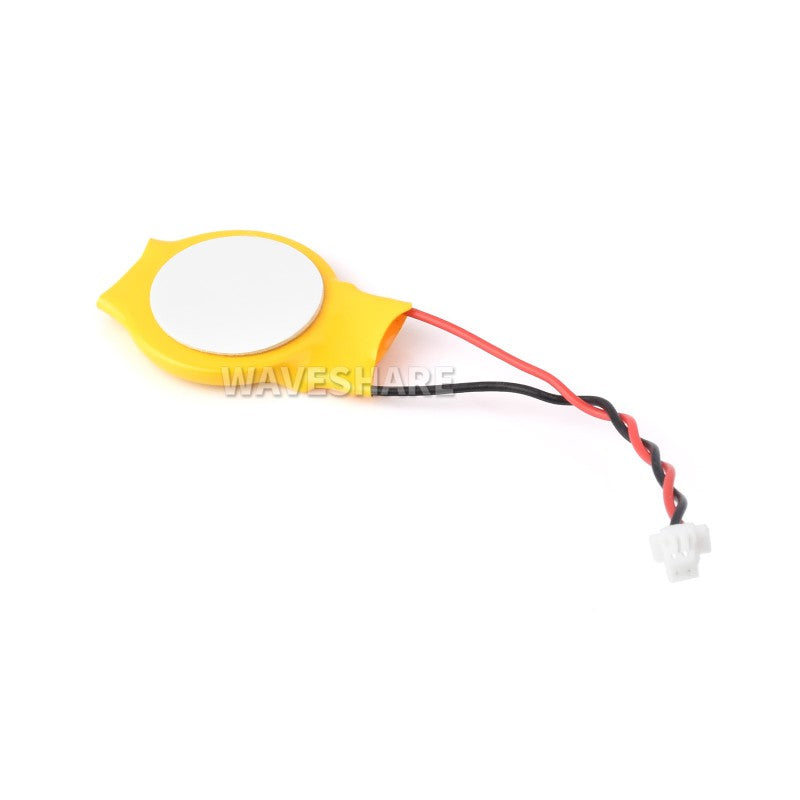

Others with double-sided tape on the back without double-sided tape on the back



Application Example

the RTC-Battery-A and RTC-Battery-B
Support Recharging via the Raspberry Pi 5, ensuring longer battery life

* the RTC-Battery-C (180mAh) does not support recharging

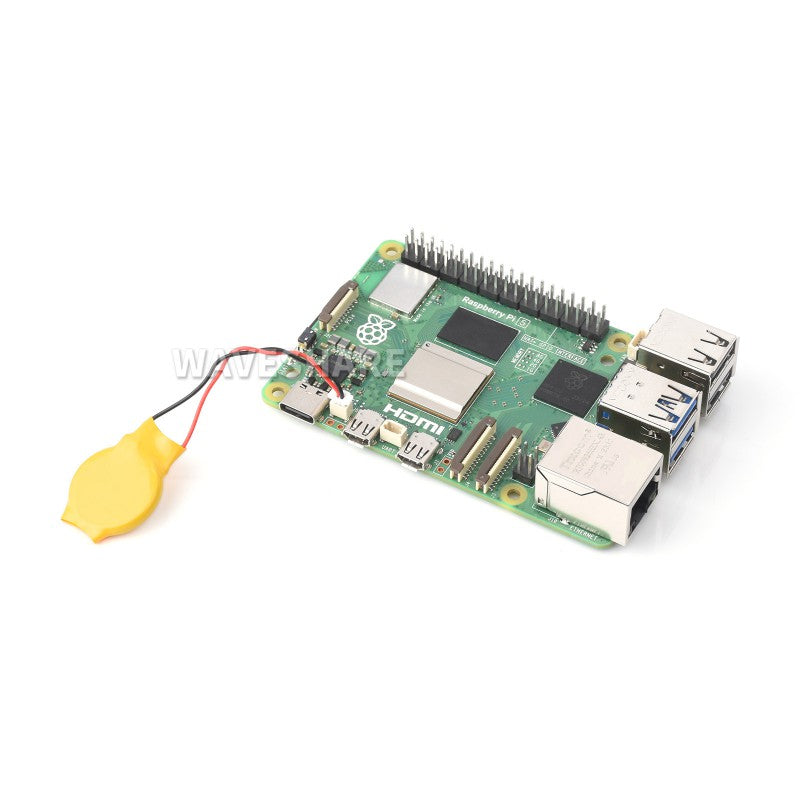

RTC Battery connects with Raspberry Pi 5

* for reference only, the Raspberry Pi 5 is NOT included.

Which devices are compatible with the RTC battery?
Compatible with Raspberry Pi 5 and Luckfox Pico Ultra series.
What are the available battery capacities and which versions support recharging?
Version A is 25mAh, Version B is 64mAh, Version C is 180mAh. Versions A and B support recharging via the Raspberry Pi 5, while Version C does not.
How do I install and connect the battery to the Raspberry Pi 5?
It uses a 2PIN JST connector with a 50 mm cable. Connect to the RTC header on the board and secure the unit as needed.
What safety precautions should I follow when using this battery?
Do not reverse polarity when recharging or discharging the battery. Do not mix old and new batteries or different brands, use a proper charger, and keep away from inflammables and children.
How long does the battery last and when should I replace it?
After 300 recharge cycles, capacity remains above 80 percent of the initial level. Replace the battery when it reaches its max cycle life or after two years, whichever comes first.
