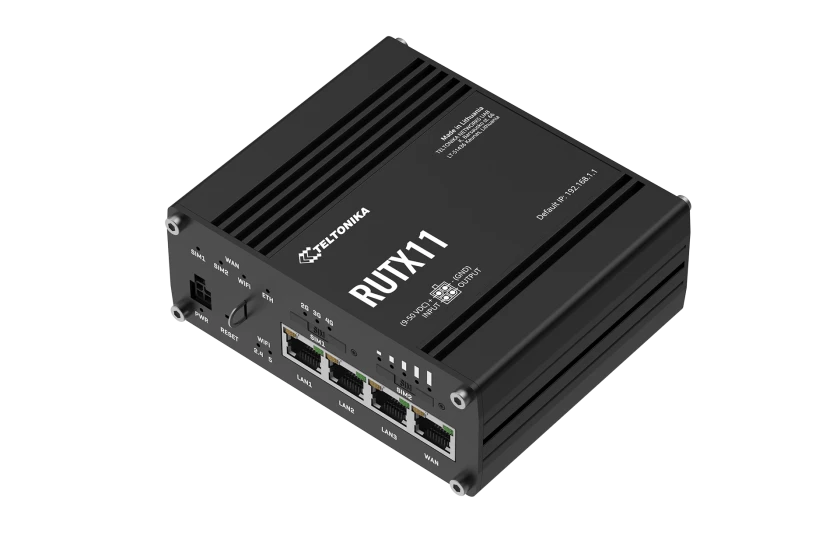

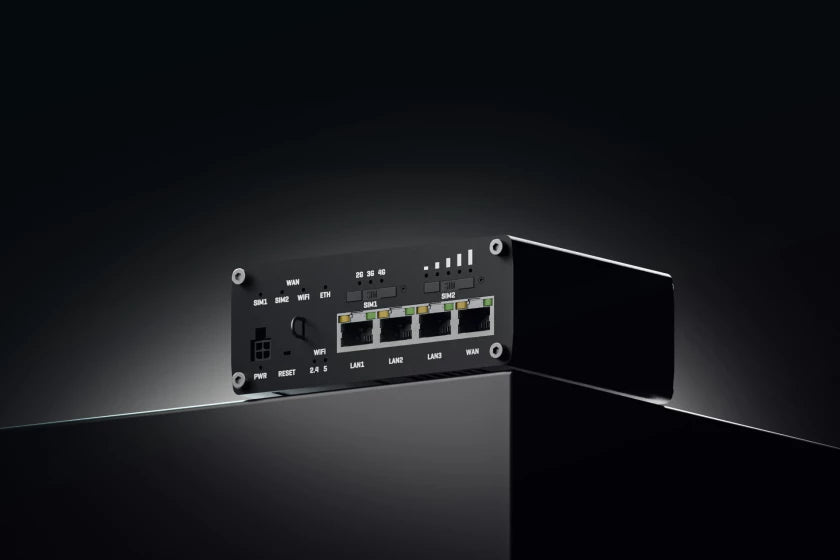

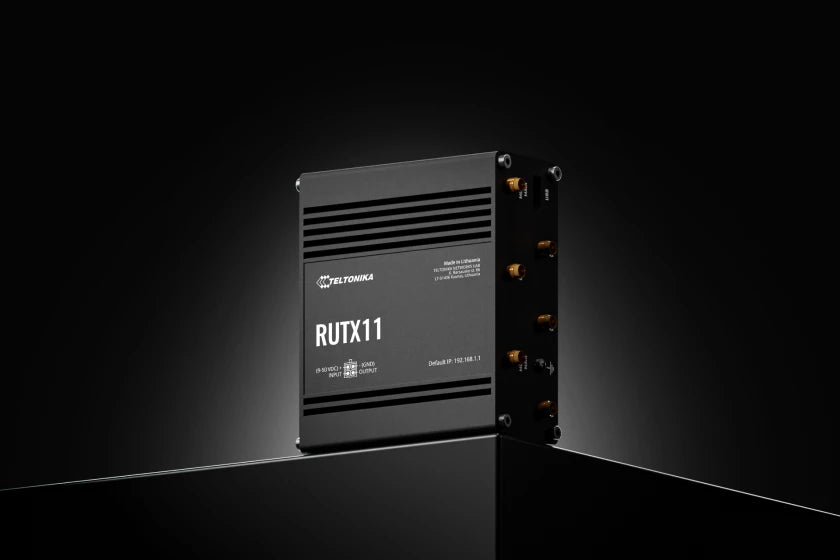

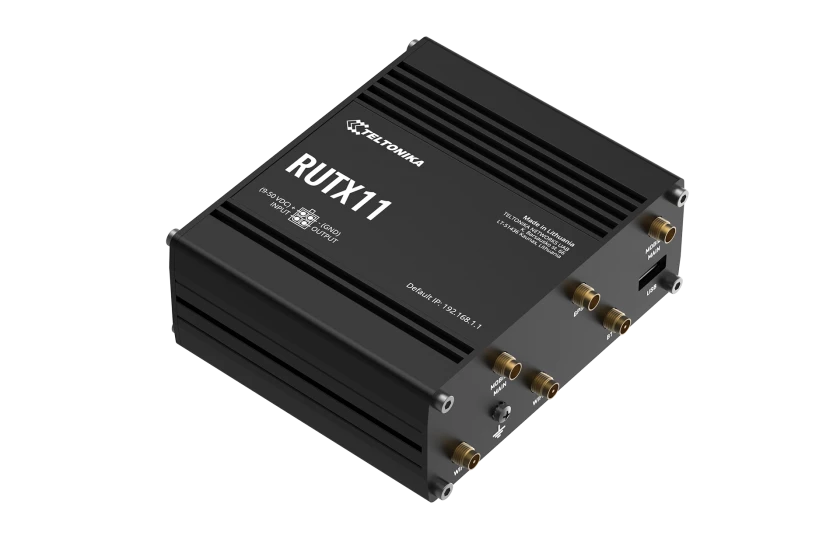

RUTX11 - Industrial Cellular Router

Name: RUTX11 - Industrial Cellular Router
Brand: Teltonika Networks
SKU: ELC8723
Price: 36699.99 INR
Availability: InStock

SKU: ELC8723

₹ 36,699.99

₹ 36,699.99 ~~₹ 73,399.99~~

Sale Sold out

/

Tax included. Shipping calculated at checkout.

Looking for Bulk?

This is a pre order item. We will ship it when it comes in stock.

Quantity must be 1 or more

Description

This powerful LTE Cat 6 cellular router is designed for professional applications requiring reliable, fast connection and high data throughput. The RUTX11 is equipped with four Gigabit Ethernet ports, AC Wi-Fi, Bluetooth LE, and is EN 45545-2-certified, making it approved for use in passenger trains across Europe.

Standard package*

Router RUTX11
18 W PSU
2x Mobile antennas (swivel, SMA male)
2x Wi-Fi antennas (swivel, RP-SMA male)
1x GNSS antenna (adhesive, SMA male, 3 m cable)
1x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable)
Ethernet cable (1.5 m)
SIM Adapter kit
QSG (Quick Start Guide)
Packaging box

*Standard package contents may differ based on standard order codes.

Features

Mobile

Feature	Details
Mobile Module	4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps.
3GPP Release	Release 12
SIM Switch	2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection.
Status	IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC.
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP.
USSD	Supports sending and reading Unstructured Supplementary Service Data messages.
Black/White List	Operator black/white list (by country or separate operators).
Multiple PDN	Possibility to use different PDNs for multiple network access and services.
Band Management	Band lock, Used band status display.
SIM Idle Protection Service	The SIM not currently in use remains idle until switched to, preventing data usage on the card until necessary.
SIM PIN Code Management	Manage, set, change, or disable the SIM card's PIN.
APN	Auto APN configuration.
Bridge	Direct connection (bridge) between mobile ISP and device on LAN.
Passthrough	Router assigns its mobile WAN IP address to another device on LAN.

Wireless

Feature	Details
Wireless Mode	802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA).
Wi-Fi Security	WPA2-Enterprise, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, Auto-cipher modes, EAP-TLS, disable auto-reconnect, 802.11w PMF.
SSID/ESSID	ESSID stealth mode.
Wi-Fi Users	Up to 150 simultaneous connections.
Wireless Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k).
Wireless MAC Filter	Allowlist, blocklist options.
Wireless QR Code Generator	Scan a QR code to automatically join the network without needing to input login details.
TravelMate	Forward Wi-Fi hotspot landing page to a subsequent connected device.
Bluetooth	Bluetooth 4.0 Low Energy (LE) for short-range communication.

Ethernet

Feature	Details
WAN	1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover.
LAN	3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover.

Network

Feature	Details
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing.
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN.
VoIP Passthrough Support	H.323 and SIP-alg protocol NAT helpers for VoIP routing.
Connection Monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection.
Firewall	Port forwarding, traffic rules, custom rules, TTL target customization.
Firewall Status Page	View all Firewall statistics, rules, and rule counters.
Ports Management	View device ports, enable/disable, configure speeds.
Network Topology	Visual representation of the network's device connections.
Hotspot	Captive portal, Radius authentication, user management, landing page options, customizable themes.
DHCP	Static and dynamic IP allocation, DHCP relay, server configuration.
QoS / Smart Queue Management (SQM)	Traffic priority by source/destination, service, protocol, or port, WMM, 802.11e.
DDNS	Support for over 25 service providers, manual configuration available.
DNS over HTTPS	Secure DNS resolution over HTTPS.
Network Backup	Failover support for Wi-Fi WAN, Mobile, VRRP, Wired options.
Load Balancing	Balance Internet traffic over multiple WAN connections.
SSHFS	Mount remote file system via SSH protocol.
VRF Support	Initial virtual routing and forwarding support.

Traffic Management

Feature	Details
Traffic Management	Real-time monitoring, wireless signal charts, traffic usage history.

Security

Feature	Details
802.1x	Port-based network access control client.
Authentication	Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator.
Firewall	Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64.
Attack Prevention	DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks).
VLAN	Port and tag-based VLAN separation.
Mobile Quota Control	Mobile data limit, customizable period, start time, warning limit, phone number.
WEB Filter	Blacklist for blocking unwanted websites, Whitelist for specifying allowed sites only.
Access Control	Flexible access control of SSH, Web interface, CLI, and Telnet.
SSL Certificate Generation	Let's Encrypt and SCEP certificate generation methods.

VPN

Feature	Details
OpenVPN	Multiple clients and a server can run simultaneously, with 27 encryption methods.
OpenVPN Encryption	Supports various encryption methods such as DES-CBC, AES, RC2, BF, CAST5, and more.
IPsec	XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES GCM, and others).
GRE	GRE tunnel and GRE tunnel over IPsec support.
PPTP, L2TP	Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support.
Stunnel	Proxy designed to add TLS encryption functionality to existing clients and servers without code changes.
DMVPN	Method of building scalable IPsec VPNs, with Phase 2, Phase 3, and Dual Hub support.
SSTP	SSTP client instance support.
ZeroTier	ZeroTier VPN client support.
WireGuard	WireGuard VPN client and server support.
Tinc	Tinc offers encryption, authentication, and compression in its tunnels. Client and server support.
Tailscale	Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol.

Protocols Supported

Protocol	Details
OPC UA	Supported modes: Client, Server. Supported connection types: TCP.
MODBUS	Supported modes: Server, Client. Supported connection types: TCP, USB. Custom registers for MODBUS TCP custom register block requests, which read/write to a file inside the router, and can extend MODBUS TCP Client functionality. Supported data formats: 8-bit, 16-bit, and 32-bit (INT, UINT, float, HEX, ASCII, etc.).

Data to Server

Feature	Details
Protocol	HTTP(S), MQTT, Azure MQTT, Kinesis
Data to Server	Extract parameters from multiple sources and different protocols, and send them all to a single server. Custom LUA scripting allows scripts to utilize the router's Data to server feature.

MQTT Gateway

Feature	Details
Modbus MQTT Gateway	Allows sending commands and receiving data from MODBUS Server through MQTT broker.

DNP3

Feature	Details
Supported Modes	Station, Outstation
Supported Connection	TCP, USB

DLMS

Feature	Details
DLMS Support	DLMS - standard protocol for utility meter data exchange
Supported Modes	Client
Supported Connection Types	TCP, USB

COSEM

Feature	Details
COSEM	Allows scanning meter COSEM objects for automatic detection and configuration.

API

Feature	Details
Teltonika Networks Web API (Beta)	Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, refer to Teltonika Developers.

Monitoring & Management

Feature	Details
WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshooting, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status.
FOTA	Firmware update from server, automatic notification.
SSH	SSH (v1, v2).
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET.
Call	Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off.
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem.
MQTT	MQTT Broker, MQTT publisher.
SNMP	SNMP (v1, v2, v3), SNMP Trap, Brute force protection.
JSON-RPC	Management API over HTTP/HTTPS.
RMS	Teltonika Remote Management System (RMS).

IoT Platforms

Platform	Details
ThingWorx	Allows monitoring of WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type.
Cumulocity - Cloud of Things	Allows monitoring of Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions.
Azure IoT Hub	Can be configured with Data to Server to send all available parameters to the cloud. Has Direct method support to execute RutOS API calls on the IoT Hub. Offers Plug and Play integration with Device Provisioning Service for zero-touch device provisioning.
AWS IoT Core	Utility to interact with the AWS cloud platform. Supports Jobs functionality to call the device's API via AWS Jobs.

System Characteristics

Feature	Details
CPU	Quad-core ARM Cortex A7, 717 MHz.
RAM	256 MB, DDR3.
FLASH storage	256 MB, SPI Flash.

Firmware / Configuration

Feature	Details
WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup.
FOTA	Update FW.
RMS	Update FW/configuration for multiple devices at once.
Keep settings	Update FW without losing current configuration.
Factory settings reset	Restores all system settings to default configuration, including IP address, PIN, and user data.

Firmware Customization

Feature	Details
Operating System	RutOS (OpenWrt based Linux OS).
Supported Languages	Busybox shell, Lua, C, C++, Python, Java in Package manager.
Development tools	SDK package with build environment provided.
GPL Customization	Allows you to create custom, branded firmware and web page applications, changing colors, logos, and other elements.
Package Manager	A service used to install additional software on the device.

Location Tracking

Feature	Details
GNSS	GPS, GLONASS, BeiDou, Galileo, and QZSS.
Coordinates	GNSS coordinates via WebUI, SMS, TAVL, RMS.
NMEA	NMEA 0183.
NTRIP	NTRIP protocol (Networked Transport of RTCM via Internet Protocol).
Server Software	Supported server software includes TAVL, RMS.
Geofencing	Configurable multiple geofence zones.

USB

Feature	Details
Data rate	USB 2.0.
Applications	Samba share, USB-to-serial.
External Devices	Connect external HDD, flash drive, additional modem, printer, USB-serial adapter.
Storage Formats	FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4.

Input / Output

Feature	Details
Input	1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high.
Output	1 x Digital Output, Open collector output, max output 30 V, 300 mA.
Events	Email, RMS, SMS.
I/O Juggler	Allows setting certain I/O conditions to initiate an event.

Power

Feature	Details
Connector	4-pin industrial DC power socket.
Input Voltage Range	9 - 50 VDC, reverse polarity protection, voltage surge/transient protection.
Railway Version Voltage Range	24 - 36 VDC for the railway version of RUTX11 020G00.
PoE (Passive)	Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at, and 802.3bt standards, Mode B, 9 - 50 VDC.
Power Consumption	16 W Max.

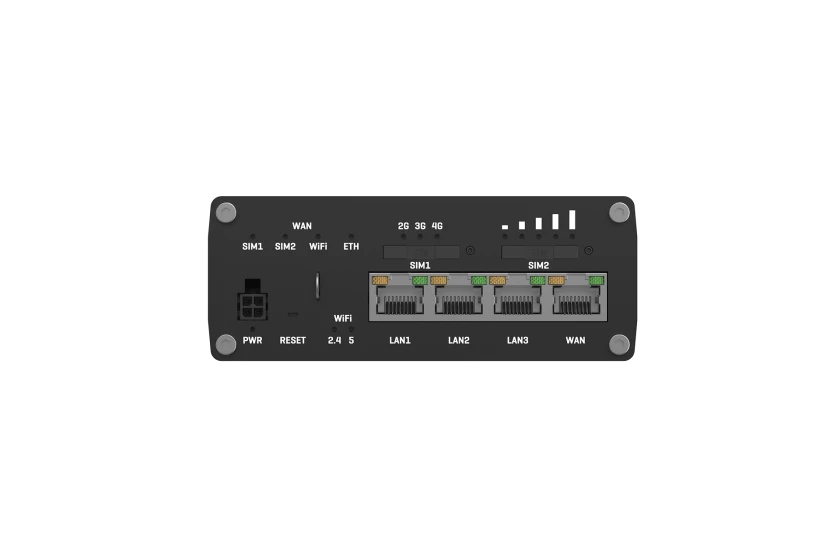

Physical Interfaces

Feature	Details
Ethernet	4 x RJ45 ports, 10/100/1000 Mbps.
I/O’s	1 x Digital Input, 1 x Digital Output on 4-pin power connector.
Status LEDs	4 x WAN type LEDs, 2 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi.
SIM	2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders.
Power	1 x 4-pin power connector.

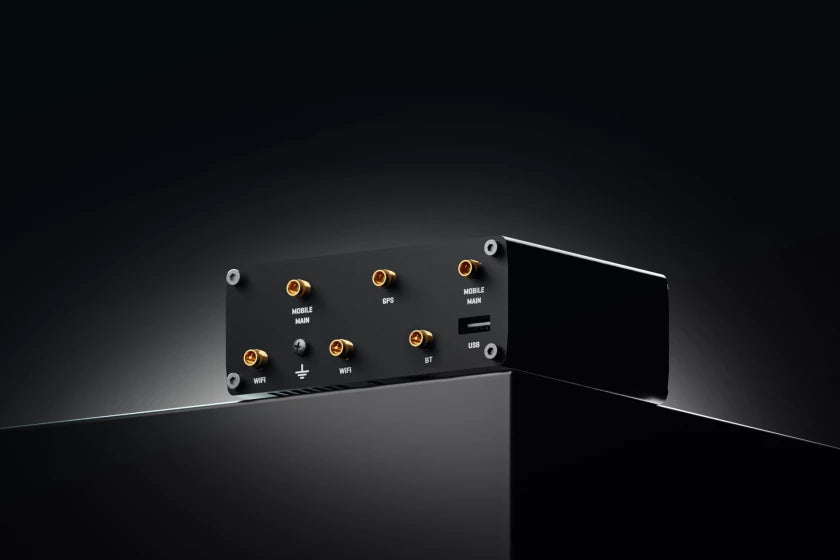

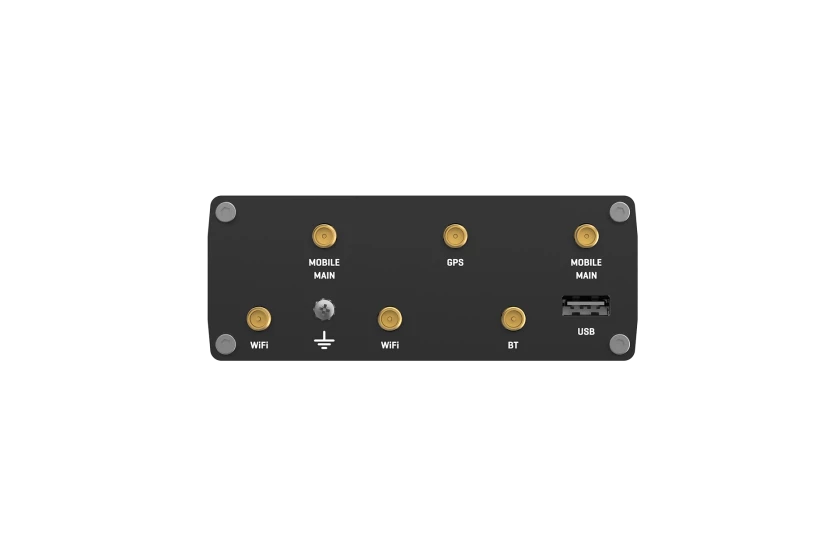

Antennas	2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS.
USB	1 x USB A port for external devices.
Reset	Reboot/User default reset/Factory reset button.
Other	1 x Grounding screw.

Physical Specification

Feature	Details
Casing Material	Aluminium housing.
Dimensions (W x H x D)	115 x 44.2 x 95.1 mm.
Weight	456 g.
Mounting Options	DIN rail, wall mount, flat surface (all require additional kit).

Operating Environment

Feature	Details
Operating Temperature	-40 °C to 75 °C.
Operating Humidity	10% to 90% non-condensing.
Ingress Protection Rating	IP30.

Regulatory & Type Approvals

Category	Approvals
Regulatory	CE, UKCA, EAC, UCRF, CITC, ICASA, ANRT, FCC, IC, PTCRB, RCM, IMDA, SIRIM, NTC, E-mark, Railway, UL/CSA Safety, CB.
Operator	AT&T, Verizon, T-Mobile, Deutsche Telekom AG.
Vehicle	ECE R10 (E-mark).
EMC Emissions & Immunity Standards	EN 55032:2015 + A11:2020, EN 55035:2017 + A11:2020, EN 301 489-1 V2.2.3, Draft EN 301 489-3 V2.1.2, EN 301 489-17 V3.2.4, Draft EN 301 489-19 V2.2.0, EN 301 489-52 V1.2.1.
ESD	EN 61000-4-2:2009.
Radiated Immunity	EN IEC 61000-4-3:2006 + A1:2008 + A2:2010.
EFT	EN 61000-4-4:2012.
Surge Immunity (AC Mains Power Port)	EN 61000-4-5:2014 + A1:2017.
Surge Immunity (AC Power Line)	EN 61000-4-5:2014 + A1:2017.
CS	EN 61000-4-6:2014.
DIP	EN 61000-4-11:2004.
RF Standards	EN 301 908-1 V15.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1, EN 300 328 V2.2.2, EN 301 893 V2.1.1, EN 303 413 V1.2.1, EN 300 440 V2.2.1.
Safety Standards	CE: EN 62368-1:2014 + A11:2017, EN IEC 62311:2020, EN 50665:2017; UL/CSA Safety: UL 62368-1, CAN/CSA C22.2 No. 62368-1:19, RCM: AS/NZS 60950.1:2015, CB: IEC 62368-1.

EMC Emissions & Immunity Standards

Standard	Details
EN 55032:2015 + A11:2020	Electromagnetic compatibility standards for multimedia equipment.
EN 55035:2017 + A11:2020	EMC immunity requirements for multimedia equipment.
EN 301 489-1 V2.2.3	EMC standard for radio equipment and services.
Draft EN 301 489-3 V2.1.2	Draft version of EMC immunity requirements for short-range devices.
EN 301 489-17 V3.2.4	EMC immunity standards for mobile broadband equipment.
Draft EN 301 489-19 V2.2.0	Draft version of EMC immunity requirements for body-worn devices.
EN 301 489-52 V1.2.1	EMC immunity standards for broadband powerline communication equipment.

ESD (Electrostatic Discharge)

Standard	Details
EN 61000-4-2:2009	Electromagnetic compatibility – testing and measurement techniques – Electrostatic discharge immunity test.

Radiated Immunity

Standard	Details
EN IEC 61000-4-3:2006 + A1:2008 + A2:2010	Electromagnetic compatibility – immunity to radiated electromagnetic fields.

EFT (Electrical Fast Transients)

Standard	Details
EN 61000-4-4:2012	Electromagnetic compatibility – immunity to electrical fast transients/bursts.

Surge Immunity

Standard	Details
EN 61000-4-5:2014 + A1:2017	Electromagnetic compatibility – immunity to surges.
EN 61000-4-5:2014 + A1:2017	Surge immunity for AC power line.

CS (Conducted Susceptibility)

Standard	Details
EN 61000-4-6:2014	Electromagnetic compatibility – immunity to conducted disturbances.

DIP (Dip/Voltage Dips)

Standard	Details
EN 61000-4-11:2004	Electromagnetic compatibility – immunity to dips and voltage interruptions.

RF (Radio Frequency) Standards

Standard	Details
EN 301 908-1 V15.1.1	Standards for harmonized use of radio spectrum for broadband wireless access.
EN 301 908-2 V13.1.1	Frequency arrangements for broadband wireless access systems.
EN 301 908-13 V13.1.1	RF standards for broadband wireless access systems.
EN 300 328 V2.2.2	Electromagnetic compatibility and radio spectrum matters for short-range devices.
EN 301 893 V2.1.1	Electromagnetic compatibility for broadband wireless access in the 5 GHz range.
EN 303 413 V1.2.1	Radio equipment standard for intelligent transport systems.
EN 300 440 V2.2.1	Standards for short-range devices operating in the 1 GHz to 40 GHz frequency range.

Safety Standards

Standard	Details
CE	EN 62368-1:2014 + A11:2017, EN IEC 62311:2020, EN 50665:2017 – Safety requirements for electronic equipment.
UL/CSA Safety	UL 62368-1 (3rd Ed., Rev. December 13, 2019), CAN/CSA C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019) – Safety standards for electronics.
RCM	AS/NZS 60950.1:2015 – Safety standard for electrical and electronic equipment.
CB	IEC 62368-1:2018 – International safety standard for electronic equipment.

Downloads

Manual & Documentation

Links

Welcome to the discussion thread for RUTX11 - Industrial Cellular Router
Feel free to ask questions, share tips or report issues.
