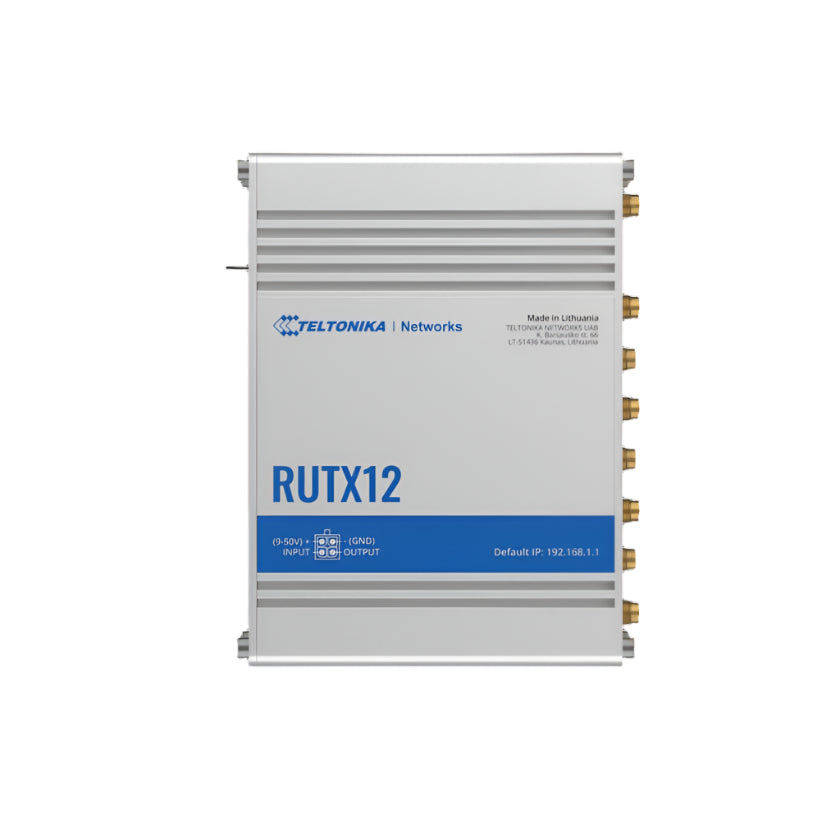

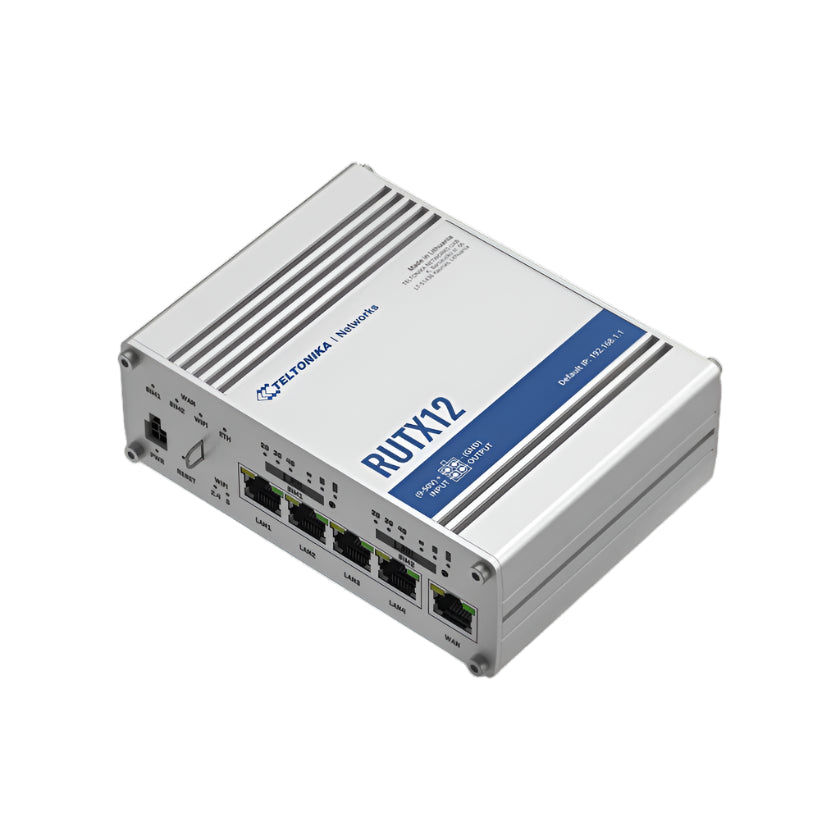

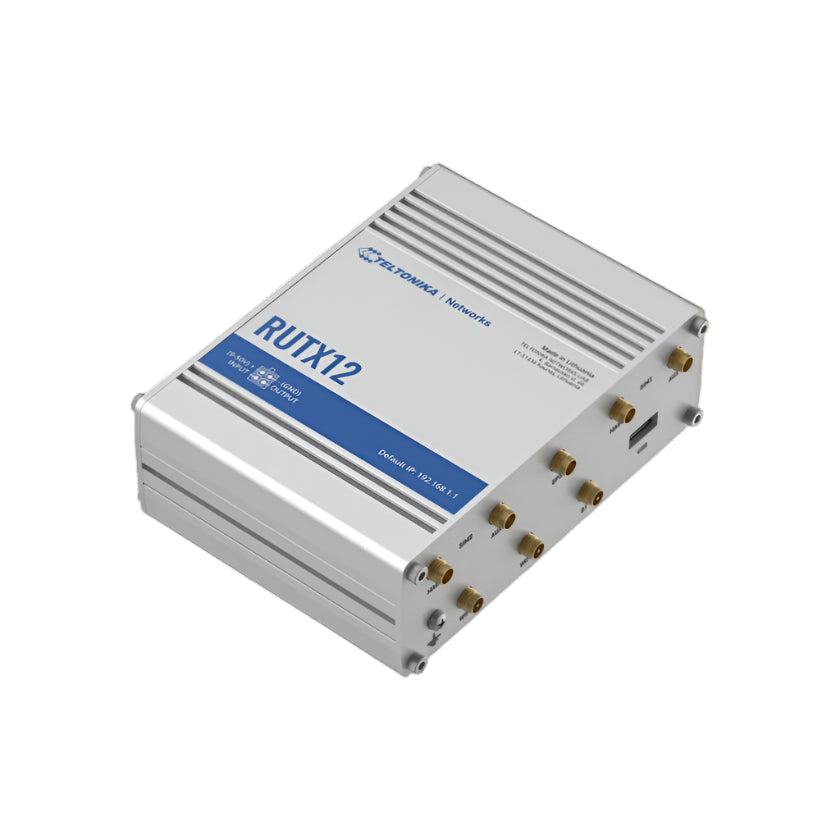

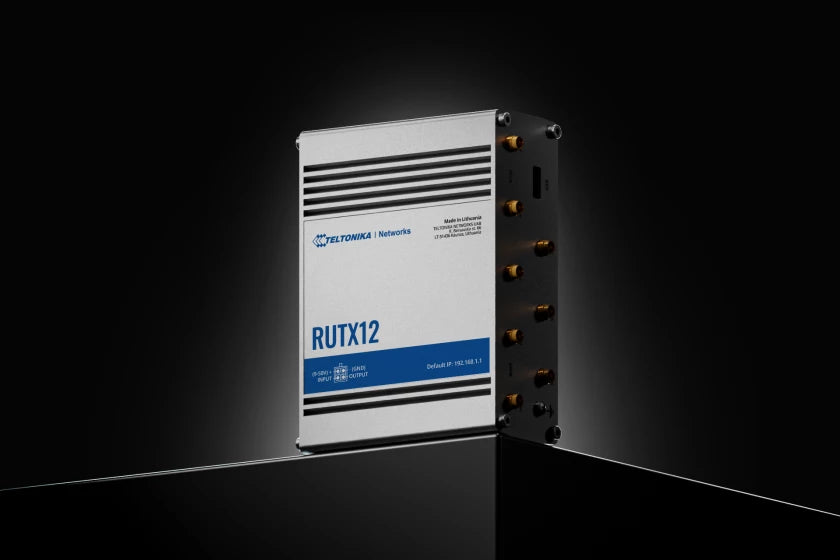

RUTX12 - Dual Lte Cat 6 Industrial Cellular Router

SKU: ELC8725

ā‚¹ 73,699.99 ā‚¹ 107,999.99

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
ā± This is a pre-order item. We'll ship it as soon as it's back in stock.
RUTX12 - Dual Lte Cat 6 Industrial Cellular Routerā‚¹ 73,699.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

This powerful dual LTE Cat 6 router is a great fit for mission-critical applications. Two cellular modems for dual simultaneous connections, seamless mobile service switching and load balancing features make this device irreplaceable in applications where losing connection is not an option.Ā

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Mobile

Component Specification
Mobile Module 2 x 4G LTE Cat 6 (up to 300 Mbps DL / 50 Mbps UL), 3G up to 42 Mbps DL / 5.76 Mbps UL
3GPP Release Release 12
Status Information IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS Features SMS status, configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Support Send and read Unstructured Supplementary Service Data (USSD) messages
Black/White List Operator black/white list by country or individual operators
Multiple PDN Support for using multiple PDNs for various network services
Band Management Band lock, used band status display
SIM Idle Protection SIM not in use remains idle until switched, saving data
SIM PIN Management Set, change, or disable the SIM PIN
APN Management Auto APN detection
Bridge Mode Direct connection between mobile ISP and device on LAN
Passthrough Mode Assign mobile WAN IP to another device on LAN

Ā

Wireless

Component Specification
Wireless Mode 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with speeds up to 867 Mbps, Dual Band, MU-MIMO, 802.11r fast transition, Access Point (AP), Station (STA)
Wi-Fi Security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, 802.11w PMF
SSID/ESSID Features ESSID stealth mode
Wi-Fi Connections Support for up to 150 simultaneous connections
Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filtering Allowlist, blocklist
QR Code Generator Generates QR code for seamless Wi-Fi login
TravelMate Feature Forward Wi-Fi hotspot landing page to subsequent devices

Ā

Bluetooth

Feature Details
Version Bluetooth 4.0
Mode Bluetooth Low Energy (LE) for short-range communication

Ethernet Specifications

Component Details
WAN 1 x WAN port (10/100/1000 Mbps), compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 4 x LAN ports (10/100/1000 Mbps), compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Ā

Network

Feature Details
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL), VXLAN
VoIP Passthrough H.323 and SIP-ALG protocol NAT helpers for proper VoIP packet routing
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwarding, traffic rules, custom rules, TTL target customization
Firewall Status Page View firewall statistics, rules, and counters
Ports Management Manage device ports (enable/disable, configure transmission speed, etc.)
Network Topology Visual representation of your network
Hotspot Captive portal, RADIUS server support, SMS authorization, SSO authentication, landing page options, walled garden, user and group management, custom hotspot themes
DHCP Static/dynamic IP allocation, DHCP relay, server configuration, static leases
QoS / SQM Traffic prioritization by source/destination, protocol, or port; WMM; 802.11e
DDNS Supports >25 service providers, manual configuration available
DNS Over HTTPS Secure DNS resolution via HTTPS proxy
Network Backup Failover options: Wi-Fi WAN, Mobile, VRRP, Wired
Load Balancing Distribute Internet traffic over multiple WAN connections
SSHFS Mount remote file system via SSH protocol
VRF Support Initial virtual routing and forwarding (VRF) support
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history

Ā

Security

Feature Details
802.1x Port-based network access control client
Authentication - Pre-shared key, digital certificates, X.509 certificates
- TACACS+
- Internal & External RADIUS users authentication
- IP & login attempts blocking
- Time-based login blocking
- Built-in random password generator
Firewall - Preconfigured firewall rules via WebUI
- Unlimited configuration via CLI
- DMZ, NAT, NAT-T, NAT64
Attack Prevention - DDoS prevention: SYN flood, SSH, HTTP/HTTPS attack prevention
- Port scan prevention: SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks
VLAN Port-based and tag-based VLAN separation
Mobile Quota Control Mobile data limit with customizable period, start time, warning limit, phone number settings
WEB Filter Blacklist and Whitelist for website blocking or access
Access Control Flexible access to SSH, Web interface, CLI, and Telnet
SSL Certificate Generation Let's Encrypt and SCEP certificate generation methods

Ā

VPN

VPN Type Details
OpenVPN Supports multiple clients and servers simultaneously, with 27 encryption methods
OpenVPN Encryption Various methods including AES-256-GCM, AES-128-CBC, DES-CBC, and more
IPsec XFRM, IKEv1, IKEv2 with 14 encryption methods including AES256-GCM16 and 3DES
GRE GRE tunnels and GRE over IPsec support
PPTP, L2TP Simultaneous client/server instances, L2TPv3, and L2TP over IPsec support
Stunnel Adds TLS encryption functionality to existing applications without modifying their code
DMVPN Supports scalable IPsec VPNs with Phase 2, Phase 3, and Dual Hub
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support for secure networking
WireGuard WireGuard VPN client and server support
Tinc Offers encryption, authentication, and compression in its tunnels (Client/Server support)
Tailscale Encrypted, point-to-point connections using the open-source WireGuard protocol

Ā

OPC UA

Feature Details
Supported Modes Client, Server
Connections TCP

MODBUS

Feature Details
Supported Modes Server, Client
Connections TCP, USB
Custom Registers MODBUS TCP custom register block requests for reading/writing files inside the router. Extends MODBUS TCP Client functionality.
Data Formats 8-bit: INT, UINT
16-bit: INT, UINT (MSB or LSB first)
32-bit: Float, INT, UINT (ABCD, DCBA, CDAB, BADC)
HEX, ASCII

Data to Server

Feature Details
Protocols HTTP(S), MQTT, Azure MQTT, Kinesis
Data Handling Extract parameters from multiple sources and send to a single server. Custom LUA scripting support.

MQTT Gateway

Feature Details
Modbus MQTT Gateway Enables command and data exchange between MODBUS Server and MQTT broker.

DNP3

Feature Details
Supported Modes Station, Outstation
Connections TCP, USB

DLMS

Feature Details
Supported Modes Client
Connections TCP, USB
COSEM Support Automatically scans and configures meter COSEM objects.

Ā

API

Feature Description
Teltonika Networks Web API (beta) Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation.

Monitoring & Management

Feature Description
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status.
FOTA Firmware update from server with automatic notifications.
SSH SSH (v1, v2) support.
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET.
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off.
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem.
MQTT MQTT Broker, MQTT publisher.
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection.
JSON-RPC Management API over HTTP/HTTPS.
RMS Teltonika Remote Management System (RMS).

IoT Platforms

Platform Description
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type.
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions.
Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs.
AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

Ā

System Characteristics

Attribute Details
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH storage 256 MB, SPI Flash

Firmware / Configuration

Attribute Details
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
Factory settings reset A full factory reset restores all system settings, including IP address, PIN, and user data

Firmware Customization

Attribute Details
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++, and Python, Java in Package manager
Development tools SDK package with build environment provided
GPL customization Create your own custom, branded firmware and web page application by changing colors, logos, and other elements
Package Manager A service to install additional software on the device

Ā

Location Tracking

Feature Details
GNSS GPS, GLONASS, BeiDou, Galileo, and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software Supported server software: TAVL, RMS
Geofencing Configurable multiple geofence zones

USB

Feature Details
Data rate USB 2.0
Applications Samba share, USB-to-serial
External devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

Feature Details
Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event

Power

Feature Details
Connector 4-pin industrial DC power socket
Input voltage range 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power consumption Idle: < 4 W, Max: < 22 W

Ā

Physical Interfaces

Interface Details

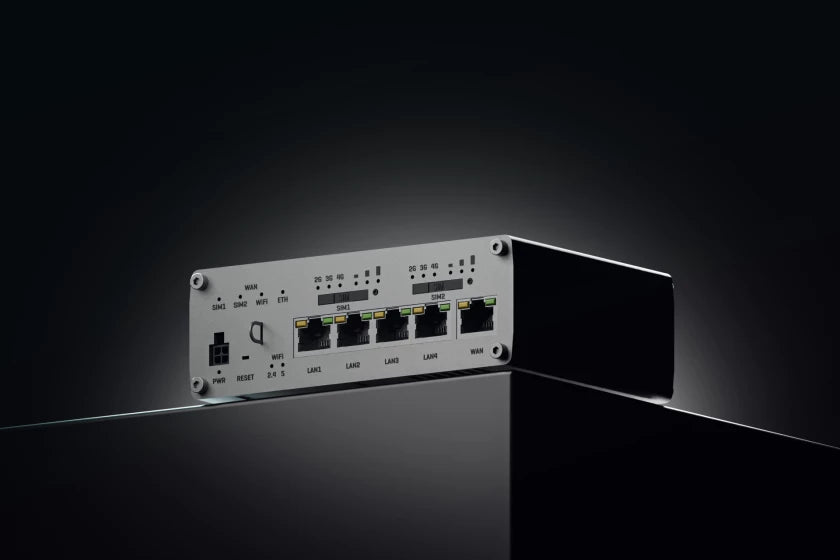

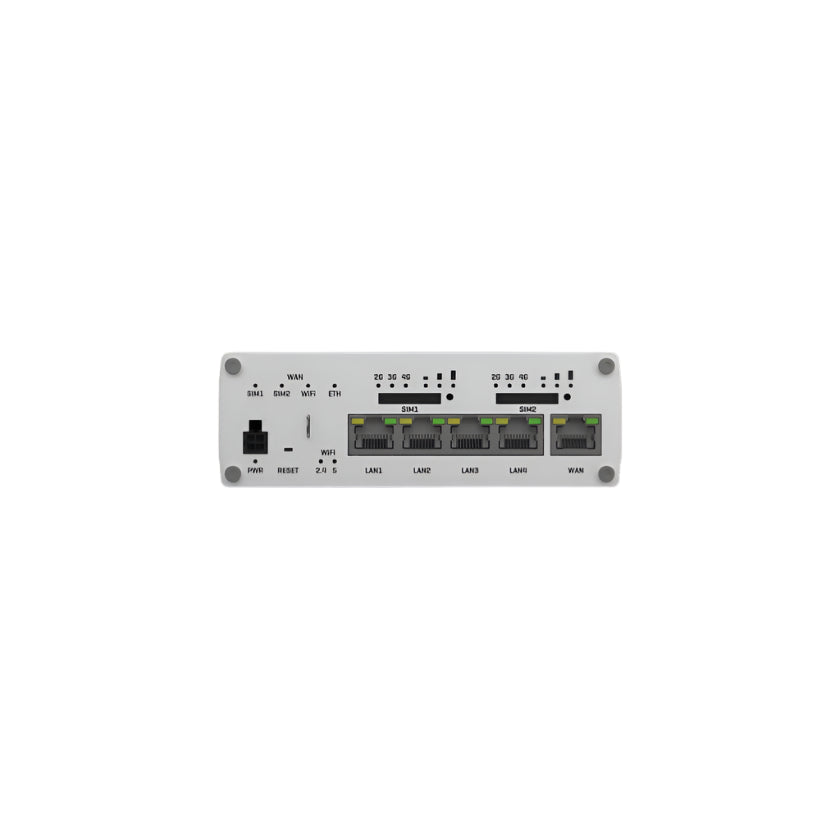

Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
I/Oā€™s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 4 x connection status LEDs, 6 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 1 x 4-pin power connector

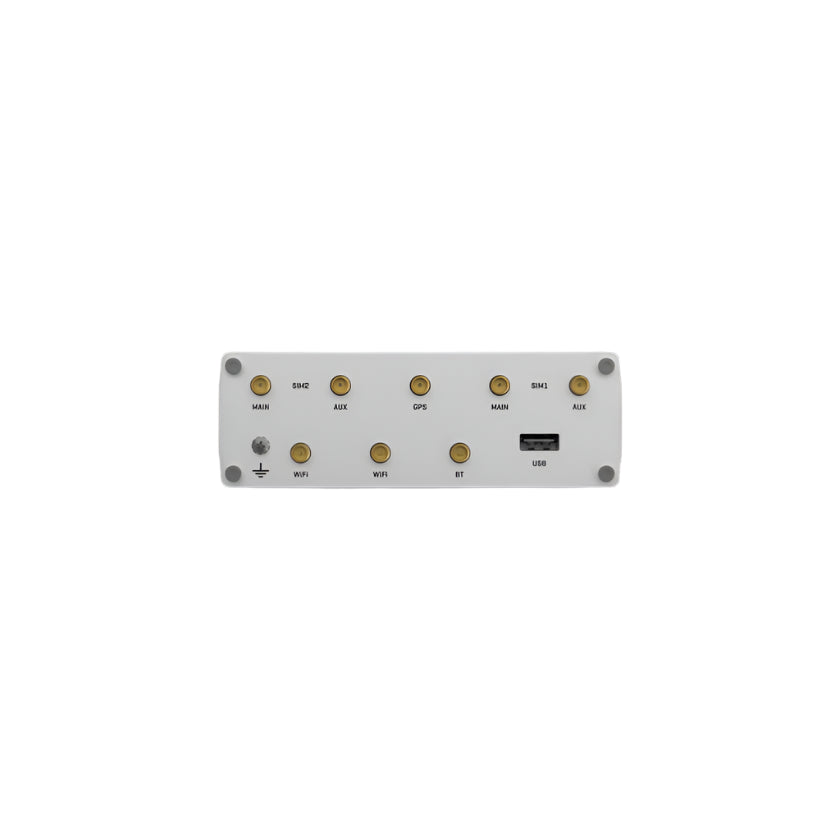

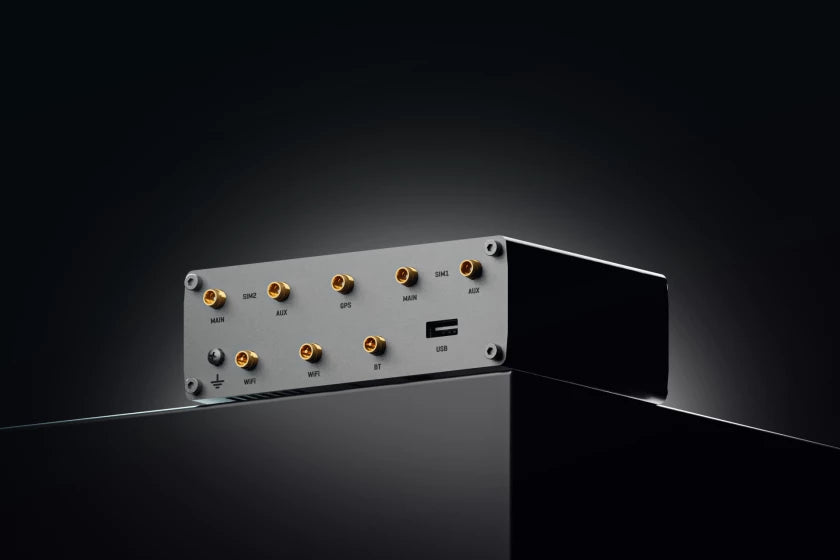

Antennas 4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw

Ā

Physical Specification

Specification Details
Casing Material Full aluminium housing
Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
Weight 540 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)

Ā

Operating Environment

Environment Details
Operating Temperature -40 Ā°C to 75 Ā°C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Regulatory Approval Details
Regulatory CE, UKCA, EAC, UCRF, CITC, ANRT, ICASA, NOM, Anatel, RCM, SIRIM, NTC, NBTC, CB, E-mark

Ā

EMC Emissions & Immunity

Standard Details
Standards EN 55032:2015, EN 55035:2017, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A1:2019, EN 301 489-1:V2.2.3, EN 301 489-3 V2.1.1, EN 301 489-17:V3.2.4, EN 301 489-19 V2.1.1, Draft EN 301 489-52:V1.1.0
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2004 + A1:2017

RF Standards

Standard Details
Standards EN 300 328:V2.2.2, EN 300 440:V2.2.1, EN 301 893 V2.1.1, EN 301 908-1:V13.1.1, EN 301 908-2:V13.1.1, EN 301 908-13:V13.1.1, EN 303 413 V1.1.1

Safety Standards

Standard Details
CE EN IEC 62368-1:2020 + A11:2020
RCM AS/NZS 62368.1:2018
CB IEC 62368-1:2018

Ā

Downloads

Manual & Documentation


Links

RUTX12 QUICK START GUIDE (EN)
FIRMWARE DOWNLOADS
RUTX12 USER MANUAL
CERTIFICATIONS & APPROVALS
PRODUCT CHANGE NOTIFICATIONS
SDK DOWNLOADS
GPL DOWNLOADS
RUTX12 3D MODELS

Ā

Ā

Ā

Ā

What is the RUTX12 used for and what makes it suitable for critical operations?
It is a dual LTE Cat 6 industrial cellular router designed for mission critical applications, with two modems for dual simultaneous connections, seamless network switching, and load balancing.
How many cellular modems does it have and can it use two networks at once?
It has two LTE Cat 6 modems that operate simultaneously for dual connections.
What is included in the standard package?
The standard package includes the RUTX12 unit, 24 W PSU, 4x mobile antennas, 2x wifi antennas, GNSS antenna, Bluetooth antenna, Ethernet cable, SIM adapter kit, QSG, and packaging box; contents may vary by order code.
What are the environmental and durability specs?
The device supports operating temperatures from -40 C to 75 C and has IP30 protection.
How can I get warranty, delivery, or returns information?
Warranty, delivery, and returns details are not specified in the description; please contact the seller for terms and to confirm availability and delivery estimates.
A
Admin
Welcome to the discussion thread for RUTX12 - Dual Lte Cat 6 Industrial Cellular Router
Feel free to ask questions, share tips or report issues.

Discover More In:

Industrial IoT ā†’ Network Accessories ā†’ Teltonika Networks | Official Page ā†’

Category: View similar items (RUTX12)

Fill out the form below and our team will get back to you with bulk pricing.

Description
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

Description

This powerful dual LTE Cat 6 router is a great fit for mission-critical applications. Two cellular modems for dual simultaneous connections, seamless mobile service switching and load balancing features make this device irreplaceable in applications where losing connection is not an option.Ā

Standard package*

*Standard package contents may differ based on standard order codes.

Features

Mobile

Component Specification
Mobile Module 2 x 4G LTE Cat 6 (up to 300 Mbps DL / 50 Mbps UL), 3G up to 42 Mbps DL / 5.76 Mbps UL
3GPP Release Release 12
Status Information IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS Features SMS status, configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Support Send and read Unstructured Supplementary Service Data (USSD) messages
Black/White List Operator black/white list by country or individual operators
Multiple PDN Support for using multiple PDNs for various network services
Band Management Band lock, used band status display
SIM Idle Protection SIM not in use remains idle until switched, saving data
SIM PIN Management Set, change, or disable the SIM PIN
APN Management Auto APN detection
Bridge Mode Direct connection between mobile ISP and device on LAN
Passthrough Mode Assign mobile WAN IP to another device on LAN

Ā

Wireless

Component Specification
Wireless Mode 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with speeds up to 867 Mbps, Dual Band, MU-MIMO, 802.11r fast transition, Access Point (AP), Station (STA)
Wi-Fi Security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, 802.11w PMF
SSID/ESSID Features ESSID stealth mode
Wi-Fi Connections Support for up to 150 simultaneous connections
Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filtering Allowlist, blocklist
QR Code Generator Generates QR code for seamless Wi-Fi login
TravelMate Feature Forward Wi-Fi hotspot landing page to subsequent devices

Ā

Bluetooth

Feature Details
Version Bluetooth 4.0
Mode Bluetooth Low Energy (LE) for short-range communication

Ethernet Specifications

Component Details
WAN 1 x WAN port (10/100/1000 Mbps), compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 4 x LAN ports (10/100/1000 Mbps), compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Ā

Network

Feature Details
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL), VXLAN
VoIP Passthrough H.323 and SIP-ALG protocol NAT helpers for proper VoIP packet routing
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwarding, traffic rules, custom rules, TTL target customization
Firewall Status Page View firewall statistics, rules, and counters
Ports Management Manage device ports (enable/disable, configure transmission speed, etc.)
Network Topology Visual representation of your network
Hotspot Captive portal, RADIUS server support, SMS authorization, SSO authentication, landing page options, walled garden, user and group management, custom hotspot themes
DHCP Static/dynamic IP allocation, DHCP relay, server configuration, static leases
QoS / SQM Traffic prioritization by source/destination, protocol, or port; WMM; 802.11e
DDNS Supports >25 service providers, manual configuration available
DNS Over HTTPS Secure DNS resolution via HTTPS proxy
Network Backup Failover options: Wi-Fi WAN, Mobile, VRRP, Wired
Load Balancing Distribute Internet traffic over multiple WAN connections
SSHFS Mount remote file system via SSH protocol
VRF Support Initial virtual routing and forwarding (VRF) support
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history

Ā

Security

Feature Details
802.1x Port-based network access control client
Authentication - Pre-shared key, digital certificates, X.509 certificates
- TACACS+
- Internal & External RADIUS users authentication
- IP & login attempts blocking
- Time-based login blocking
- Built-in random password generator
Firewall - Preconfigured firewall rules via WebUI
- Unlimited configuration via CLI
- DMZ, NAT, NAT-T, NAT64
Attack Prevention - DDoS prevention: SYN flood, SSH, HTTP/HTTPS attack prevention
- Port scan prevention: SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks
VLAN Port-based and tag-based VLAN separation
Mobile Quota Control Mobile data limit with customizable period, start time, warning limit, phone number settings
WEB Filter Blacklist and Whitelist for website blocking or access
Access Control Flexible access to SSH, Web interface, CLI, and Telnet
SSL Certificate Generation Let's Encrypt and SCEP certificate generation methods

Ā

VPN

VPN Type Details
OpenVPN Supports multiple clients and servers simultaneously, with 27 encryption methods
OpenVPN Encryption Various methods including AES-256-GCM, AES-128-CBC, DES-CBC, and more
IPsec XFRM, IKEv1, IKEv2 with 14 encryption methods including AES256-GCM16 and 3DES
GRE GRE tunnels and GRE over IPsec support
PPTP, L2TP Simultaneous client/server instances, L2TPv3, and L2TP over IPsec support
Stunnel Adds TLS encryption functionality to existing applications without modifying their code
DMVPN Supports scalable IPsec VPNs with Phase 2, Phase 3, and Dual Hub
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support for secure networking
WireGuard WireGuard VPN client and server support
Tinc Offers encryption, authentication, and compression in its tunnels (Client/Server support)
Tailscale Encrypted, point-to-point connections using the open-source WireGuard protocol

Ā

OPC UA

Feature Details
Supported Modes Client, Server
Connections TCP

MODBUS

Feature Details
Supported Modes Server, Client
Connections TCP, USB
Custom Registers MODBUS TCP custom register block requests for reading/writing files inside the router. Extends MODBUS TCP Client functionality.
Data Formats 8-bit: INT, UINT
16-bit: INT, UINT (MSB or LSB first)
32-bit: Float, INT, UINT (ABCD, DCBA, CDAB, BADC)
HEX, ASCII

Data to Server

Feature Details
Protocols HTTP(S), MQTT, Azure MQTT, Kinesis
Data Handling Extract parameters from multiple sources and send to a single server. Custom LUA scripting support.

MQTT Gateway

Feature Details
Modbus MQTT Gateway Enables command and data exchange between MODBUS Server and MQTT broker.

DNP3

Feature Details
Supported Modes Station, Outstation
Connections TCP, USB

DLMS

Feature Details
Supported Modes Client
Connections TCP, USB
COSEM Support Automatically scans and configures meter COSEM objects.

Ā

API

Feature Description
Teltonika Networks Web API (beta) Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation.

Monitoring & Management

Feature Description
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status.
FOTA Firmware update from server with automatic notifications.
SSH SSH (v1, v2) support.
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET.
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off.
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem.
MQTT MQTT Broker, MQTT publisher.
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection.
JSON-RPC Management API over HTTP/HTTPS.
RMS Teltonika Remote Management System (RMS).

IoT Platforms

Platform Description
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type.
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions.
Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs.
AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

Ā

System Characteristics

Attribute Details
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH storage 256 MB, SPI Flash

Firmware / Configuration

Attribute Details
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
Factory settings reset A full factory reset restores all system settings, including IP address, PIN, and user data

Firmware Customization

Attribute Details
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++, and Python, Java in Package manager
Development tools SDK package with build environment provided
GPL customization Create your own custom, branded firmware and web page application by changing colors, logos, and other elements
Package Manager A service to install additional software on the device

Ā

Location Tracking

Feature Details
GNSS GPS, GLONASS, BeiDou, Galileo, and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software Supported server software: TAVL, RMS
Geofencing Configurable multiple geofence zones

USB

Feature Details
Data rate USB 2.0
Applications Samba share, USB-to-serial
External devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

Feature Details
Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event

Power

Feature Details
Connector 4-pin industrial DC power socket
Input voltage range 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power consumption Idle: < 4 W, Max: < 22 W

Ā

Physical Interfaces

Interface Details
Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
I/Oā€™s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 4 x connection status LEDs, 6 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 1 x 4-pin power connector
Antennas 4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw

Ā

Physical Specification

Specification Details
Casing Material Full aluminium housing
Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
Weight 540 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)

Ā

Operating Environment

Environment Details
Operating Temperature -40 Ā°C to 75 Ā°C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Regulatory Approval Details
Regulatory CE, UKCA, EAC, UCRF, CITC, ANRT, ICASA, NOM, Anatel, RCM, SIRIM, NTC, NBTC, CB, E-mark

Ā

EMC Emissions & Immunity

Standard Details
Standards EN 55032:2015, EN 55035:2017, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A1:2019, EN 301 489-1:V2.2.3, EN 301 489-3 V2.1.1, EN 301 489-17:V3.2.4, EN 301 489-19 V2.1.1, Draft EN 301 489-52:V1.1.0
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EFT EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
CS EN 61000-4-6:2014
DIP EN 61000-4-11:2004 + A1:2017

RF Standards

Standard Details
Standards EN 300 328:V2.2.2, EN 300 440:V2.2.1, EN 301 893 V2.1.1, EN 301 908-1:V13.1.1, EN 301 908-2:V13.1.1, EN 301 908-13:V13.1.1, EN 303 413 V1.1.1

Safety Standards

Standard Details
CE EN IEC 62368-1:2020 + A11:2020
RCM AS/NZS 62368.1:2018
CB IEC 62368-1:2018

Ā

Downloads

Manual & Documentation


Links

RUTX12 QUICK START GUIDE (EN)
FIRMWARE DOWNLOADS
RUTX12 USER MANUAL
CERTIFICATIONS & APPROVALS
PRODUCT CHANGE NOTIFICATIONS
SDK DOWNLOADS
GPL DOWNLOADS
RUTX12 3D MODELS

Ā

Ā

Ā

Ā

FAQ
What is the RUTX12 used for and what makes it suitable for critical operations?
It is a dual LTE Cat 6 industrial cellular router designed for mission critical applications, with two modems for dual simultaneous connections, seamless network switching, and load balancing.
How many cellular modems does it have and can it use two networks at once?
It has two LTE Cat 6 modems that operate simultaneously for dual connections.
What is included in the standard package?
The standard package includes the RUTX12 unit, 24 W PSU, 4x mobile antennas, 2x wifi antennas, GNSS antenna, Bluetooth antenna, Ethernet cable, SIM adapter kit, QSG, and packaging box; contents may vary by order code.
What are the environmental and durability specs?
The device supports operating temperatures from -40 C to 75 C and has IP30 protection.
How can I get warranty, delivery, or returns information?
Warranty, delivery, and returns details are not specified in the description; please contact the seller for terms and to confirm availability and delivery estimates.
Reviews
Forum
A
Admin
Welcome to the discussion thread for RUTX12 - Dual Lte Cat 6 Industrial Cellular Router
Feel free to ask questions, share tips or report issues.
Similar Products

Discover More In:

Industrial IoT ā†’ Network Accessories ā†’ Teltonika Networks | Official Page ā†’

Category: View similar items (RUTX12)

Bulk Order

Fill out the form below and our team will get back to you with bulk pricing.

Custom Requirements?

Meet with our team

Related products

Related products

0106-14

Waldom Electonics

0106-14

ā‚¹ 2,623.53
