Cube Eye S100D - ToF 3D Depth Camera
Need Support? Click Here
Free Delivery Above ₹999

Best seller

Meeree Company Cubereye

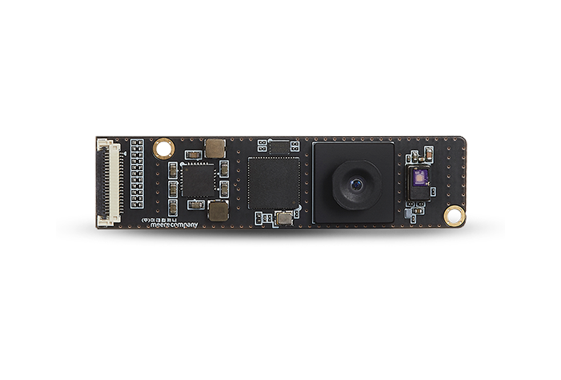

Cube Eye S100D - ToF 3D Depth Camera

SKU: ELC1204DU

₹ 20,999.99 ₹ 24,999.99

In stock | Ready to ship

Select variant

S100DU
⚠ Only a few left in stock. Order soon.
⏱ High demand right now.
📦 Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Cube Eye S100D - ToF 3D Depth CameraS100DU₹ 20,999.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

High Resolution (TRUE VGA)

ToF 3D Depth Camera - S100D

Customizations are possible for this product. Prices change significantly for bulk orders.
meerecompany S100D ToF 3D Depth Camera measures an object’s distance by pixel unit. The 3D Time-of-Flight (ToF) cameras achieve this via a laser diode illuminator and a receiver. The S100D Camera illuminates an object or a scene with a modulated light source and observes the light reflected from the object. The phase shift between the emitted light and reflected light is measured and translated to distance.

The meerecompany S100D ToF 3D Depth Camera offers true VGA resolution and low power consumption in a compact design. The S100D provides a 0.2m to 4m operating range and VGA (640 x 480) depth pixel count.



FEATURES

  • TRUE VGA resolution
  • Low power consumption
  • Compact design

Schematic - meerecompany S100D ToF 3D Depth Camera



Specifications

  • Operating Range 0.25 ~ 4.0m
  • Illuminator 940nm, 4W x 1ea
  • Depth Pixel Count True VGA (640 X 480)
  • Field of View (H,V) 60°(H) X 45°(V)
  • Output Data(bit) Depth / Amplitude / Point Cloud
  • Accuracy <±1% by Distance
  • S100DM: MIPI Interface
  • S100DU: USB Interface



Interface

  • Data Interface MIPI CSI-2, USB3.0
  • Frame Rate 7.5~30fps



Software (SDK)

  • USB Drivers Windows(x64), Linux(x64)
  • API C++, Python
  • Operating System Linux/Windows/Android/ROS1/ROS2
  • Datasheet
  • Software



Dimension

  • Dimension MIPI: 60mm X 15mm X 10mm

Weight

  • WEIGHT MIPI: 4.9g / USB: 10.3g



Power

  • Power Consumption 1.5W (Average) / 15W(Peak)
  • Input Power Voltage 5 VDC
  • Operating Temperature 0°C ~ 40°C
  • Ambient Lighting Conditions Indoor and Outdoor
  • Eye Safety Certification IEC 60825-1:2014 (3rd Edition) Class 1
What is the operating range of the S100D ToF camera?
The operating range is 0.25 to 4.0 meters. The device uses a 940 nm illuminator for depth sensing.
What interfaces are supported by this camera?
It supports MIPI CSI-2 for the S100DM model and USB3.0 for the S100DU model, with data interfaces of MIPI CSI-2 or USB3.0.
What is the depth resolution and the field of view?
It provides true VGA depth resolution of 640 by 480 and a field of view of 60 degrees horizontal by 45 degrees vertical.
What are the operating conditions and eye safety status?
Operating temperature is 0 to 40 C and the device is Class 1 eye safe per IEC 60825 1 2014.
Are there customization options and bulk pricing?
Customizations are possible for this product and bulk order pricing varies.
