Wi-Fi 6 Wireless MiniPCIe RTL8852BE NIC
Dual-Band | Bluetooth 5.2 | Wi-Fi 6
Features at a glance
- Supports 2.4GHz / 5GHz dual-band, the speed up to 574Mbps in the 2.4GHz band and 1200Mbps in the 5GHz band
- Supports Bluetooth 5.2 standard, compatible with Bluetooth 2.1 + EDR
- Supports 802.11ac/ax 2×2 Wave-2 MU-MIMO
- Supports Linux, Windows 10/11, etc.
- Adopts MiniPCIe interface
Parameters Comparison
| Specification |
AX210 |
AX200 |
RTL8852BE |
| Wi-Fi Version |
Wi-Fi 6E |
Wi-Fi 6 |
Wi-Fi 6 |
| Wi-Fi Band |
2.4 GHz / 5 GHz / 6 GHz |
2.4 GHz / 5 GHz |
2.4 GHz / 5 GHz |
| Wi-Fi Rate |
574 Mbps / 2400 Mbps / 2400 Mbps |
574 Mbps / 2400 Mbps |
574 Mbps / 1200 Mbps |
| Interface |
MiniPCIe |
MiniPCIe |
MiniPCIe |
| Bluetooth Version |
5.3 |
5.2 |
5.2 |
| Technical Support |
MU-MIMO |
MU-MIMO |
MU-MIMO |
| Antenna Connector |
IPEX-4 |
IPEX-4 |
IPEX-4 |
| System Support |
Linux, Windows 10/11 |
Linux, Windows 10/11 |
Linux, Windows 10/11 |
| Dimensions |
29.9 × 26.8 × 3.24 mm |
29.9 × 26.8 × 3.24 mm |
29.9 × 26.8 × 3.24 mm |
Adopts RTL8852BE Core
Supports IEEE 802.11a/b/g/n/ac/ax
Dual-band Wi-Fi
Supports 2.4GHz / 5GHz dual band, the speed up to 574Mbps in the 2.4GHz band and 1200Mbps in the 5GHz band
Bluetooth 5.2, More Stable Connection
Signal transmission is stable without lag, can be connected to Bluetooth devices such as mobile phones, computers, gamepads, etc. for wireless connection and transmission
Supports MU-MIMO Technology
Adopts the new generation of MU-MIMO wireless technology, compared with the traditional SU-MIMO mode, it provides better network quality, faster network speed (more than three times), and higher transmission and download efficiency
Interface Introduction

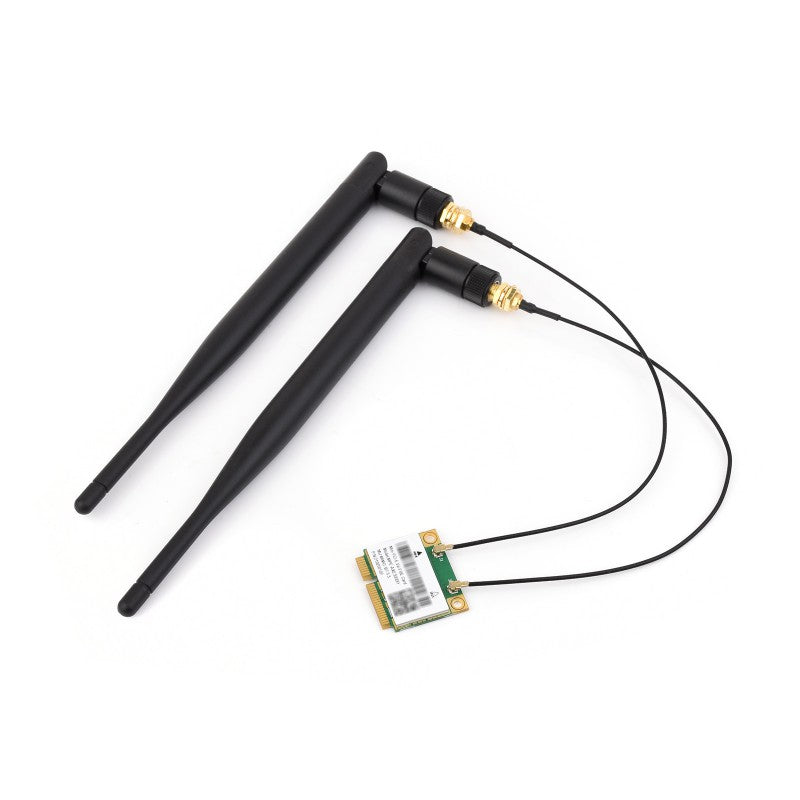

Access to Antenna Via IPEX Connector
Outline Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/Wireless-MINIPCIE-RTL8852BE
Note: This product may not be compatible with certain laptop models or systems that have BIOS-level wireless module restrictions (whitelisting).
Please check your device’s hardware specifications and BIOS compatibility before purchase.
Package Content
Weight: 0.052 kg
Wireless-MINIPCIE-RTL8852BE × 1
IPEX 1 to SMA cable × 2
6DB antenna × 2
Screwdriver × 1

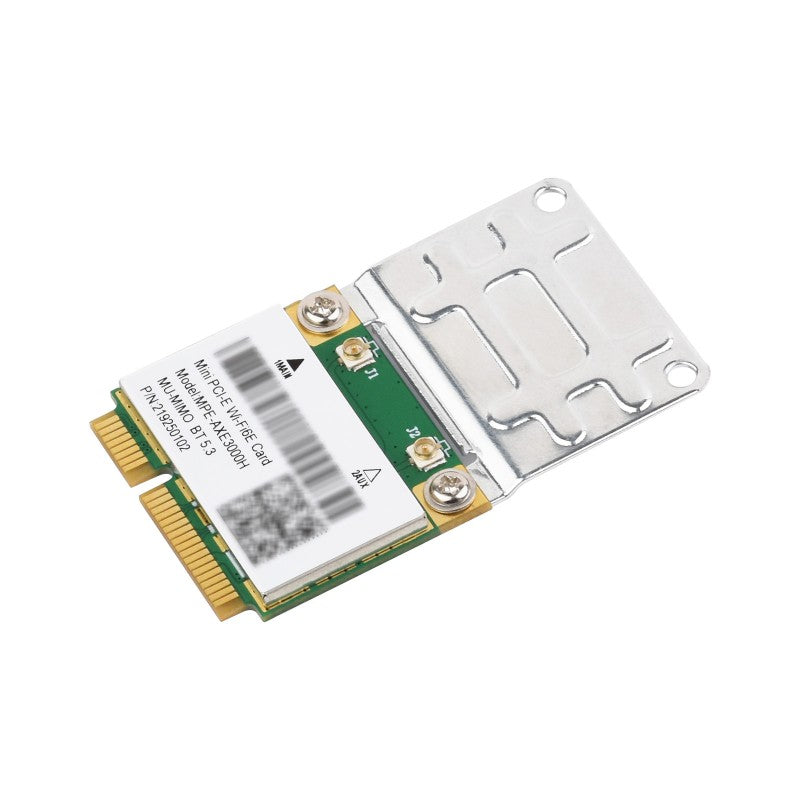

MINIPCIe mounting bracket × 1
Screws pack × 1
