Seal 3D Scanner
3D scanner with an accuracy of 0.01mm
Introducing Seal
The World's First 0.01mm Accurate Consumer 3D Scanner
Blue Light Encoded Structured Light
5x More Detail Per Unit
With its shorter wavelength (400 to 500 nano), it projects refined structured light, achieving 0.01mm accuracy. This advanced technology captures even the tiniest dents, textures, and edges, providing unparalleled detail in high-resolution 3D models.
0.01mmAccuracyAchieve exceptional 0.01mm accuracy for precise object reproduction. |
0.05mmResolutionExperience impressive detail with a 0.05mm minimum point spacing. |
24-bitColor depthTexture camera captures lifelike model texture with 16,777,216 colors. |
Incredible PrecisionPrecision Blue imaging system delivers 0.01mm accuracy and up to 5x the resolution of comparable scanners. Get highly detailed models with ease. |
||
Vivid Textures24-bit color camera adds vivid colors, contrast, and intricate details to models. |
Smooth Scan
Smooth scanning with Seal's advanced optical system and JMStudio algorithms.
Anti-Shaking LensesOptical stabilization filters out unwanted jitter for smooth, continuous scanning. |
Lightning-Fast SpeedCollecting 100,000 points per second, it swiftly scans body parts and more. |
Brilliant in Darkness9-level light adjustment for versatile scanning in varying colors, materials, and lighting conditions. |
Light & QuietTake Seal's 254g lightweight design anywhere you need to scan! Experience smooth and quiet scanning with excellent heat dissipation and no fan noise. |
|
Designed for Easy Scanning.Scan quality depends heavily on software, which is why our proprietary JMStudio is essential. Years of continuous iteration have resulted in enhanced scanning and editing capabilities. Support for 8 languages and lifetime free OTA updates. |
Compatible Software
JMStudio supports exporting files in formats like OBJ, STL, ASC, empowering you to edit, refine, render, or print your scans using your preferred design software.
Intelligent Accessories
3D Scanning Redefined through Intelligence

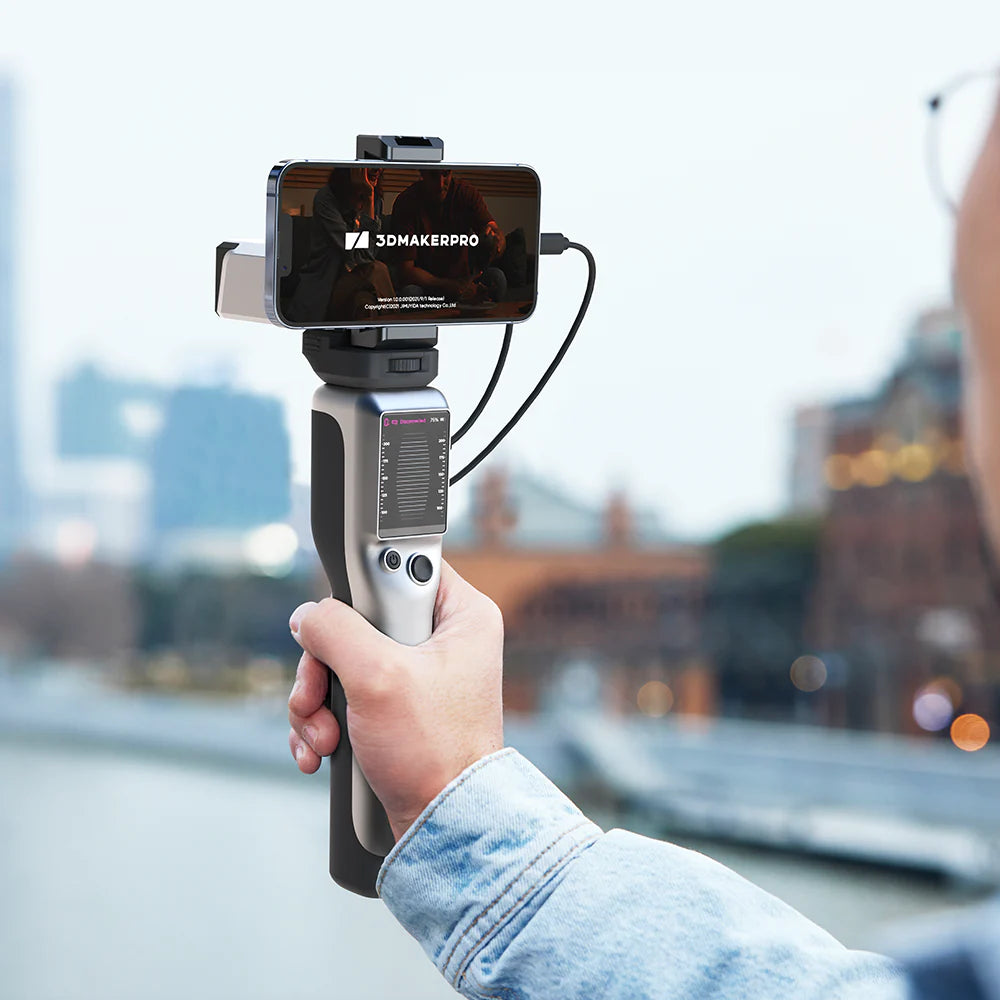

Smart GripSmart Grip connects Seal to your smartphone, enabling on-the-go scanning. |

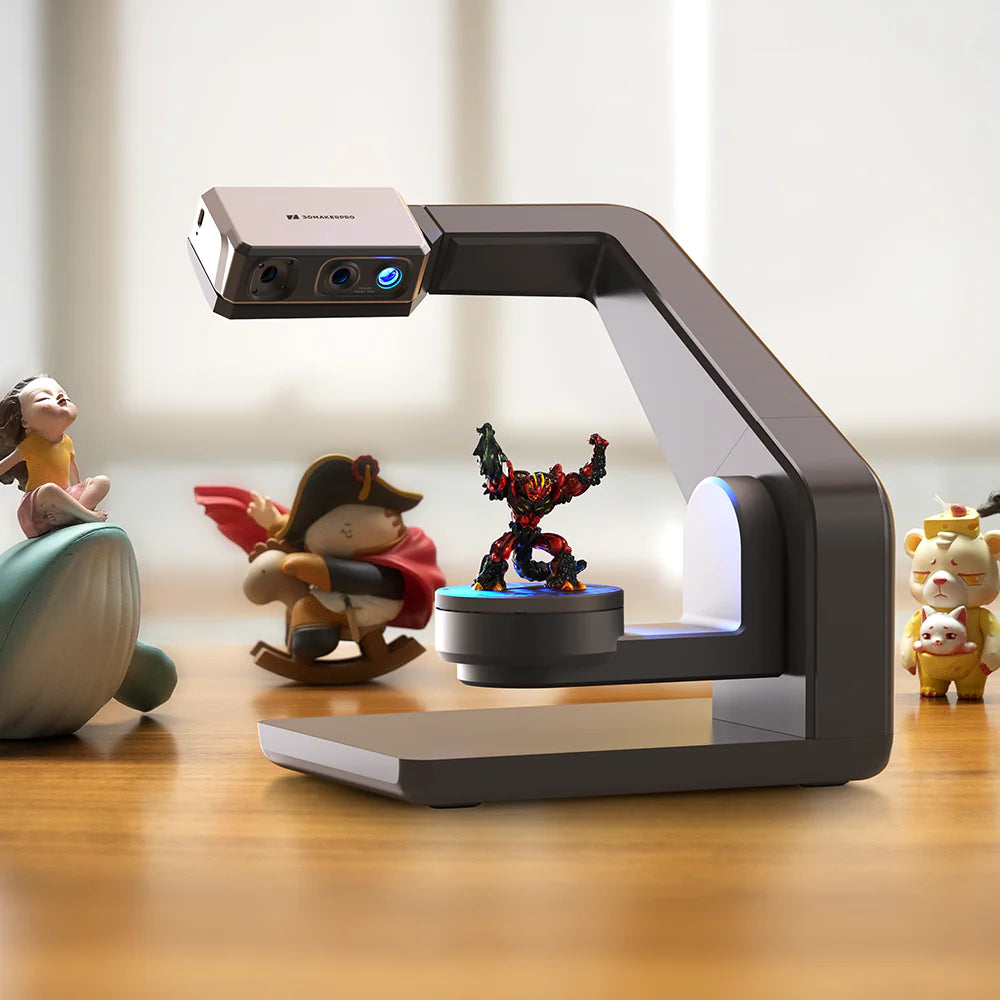

Multi-Axis TurntableEasily scan objects with automation that lets beginners scan like a pro, and advanced customization with script editing for experts. |
Package Includes:
- 1 x Seal 3D Scanner
- 1 x PD65W charger
- 1 x Data Cable
Seal and Seal Lite in comparison:
Seal | Seal Lite | |
Dimensions | 110x60x35mm | |
Weight | 200 g | 190g |
Housing | Plastic | Aluminium alloy |
Accuracy | 0.01mm | 0.02mm |
Resolution | 0.05mm | 0.07mm |
Frame rate | 10 frames/sec. | |
Tracking mode | Visual tracking | |
Working distance | 180-280mm | |
Individual detection area | 100x75mm | |
Light source | Blue light | |
Colour texture | Supports 24-bit colour scan | Mono textures |
USB interface | USB 2.0 | |
Output format | OBJ, STL, PLY, ASC | |
Compatible operating system | Windows10/11 64bit, MacOS12/13 | |
Minimum computer requirements | Intel Core i5 8th, 16GB RAM MX250 GPU with 2GB VRAM |
