Shock Absorption Metal Robot Tank Chassis

SKU: RBC1013

ā‚¹ 13,995.99 ā‚¹ 14,999.00

Out of stock

šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
Shock Absorption Metal Robot Tank Chassisā‚¹ 13,995.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

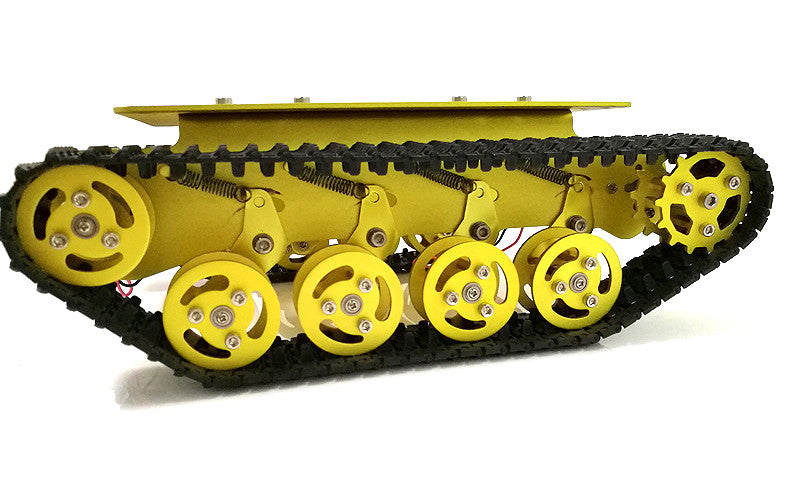

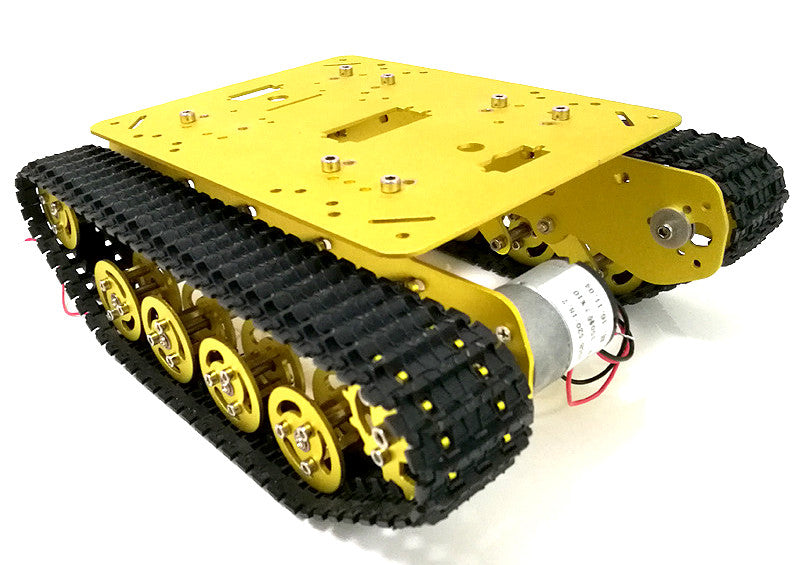

This chassis is designed keeping Arduino boards in mind, slot for 9g and MG995 servos for adding ultrasonic sensors and robotic arms, and plenty of screw holes to create exotic robot vehicles.Ā

The robot can accept 25mm and 37mm gear motors, and the shock absorption design allows for a smooth ride on rough, difficult terrains.

  • Body and wheels are made ofĀ aluminium
  • Tracks are made of plastic
  • 2x 25mm encoder motors
    • Name:25mm gear motor
    • Output speed: 150Ā±10%rpm
    • No_load current: 200mA (Max)
    • Stall current: 4500mA(max)
    • Stall torque: 9.5 kg-cm
    • At LoadĀ Speed: 100Ā±10%rpm
    • At Load Torque: 3Ā kg-cm
    • At Load Current: 1200mA (Max)
    • Noise :56dB
    • RatedĀ Voltage: 9V
    • Outside Shaft Length: 14.5mm
    • Shaft End Play: 0.05-0.50mm
    • Screw Sizeļ¼š M3.0
    • Dia. Of Shaft: 4mm, D3.5
    • Encoder: 2pulses/rotation
    • Encoder Voltage: 3-5V
  • AluminiumĀ Base for building your custom robot

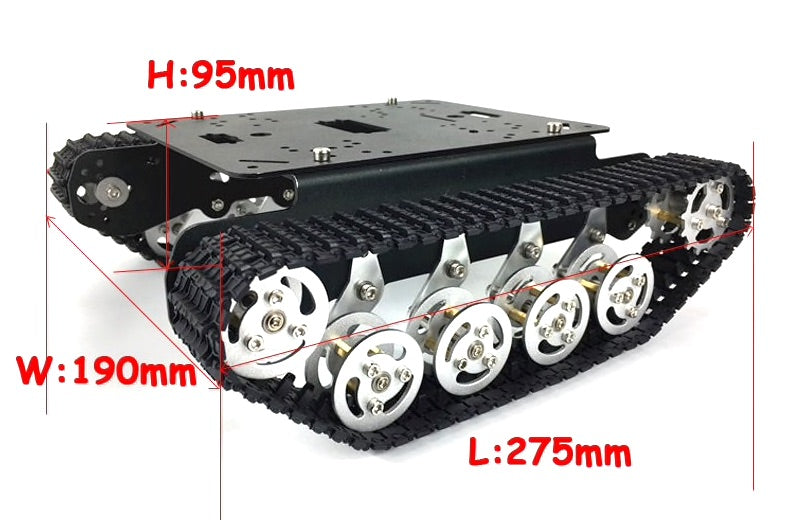

  • Size: 275mm X 190mm X 95mm (L X W X H)
  • Weight: 1100 grams
Is this chassis compatible with Arduino boards and what servos can it accommodate?
It is designed with Arduino boards in mind and provides slots for 9g and MG995 servos for sensors and arms. The chassis can use 25mm and 37mm gear motors.
What motors are included and what are the motor specifications for the 25mm gear motors?
Includes two 25mm encoder motors. The 25mm gear motors have a nominal speed of 150 rpm, stall current up to 4500 mA, stall torque about 9.5 kg cm, and at load speed around 100 rpm.
What are the dimensions and weight of the chassis?
The size is 275 mm by 190 mm by 95 mm and the weight is 1100 grams.
What materials and design features improve performance on rough terrain?
The body and wheels are aluminium, tracks are plastic, and the shock absorption design provides a smooth ride on rough terrain.
Are warranty or delivery details provided for this product?
Warranty and delivery terms are not specified in the product description.
