SIM7600E-H 4G HAT for Raspberry Pi, LTE Cat-4 4G / 3G / 2G, GNSS

SKU: WVSH0511

ā‚¹ 9,149.99

In stock | Ready to ship

āš  Only a few left in stock. Order soon.
ā± High demand right now.
šŸ“¦ Min order 1
Chat with us on WhatsApp We reply quickly! Contact Us
SIM7600E-H 4G HAT for Raspberry Pi, LTE Cat-4 4G / 3G / 2G, GNSSā‚¹ 9,149.99
Ask AI about this product
Open in ChatGPT Open in Claude Open in Gemini

4G HAT for Raspberry Pi

Enabling LTE Cat-4 4G / 3G / 2G Communication & GNSS Positioning

Based on SIM7600E-H

Ā

Features at a glance

GPIO Header Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Network Features Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
Positioning Systems Supports GPS, BeiDou, Glonass, GALILEO, QZSS, and LBS base station positioning
USB Interface Onboard USB for AT command testing, GPS data reading, etc.
UART Debugging Onboard CP2102 USB to UART converter for serial debugging
Breakout Pins UART control pin breakout to interface with Arduino/STM32
SIM Card Support SIM card slot supports 1.8V/3V SIM cards
TF Card Slot For data storage such as files and messages
Audio Interface Onboard audio jack and audio decoder for telephone call functionality
Status Indicators 2Ɨ LED indicators to monitor operating status
Voltage Translator Configurable operating voltage: 3.3V or 5V via jumper
Baudrate 300bps ~ 4Mbps (default: 115200bps); autobauding: 9600bps ~ 115200bps
AT Command Support 3GPP TS 27.007, 27.005, and V.25TER command sets
SIM Application Toolkit SAT Class 3, GSM 11.14 Release 99, USAT
Development Resources Includes manual and examples for Raspberry Pi, Jetson Nano, Arduino, STM32

Ā

Specifications

Category Specification
Frequency Band LTE Cat-4
LTE-FDD: B1/B3/B5/B7/B8/B20
LTE-TDD: B38/B40/B41
3G: UMTS/HSPA+: B1/B5/B8
2G: GSM/GPRS/EDGE: 900/1800 MHz
GNSS Satellite Systems: GPS/Beidou/GLONASS/GALILEO/QZSS
Receiver Type: 16-channel, C/A Code
Sensitivity: -159 dBm (GPS), -158 dBm (GLONASS), Cold starts: -148 dBm
Time-To-First Fix (Open Air) Cold starts: <35s
Hot starts: <1s
SMS and Audio SMS Types: MT, MO, CB, Text, PDU
Storage: USIM card and ME (default)
Audio: Supports echo cancellation and noise reduction
Power & Environment Power Supply: 5V
Operating Voltage: 5V / 3.3V (jumper configurable)
Operating Temperature: -30Ā°C to 80Ā°C
Storage Temperature: -45Ā°C to 90Ā°C
Dimensions 56.21mm Ɨ 65.15mm


Standard Raspberry Pi 40PIN GPIO

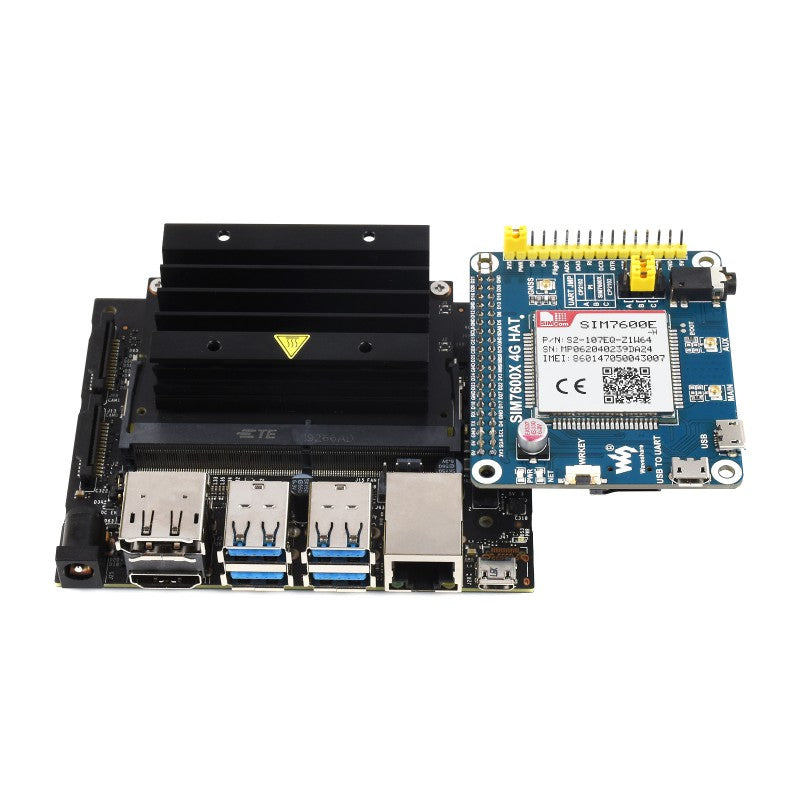

Compatible with Raspberry Pi series boards, Jetson Nano

Ā

Dial-up on Windows/Linux

LTE Cat-4: up to 50Mbps (uplink) / up to 150Mbps (downlink) *
3G (HSPA+): up to 5.76Mbps (uplink) / up to 42Mbps (downlink) *

Stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

Ā

Cloud Communication

Supports communication protocols including TCP/UDP/FTP/FTPS/HTTP/HTTPS

Ā

GNSS positioning

Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning

Ā

Telephone Call & SMS Support

Making telephone call or sending SMS by AT commands, with onboard audio jack

Ā

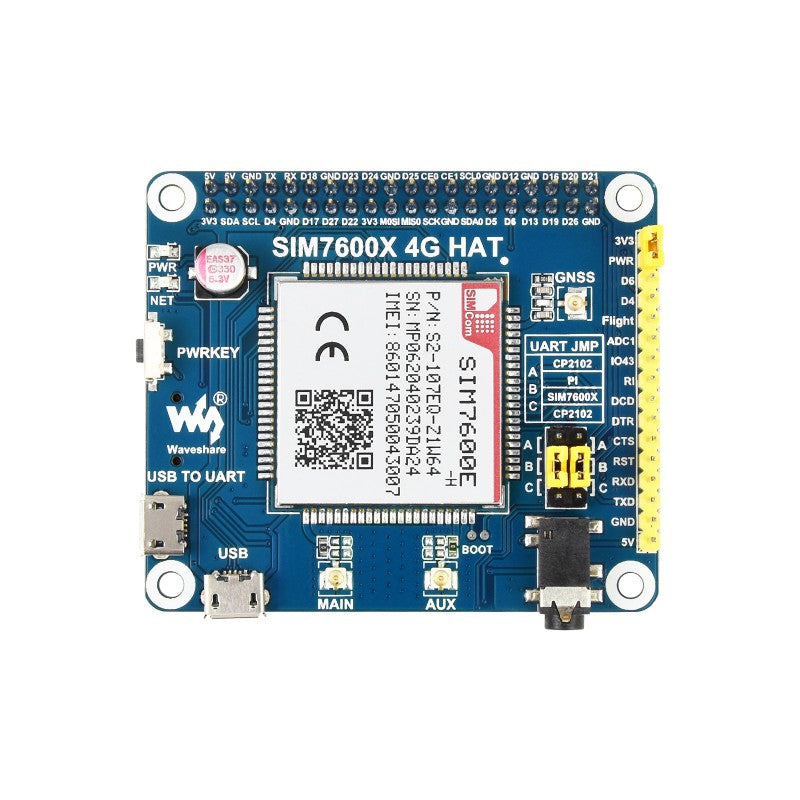

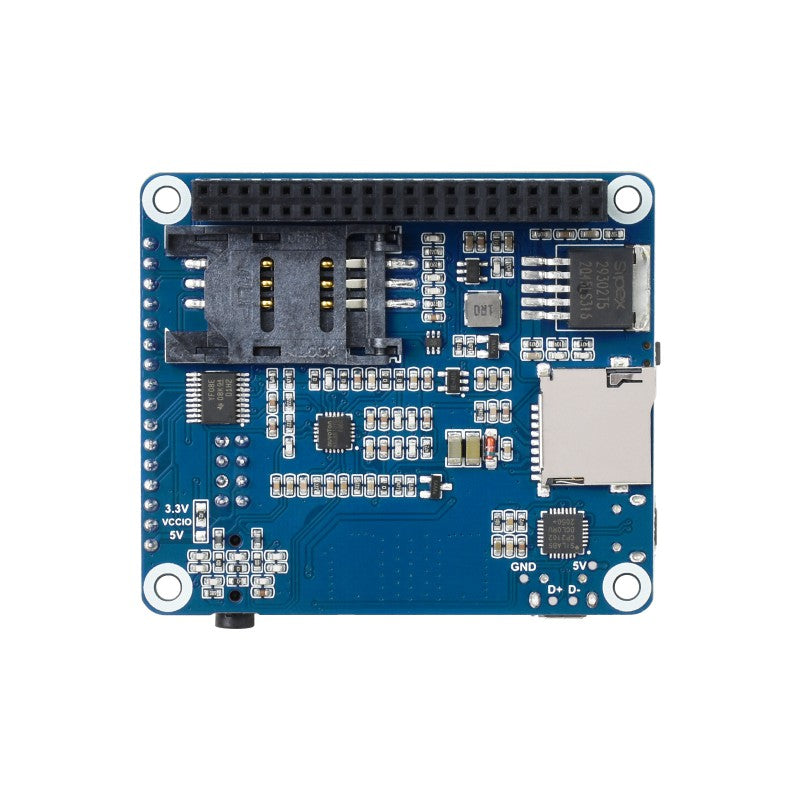

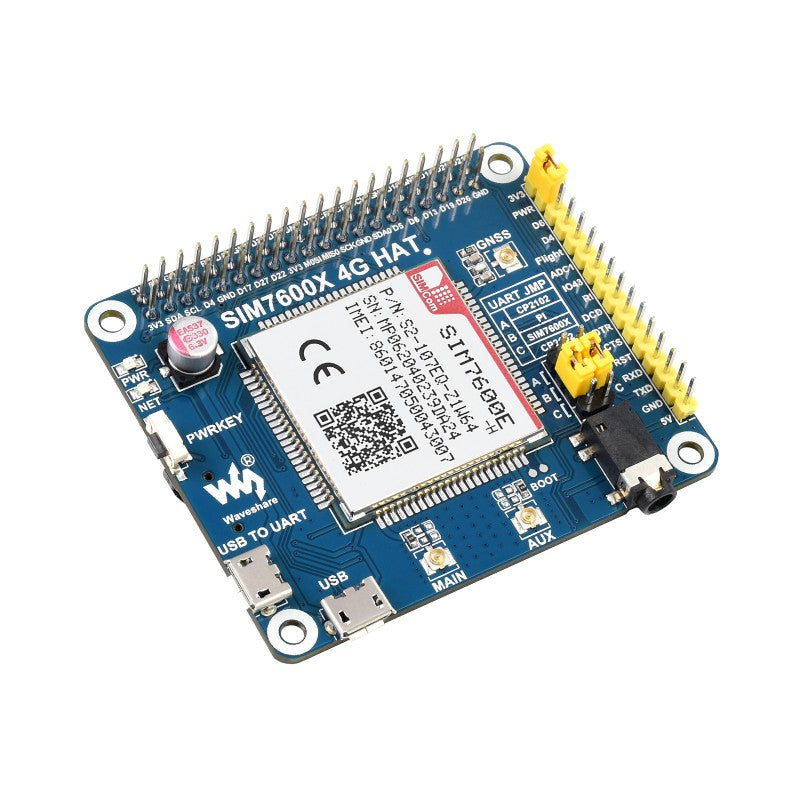

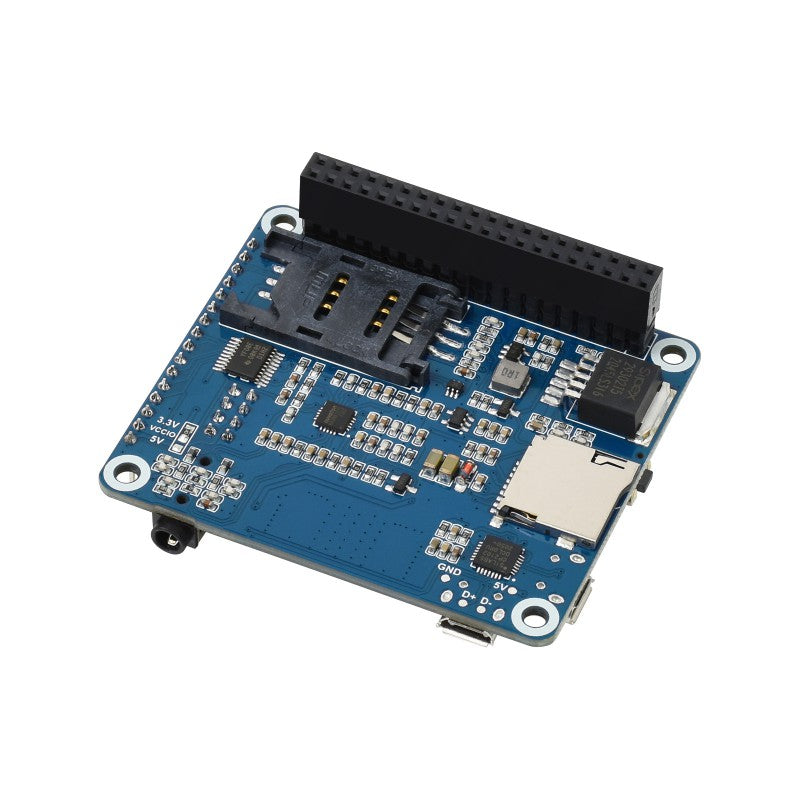

What's on board

Component Description
SIM7600E-H 4G LTE module supporting global bands
CP2102 USB to UART converter
NAU8810 Audio decoder for voice functions
TXS0108EPWR Voltage level translator (translates 3.3V/5V to 1.8V)
MP2128DT Power chip for power regulation
SPX29302 Low dropout voltage regulator
Raspberry Pi GPIO Header Standard 40-pin header for Pi compatibility
SIM7600 Control Interface For interfacing with Arduino, STM32, etc.
SIM Card Slot Supports 1.8V/3V SIM cards
TF Card Slot For storing messages, files, and logs
3.5mm Audio Jack Supports microphone and earphone
USB Interface For AT command testing and GPS data access
USB to UART Interface Used for serial debugging or Pi terminal access
Main Antenna Connector Primary LTE antenna
AUX Antenna Connector Diversity antenna
GNSS Antenna Connector For GPS/GLONASS/etc. positioning
Power Switch Manual on/off control
Network Status Indicator LED shows SIM7600 network activity
Power Indicator LED shows board power status
Voltage Selection Jumper Set via 0Ī© resistor jumper: 3.3V or 5V (VCCIO)
UART Selection Jumper A: Access Raspberry Pi via USB to UART
B: Control SIM7600 via Pi GPIO
C: Control SIM7600 via USB to UART
PWR Configuration Jumper PWR - 3V3: Auto start on power-up (default)
PWR - D6: Controlled by Pi D6 pin (startup/shutdown)
Flight Mode Configuration Jumper NC: No control (default)
Flight - D4: Controlled by Pi D4 pin
USB Connector Pads Direct solder pads for USB connection
BOOT Pads Used to force programming/firmware update

Ā

Pinout definition

Ā

Outline Dimensions

Ā

Resources & Services

Ā

WIKI: SIM7600E-H_4G_HAT

Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Ā

Selection Guide

Feature SIM7600CE-JT1S SIM7600CE-T SIM7600E SIM7600E-H SIM7600A-H SIM7600NA-H SIM7600G-H
Applicable Regions China Europe/Southeast Asia/West Asia/Africa/China/South KoreaĀ  Europe/Southeast Asia North America (AT&T) North America North America Global
LTE Cat-4 Bands B1/B3/B5/B8
B38/B39/B40/B41		 B1/B3/B5/B7/B8/B20
B38/B40/B41		 B1/B3/B5/B7/B8/B20 B2/B4/B12 B2/B4/B5/B12/B13/B14/B25/B26/B66/B71
B41		 B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
B34/B38/B39/B40/B41		 B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
B34/B38/B39/B40/B41
3G Support UMTS B1/B8
TD-SCDMA B34/B39
CDMA 1X/EVDO BC0		 UMTS B1/B5/B8 UMTS B1/B5/B8 N/A UMTS B1/B2/B4/B5/B6/B8/B19 UMTS B1/B2/B4/B5/B6/B8/B19 UMTS B1/B2/B4/B5/B6/B8/B19
2G Support 900/1800 MHz N/A 850/900/1800/1900 MHz N/A N/A N/A N/A
GNSS N/A GPS/Beidou/GLONASS/GALILEO/QZSS GPS/Beidou/GLONASS/GALILEO/QZSS GPS/Beidou/GLONASS/GALILEO/QZSS GPS/Beidou/GLONASS/GALILEO/QZSS GPS/Beidou/GLONASS/GALILEO/QZSS GPS/Beidou/GLONASS/GALILEO/QZSS
LTE Cat-4 Data Rate 150Mbps (DL) / 50Mbps (UL) N/A 150Mbps (DL) / 50Mbps (UL) 150Mbps (DL) / 50Mbps (UL) 150Mbps (DL) / 50Mbps (UL) 150Mbps (DL) / 50Mbps (UL) 150Mbps (DL) / 50Mbps (UL)
3G Data Rate (HSPA+) 42Mbps (DL) / 5.76Mbps (UL) N/A 42Mbps (DL) / 5.76Mbps (UL) N/A 42Mbps (DL) / 5.76Mbps (UL) 42Mbps (DL) / 5.76Mbps (UL) 42Mbps (DL) / 5.76Mbps (UL)
2G Data Rate (EDGE/GPRS) EDGE: 236.8Kbps
GPRS: 85.6Kbps		 N/A EDGE: 236.8Kbps
GPRS: 85.6Kbps		 N/A N/A N/A N/A
Network Protocol TCP/IP, IPV4/IPV6, Multi-PDP, FTP/FTPS, HTTP/HTTPS, DNS
Dial-up Protocol PPP, NDIS, RNDIS
USB Driver Support Windows XP/7/8/10, Linux (Raspbian driver-free)
SIM Slot Compatible with 1.8V and 3V SIM cards
UART Supports AT commands, compatible with 3.3V/5V
USB Port For AT commands, network use, firmware updates
USB to UART Supports serial debugging or Raspberry Pi login
Audio Jack Supports making phone calls
TF Card Slot Yes N/A Yes Yes Yes Yes Yes
Antenna Connectors LTE Main Antenna LTE Main + LTE Diversity + GNSS Antennas
Applications Healthcare, Smart Payment, Internet Talk, Environmental Monitoring, Energy Monitoring, Fleet Management, Smart Industry, Intelligent Agriculture, etc.

Ā

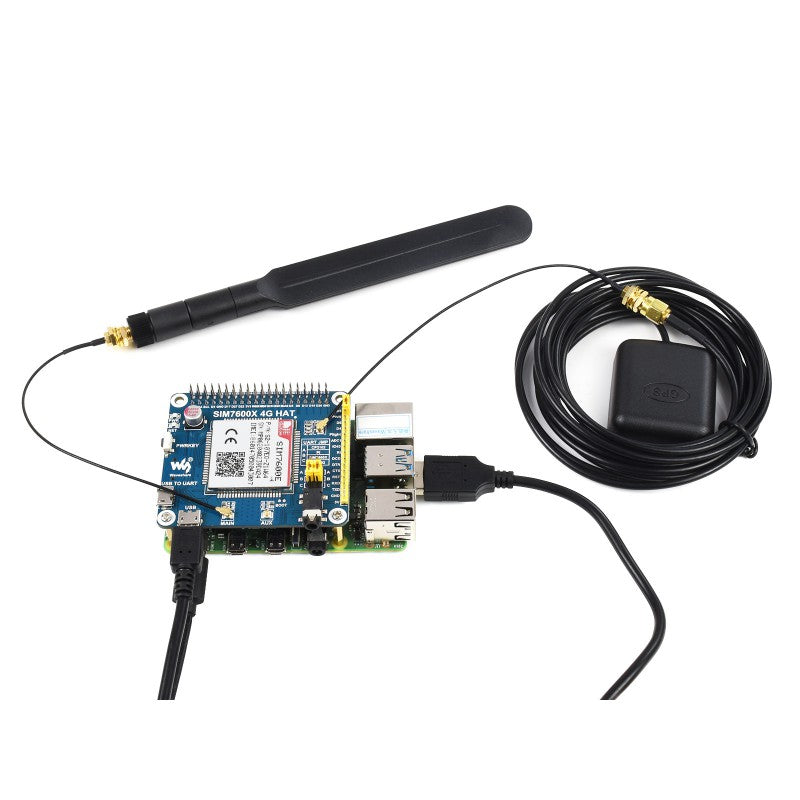

Package Content

Weight: 0.191 kg

SIM7600E-H 4G HAT x1
LTE Antenna x1
GPS External Antenna (B) x1
USB type A plug to micro plug cable x2
RPi screws pack (2pcs) x1

Which boards is this HAT compatible with?
It uses a standard Raspberry Pi 40 pin GPIO header and is compatible with Raspberry Pi boards and Jetson Nano.
What network and positioning technologies are supported?
The module provides LTE Cat-4, 3G and 2G cellular connectivity and GNSS positioning with GPS Beidou GLONASS GALILEO QZSS and LBS base station support.
How do I select the voltage and power options for this HAT?
The device supports 5V or 3.3V VCCIO via a jumper and offers a PWR configuration jumper for auto start or Pi control, plus a power switch on the board.
What interfaces are available for debugging and data storage?
Onboard CP2102 USB to UART provides serial debugging, USB interface for AT commands and GPS data, and there are SIM card and TF card slots for data storage and messaging.
What data rates and protocols are supported for network communication?
LTE Cat-4 supports up to 150 Mbps download and 50 Mbps upload, 3G supports up to 42 Mbps down and 5.76 Mbps up, and 2G supports EDGE and GPRS. Network protocols include TCP IP IPv4/IPv6, HTTP/HTTPS, FTP/FTPS and DNS.
