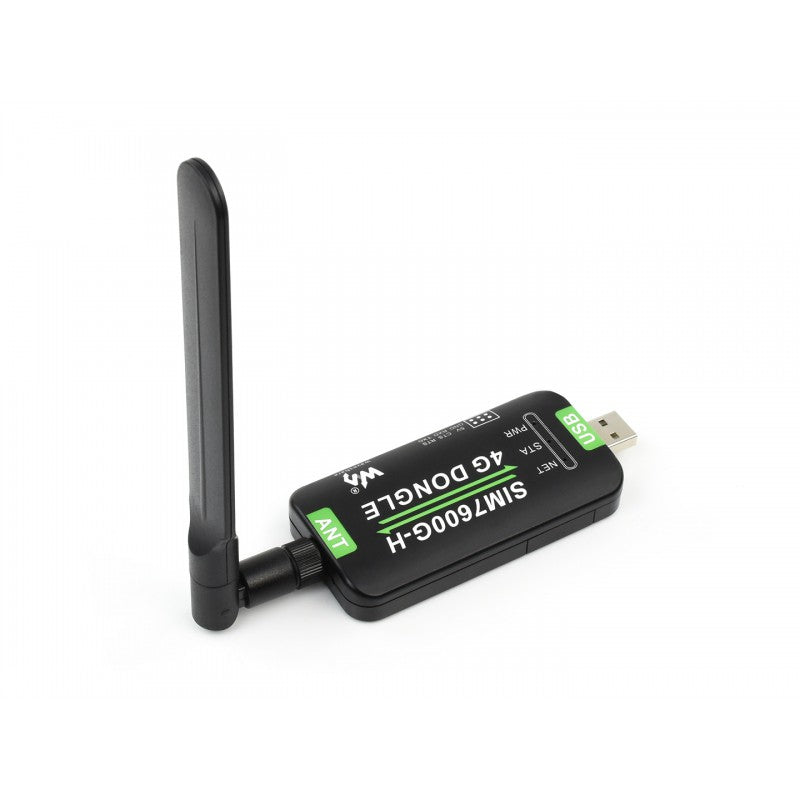

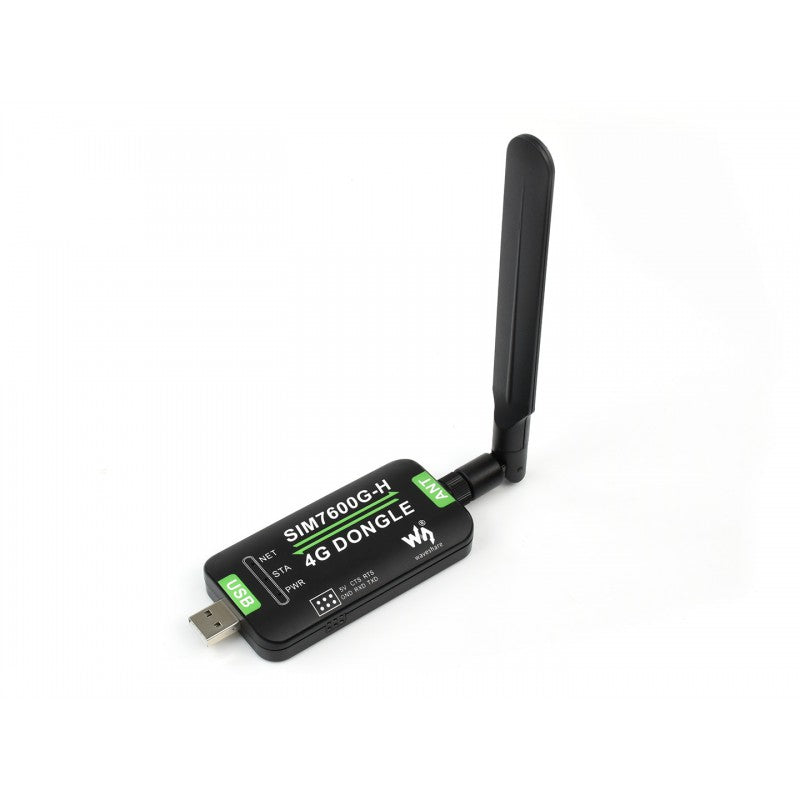

SIM7600G-H 4G DONGLE With Antenna, Industrial Grade 4G Communication And GNSS Positioning Peripheral, Global Band Support
This is a global band industrial grade 4G dongle, which features up to 150Mbps downlink rate and 50Mbps uplink rate, supports operating systems including Windows/Linux. By simply connecting it to laptop, PC, Raspberry Pi, drone, industrial computer, or other IoT host device, it is easy to use 4G network connection on the go.
Features
- Supports 2G/3G/4G network connection, global band
- Driver provided, for operating systems including Windows/Linux
- Supports network protocols such as TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
- Onboard USB port, for directly connecting with ARM/X86 hosts or other industrial computer
- Onboard UART port with hardware flow control, for connecting with host boards like Arduino/STM32
- Onboard GNSS connector, supports GPS, Beidou, Glonass, LBS base station positioning (additional GNSS antenna is required but NOT included)
- Nano SIM card slot, supports 1.8V / 3V nano SIM card
- 3x LED indicators, easy to monitor the working status
- Portable customized enclosure, mini size, nice looking
- Baudrate support: 300bps ~ 4Mbps (115200bps by default)
- Baudrate auto-negotiation: 9600bps ~ 115200bps
Specifications
| SIM7600CE-CNSE | SIM7600G-H | SIM7600E-H | SIM7600A-H | SIM7600NA-H | |
|---|---|---|---|---|---|
| Applicable regions* | China | Global | Europe / the Middle East / Africa / South Korea / Thailand | North America (AT&T) | North America |
| Band | |||||
| LTE Cat-4 / LTE Cat-1 |
LTE-TDD: B38/B39/B40/B41 LTE-FDD: B1/B3/B8 |
LTE-TDD: B34/B38/B39/B40/B41 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/ B13/B18/B19/B20/B25/B26/B28/B66 |
LTE-TDD: B38/B40/B41 LTE-FDD: B1/B3/B5/B7/B8/B20 |
LTE-FDD: B2/B4/B12 |
LTE-TDD: B41 LTE-FDD: B2/B4/B5/B12/B13/ B14/B25/B26/B66/B71 |
| 3G |
UMTS/HSDPA/HSPA+: B1/B8 TD-SCDMA: B34/B39 |
UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19 | UMTS/HSPA+: B1/B5/B8 | UMTS/HSPA+: B2/B5 | |
| 2G | GSM/GPRS/EDGE: 900/1800MHz | GSM/GPRS/EDGE: 850/900/1800/1900MHz | GSM/GPRS/EDGE: 900/1800 MHz | ||
| GNSS | N/A | GPS/Beidou/GLONASS/GALILEO/QZSS | |||
| Data Rate | |||||
| LTE Cat-4 | 150Mbps(DL) / 50Mbps(UL) | ||||
| 3G (HSPA+) | 42Mbps(DL) / 5.76Mbps(UL) | ||||
| 2G (EDGE) | 236.8Kbps(DL) / 236.8Kbps(UL) | ||||
| 2G (GPRS) | 85.6Kbps(DL) / 85.6Kbps(UL) | ||||
| Software Features | |||||
| Operating system | Windows/Linux | ||||
| Network protocol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS | ||||
| Dial-up protocol | NDIS/RNDIS/PPP | ||||
| SMS | Supports MT, MO, CB, Text, PDU | ||||
| Hardware Description | |||||
| Communication interface | USB / UART | ||||
| UART baud rate | 300bps ~ 4Mbps (115200bps by default) | ||||
| Indicator | NET：network indicator | ||||
| STA：status indicator | |||||
| PWR：power indicator | |||||
| SIM card support | Nano SIM card (1.8V / 3V) | ||||
| Antenna connector | LTE | MAIN LTE, GNSS | MAIN LTE, AUX LTE, GNSS | ||
| Power supply | 5V | ||||
| Logic level | 3.3V | ||||
| Outline dimensions | 89.20 × 45.26 × 14.62mm | ||||
Global Band Support
Supports Global 2G/3G/4G Communication
Multi Host Support
Working With Laptop / Raspberry Pi / Industrial Computer...
Up To 150Mbps Downlink And 50Mbps Uplink*
* stands for idealized data rate, the actual data rate may fluctuate greatly, depending on factors like network coverage, traffic congestion, base station condition, etc.
Multi System Support
Supports Windows/Linux
Just plug it into USB port, go through some driver installation and simple configuration, the high speed 4G network connection would be ready to use
Cloud Communication
Supports USB/UART Communication Interfaces
Supports TCP/UDP/FTP/FTPS/HTTP/HTTPS Communication Protocols

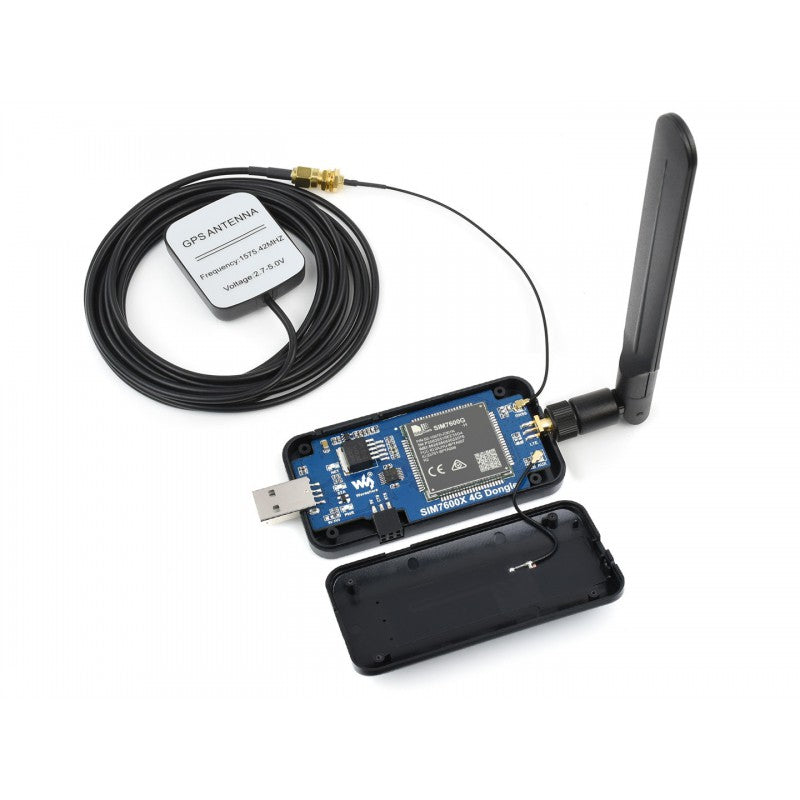

GNSS Positioning
Supports GPS, BeiDou, Glonass, LBS Base Station Positioning
Embedded AUX Antenna
Embedded Customized FPC AUX Antenna, Better Communication Via Dual Antennas

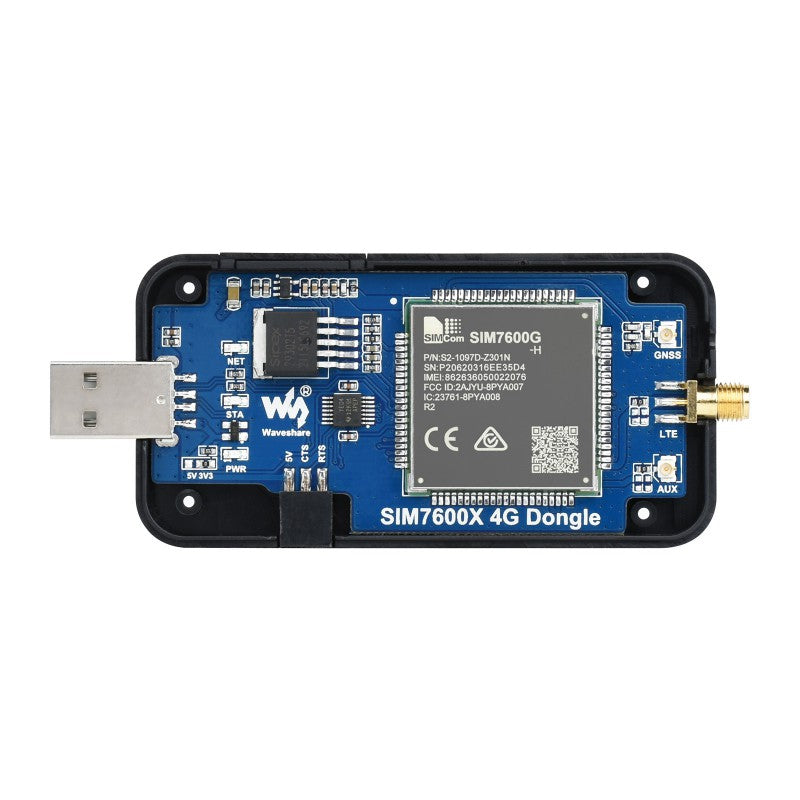

Industrial Grade 4G Solution
Integrates SIM7600G-H Module, Industrial Grade Design, Stable Connection, More Durable

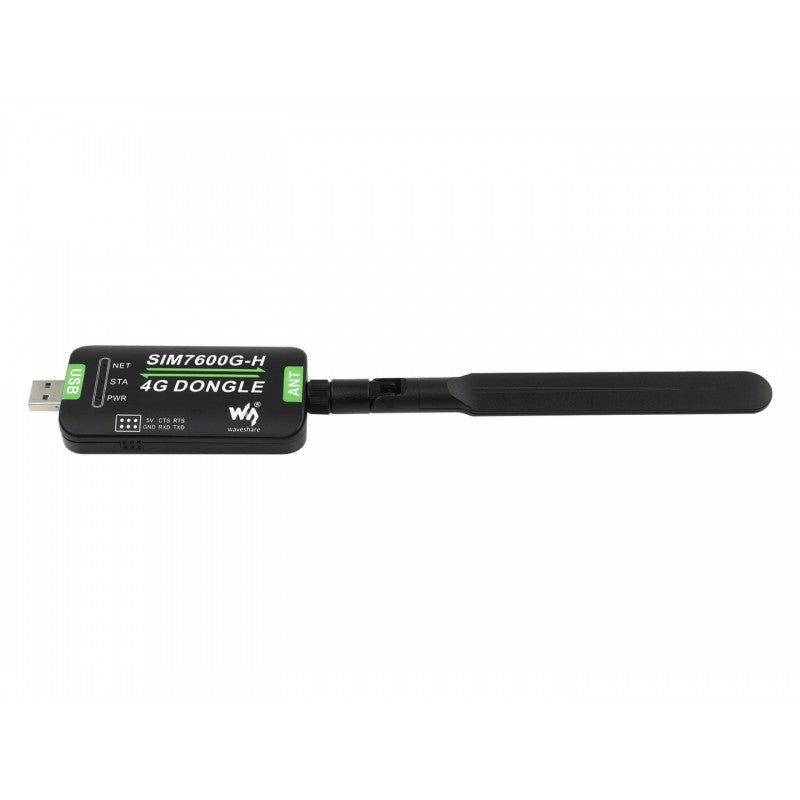

Flexible Antenna
Flexible Structure Antenna Design, Allows Multidimensional Rotation For Better Connection

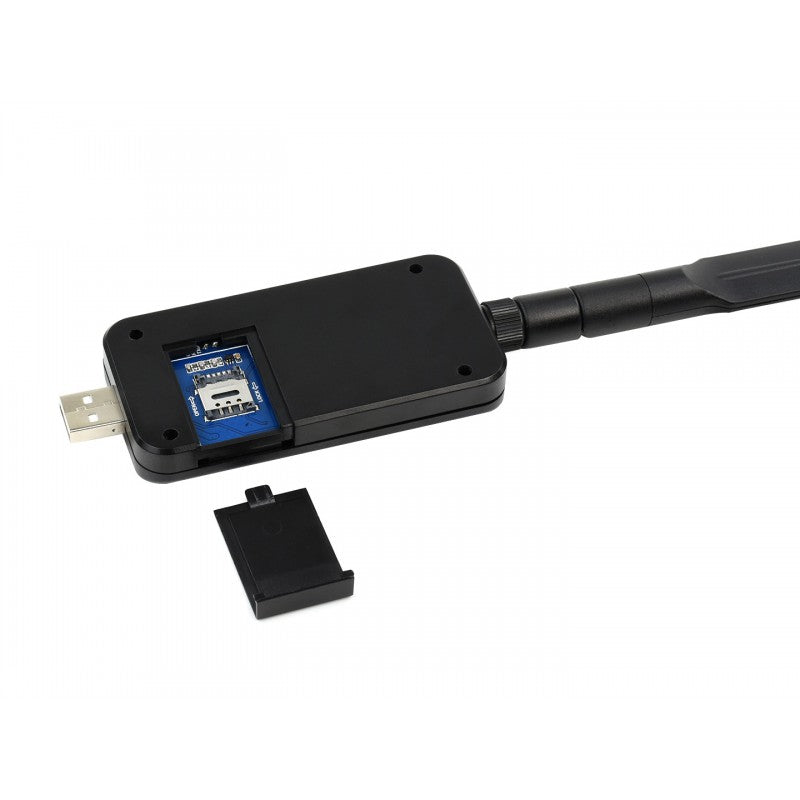

4G SIM Card Slot
Onboard Nano SIM Card Slot With Sliding Cover, Easy To Use

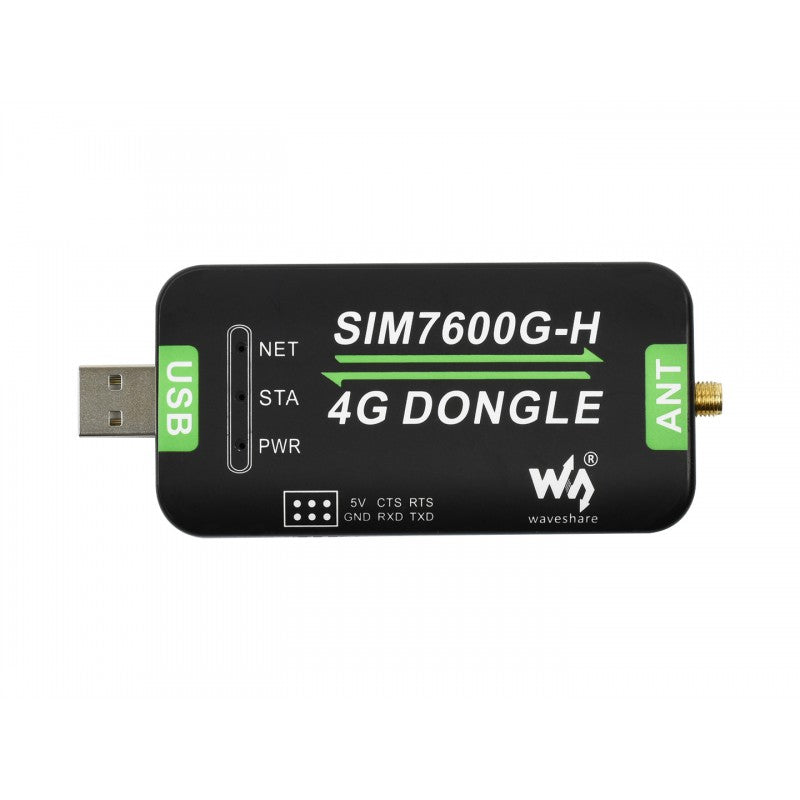

Three LED Indicators
Easy To Check The Operating Status, Convenient For Programming/Debugging
| UART PINOUTS | |
|---|---|
| 5V | 5V DC input |
| GND | power ground |
| TXD | data transmitting |
| RXD | data receiving |
| CTS | hardware flow control, clear to send, NC if not used |
| RTS | hardware flow control, request to send, NC if not used |
Application Examples
Dimensions
Resources
Package Contains:
- SIM7600G-H 4G DONGLE x1
- LTE Antenna x1
- USB extension cable x1
- 6PIN jumper wire x1
- Screws tool kit x1
