GPS External Antenna, Ceramics with Amplifier
GPS External Antenna, Ceramics With Amplifier
Specifications
CERAMICS
CENTER FREQUENCY
1575±1MHz
BAND WIDTH
CF±8MHz
POLARIZATION
RHCP
GAIN
5dBic (Zenith)
V.S.W.R
＜1.5
RESISTANCE
50Ω
AXIAL RATIO
3dB (max)
DIMENSION
25*25*4mm
AMPLIFIER
GAIN
28±2dB
NOISE FACTOR
＜1.0
FILTER INSERTION LOSS
＜3dB
EX-BAND ATTENUATION
35dB@CF±50MHz/50dB@CF±100MHz
POWER SUPPLY VOLTAGE
2.7-5V DC
CURRENT CONSUMPTION
16mA
V.S.W.R
＜2.0
MECHANICAL
TYPE
GPS active antenna
CABLE LENGTH
about 3m
CABLE MATERIAL
RG174 96-weave copper with tin coating
CONNECTOR

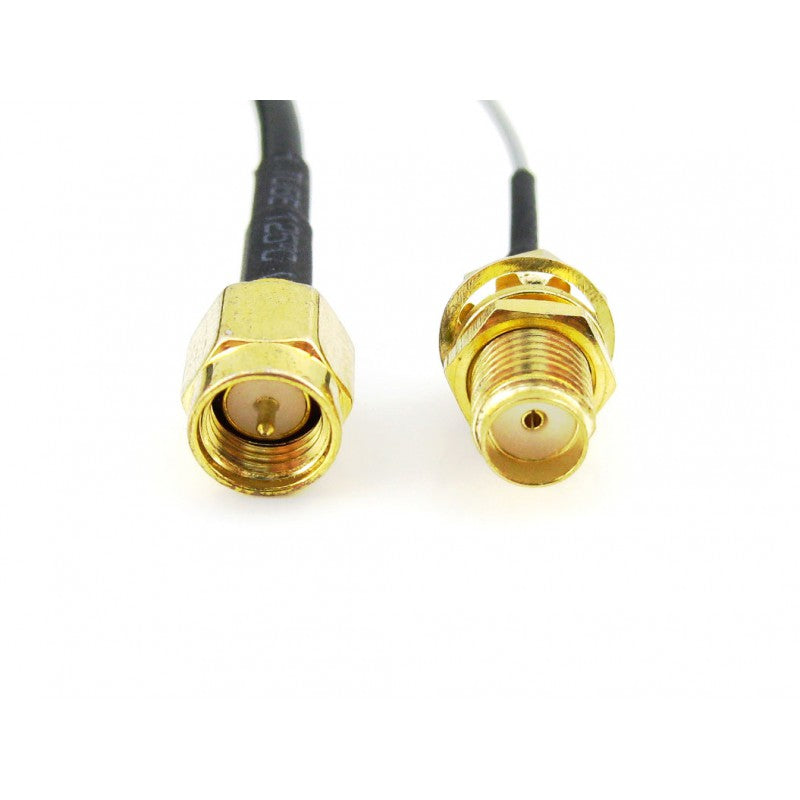

SMA, IPX (via adapter wire)
RADOME MATERIAL
PC
MOUNTING METHOD
Magnet/Adhesive
ENVIRONMENTAL
OPERATING TEMPERATURE
-40℃~+85℃
RELATIVE HUMIDITY
Up to 95%
WATERPROOF RATING
IP65~IP67
VIBRATION
10 to 55Hz with 1.5mm amplitude 2hours
ENVIRONMENTALLY FRIENDLY
ROHS compliant
Applications
GPS antenna
Navigator antenna
Car DVD antenna
Package Includes:

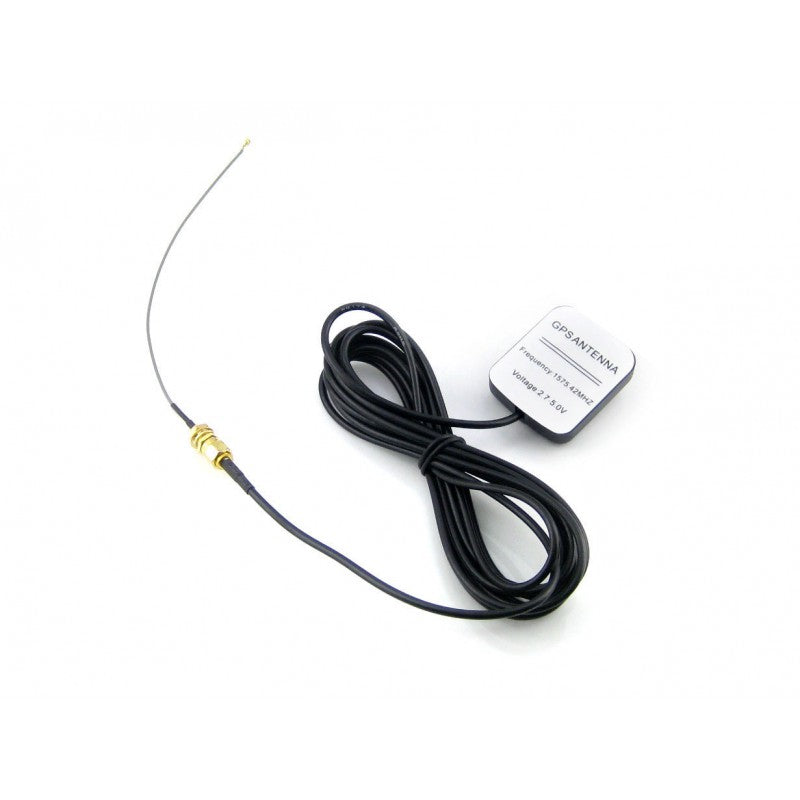

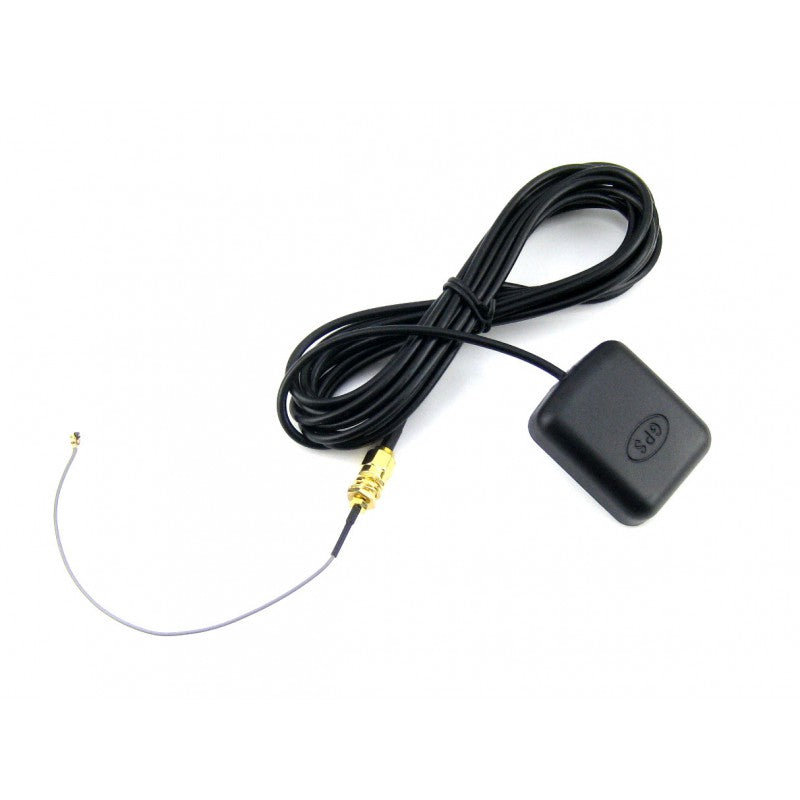

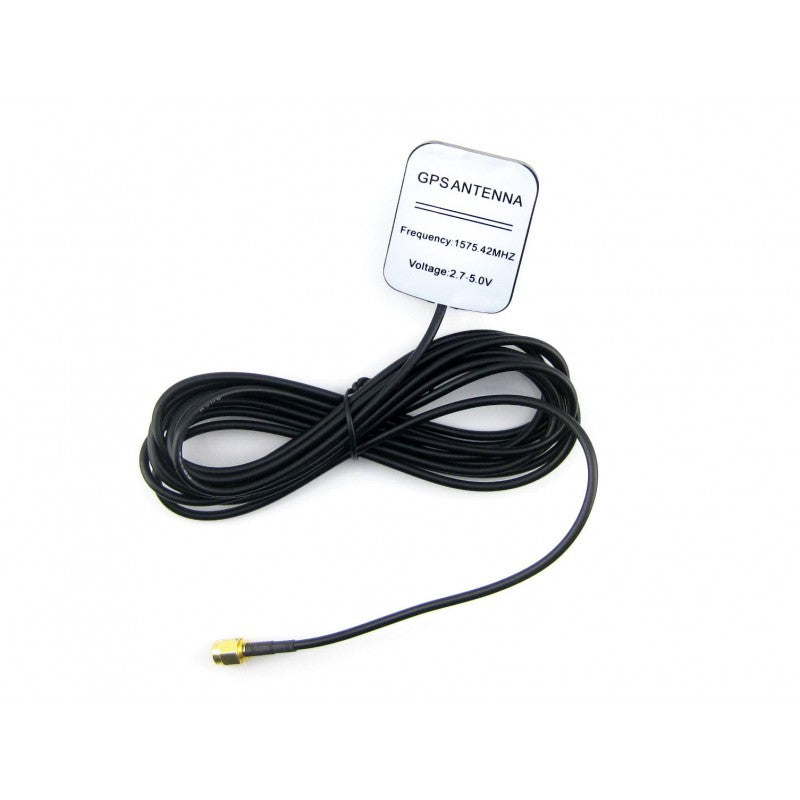

1x GPS External Antenna

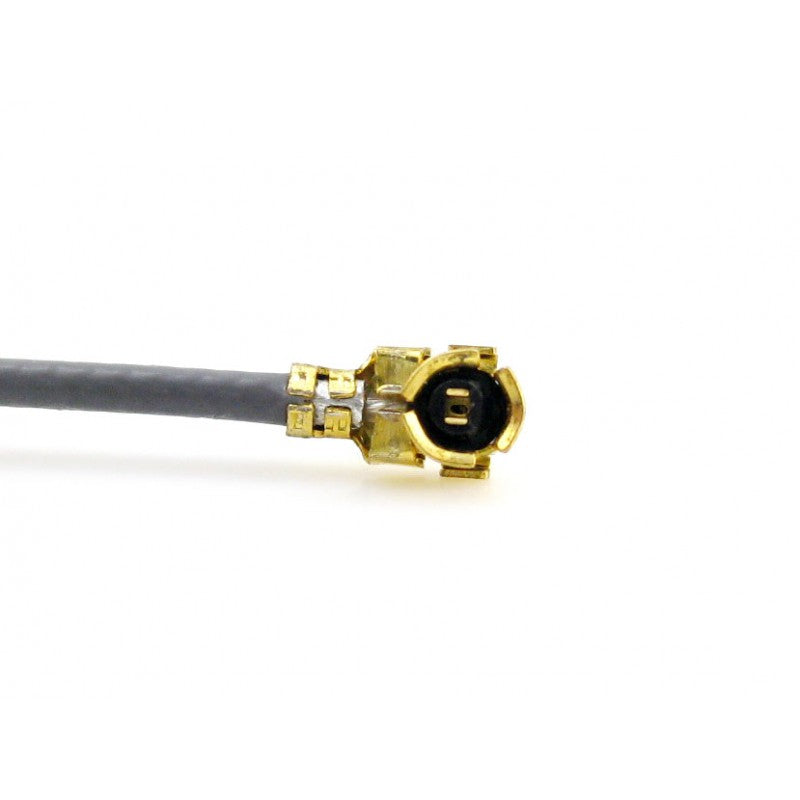

1x IPX to SMA adapter wire
